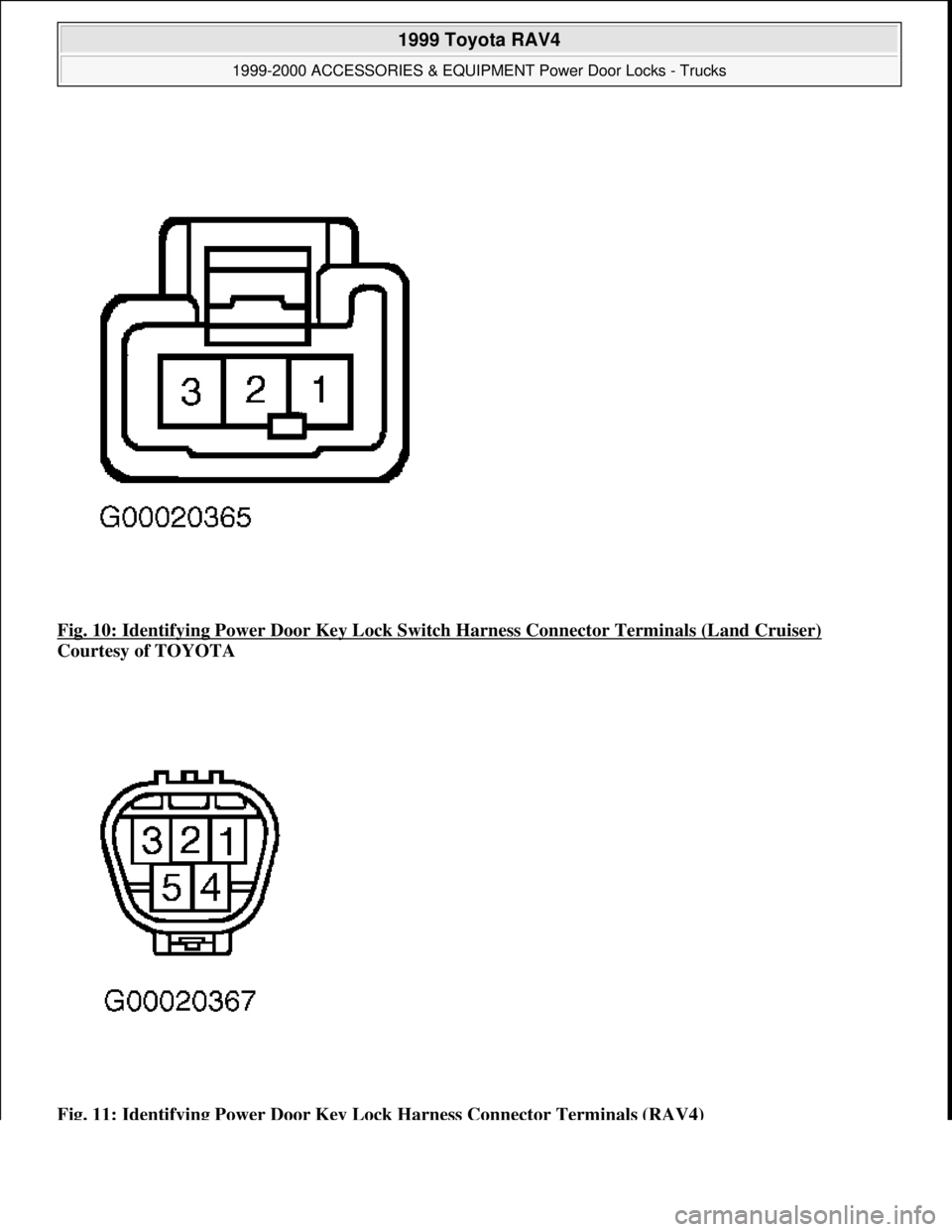

Fig. 10: Identifying Power Door Key Lock Switch Harness Connector Terminals (Land Cruiser)
Courtesy of TOYOTA
Fig. 11: Identifying Power Door Key Lock Harness Connector Terminals (RAV4)


1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 10 © 2005 Mitchell Repair Information Company, LLC.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

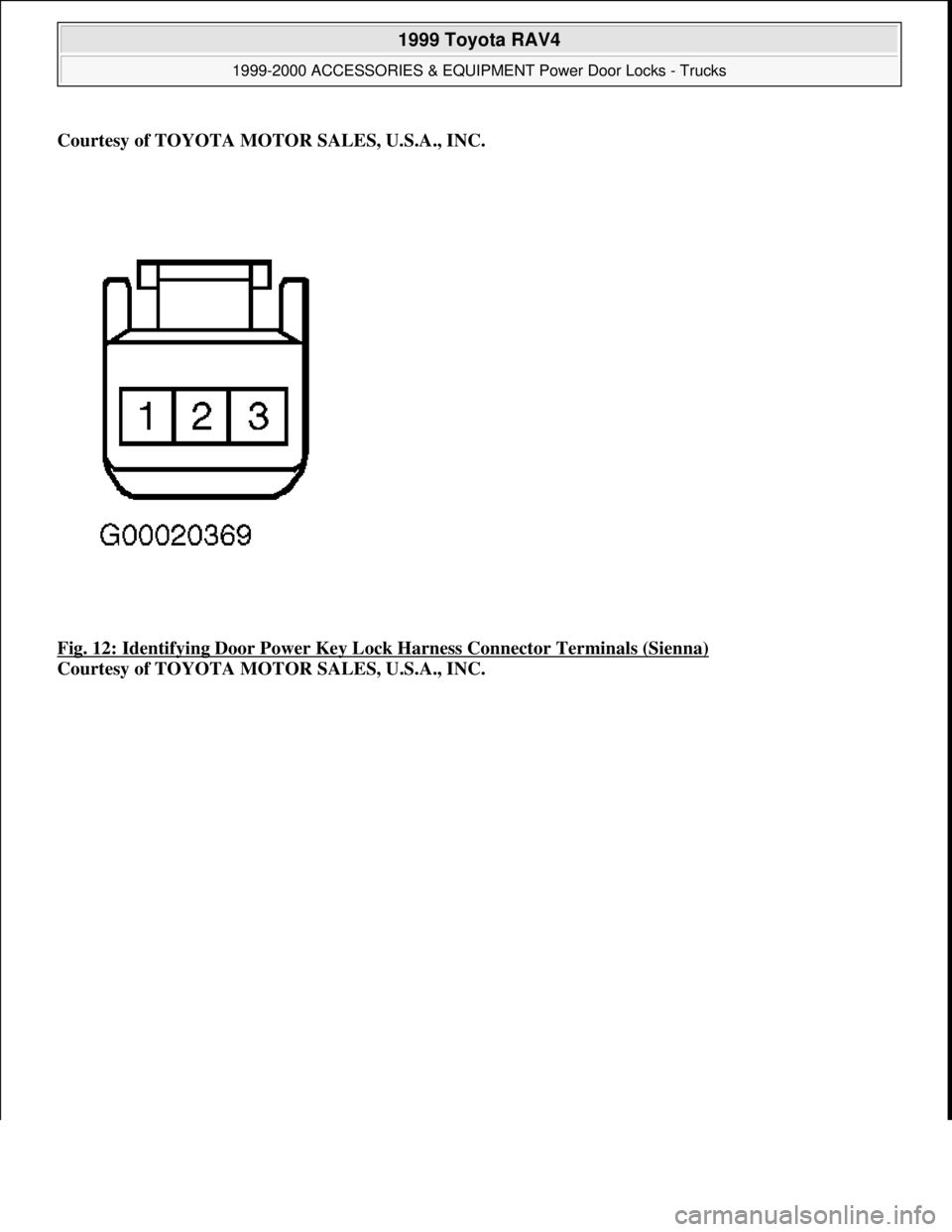

Fig. 12: Identifying Door Power Key Lock Harness Connector Terminals (Sienna)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 11 © 2005 Mitchell Repair Information Company, LLC.

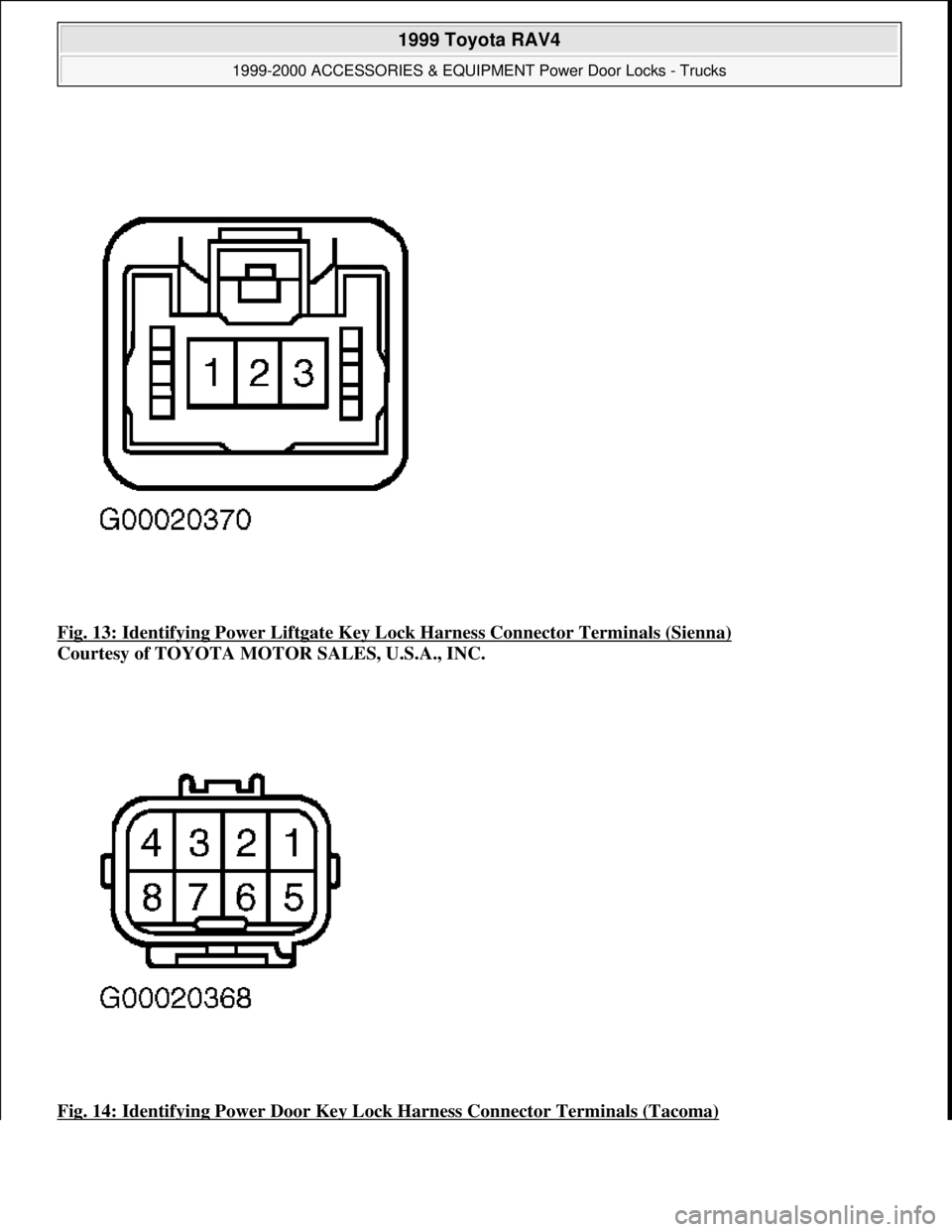

Fig. 13: Identifying Power Liftgate Key Lock Harness Connector Terminals (Sienna)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Fig. 14: Identifying Power Door Key Lock Harness Connector Terminals (Tacoma)


1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 12 © 2005 Mitchell Repair Information Company, LLC.

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

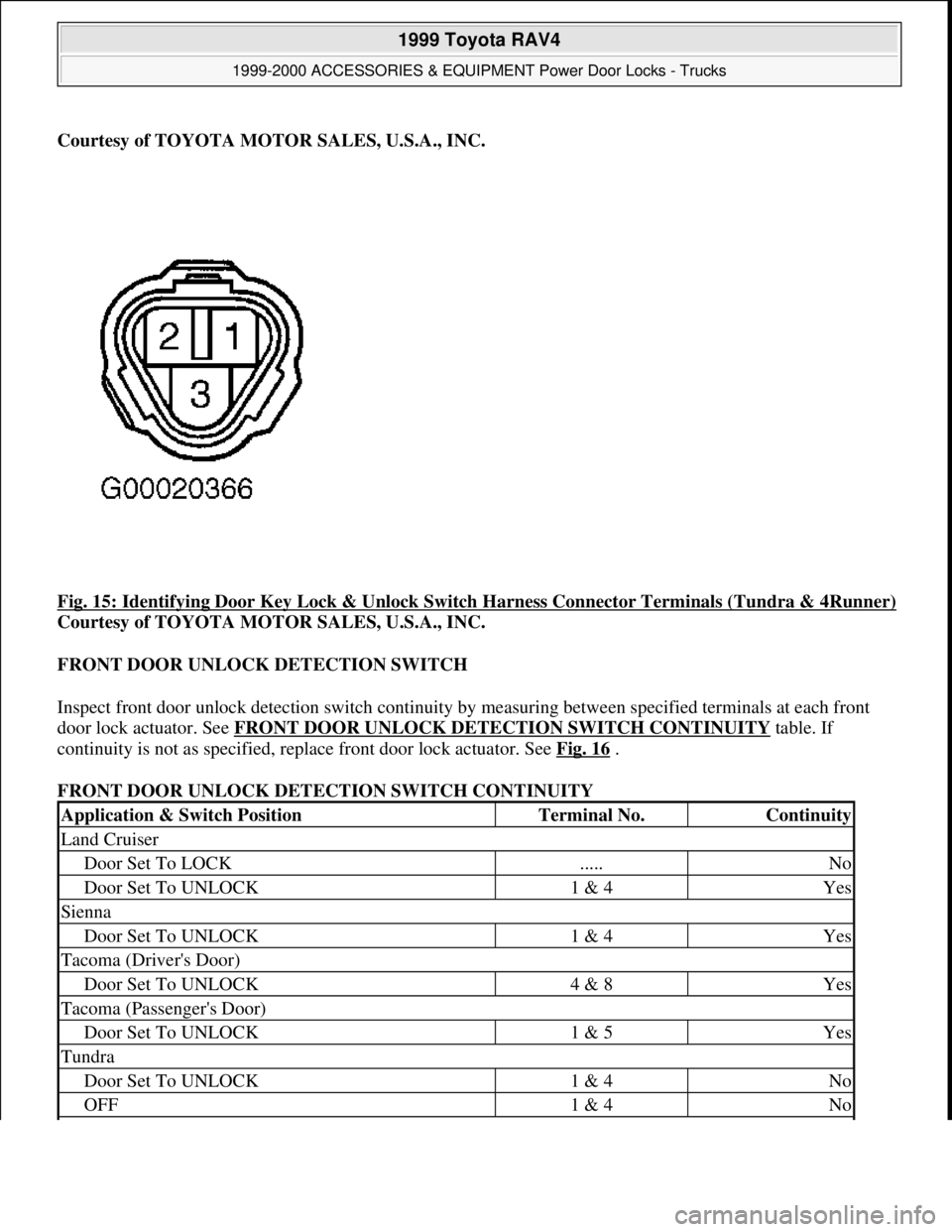

Fig. 15: Identifying Door Key Lock & Unlock Switch Harness Connector Terminals (Tundra & 4Runner)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
FRONT DOOR UNLOCK DETECTION SWITCH
Inspect front door unlock detection switch continuity by measuring between specified terminals at each front
door lock actuator. See FRONT DOOR UNLOCK DETECTION SWITCH CONTINUITY
table. If
continuity is not as specified, replace front door lock actuator. See Fig. 16
.
FRONT DOOR UNLOCK DETECTION SWITCH CONTINUITY
Application & Switch PositionTerminal No.Continuity
Land Cruiser
Door Set To LOCK.....No
Door Set To UNLOCK1 & 4Yes
Sienna
Door Set To UNLOCK1 & 4Yes
Tacoma (Driver's Door)
Door Set To UNLOCK4 & 8Yes
Tacoma (Passenger's Door)
Door Set To UNLOCK1 & 5Yes
Tundra
Door Set To UNLOCK1 & 4No
OFF1 & 4No

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 13 © 2005 Mitchell Repair Information Company, LLC.

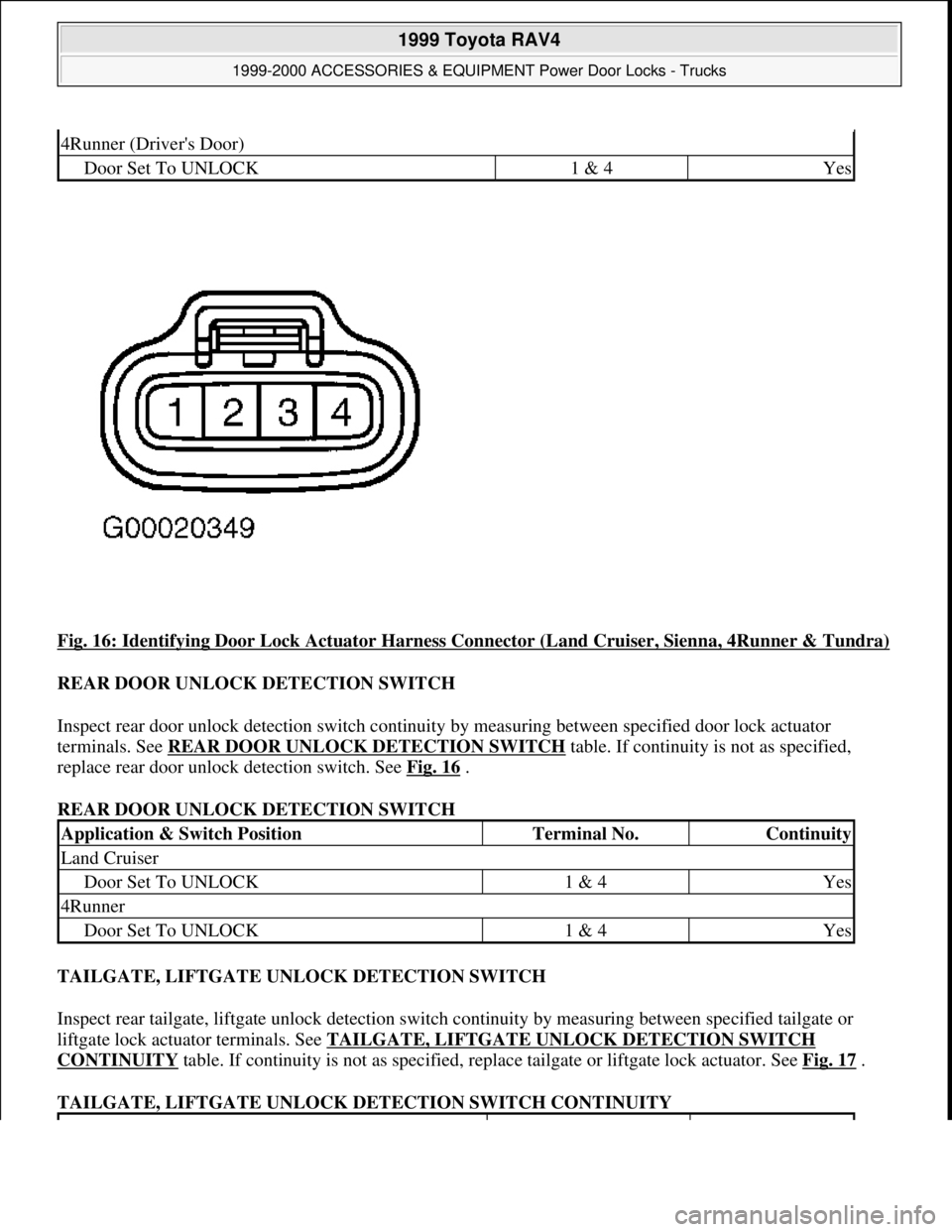

Fig. 16: Identifying Door Lock Actuator Harness Connector (Land Cruiser, Sienna, 4Runner & Tundra)
REAR DOOR UNLOCK DETECTION SWITCH
Inspect rear door unlock detection switch continuity by measuring between specified door lock actuator
terminals. See REAR DOOR UNLOCK DETECTION SWITCH
table. If continuity is not as specified,
replace rear door unlock detection switch. See Fig. 16
.
REAR DOOR UNLOCK DETECTION SWITCH
TAILGATE, LIFTGATE UNLOCK DETECTION SWITCH
Inspect rear tailgate, liftgate unlock detection switch continuity by measuring between specified tailgate or
liftgate lock actuator terminals. See TAILGATE, LIFTGATE UNLOCK DETECTION SWITCH
CONTINUITY table. If continuity is not as specified, replace tailgate or liftgate lock actuator. See Fig. 17 .
TAILGATE, LIFTGATE UNLOCK DETECTION SWITCH CONTINUITY
4Runner (Driver's Door)
Door Set To UNLOCK1 & 4Yes
Application & Switch PositionTerminal No.Continuity
Land Cruiser
Door Set To UNLOCK1 & 4Yes
4Runner
Door Set To UNLOCK1 & 4Yes

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 14 © 2005 Mitchell Repair Information Company, LLC.

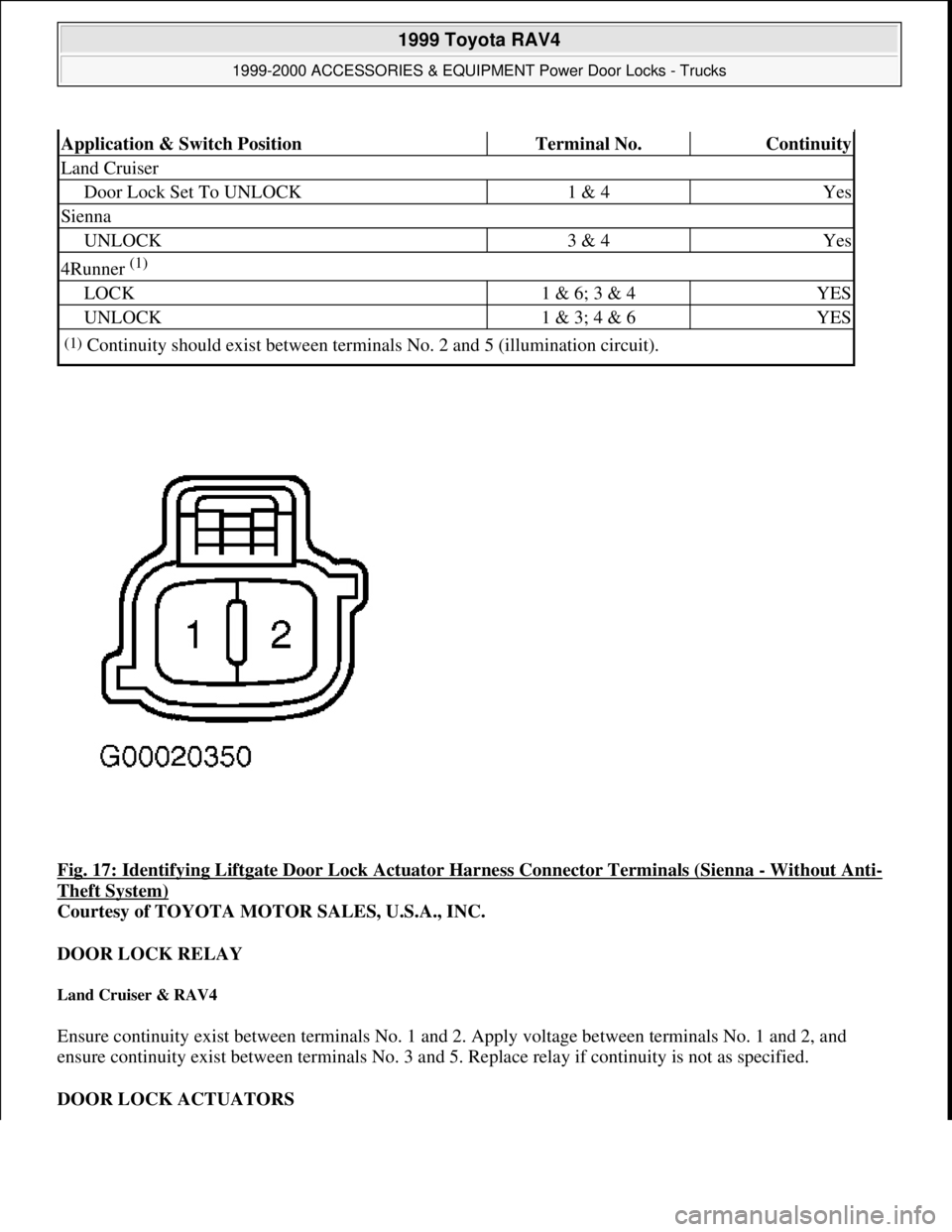

Fig. 17: Identifying Liftgate Door Lock Actuator Harness Connector Terminals (Sienna - Without Anti-
Theft System)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
DOOR LOCK RELAY
Land Cruiser & RAV4
Ensure continuity exist between terminals No. 1 and 2. Apply voltage between terminals No. 1 and 2, and
ensure continuity exist between terminals No. 3 and 5. Replace relay if continuity is not as specified.
DOOR LOCK ACTUATORS
Application & Switch PositionTerminal No.Continuity
Land Cruiser
Door Lock Set To UNLOCK1 & 4Yes
Sienna
UNLOCK3 & 4Yes
4Runner (1)
LOCK1 & 6; 3 & 4YES
UNLOCK1 & 3; 4 & 6YES
(1)Continuity should exist between terminals No. 2 and 5 (illumination circuit).

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 15 © 2005 Mitchell Repair Information Company, LLC.

Land Cruiser, Tundra & 4Runner (Front & Rear Doors)
1. Connect positive lead to terminal No. 3 and negative lead to terminal No. 2. Door lock should move to
unlock position. See Fig. 16

2. Connect positive lead to terminal No. 2 and negative lead to terminal No. 3. Door lock should move to
lock position. If door lock actuator does not operate as specified, replace door lock actuator.
RAV4 (Front Door)
1. Connect positive lead to terminal No. 4 and negative lead to terminal No. 5. Door lock should move to
unlock position. See Fig. 18
.
2. Connect positive lead to terminal No. 5 and negative lead to terminal No. 4. Door lock should move to
lock position. If door lock actuator does not operate as specified, replace door lock actuator.

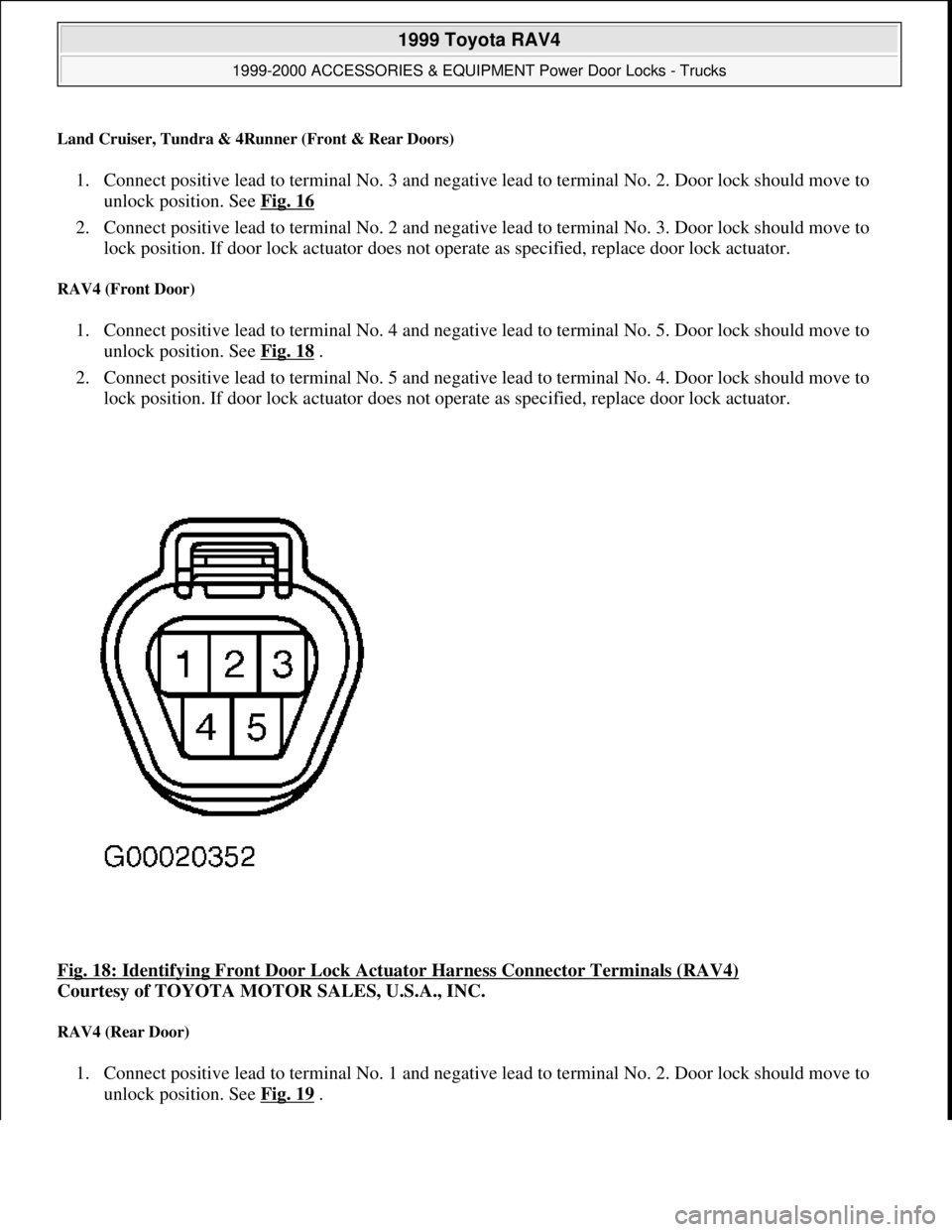

Fig. 18: Identifying Front Door Lock Actuator Harness Connector Terminals (RAV4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
RAV4 (Rear Door)
1. Connect positive lead to terminal No. 1 and negative lead to terminal No. 2. Door lock should move to
unlock position. See Fig. 19
.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 16 © 2005 Mitchell Repair Information Company, LLC.

2. Connect positive lead to terminal No. 2 and negative lead to terminal No. 1. Door lock should move to
lock position. If door lock actuator does not operate as specified, replace door lock actuator.

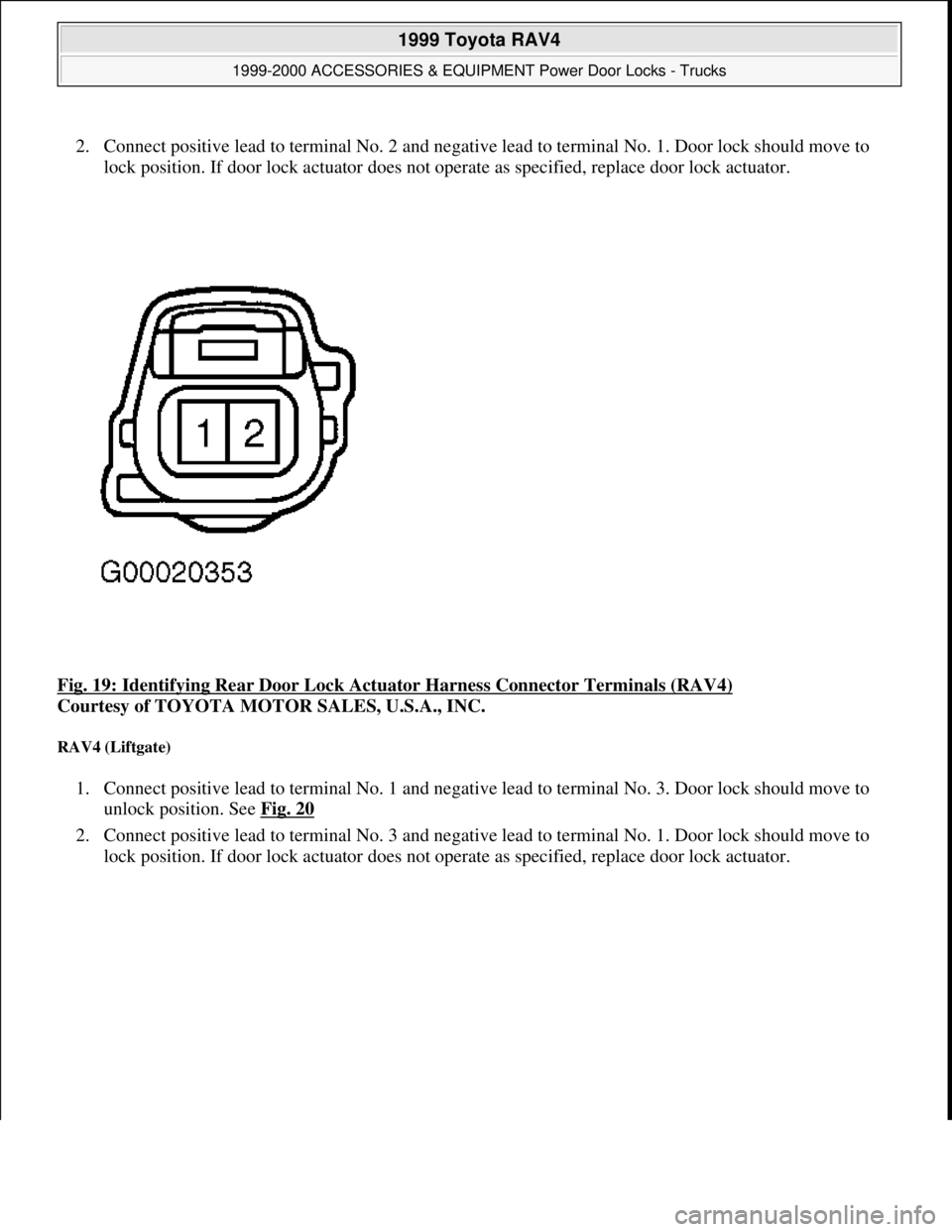

Fig. 19: Identifying Rear Door Lock Actuator Harness Connector Terminals (RAV4)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
RAV4 (Liftgate)
1. Connect positive lead to terminal No. 1 and negative lead to terminal No. 3. Door lock should move to
unlock position. See Fig. 20

2. Connect positive lead to terminal No. 3 and negative lead to terminal No. 1. Door lock should move to
lock position. If door lock actuator does not operate as specified, replace door lock actuator.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 17 © 2005 Mitchell Repair Information Company, LLC.

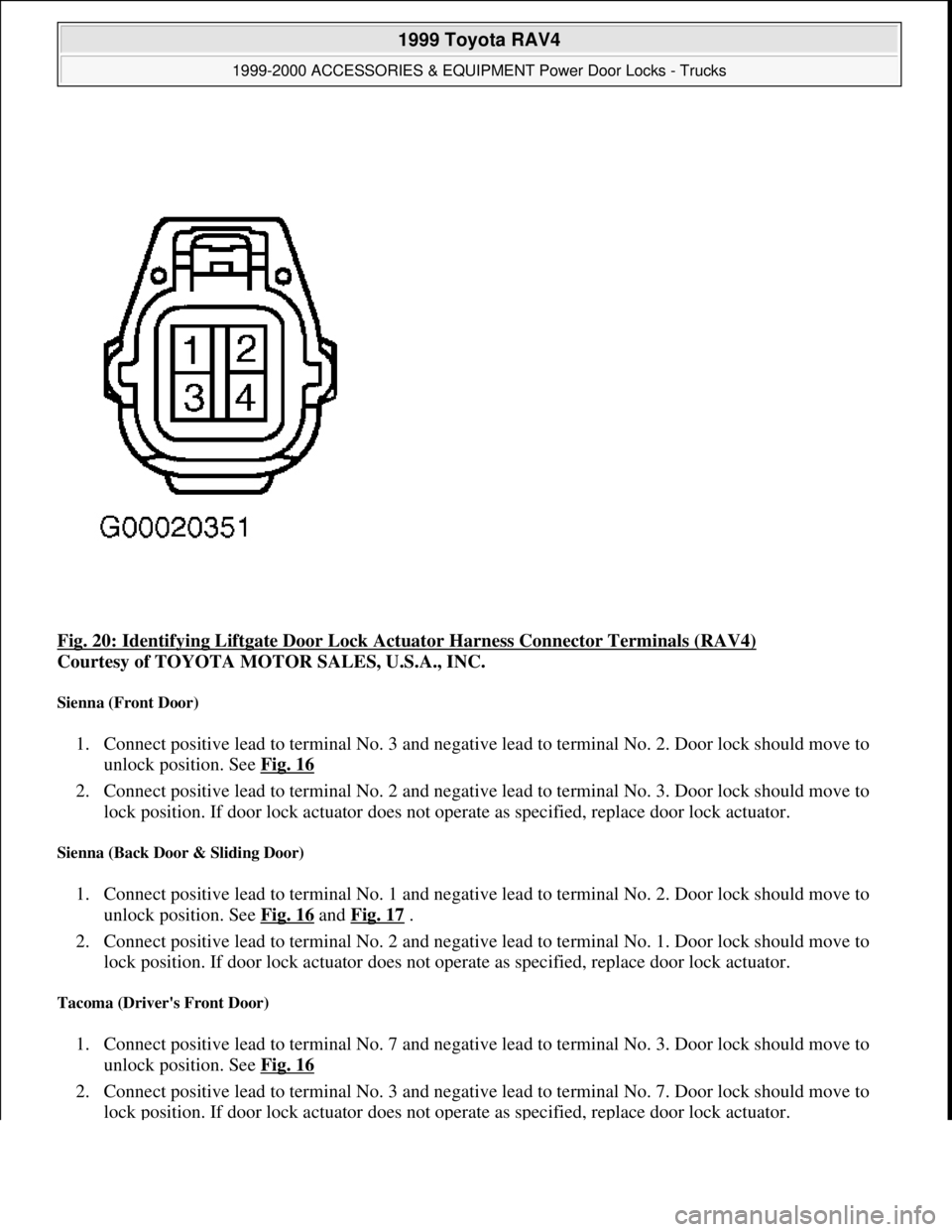

Fig. 20: Identifying Liftgate Door Lock Actuator Harness Connector Terminals (RAV4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
Sienna (Front Door)
1. Connect positive lead to terminal No. 3 and negative lead to terminal No. 2. Door lock should move to
unlock position. See Fig. 16

2. Connect positive lead to terminal No. 2 and negative lead to terminal No. 3. Door lock should move to
lock position. If door lock actuator does not operate as specified, replace door lock actuator.
Sienna (Back Door & Sliding Door)
1. Connect positive lead to terminal No. 1 and negative lead to terminal No. 2. Door lock should move to
unlock position. See Fig. 16
and Fig. 17 .
2. Connect positive lead to terminal No. 2 and negative lead to terminal No. 1. Door lock should move to
lock position. If door lock actuator does not operate as specified, replace door lock actuator.
Tacoma (Driver's Front Door)
1. Connect positive lead to terminal No. 7 and negative lead to terminal No. 3. Door lock should move to
unlock position. See Fig. 16

2. Connect positive lead to terminal No. 3 and negative lead to terminal No. 7. Door lock should move to
lock position. If door lock actuator does not operate as specified, replace door lock actuator.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 18 © 2005 Mitchell Repair Information Company, LLC.

Tacoma (Passenger's Front Door)
1. Connect positive lead to terminal No. 6 and negative lead to terminal No. 2. Door lock should move to
unlock position. See Fig. 16

2. Connect positive lead to terminal No. 2 and negative lead to terminal No. 6. Door lock should move to
lock position. If door lock actuator does not operate as specified, replace door lock actuator.
INTEGRATION RELAY
Sienna
1. Connect voltmeter positive lead to terminal No. 1 and negative lead to terminal No. 9 at Orange 20-pin
integration relay harness connector. See Fig. 21
. Set door lock control switch to UNLOCK position.
Voltage should rise from zero volts to battery voltage for approximately 0.2 seconds.
2. Connect voltmeter positive lead to terminal No. 9 and negative lead to terminal No. 1 at Orange 20-pin
integration relay harness connector. Set door lock control switch to UNLOCK position. Voltage should
rise from zero volts to battery voltage for approximately 0.2 seconds. If integration relay does not operate
as specified, replace integration relay.

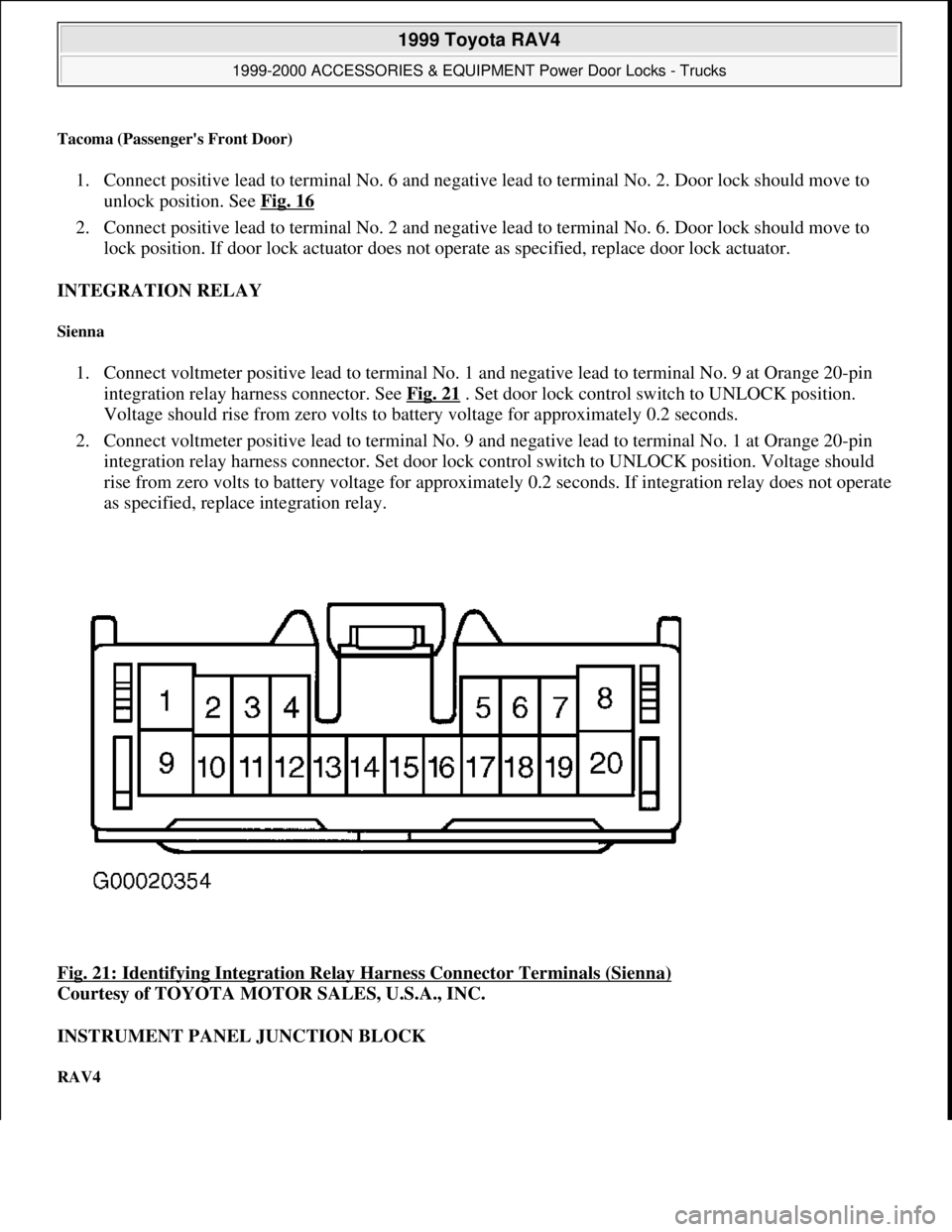

Fig. 21: Identifying Integration Relay Harness Connector Terminals (Sienna)

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
INSTRUMENT PANEL JUNCTION BLOCK
RAV4
