TOYOTA RAV4 1996 Service Repair Manual

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 40 © 2005 Mitchell Repair Information Company, LLC.

Fig. 33: Power Door Lock System Wiring Diagram (1999-2000 Tundra)

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 41 © 2005 Mitchell Repair Information Company, LLC.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 42 © 2005 Mitchell Repair Information Company, LLC.

Fig. 34: Power Door Lock System Wiring Diagram (1999-2000 4Runner)

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Door Locks - Trucks
Microsoft
Sunday, November 22, 2009 10:53:11 AMPage 43 © 2005 Mitchell Repair Information Company, LLC.

1998-99 ENGINE COOLING
Drive Belt Routing & Adjustment - Land Cruiser, RAV4, Sienna, Tacoma, T100 & 4Runner
DRIVE BELT ROUTING

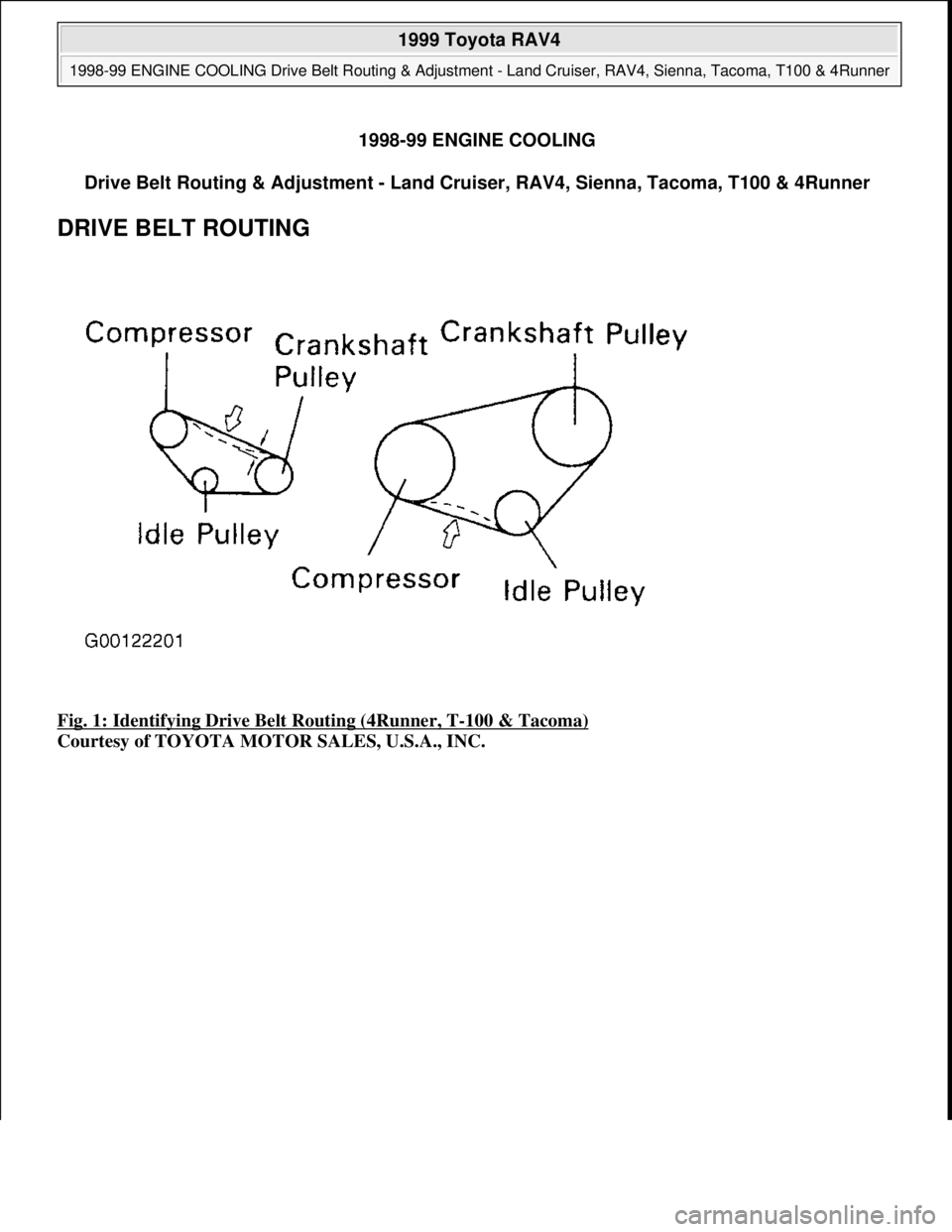

Fig. 1: Identifying Drive Belt Routing (4Runner, T-100 & Tacoma)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1998-99 ENGINE COOLING Drive Belt Routing & Adjustment - Land Cruiser, RAV4, Sienna, Tacoma, T100 & 4Runner

1999 Toyota RAV4
1998-99 ENGINE COOLING Drive Belt Routing & Adjustment - Land Cruiser, RAV4, Sienna, Tacoma, T100 & 4Runner
Microsoft
Sunday, November 22, 2009 10:20:42 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, November 22, 2009 10:20:46 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.

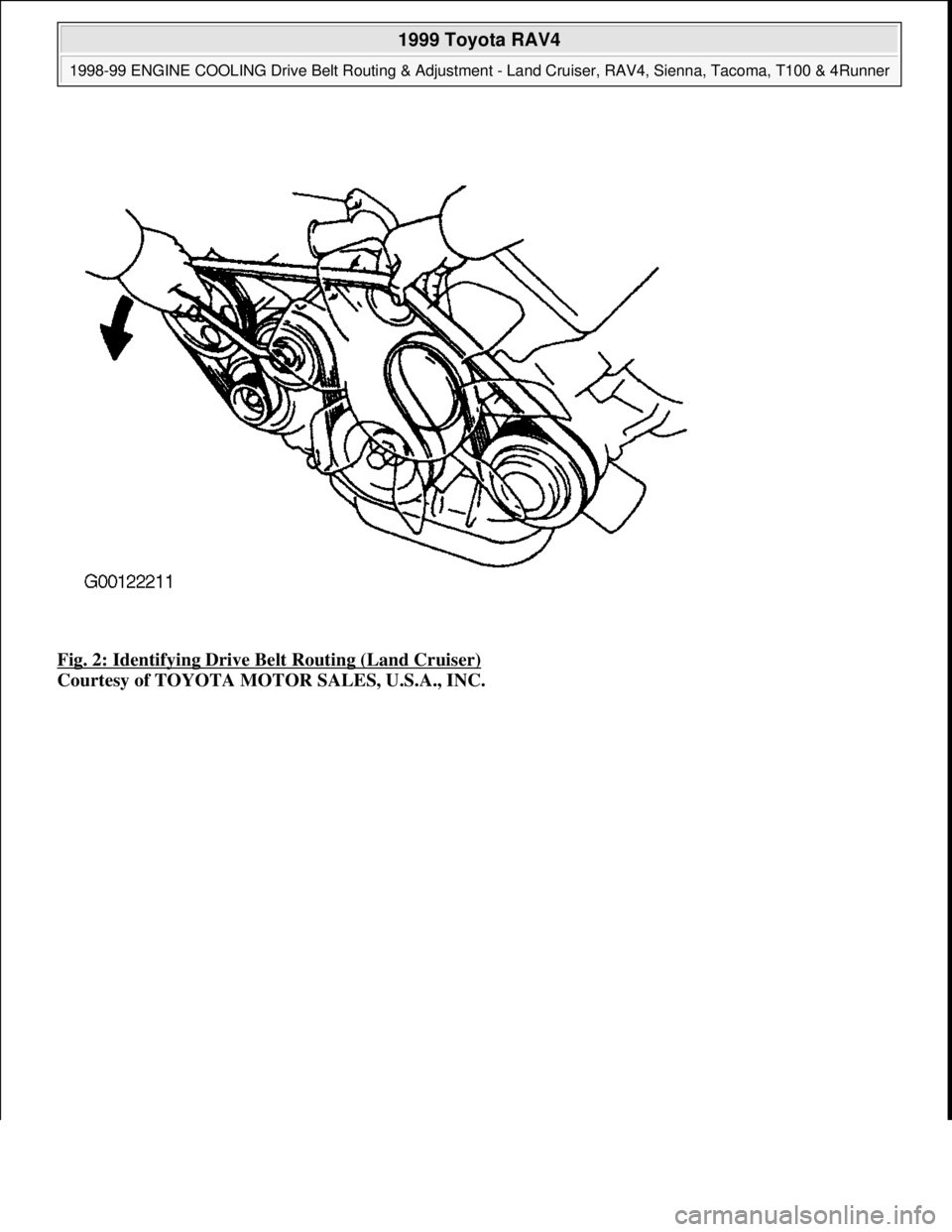

Fig. 2: Identifying Drive Belt Routing (Land Cruiser)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1998-99 ENGINE COOLING Drive Belt Routing & Adjustment - Land Cruiser, RAV4, Sienna, Tacoma, T100 & 4Runner
Microsoft
Sunday, November 22, 2009 10:20:43 AMPage 2 © 2005 Mitchell Repair Information Company, LLC.

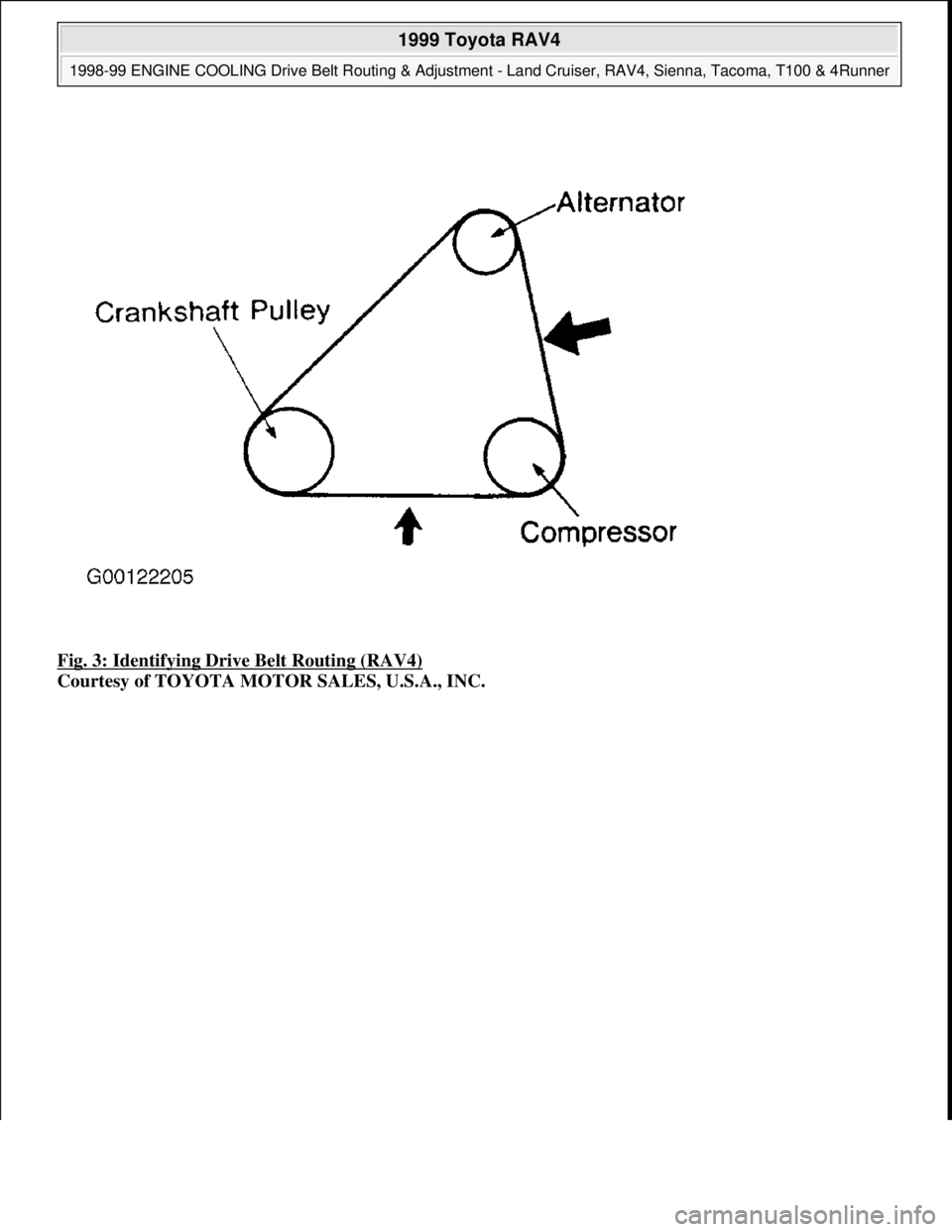

Fig. 3: Identifying Drive Belt Routing (RAV4)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1998-99 ENGINE COOLING Drive Belt Routing & Adjustment - Land Cruiser, RAV4, Sienna, Tacoma, T100 & 4Runner
Microsoft
Sunday, November 22, 2009 10:20:43 AMPage 3 © 2005 Mitchell Repair Information Company, LLC.

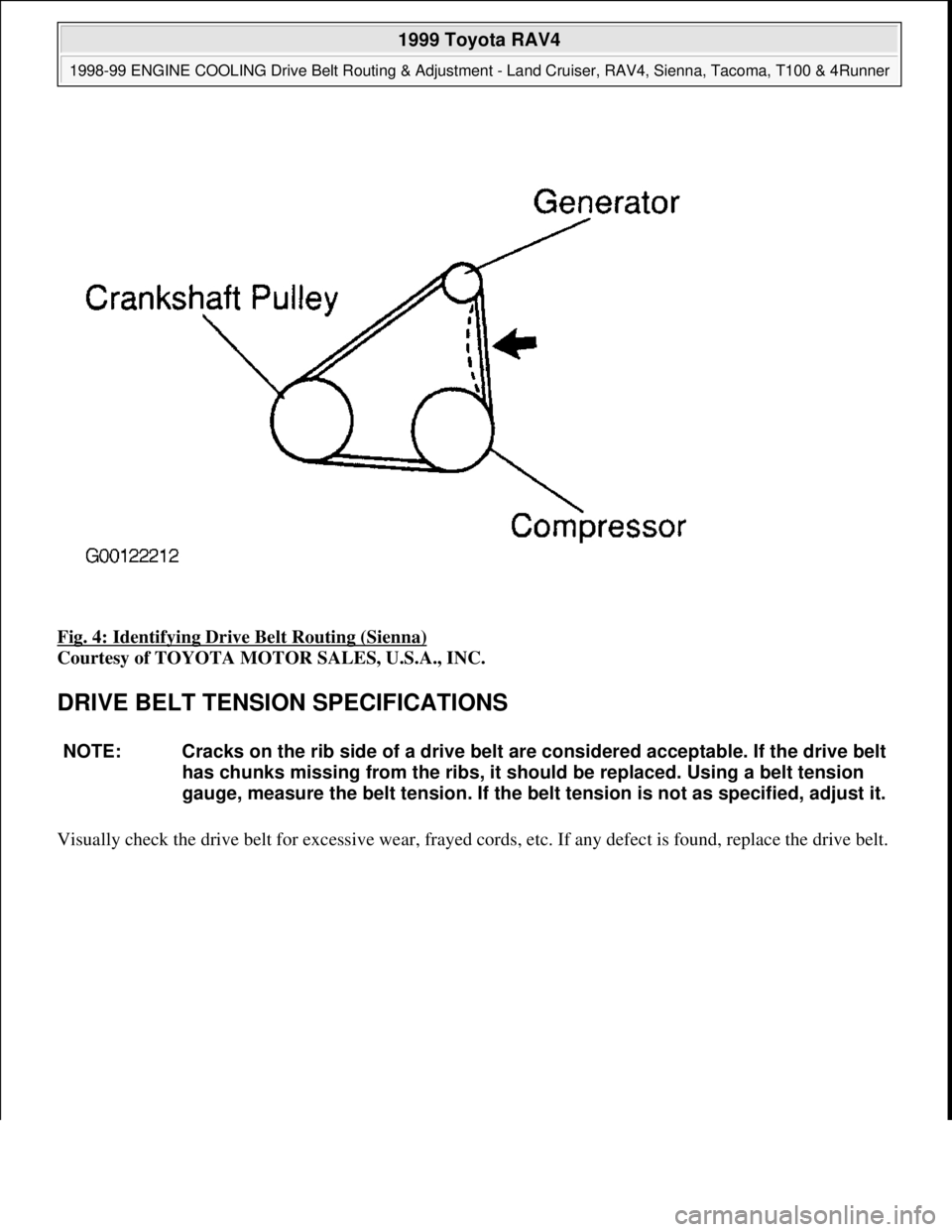

Fig. 4: Identifying Drive Belt Routing (Sienna)
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
DRIVE BELT TENSION SPECIFICATIONS
Visually check the drive belt for excessive wear, frayed cords, etc. If any defect is found, replace the drive belt.
NOTE: Cracks on the rib side of a drive belt are considered acceptable. If the drive belt
has chunks missing from the ribs, it should be replaced. Using a belt tension
gauge, measure the belt tension. If the belt tension is not as specified, adjust it.

1999 Toyota RAV4
1998-99 ENGINE COOLING Drive Belt Routing & Adjustment - Land Cruiser, RAV4, Sienna, Tacoma, T100 & 4Runner
Microsoft
Sunday, November 22, 2009 10:20:43 AMPage 4 © 2005 Mitchell Repair Information Company, LLC.

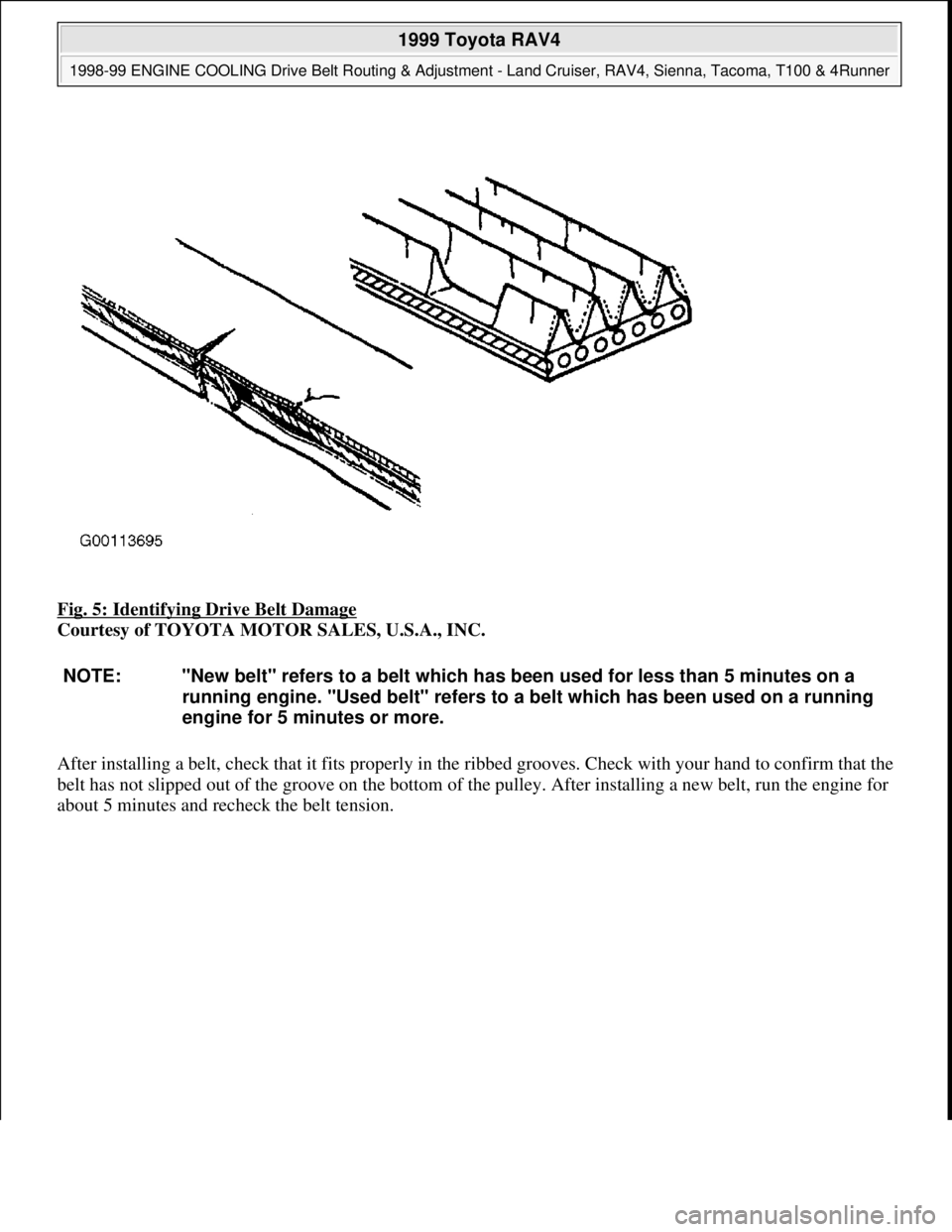

Fig. 5: Identifying Drive Belt Damage
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
After installing a belt, check that it fits properly in the ribbed grooves. Check with your hand to confirm that the
belt has not slipped out of the groove on the bottom of the pulley. After installing a new belt, run the engine for
about 5 minutes and recheck the belt tension.
NOTE: "New belt" refers to a belt which has been used for less than 5 minutes on a
running engine. "Used belt" refers to a belt which has been used on a running
engine for 5 minutes or more.

1999 Toyota RAV4
1998-99 ENGINE COOLING Drive Belt Routing & Adjustment - Land Cruiser, RAV4, Sienna, Tacoma, T100 & 4Runner
Microsoft
Sunday, November 22, 2009 10:20:43 AMPage 5 © 2005 Mitchell Repair Information Company, LLC.

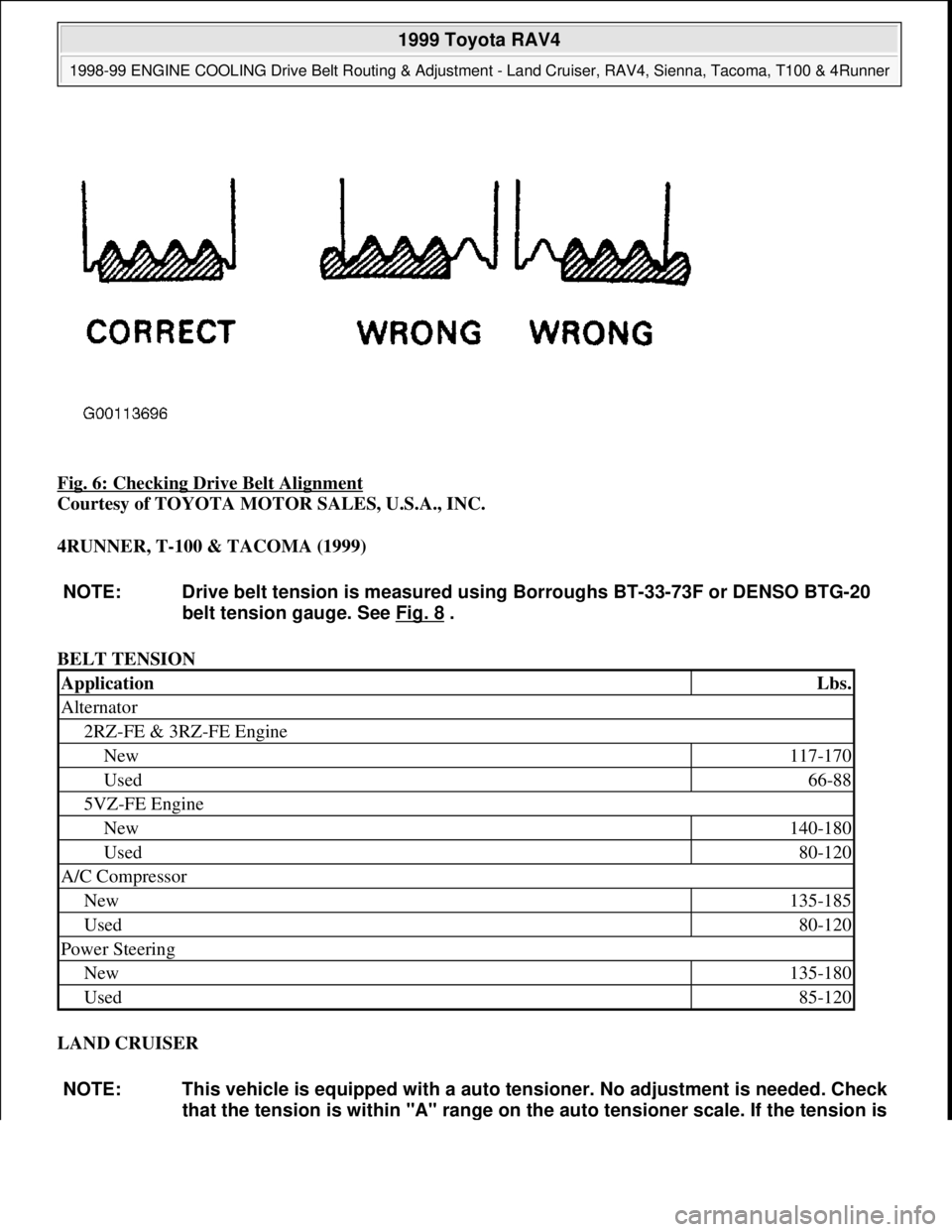

Fig. 6: Checking Drive Belt Alignment
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
4RUNNER, T-100 & TACOMA (1999)
BELT TENSION
LAND CRUISER
NOTE: Drive belt tension is measured using Borroughs BT-33-73F or DENSO BTG-20
belt tension gauge. See Fig. 8
.
ApplicationLbs.
Alternator
2RZ-FE & 3RZ-FE Engine
New117-170
Used66-88
5VZ-FE Engine
New140-180
Used80-120
A/C Compressor
New135-185
Used80-120
Power Steering
New135-180
Used85-120
NOTE: This vehicle is equipped with a auto tensioner. No adjustment is needed. Check
that the tension is within "A" range on the auto tensioner scale. If the tension is

1999 Toyota RAV4
1998-99 ENGINE COOLING Drive Belt Routing & Adjustment - Land Cruiser, RAV4, Sienna, Tacoma, T100 & 4Runner
Microsoft
Sunday, November 22, 2009 10:20:43 AMPage 6 © 2005 Mitchell Repair Information Company, LLC.
