Replacing Oil SealNBTF0068FRONT CASE OIL SEALNBTF0068S011. Drain transfer fluid.
2. Remove exhaust front tube and heat insulator. Refer to
ªRemovalº, TF-119.
3. Remove front propeller shaft. Refer to PD-6, ªRemoval and
Installationº.
4. Remove companion flange lock nut.
IDo not reuse lock nut.
SMT112D
5. Put a matchmark on top of drive pinion thread. The mark
should be in line with the mark on the companion flange.
IAlways mark top of drive pinion screw using paint.
SMT802C
6. Remove companion flange.
SMT803C
7. Remove front case oil seal.
8. Install front case oil seal.
IBefore installing, apply multi-purpose grease to seal lip.
9. Install companion flange.
SMT845DB
10. Tighten nut to the specified torque.
Refer to TF-121.
11. Install front propeller shaft.
ON-VEHICLE SERVICE
Replacing Oil Seal
TF-116

SMT808D
SHIFT SHAFT OIL SEALNBTF0068S021. Remove front propeller shaft. Refer to PD-6, ªRemoval and
Installationº.
2. Remove companion flange. Refer to ªFRONT CASE OIL
SEALº, TF-116.
3. Remove actuator lever from transfer outer shift lever. Then
remove outer shift lever.
SMT491A
4. Remove shift shaft oil seal.
IBe careful not to damage cross shaft.
SMT805C
5. Install shift shaft oil seal.
IBefore installing, apply multi-purpose grease to seal lip.
6. Install transfer control linkage.
7. Install companion flange. Refer to ªFRONT CASE OIL SEALº,
TF-116.
8. Install front propeller shaft.
SMT892C
REAR OIL SEALNBTF0068S031. Remove rear propeller shaft. Refer to PD-6, ªRemoval and
Installationº.
2. Remove rear oil seal.
3. Install rear oil seal.
IBefore installing, apply multi-purpose grease to seal lip.
4. Install rear propeller shaft.
SMT874C
Transfer Motor
REMOVALNBTF00691. Disconnect transfer motor harness connector.
2. Remove breather pipe from transfer motor.
3. Remove bolts to detach transfer motor.
IAfter removing transfer motor, be sure to replace O-ring
with new one.
INSTALLATIONNBTF00701. Apply petroleum jelly or ATF to O-ring.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
ON-VEHICLE SERVICE
Replacing Oil Seal (Cont'd)
TF-117

2. Align width across flat-notch with oil pump groove, and install
transfer motor.
3. Tighten bolts.
: 41 - 48 N´m (4.2 - 4.9 kg-m, 30 - 35 ft-lb)
4. Install breather pipe to transfer motor.
5. Connect transfer motor harness connector.
SMT875C
Transfer Oil Filter
REMOVALNBTF0071IRemove bolts to detach oil filter.
IWhen removing oil filter from transfer, avoid damaging it.
Be sure to loosen bolts evenly.
IWhen removing oil filter, be sure to replace O-ring with
new one.
INSTALLATIONNBTF00721. Apply petroleum jelly or ATF to O-ring.
2. Tighten bolts evenly to install oil filter.
:7-9N´m(0.7 - 0.9 kg-m, 61 - 78 in-lb)
IBe sure not to damage oil filter.
ON-VEHICLE SERVICE
Transfer Motor (Cont'd)
TF-118

SMT897C
RemovalNBTF00731. Remove exhaust front and rear tubes. Refer to FE-8,
ªEXHAUST SYSTEMº.
2. Remove front and rear propeller shaft. Refer to PD-6,
ªRemoval and Installationº.
3. Insert plug into rear oil seal after removing propeller shaft.
IBe careful not to damage spline, sleeve yoke and rear oil
seal, when removing propeller shaft.
4. Disconnect neutral-4LO switch, front revolution sensor, ATP
switch, transfer motor and 4WD shift switch harness connec-
tors.
SMT808D
5. Remove center console and A/T control device.
6. Remove floor panel for transfer.
7. Remove upper side fixing bolt for A/T and TF.
8. Remove actuator lever from transfer outer shift lever and
remove sub-oil pump from transfer.
9. Remove remaining fixing bolt for AT and TF.
SMT899C
SMT871C
10. Remove transfer from transmission.
WARNING:
Support transfer while removing it.
SMT872C
InstallationNBTF0074ITighten bolts securing transfer.
Bolt length:
45 mm (1.77 in)
Tightening torque:
: 31 - 42 N´m (3.2 - 4.3 kg-m, 23 - 31 ft-lb)
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
REMOVAL AND INSTALLATION
Removal
TF-119

Transfer Gear ControlNBTF0075
SMT809D
1. Actuator 2. Actuator lever 3. Outer shift lever
OVERHAUL
Transfer Gear Control
TF-120

Transfer ComponentsNBTF0076
SMT810D
1. Oil seal
2. Transfer cover
3. Snap ring
4. Washer
5. Snap ring
6. Main gear bearing
7. Front case
8. Check plug
9. Check spring
10. Check ball
11. Internal gear
12. Snap ring
13. Bearing race
14. Thrust needle bearing
15. Planetary carrier
16. Thrust needle bearing
17. Sun gear18. L-H sleeve
19. 2-4 sleeve
20. Radial needle bearing
21. Front revolution sensor
22. Roll pin
23. L-H fork
24. 2-4 fork
25. Shift fork spring
26. Fork guide
27. Roll pin
28. Shift rod
29. Self-lock nut
30. Companion flange
31. Oil seal
32. Drain plug
33. Wait detection switch
34. Needle bearing35. Mainshaft
36. Drive chain
37. Clutch drum
38. Clutch hub
39. Snap ring
40. Driven plate
41. Drive plate
42. Retaining plate
43. Return spring assembly
44. Press flange
45. Washer
46. Thrust needle bearing
47. Snap ring
48. Seal ring
49. Front bearing
50. Front drive shaft
51. Rear bearing
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
OVERHAUL
Transfer Components
TF-121

SMT811D
55. Thrust needle bearing race
56. Clutch piston
57. D-ring
58. Lip seal
59. Oil gutter
60. Center case
61. Stem bleeder
62. Mainshaft rear bearing
63. Thrust washer
64. Speedometer drive gear
65. Snap ring
66. Rear case
67. ATP switch
68. Neutral-4LO switch69. Oil seal
70. Magnet
71. Baffle plate
72. Oil strainer
73. O-ring
74. Control valve assembly
75. Lip seal (7 pieces)
76. Filler plug
77. Inner gear
78. Outer gear
79. Oil pump housing
80. Bushing
81. Oil pump shaft
82. Oil pressure check plug83. Oil pump gasket
84. Sub-oil pump housing
85. Outer gear
86. Inner gear
87. O-ring
88. Sub-oil pump cover
89. O-ring
90. Transfer motor
91. O-ring
92. Oil filter stud
93. O-ring
94. O-ring
95. Oil filter
OVERHAUL
Transfer Components (Cont'd)
TF-122

SMT877C
Rear Case
DISASSEMBLYNBTF00771. Remove neutral-4LO switch and ATP switch.
2. Remove bolts.
SMT878C
3. Remove rear case from center case by tapping it lightly with a
plastic hammer.
SMT883C
Center Case
DISASSEMBLYNBTF00781. Remove oil pump shaft from main oil pump.
SMT884C
2. Remove stem bleeder from bleeder hole.
SMT844DB
3. Remove lock nut from companion flange.
IDo not reuse lock nut.
GI
MA
EM
LC
EC
FE
AT
PD
AX
SU
BR
ST
RS
BT
HA
SC
EL
IDX
DISASSEMBLY
Rear Case
TF-123

SMT886CA

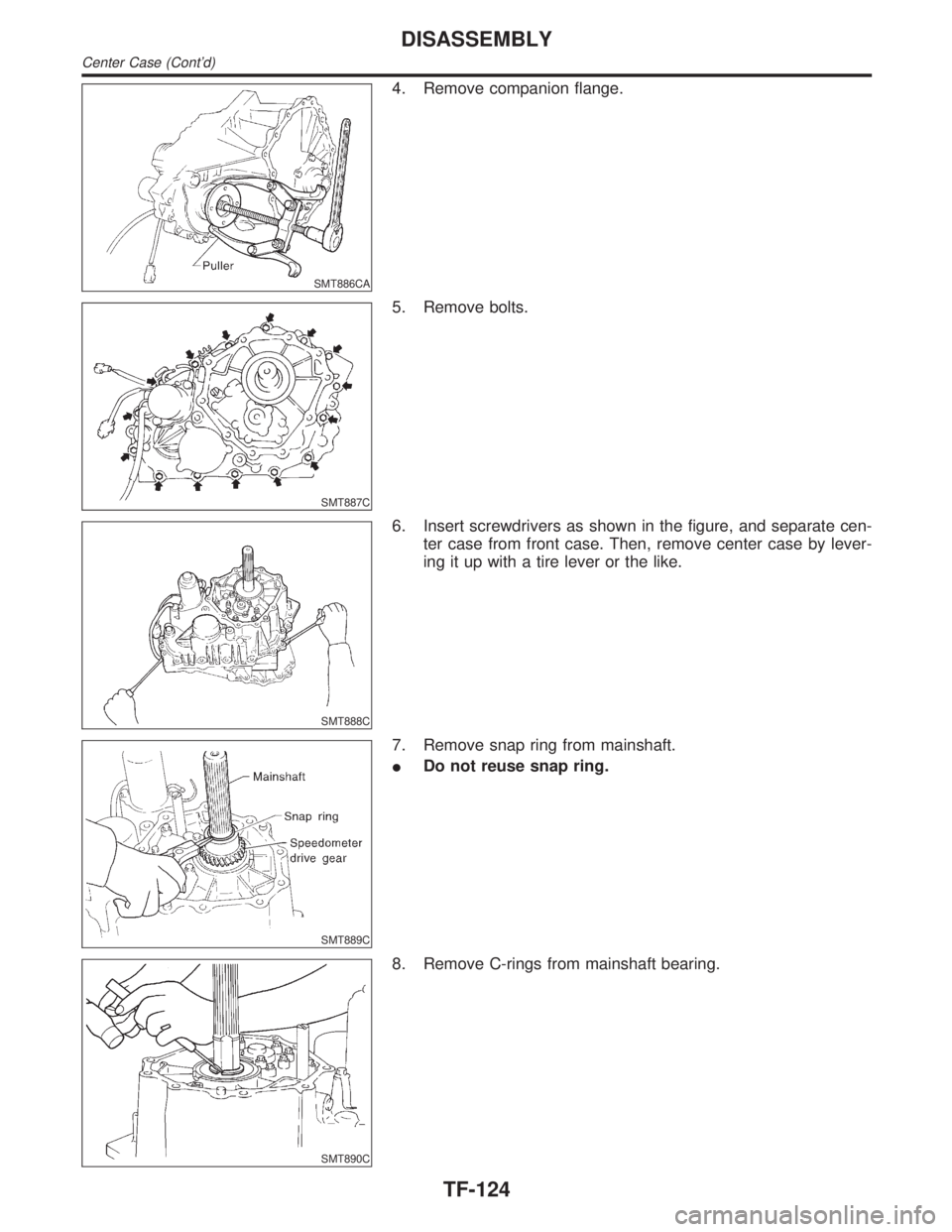

4. Remove companion flange.
