ISUZU KB P190 2007 Workshop Repair Manual

Engine Mechanical – V6 Page 6A1–254
Page 6A1–254

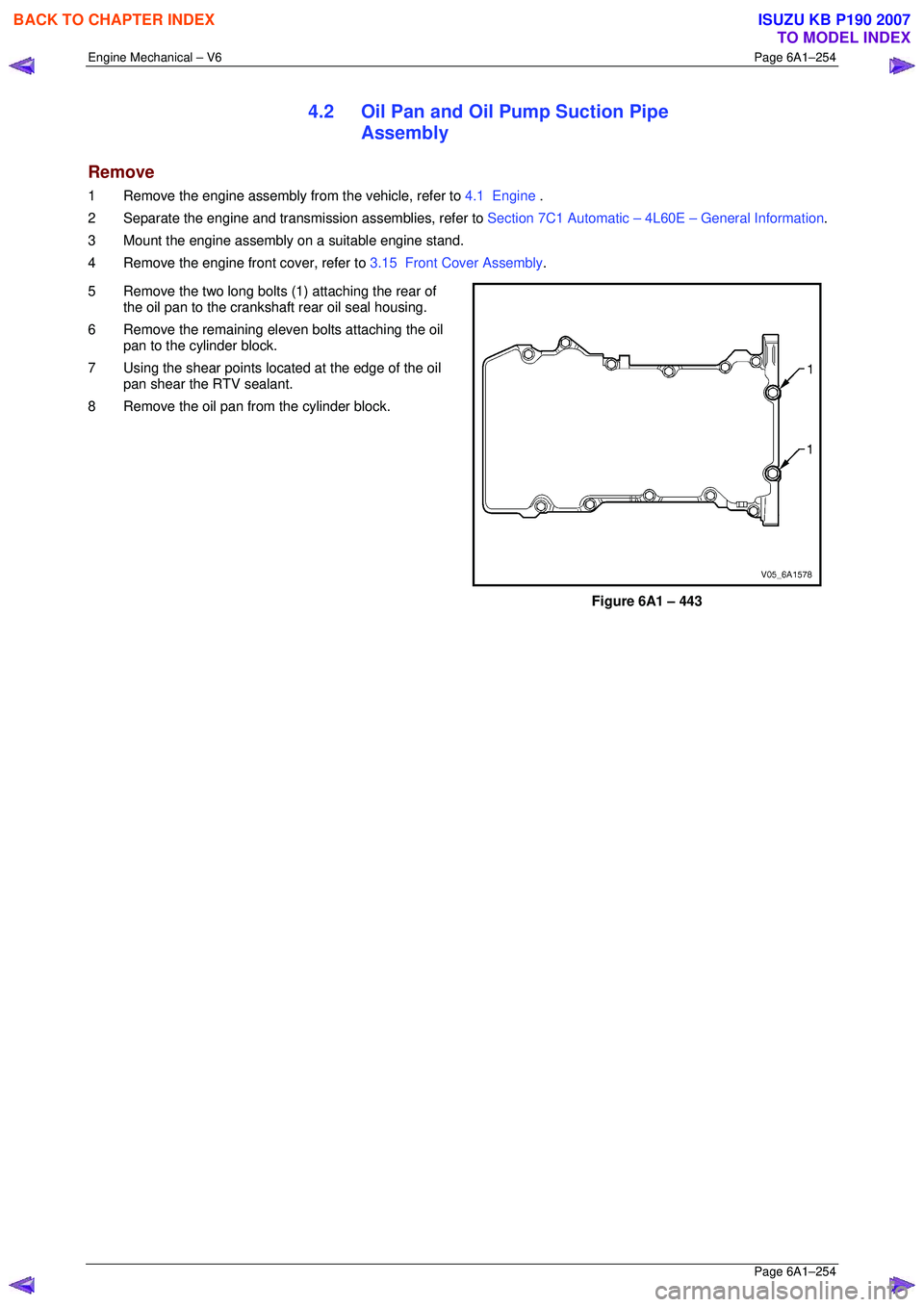

4.2 Oil Pan and Oil Pump Suction Pipe
Assembly
Remove
1 Remove the engine assembly from the vehicle, refer to 4.1 Engine .
2 Separate the engine and transmission assemblies, refer to Section 7C1 Automatic – 4L60E – General Information.
3 Mount the engine assembly on a suitable engine stand.
4 Remove the engine front cover, refer to 3.15 Front Cover Assembly.
5 Remove the two long bolts (1) attaching the rear of the oil pan to the crankshaft rear oil seal housing.
6 Remove the remaining eleven bolts attaching the oil pan to the cylinder block.
7 Using the shear points loca ted at the edge of the oil
pan shear the RTV sealant.
8 Remove the oil pan from the cylinder block.


Figure 6A1 – 443

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–255
Page 6A1–255
Disassemble
1 Remove the following:
2 Oil pan drain plug (7) and sleeve (8).
3 Oil level sensor (9).
4 Crankshaft oil deflector bolts (6) and remove the deflector.
5 Oil pump suction pipe bolts (5) and the suction pipe (3).
6 Oil pump suction pipe gasket (4) from the suction pipe and discard.

Figure 6A1 – 444
Clean
1 Remove any remaining thread sealant, gasket material or sealant using a commercially available wooden or plastic
scraper.
2 Clean the oil pan and oil pan components in solvent.
3 Clean out debris from the bolt holes.

Safety glasses must be worn when using
compressed air.
4 Dry the oil pan and oil pan components with compressed air.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–256
Page 6A1–256
Inspect
1 Inspect the exterior of the oil pan for the following
conditions:
• Damage to the drain plug or drain plug hole,
• Damage to the transmission mounting bosses,
• Damage to the oil level sensor threads, and
• Dents or damage to the exterior.
2 Inspect the interior of the oil pan for the following conditions:
• Gouges or damage to the oil pan sealing
surfaces,
• Damage to the crankshaft oil deflector,
• Damage to the bolt holes,
• Damage to the oil suction tube mounting
bosses, and
• Damage to the crankshaft oil deflector mounting
bosses.

Figure 6A1 – 445
3 Inspect the oil pan deflector for damage.
4 Repair or replace the o il pan deflector and/or oil pan
as required.


Figure 6A1 – 446
5 Inspect the following:
6 The mounting face (1) of the oil pump suction pipe for possible leakage paths.
7 The oil pump pipe support bracket (2) for cracks or damage.
8 The oil pump suction pipe tube (3) for cracks, imperfections and/or damage.
9 The oil pump screen (4) for blockage, foreign material, tears, cracks and/or damage.
10 Repair or replace the oil pan and/or oil pan components as required.


Figure 6A1 – 447

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–257
Page 6A1–257
Reassemble
Reassembly of the oil pan and oil suction pipe assembly is the reverse of the disassembly procedure, noting the
following:
1 Install a new oil suction t ube seal onto the oil suction
tube.
2 Install the oil suction pipe and tighten the attaching bolts to the correct torque specification.
Oil suction pipe attaching
bolt torque specif ication ..................................... 10.0 Nm
3 Install the crankshaft oil deflector into the oil pan
assembly and tighten the attaching bolts to the
correct torque specification.
Crankshaft oil deflector
attaching bolt torque specification ......................10.0 Nm
4 Install the oil level sensor into the oil pan assembly
and tighten to the correct torque specification.
Oil level sensor torque specification...................20.0 Nm

Figure 6A1 – 448
5 Install the oil pan drain plug into the oil pan assemb ly and tighten to the correct torque specification.
Oil pan drain plug
torque specificat ion ............................................ 25.0 Nm
Reinstall
1 Install the guide pins, Tool No. EN-46109 (1) into the
oil pan rail bolt hole on each side of the engine block.

Figure 6A1 – 449

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–258
Page 6A1–258

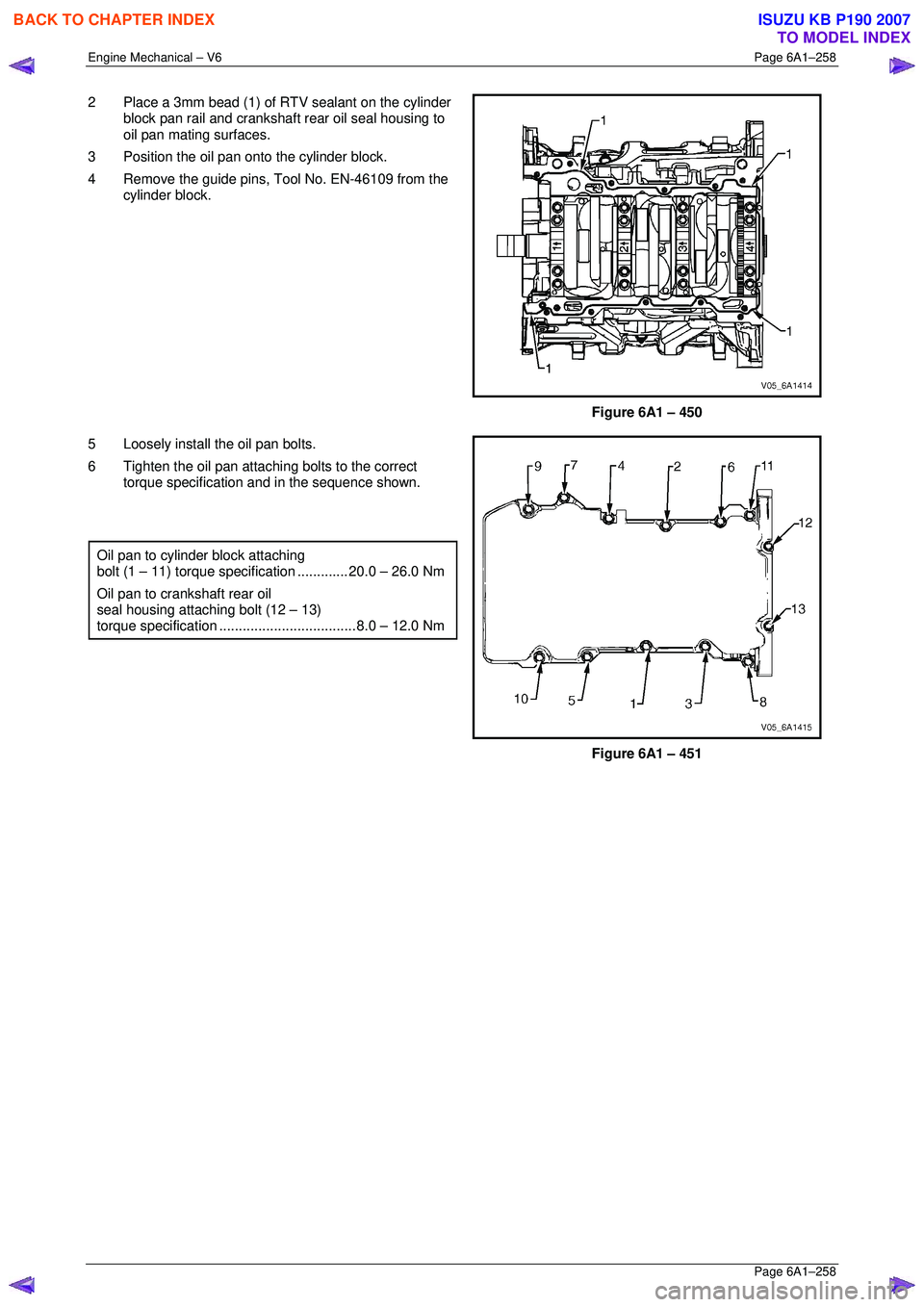

2 Place a 3mm bead (1) of RTV sealant on the cylinder
block pan rail and crankshaft rear oil seal housing to
oil pan mating surfaces.
3 Position the oil pan onto the cylinder block.
4 Remove the guide pins, Tool No. EN-46109 from the cylinder block.

Figure 6A1 – 450
5 Loosely install the oil pan bolts.
6 Tighten the oil pan attaching bolts to the correct torque specification and in the sequence shown.


Oil pan to cylinder block attaching
bolt (1 – 11) torque specif ication............. 20.0 – 26.0 Nm
Oil pan to crankshaft rear oil
seal housing attaching bolt (12 – 13)
torque specificatio n ................................... 8. 0 – 12.0 Nm


Figure 6A1 – 451

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–259
Page 6A1–259

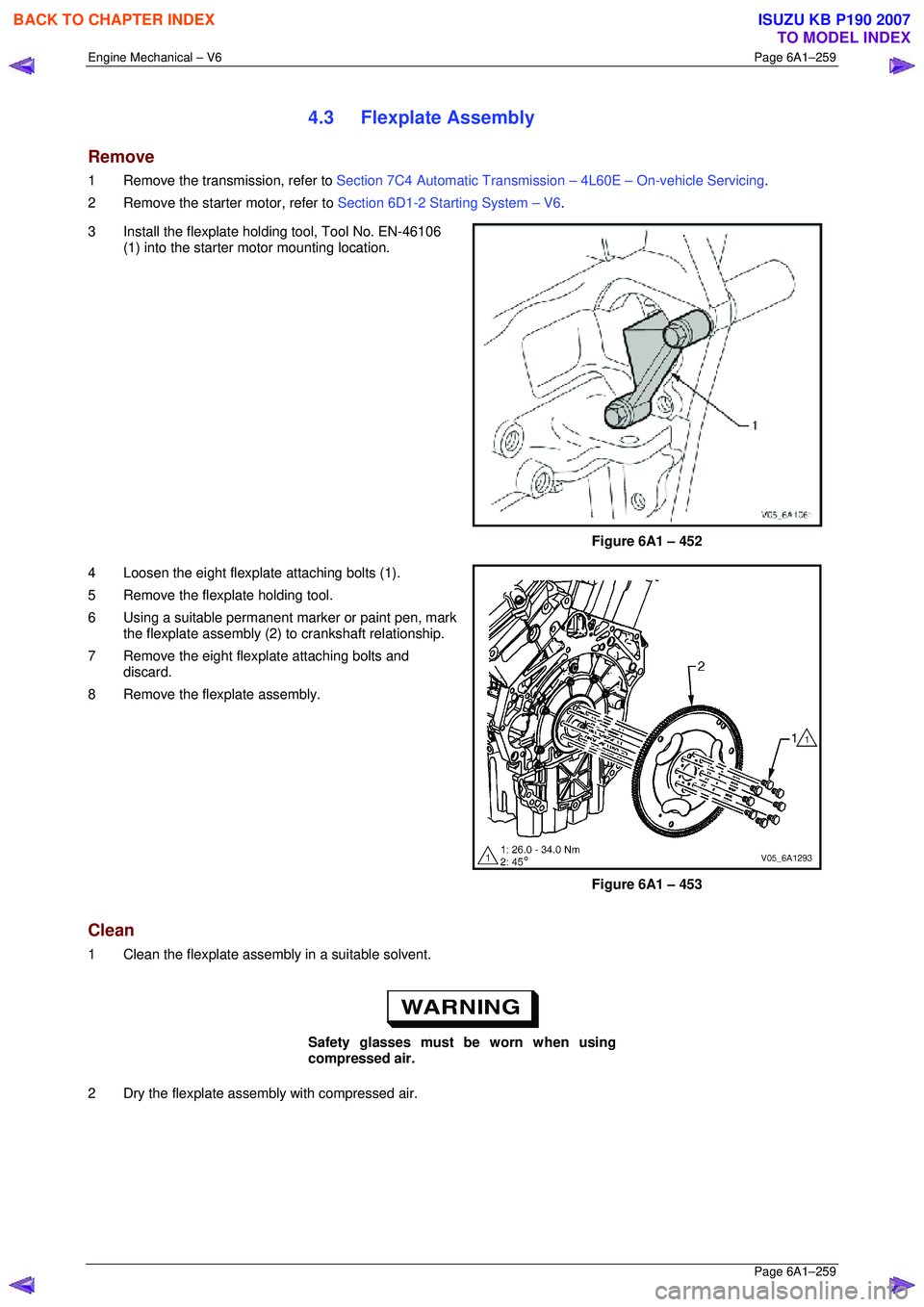

4.3 Flexplate Assembly
Remove
1 Remove the transmission, refer to Section 7C4 Automatic Transmission – 4L60E – On-vehicle Servicing .
2 Remove the starter motor, refer to Section 6D1-2 Starting System – V6.
3 Install the flexplate holding tool, Tool No. EN-46106 (1) into the starter motor mounting location.

Figure 6A1 – 452
4 Loosen the eight flexplate attaching bolts (1).
5 Remove the flexplate holding tool.
6 Using a suitable permanent ma rker or paint pen, mark
the flexplate assembly (2) to crankshaft relationship.
7 Remove the eight flexplate attaching bolts and discard.
8 Remove the flexplate assembly.

Figure 6A1 – 453
Clean
1 Clean the flexplate assembly in a suitable solvent.

Safety glasses must be worn when using
compressed air.
2 Dry the flexplate assembly with compressed air.

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–260
Page 6A1–260

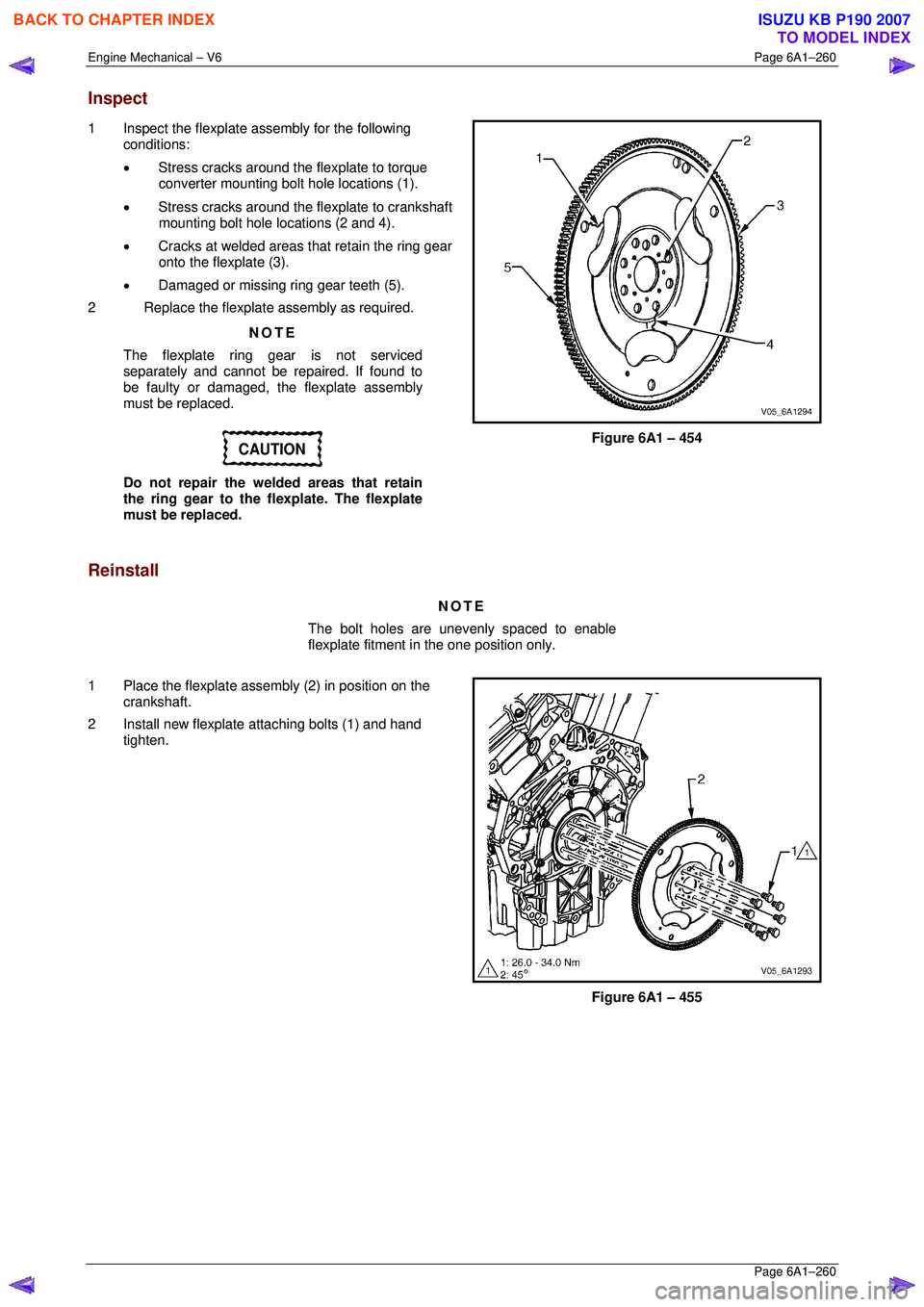

Inspect
1 Inspect the flexplate assembly for the following
conditions:
• Stress cracks around the flexplate to torque
converter mounting bolt hole locations (1).
• Stress cracks around the flexplate to crankshaft
mounting bolt hole locations (2 and 4).
• Cracks at welded areas that retain the ring gear
onto the flexplate (3).
• Damaged or missing ring gear teeth (5).
2 Replace the flexplate assembly as required.
NOTE
The flexplate ring gear is not serviced
separately and cannot be repaired. If found to
be faulty or damaged, the flexplate assembly
must be replaced.
CAUTION
Do not repair the welded areas that retain
the ring gear to the fl explate. The flexplate
must be replaced.

Figure 6A1 – 454
Reinstall
NOTE
The bolt holes are unevenly spaced to enable
flexplate fitment in the one position only.
1 Place the flexplate assembly (2) in position on the crankshaft.
2 Install new flexplate attaching bolts (1) and hand tighten.

Figure 6A1 – 455

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–261
Page 6A1–261
3 Install the flexplate holding tool, Tool No. EN-46106
(1) into the starter motor mounting location.
4 Tighten the eight flexplate attaching bolts to the correct torque specification.

„ Flexplate attaching bolt
torque specification:
Stage 1.............. 26.0 – 34.0 Nm
Stage 2................................. 45°

5 Remove the flexplate holding tool.
6 Install the starter motor, refer to Section 6D1-2
Starting System – V6 .
7 Install the transmission, refer to Section 7E4
Automatic Transmission – 4L60E – On-vehicle
Servicing .

Figure 6A1 – 456

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–262
Page 6A1–262

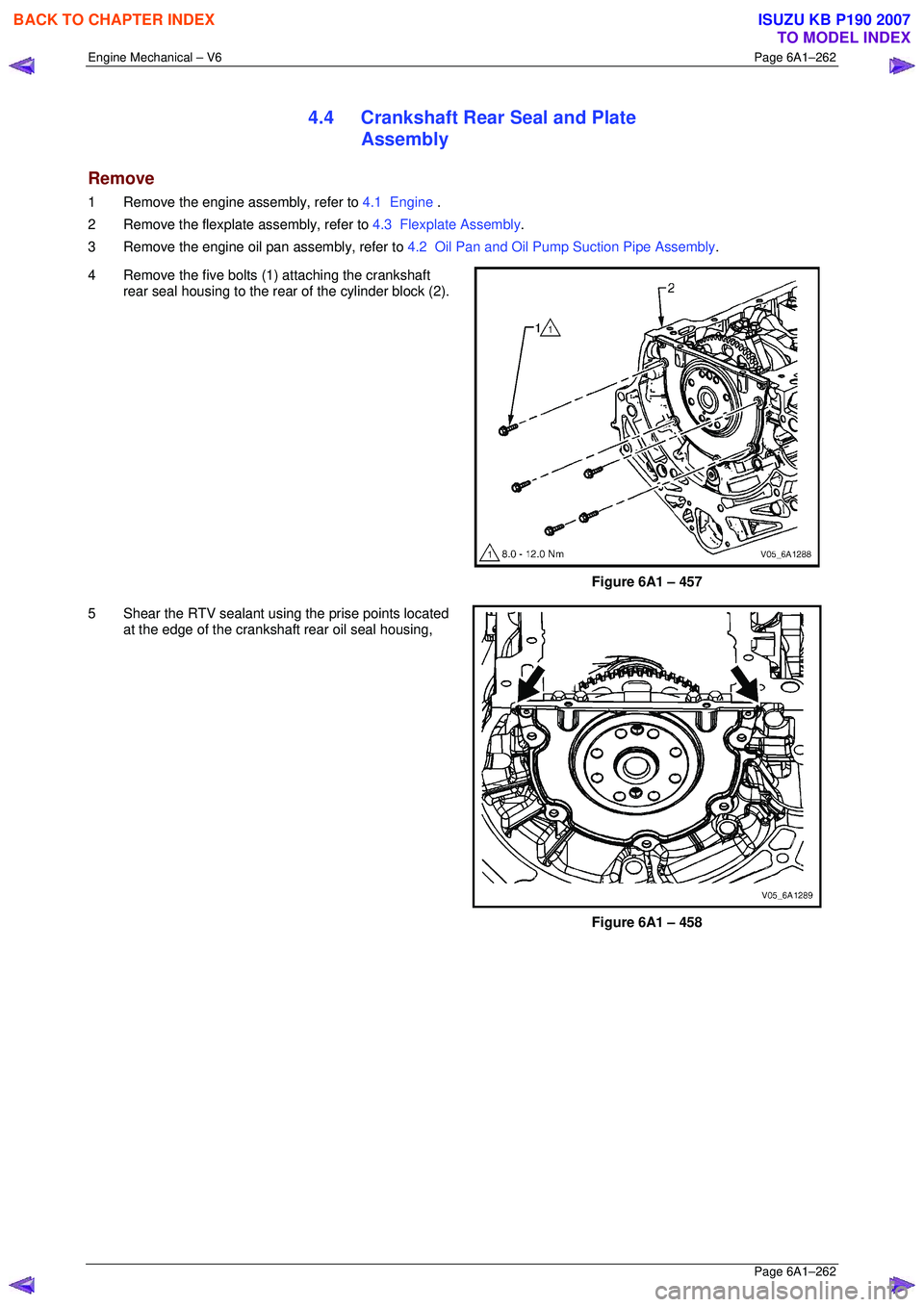

4.4 Crankshaft Rear Seal and Plate
Assembly
Remove
1 Remove the engine assembly, refer to 4.1 Engine .
2 Remove the flexplat e assembly, refer to 4.3 Flexplate Assembly .
3 Remove the engine oil pan assembly, refer to 4.2 Oil Pan and Oil Pump Suction Pipe Assembly.
4 Remove the five bolts (1) attaching the crankshaft rear seal housing to the rear of the cylinder block (2).

Figure 6A1 – 457
5 Shear the RTV sealant usi ng the prise points located
at the edge of the crankshaft rear oil seal housing,

Figure 6A1 – 458

BACK TO CHAPTER INDEX
TO MODEL INDEX
ISUZU KB P190 2007

Engine Mechanical – V6 Page 6A1–263
Page 6A1–263

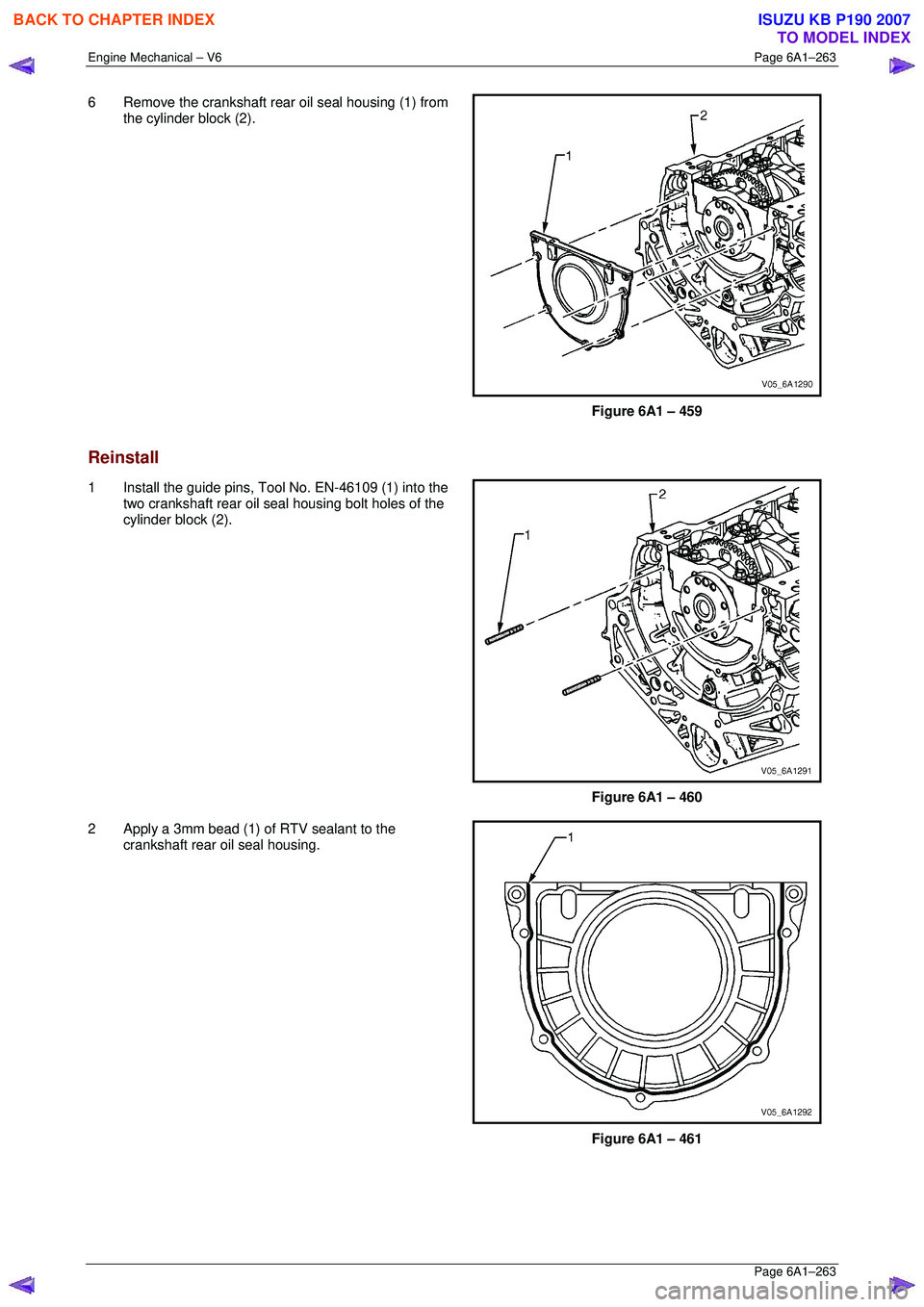

6 Remove the crankshaft rear oil seal housing (1) from
the cylinder block (2).

Figure 6A1 – 459
Reinstall
1 Install the guide pins, Tool No. EN-46109 (1) into the two crankshaft rear oil seal housing bolt holes of the
cylinder block (2).

Figure 6A1 – 460
2 Apply a 3mm bead (1) of RTV sealant to the crankshaft rear oil seal housing.

Figure 6A1 – 461
