ELECTRICAL-BODY AND CHASSIS 8A-203

CIRCUIT DIAGRAM C24SE (RHD) WITH ILLUMINATION CONTROL







RTW 680XF007801


BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-204 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM C24SE (LHD) WITHOUT ILLUMINATION CONTROL







RTW 680XF007901

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-205

CIRCUIT DIAGRAM C24SE (LHD) WITH ILLUMINATION CONTROL








RTW 680XF008001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-206 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM HFV6 (RHD)






RTW 78AXF025701

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-207

CIRCUIT DIAGRAM HFV6 (LHD)






RTW 78AXF017701

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

8A-208 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC





RTW 78AXF027001

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-209

CIRCUIT DIAGRAM 4JH1-TC (LHD)








RTW A78XF013601

BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-210 ELECTRICAL-BODY AND CHASSIS

CIRCUIT DIAGRAM 4JA1T (L)








RTW 78AXF014001

BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

ELECTRICAL-BODY AND CHASSIS 8A-211

CIRCUIT DIAGRAM 4JA1T (L)





RTW 78AXF014101


BACK TO CHAPTER INDEX
TO MODEL INDEXISUZU KB P190 2007

8A-212 ELECTRICAL-BODY AND CHASSIS


RTU4Z0SH000901

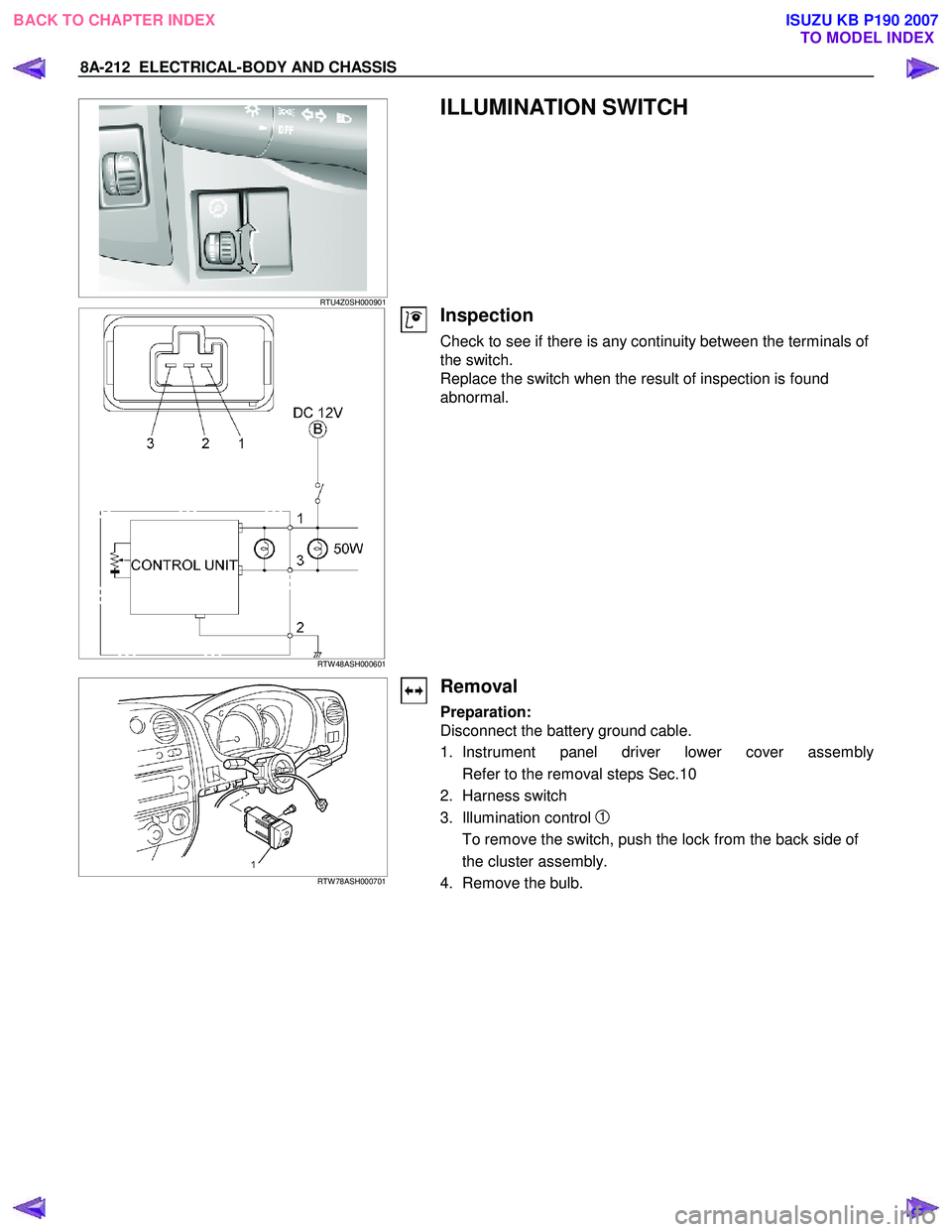

ILLUMINATION SWITCH




RTW 48ASH000601

Inspection
Check to see if there is any continuity between the terminals of
the switch.
Replace the switch when the result of inspection is found
abnormal.




RTW 78ASH000701

Removal
Preparation:
Disconnect the battery ground cable.
1. Instrument panel driver lower cover assembly
Refer to the removal steps Sec.10
2. Harness switch
3. Illumination control
1
To remove the switch, push the lock from the back side of
the cluster assembly.
4. Remove the bulb.
