ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-213 HAZARD WARNING FLASHER, TURN SIGNAL LIGHT, BACKUP LIGHT, HORN AND STOPLIGHT PARTS LOCATION (RHD) RTW 78AXF037701 & RTW 78AXF043901 BACK TO CHAPTER I

Page 5152 of 6020

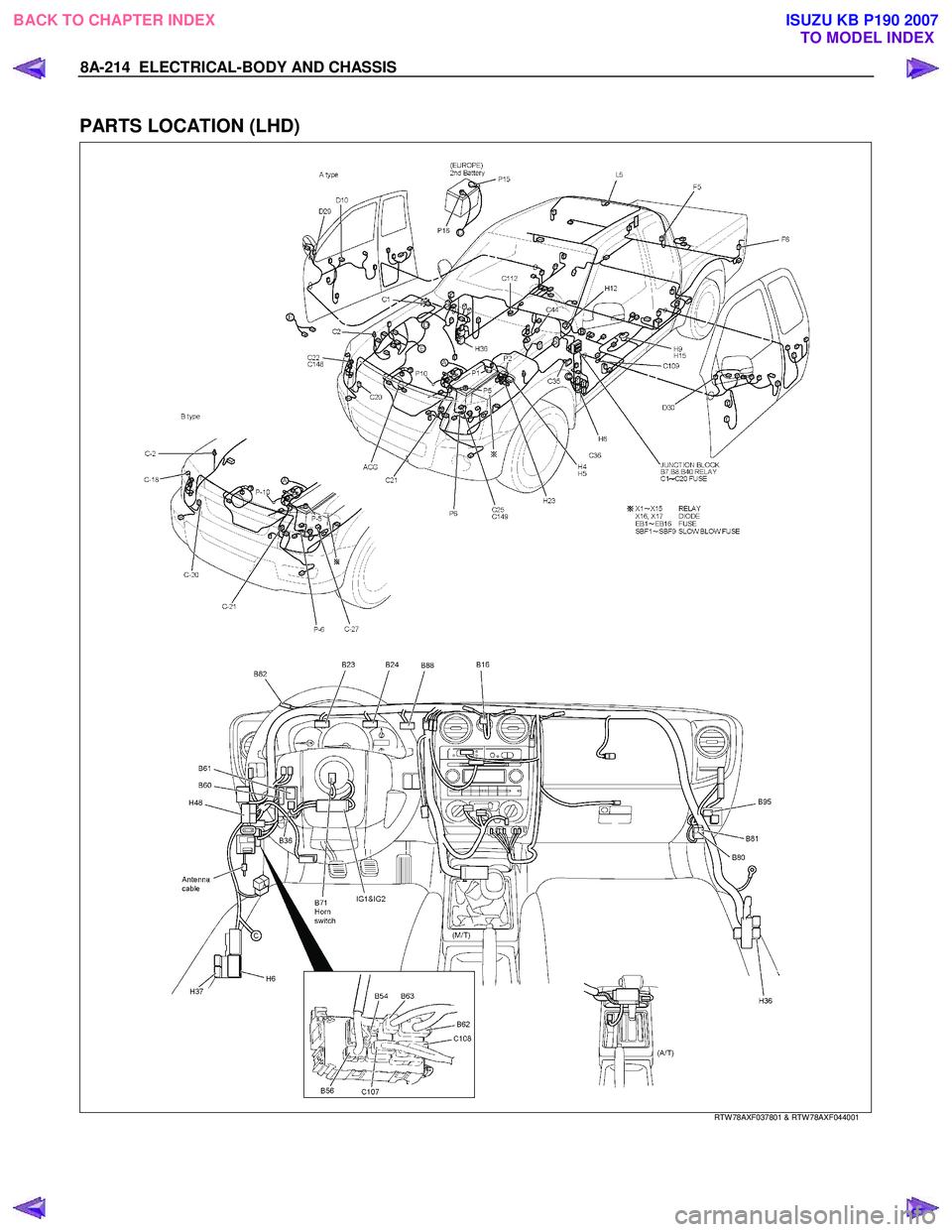

ISUZU KB P190 2007 Workshop Repair Manual 8A-214 ELECTRICAL-BODY AND CHASSIS PARTS LOCATION (LHD) RTW 78AXF037801 & RTW 78AXF044001 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5153 of 6020

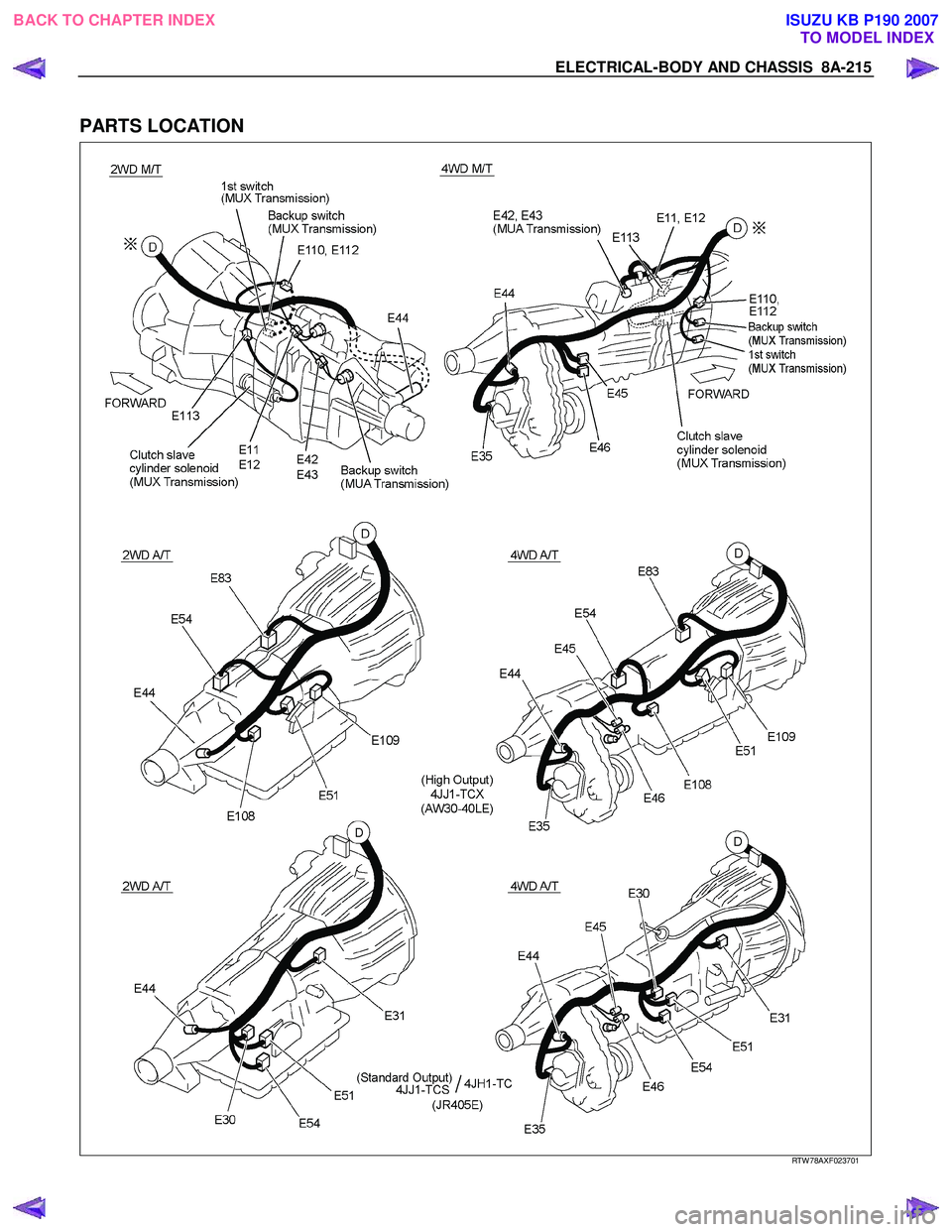

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-215 PARTS LOCATION RTW 78AXF023701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5154 of 6020

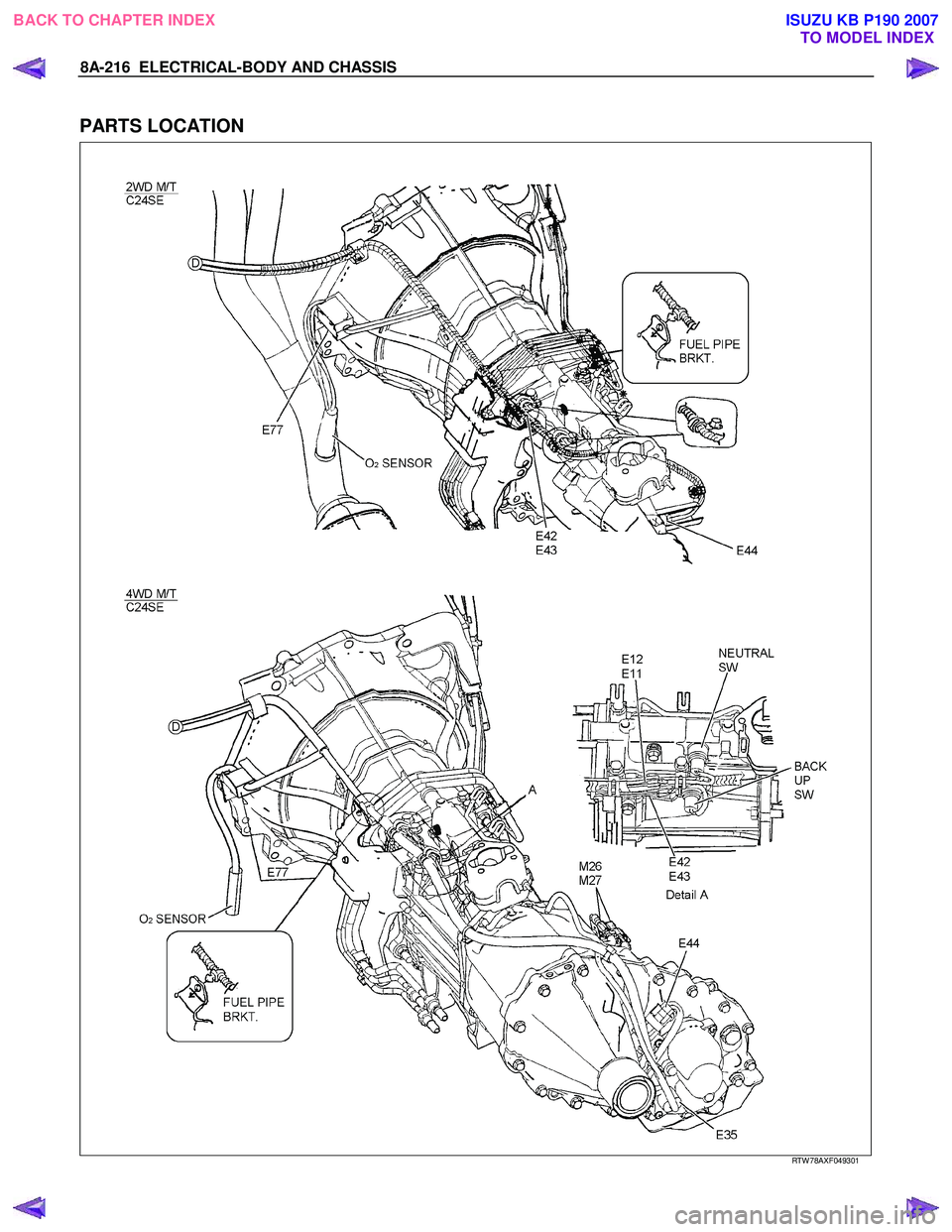

ISUZU KB P190 2007 Workshop Repair Manual 8A-216 ELECTRICAL-BODY AND CHASSIS PARTS LOCATION RTW 78AXF049301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5155 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-217 CIRCUIT DIAGRAM C24SE EXCEPT AUSTRALIA RTW 780XF012501 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5156 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-218 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM C24SE AUSTRALIA RTW 780XF012601 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5157 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-219 CIRCUIT DIAGRAM HFV6 (RHD) RTW 78AXF003301 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5158 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-220 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM HFV6 (LHD) RTW 78AXF015701 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5159 of 6020

ISUZU KB P190 2007 Workshop Repair Manual ELECTRICAL-BODY AND CHASSIS 8A-221 CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) Sheet 1/2 RTW 78AXF011101 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007

Page 5160 of 6020

ISUZU KB P190 2007 Workshop Repair Manual 8A-222 ELECTRICAL-BODY AND CHASSIS CIRCUIT DIAGRAM 4JJ1-TC / 4JK1-TC (RHD) Sheet 2/2 RTW 78AXF011201 BACK TO CHAPTER INDEX TO MODEL INDEXISUZU KB P190 2007
