ISUZU KB P190 2007 Workshop Repair Manual

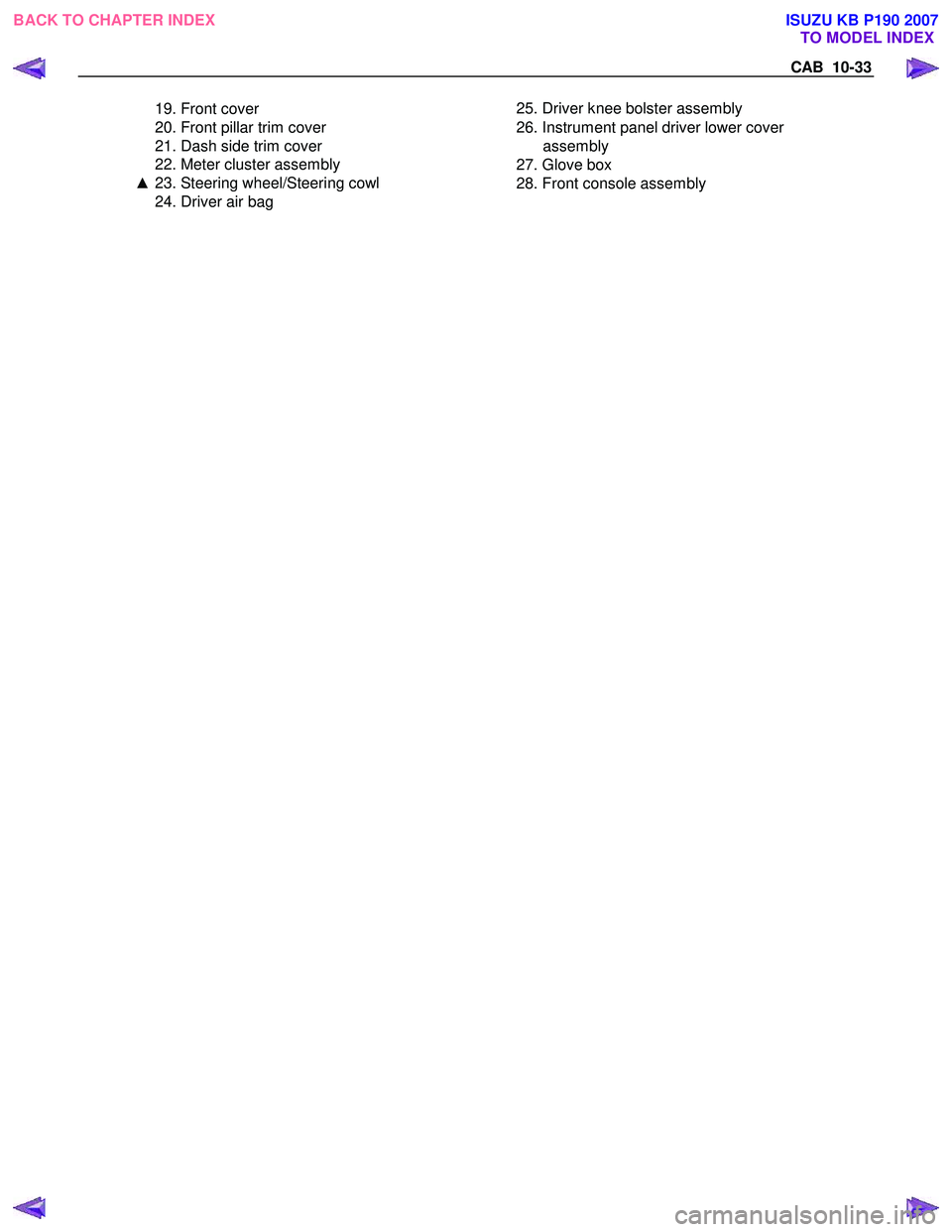

CAB 10-33
19. Front cover
20. Front pillar trim cover
21. Dash side trim cover
22. Meter cluster assembly
▲ 23. Steering wheel/Steering cowl
24. Driver air bag
25. Driver knee bolster assembly
26. Instrument panel driver lower cover assembly
27. Glove box
28. Front console assembly



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

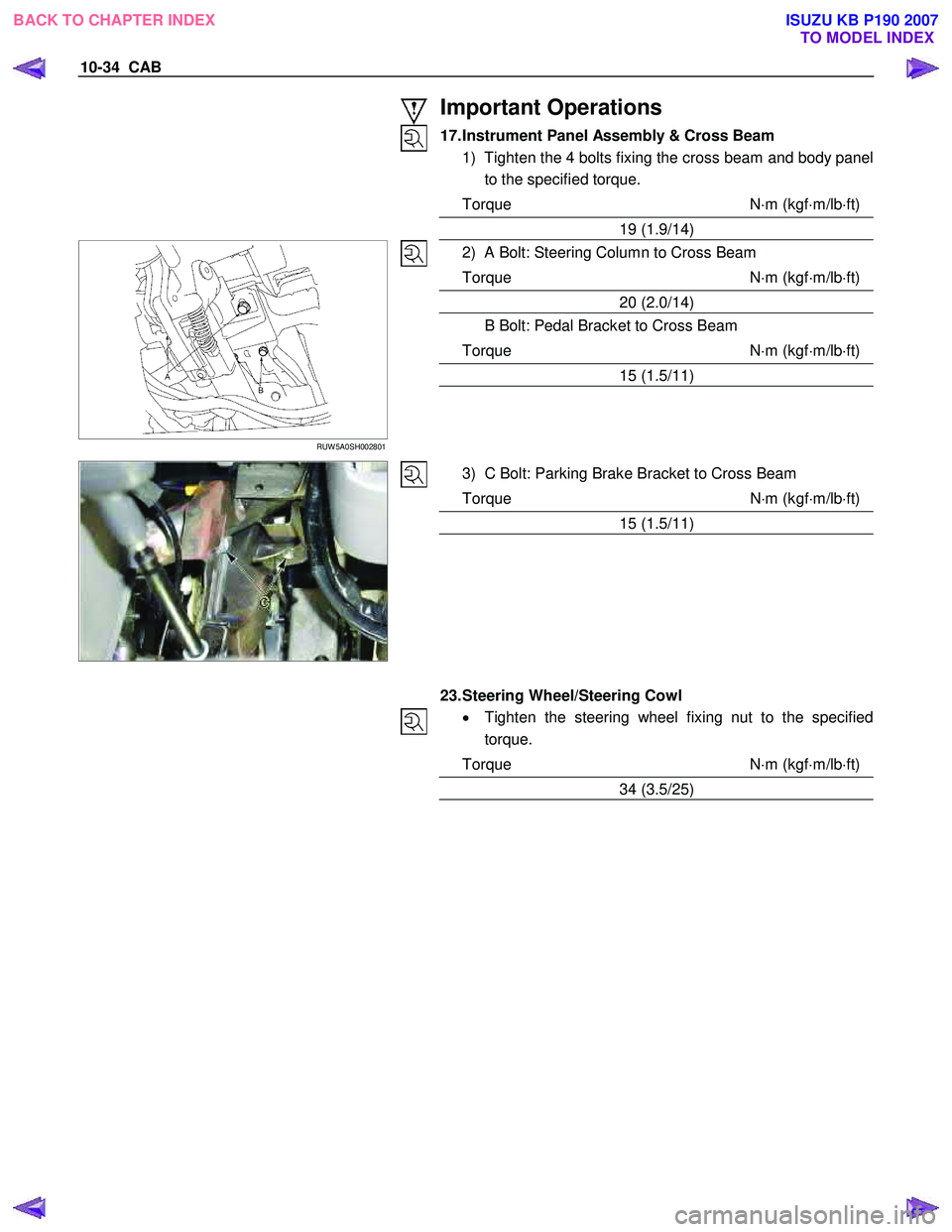

10-34 CAB
Important Operations
17. Instrument Panel Assembly & Cross Beam 1) Tighten the 4 bolts fixing the cross beam and body panel to the specified torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
19 (1.9/14)

RUW 5A0SH002801
2) A Bolt: Steering Column to Cross Beam
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
20 (2.0/14)
B Bolt: Pedal Bracket to Cross Beam
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
15 (1.5/11)

3) C Bolt: Parking Brake Bracket to Cross Beam
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
15 (1.5/11)

23. Steering Wheel/Steering Cowl • Tighten the steering wheel fixing nut to the specified
torque.
Torque N ⋅m (kgf ⋅m/lb ⋅ft)
34 (3.5/25)




BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

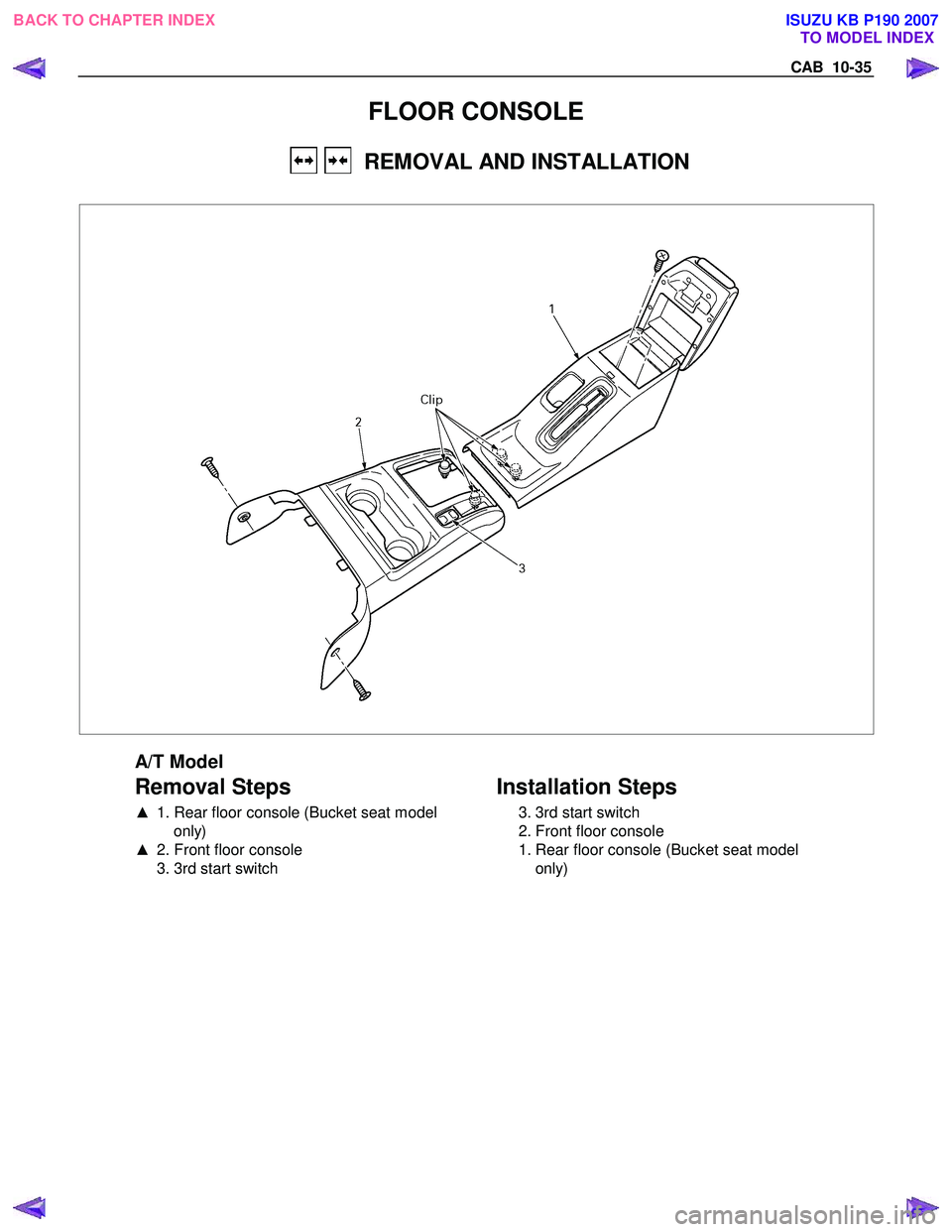

CAB 10-35
FLOOR CONSOLE
REMOVAL AND INSTALLATION



A/T Model
Removal Steps
▲ 1. Rear floor console (Bucket seat model
only)
▲ 2. Front floor console
3. 3rd start switch


Installation Steps
3. 3rd start switch
2. Front floor console
1. Rear floor console (Bucket seat model only)



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

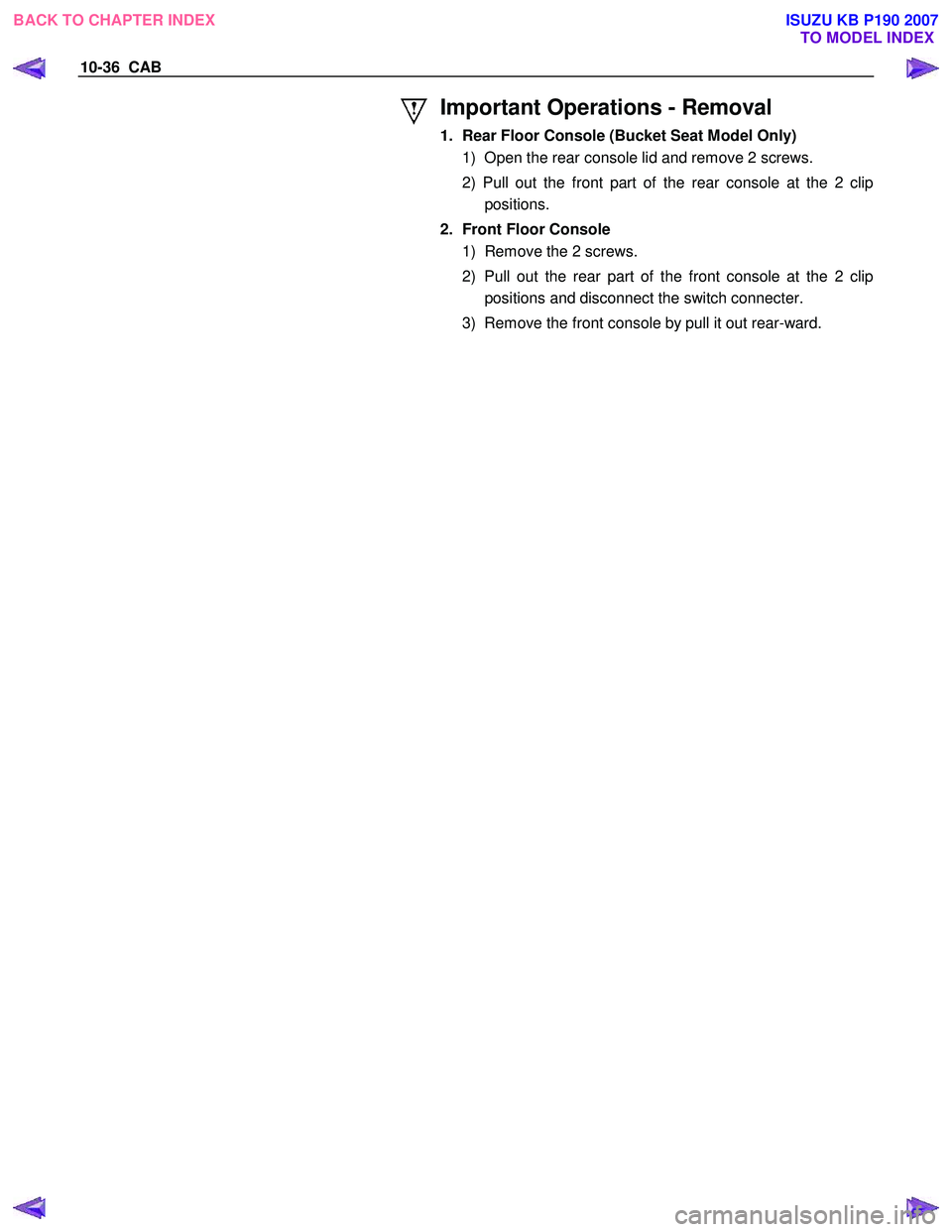

10-36 CAB

Important Operations - Removal
1. Rear Floor Console (Bucket Seat Model Only) 1) Open the rear console lid and remove 2 screws.
2) Pull out the front part of the rear console at the 2 clip positions.
2. Front Floor Console 1) Remove the 2 screws.
2) Pull out the rear part of the front console at the 2 clip positions and disconnect the switch connecter.
3) Remove the front console by pull it out rear-ward.


BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

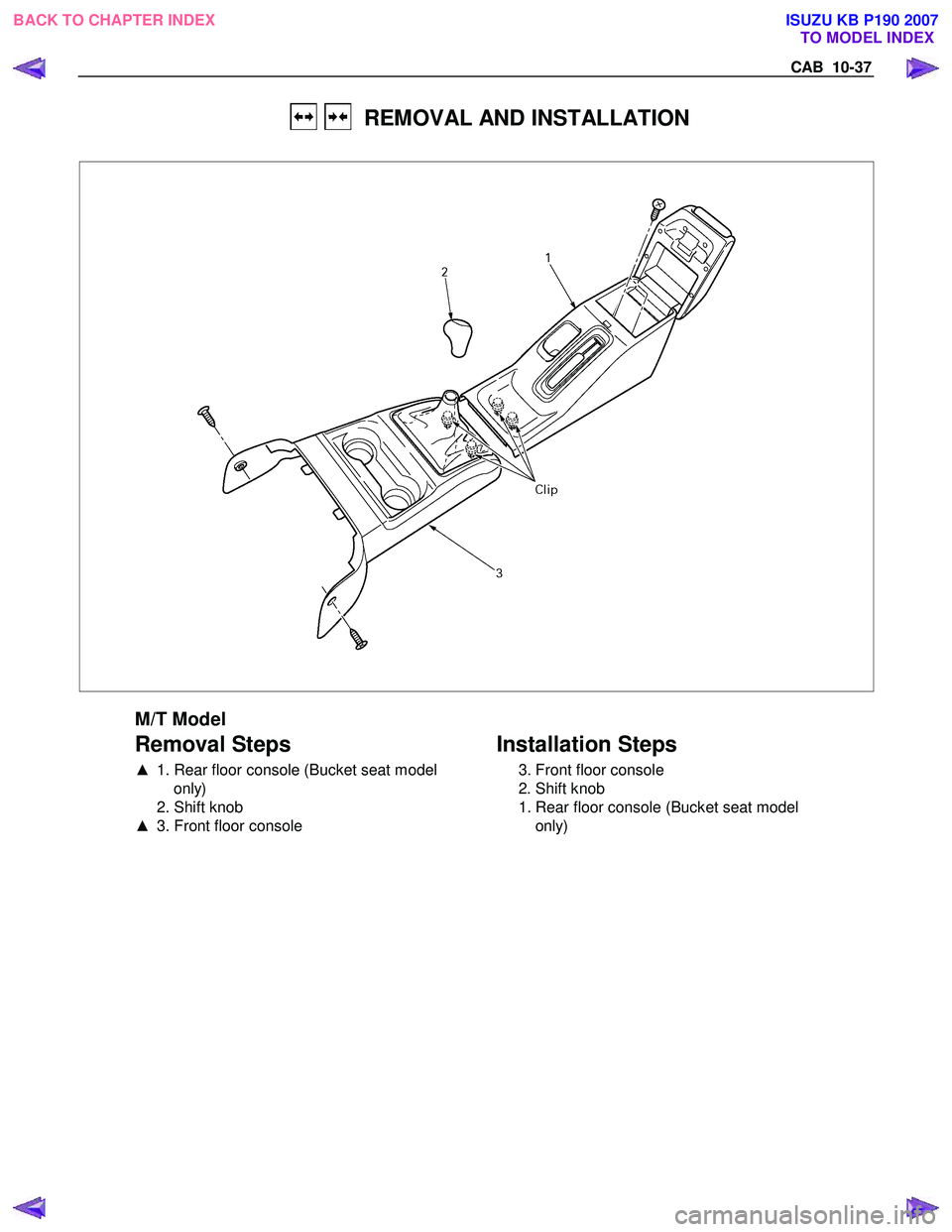

CAB 10-37
REMOVAL AND INSTALLATION



M/T Model
Removal Steps
▲ 1. Rear floor console (Bucket seat model
only)
2. Shift knob
▲ 3. Front floor console


Installation Steps
3. Front floor console
2. Shift knob
1. Rear floor console (Bucket seat model only)



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

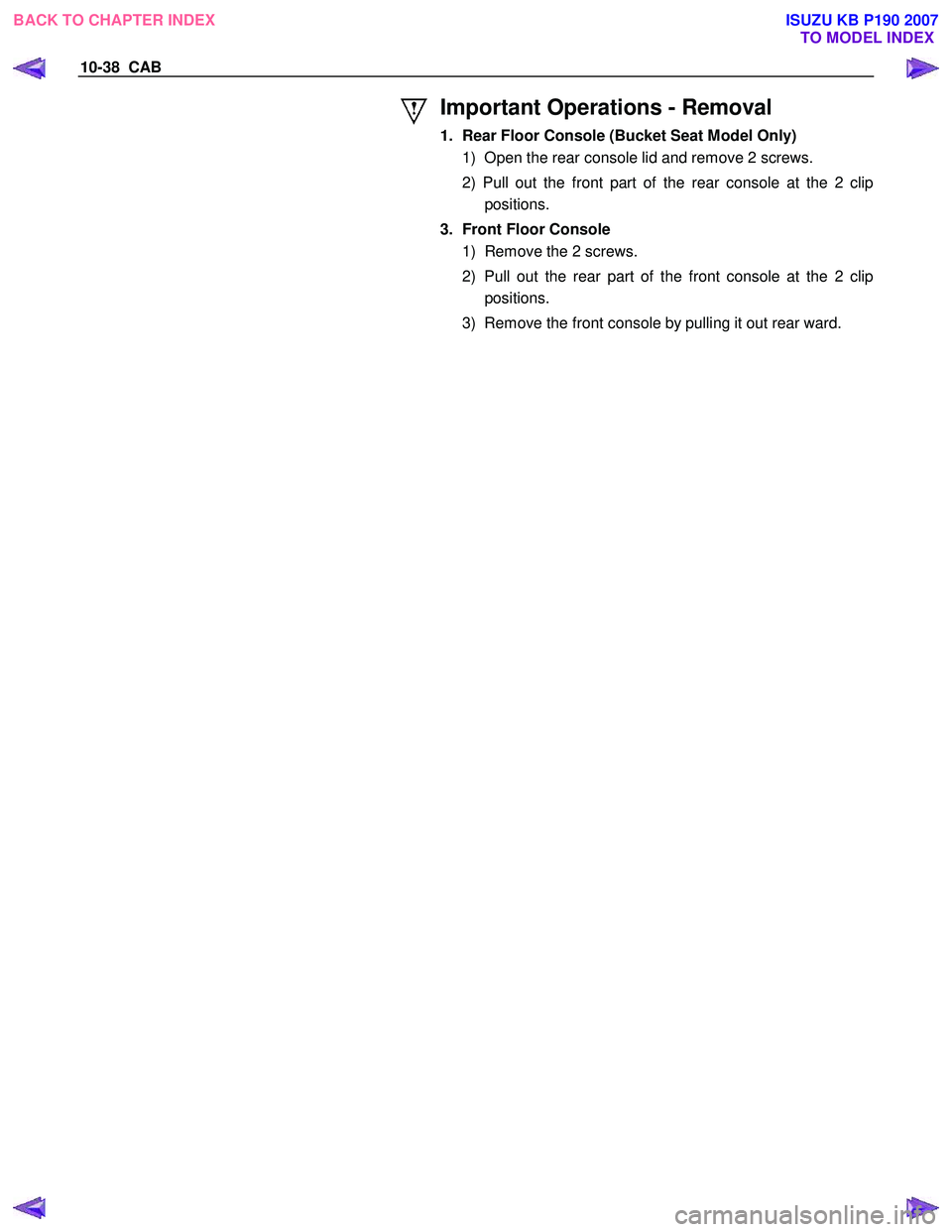

10-38 CAB

Important Operations - Removal
1. Rear Floor Console (Bucket Seat Model Only) 1) Open the rear console lid and remove 2 screws.
2) Pull out the front part of the rear console at the 2 clip positions.
3. Front Floor Console 1) Remove the 2 screws.
2) Pull out the rear part of the front console at the 2 clip positions.
3) Remove the front console by pulling it out rear ward.


BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

CAB 10-39
CONSOLE BOX (WITHOUT FLOOR CONSOLE)
REMOVAL AND INSTALLATION




RTW 4A0MF000201

M/T Model
Removal Steps
1. Screw
2. Console box


Installation Steps
2. Console box
1. Screw



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

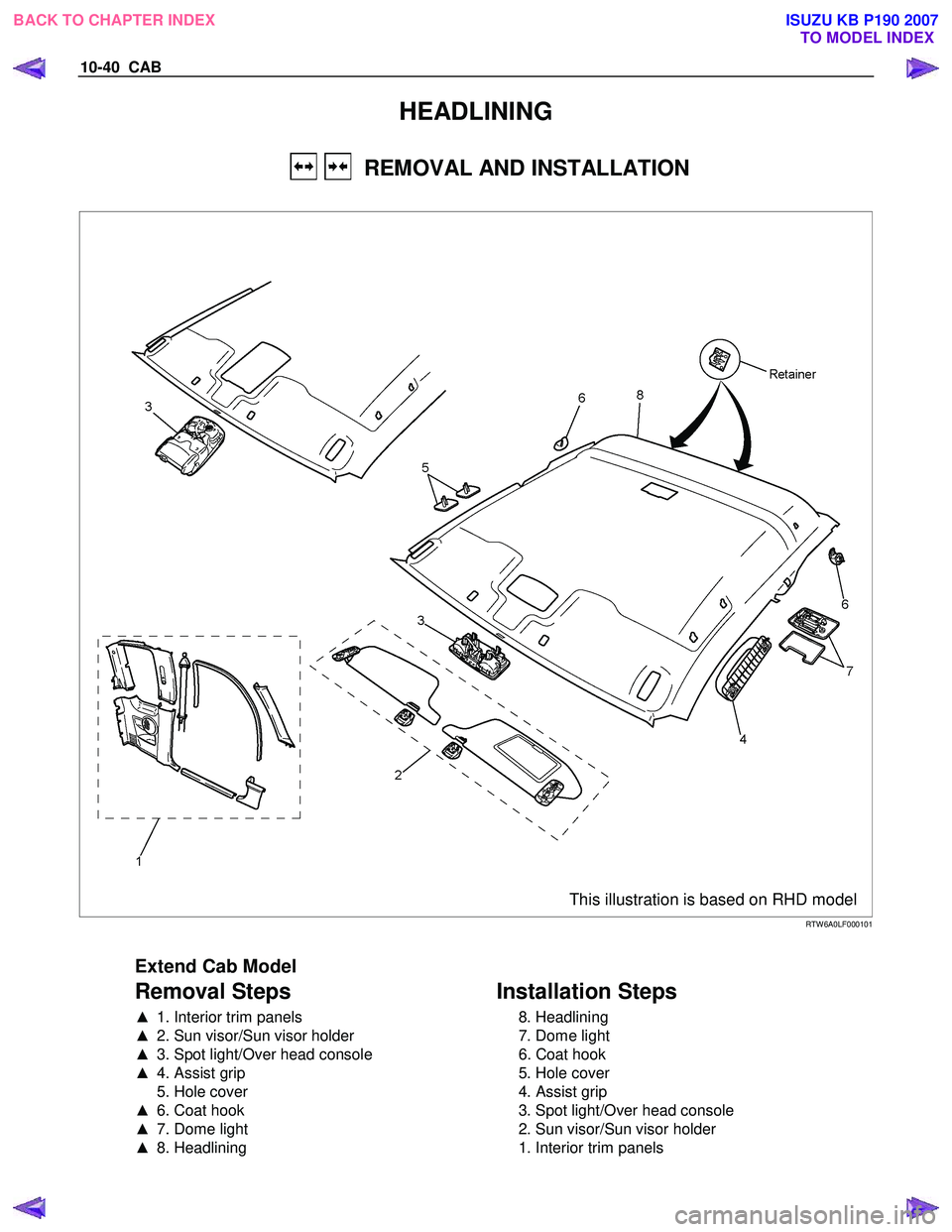

10-40 CAB
HEADLINING
REMOVAL AND INSTALLATION




This illustration is based on RHD model
RTW 6A0LF000101

Extend Cab Model
Removal Steps
▲ 1. Interior trim panels
▲ 2. Sun visor/Sun visor holder
▲ 3. Spot light/Over head console
▲ 4. Assist grip
5. Hole cover
▲ 6. Coat hook
▲ 7. Dome light
▲ 8. Headlining


Installation Steps
8. Headlining
7. Dome light
6. Coat hook
5. Hole cover
4. Assist grip
3. Spot light/Over head console
2. Sun visor/Sun visor holder
1. Interior trim panels



BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

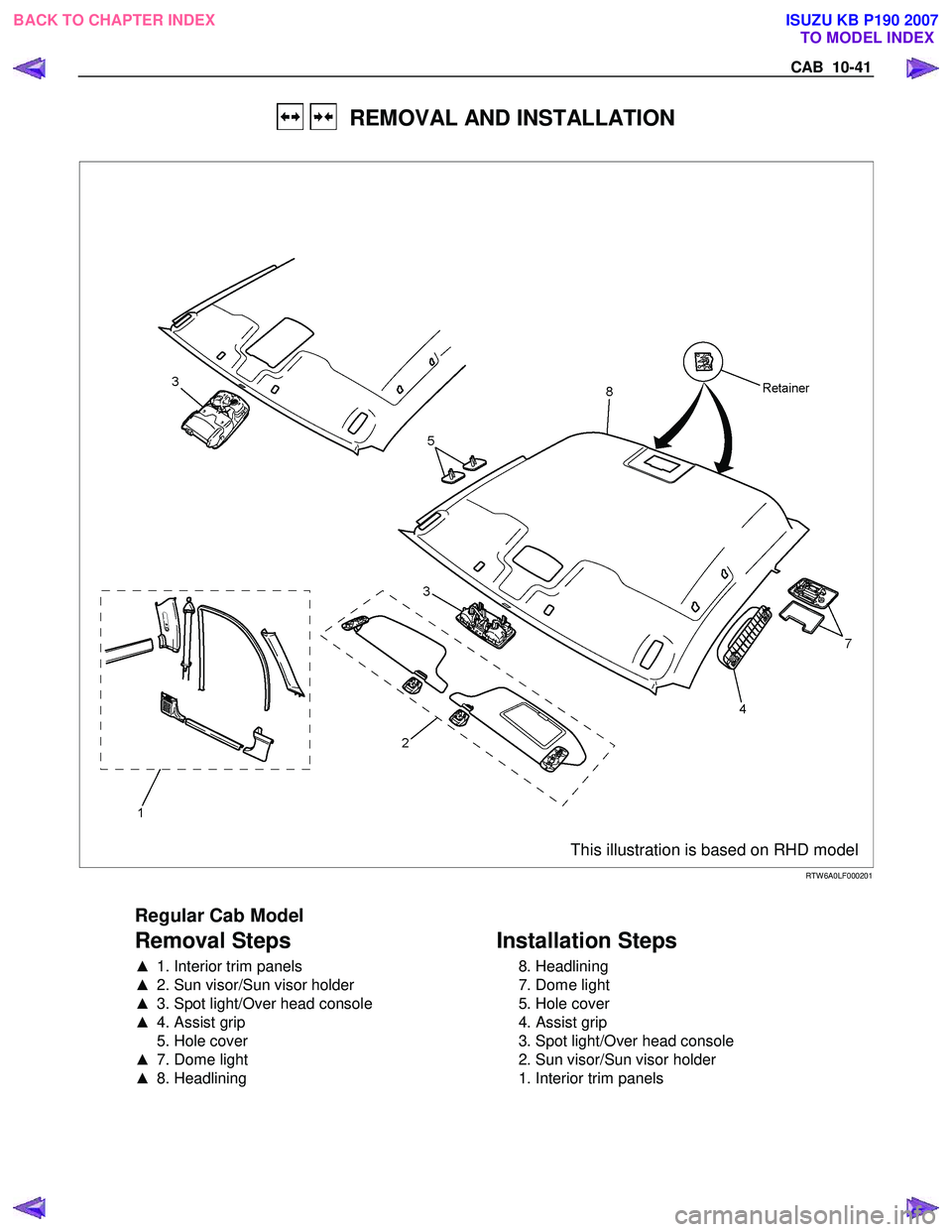

CAB 10-41
REMOVAL AND INSTALLATION




This illustration is based on RHD model
RTW 6A0LF000201

Regular Cab Model
Removal Steps
▲ 1. Interior trim panels
▲ 2. Sun visor/Sun visor holder
▲ 3. Spot light/Over head console
▲ 4. Assist grip
5. Hole cover
▲ 7. Dome light
▲ 8. Headlining


Installation Steps
8. Headlining
7. Dome light
5. Hole cover
4. Assist grip
3. Spot light/Over head console
2. Sun visor/Sun visor holder
1. Interior trim panels




BACK TO CHAPTER INDEX TO MODEL INDEX
ISUZU KB P190 2007

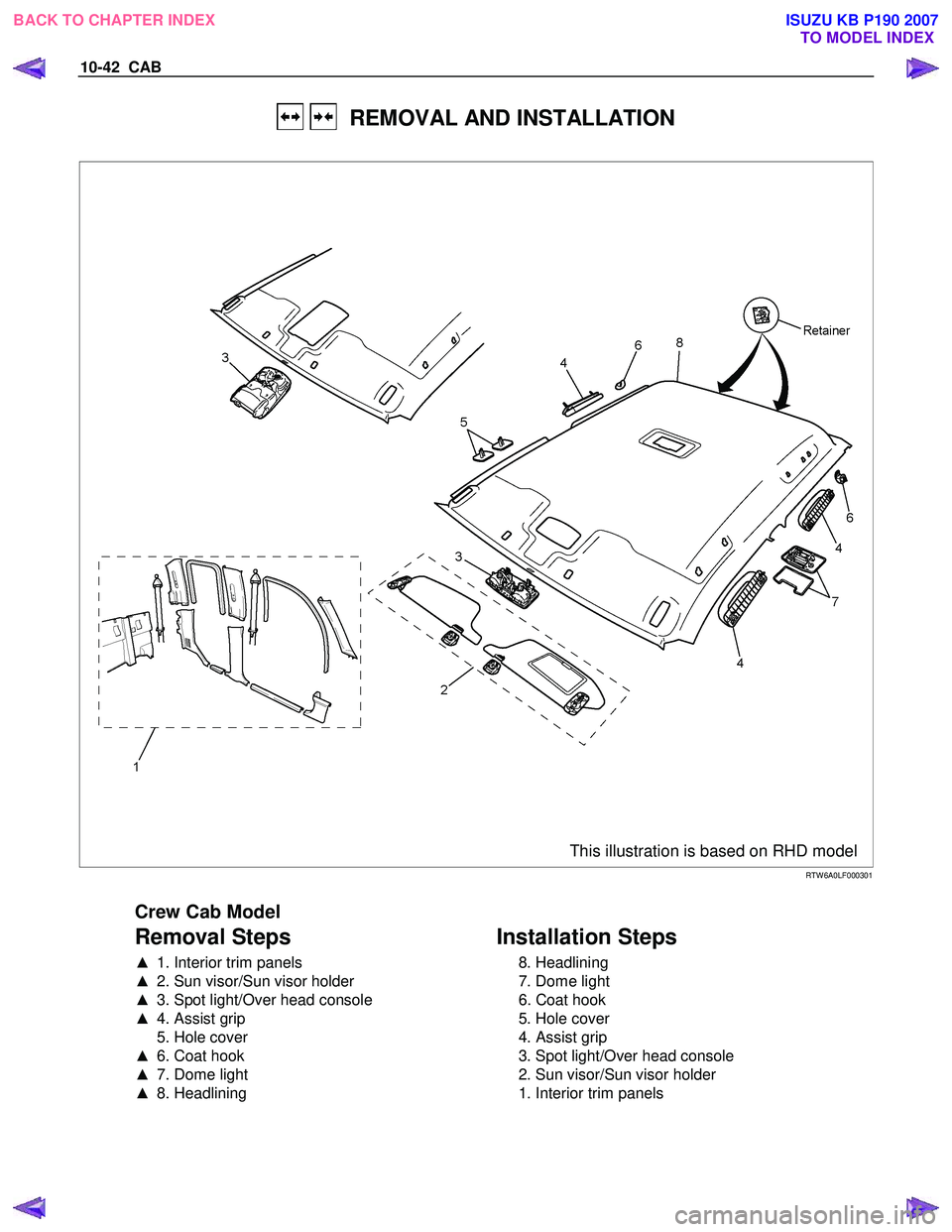

10-42 CAB
REMOVAL AND INSTALLATION






This illustration is based on RHD model
RTW 6A0LF000301

Crew Cab Model
Removal Steps
▲ 1. Interior trim panels
▲ 2. Sun visor/Sun visor holder
▲ 3. Spot light/Over head console
▲ 4. Assist grip
5. Hole cover
▲ 6. Coat hook
▲ 7. Dome light
▲ 8. Headlining


Installation Steps
8. Headlining
7. Dome light
6. Coat hook
5. Hole cover
4. Assist grip
3. Spot light/Over head console
2. Sun visor/Sun visor holder
1. Interior trim panels



BACK TO CHAPTER INDEX TO MODEL INDEX
