LEXUS LS430 2003 Factory Repair Manual

2.CHECK TRANSPONDER KEY ECU ASSY

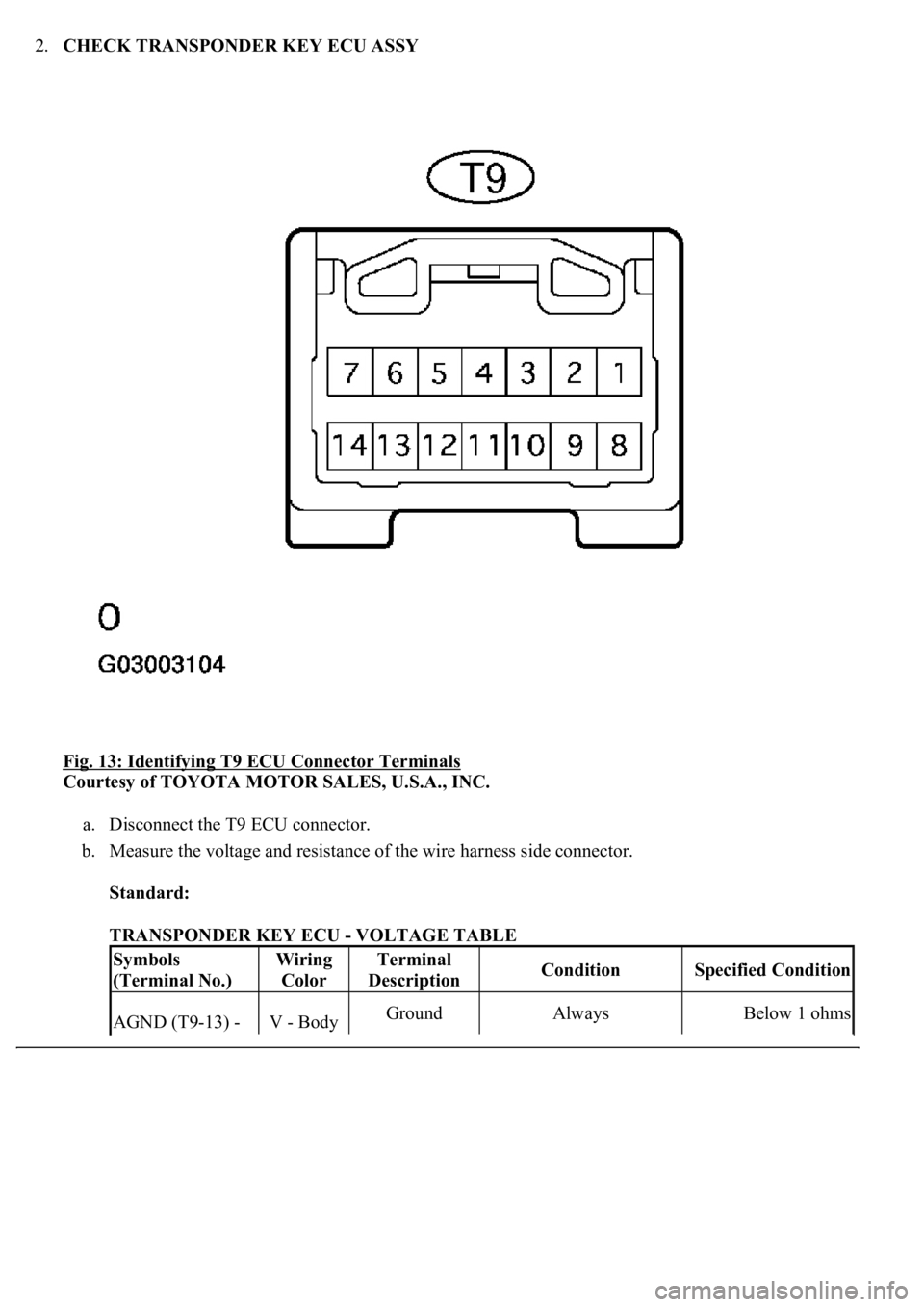

Fig. 13: Identifying T9 ECU Connector Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the T9 ECU connector.
b. Measure the voltage and resistance of the wire harness side connector.
Standard:
TRANSPONDER KEY ECU - VOLTAGE TABLE
Symbols
(Terminal No.)Wiring
ColorTerminal
DescriptionConditionSpecified Condition
AGND (T9-13) - V - Body GroundAlwaysBelow 1 ohms

If the result is not as specified, there may be a malfunction on the wire harness side.
c. Reconnect the T9 ECU connector.
d. Measure the voltage of the connector.
Standard:

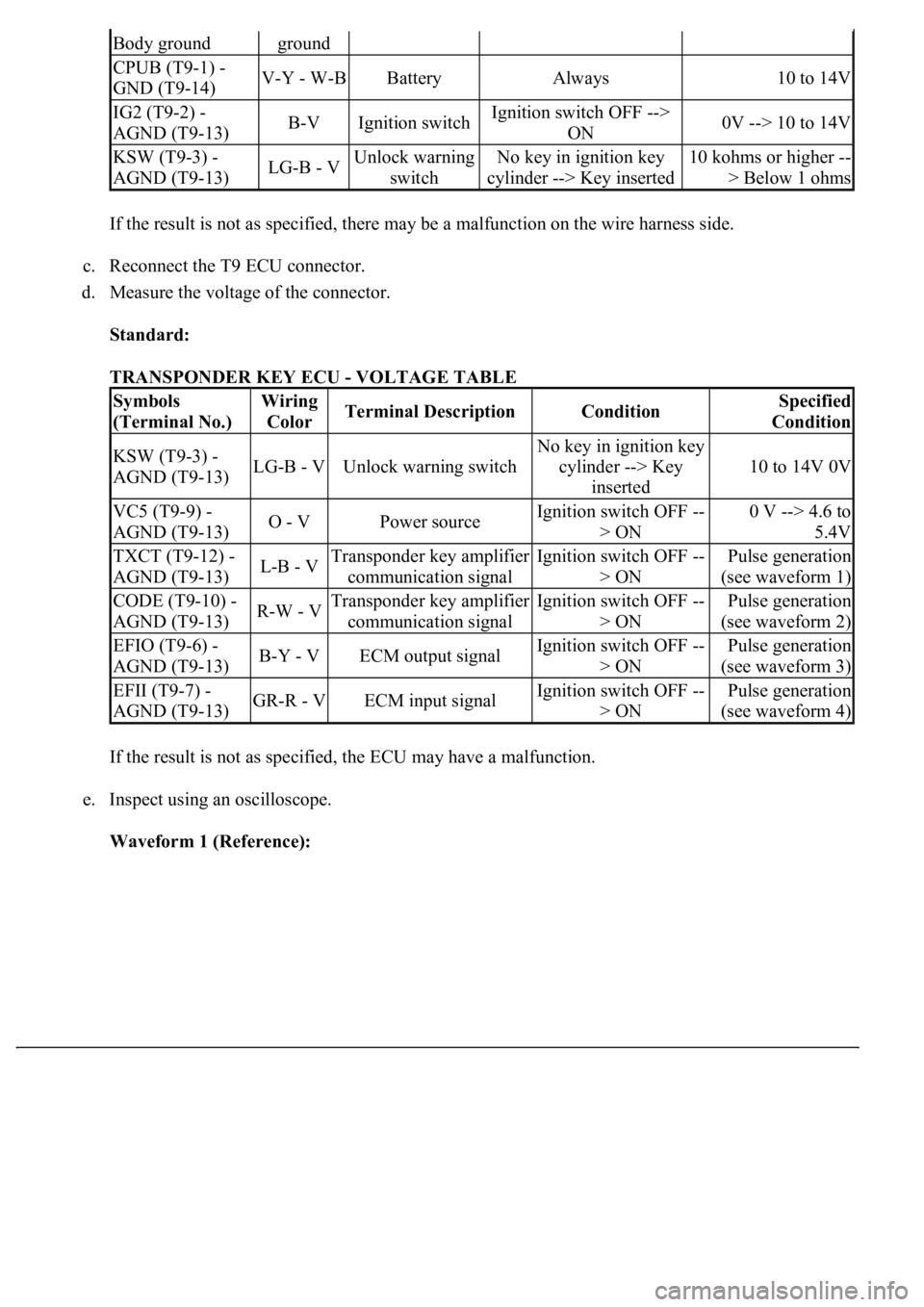

TRANSPONDER KEY ECU - VOLTAGE TABLE
If the result is not as specified, the ECU may have a malfunction.
e. Inspect using an oscilloscope.
Waveform 1 (Reference):
Body groundground
CPUB (T9-1) -
GND (T9-14)V-Y - W-BBatteryAlways10 to 14V
IG2 (T9-2) -
AGND (T9-13)B-VIgnition switchIgnition switch OFF -->
ON0V --> 10 to 14V
KSW (T9-3) -
AGND (T9-13)LG-B - VUnlock warning
switchNo key in ignition key
cylinder --> Key inserted10 kohms or higher --
> Below 1 ohms
Symbols
(Terminal No.)Wiring
ColorTerminal DescriptionConditionSpecified
Condition
KSW (T9-3) -
AGND (T9-13)LG-B - VUnlock warning switch
No key in ignition key
cylinder --> Key
inserted
10 to 14V 0V
VC5 (T9-9) -
AGND (T9-13)O - VPower sourceIgnition switch OFF --
> ON0 V --> 4.6 to
5.4V
TXCT (T9-12) -
AGND (T9-13)L-B - VTransponder key amplifier
communication signalIgnition switch OFF --
> ONPulse generation
(see waveform 1)
CODE (T9-10) -
AGND (T9-13)R-W - VTransponder key amplifier
communication signalIgnition switch OFF --
> ONPulse generation
(see waveform 2)
EFIO (T9-6) -
AGND (T9-13)B-Y - VECM output signalIgnition switch OFF --
> ONPulse generation
(see waveform 3)
EFII (T9-7) -
AGND (T9-13)GR-R - VECM input signalIgnition switch OFF --
> ONPulse generation
(see waveform 4)

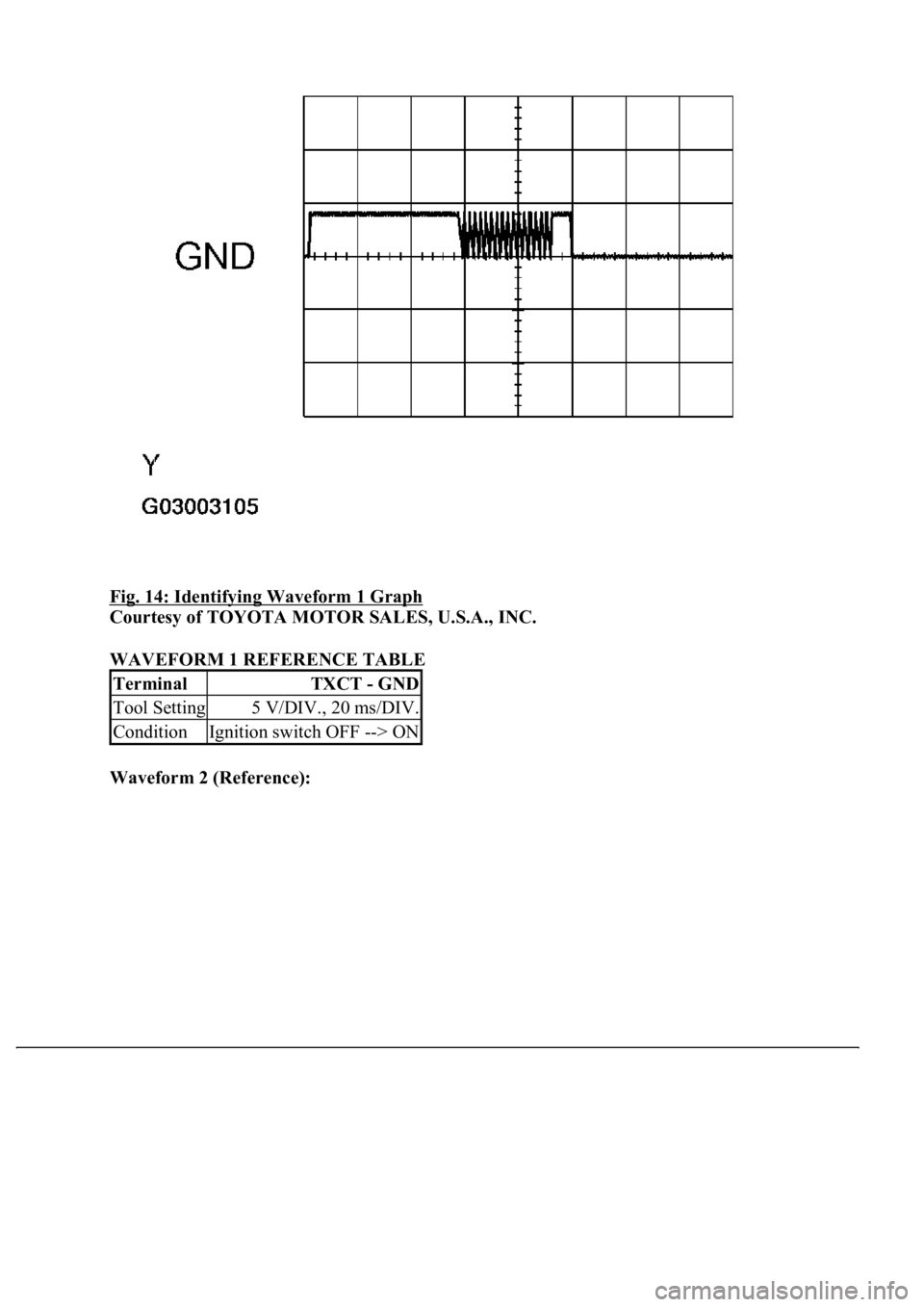

Fig. 14: Identifying Waveform 1 Graph
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WAVEFORM 1 REFERENCE TABLE
Waveform 2 (Reference):
TerminalTXCT - GND
Tool Setting5 V/DIV., 20 ms/DIV.
ConditionIgnition switch OFF --> ON

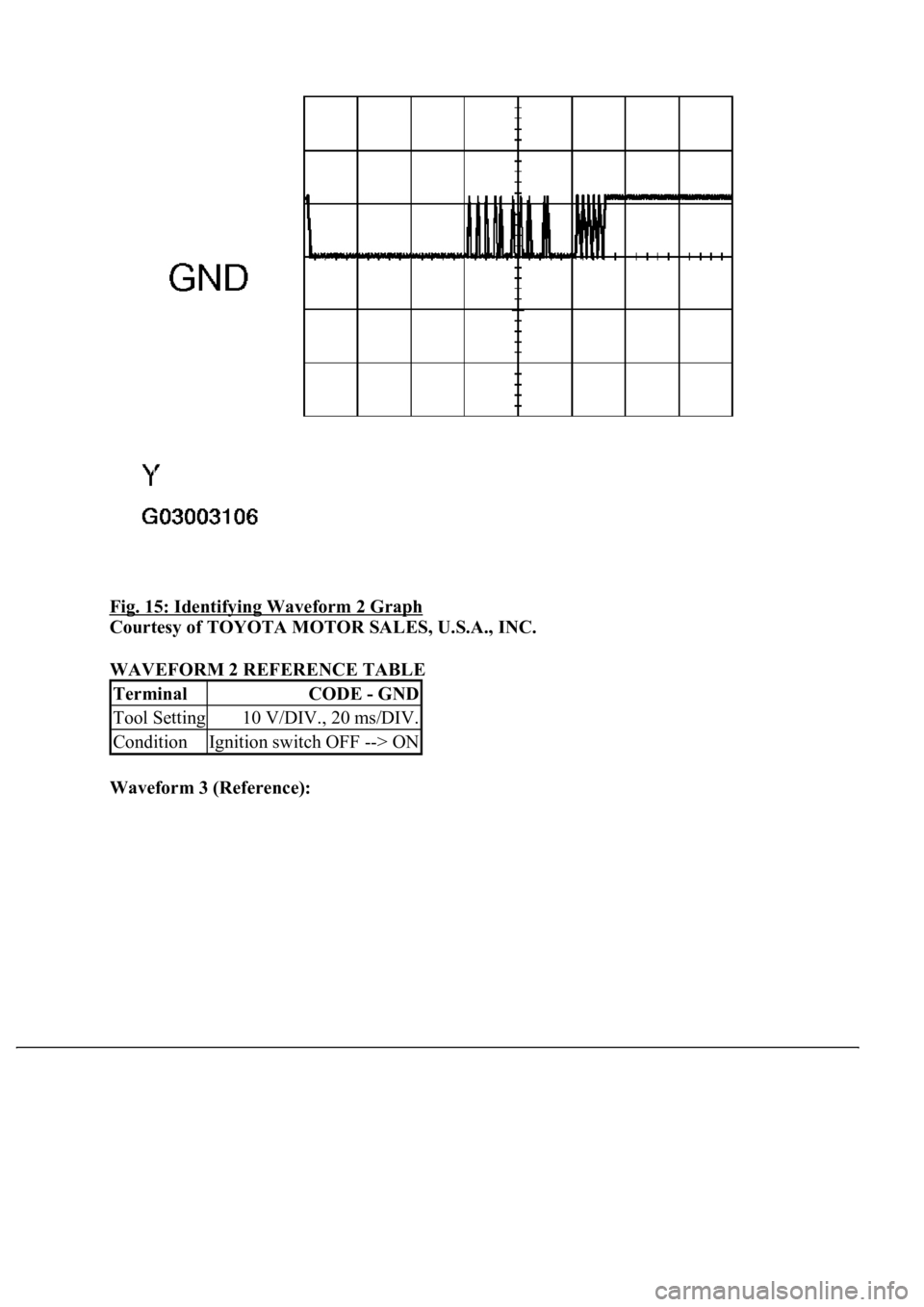

Fig. 15: Identifying Waveform 2 Graph
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WAVEFORM 2 REFERENCE TABLE
Waveform 3 (Reference):
TerminalCODE - GND
Tool Setting10 V/DIV., 20 ms/DIV.
ConditionIgnition switch OFF --> ON

Fig. 16: Identifying Waveform 3 Graph
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WAVEFORM 3 REFERENCE TABLE
Waveform 4 (Reference):
TerminalEFIO - GND
Tool Setting10 V/DIV., 500 ms/DIV.
ConditionIgnition switch OFF --> ON

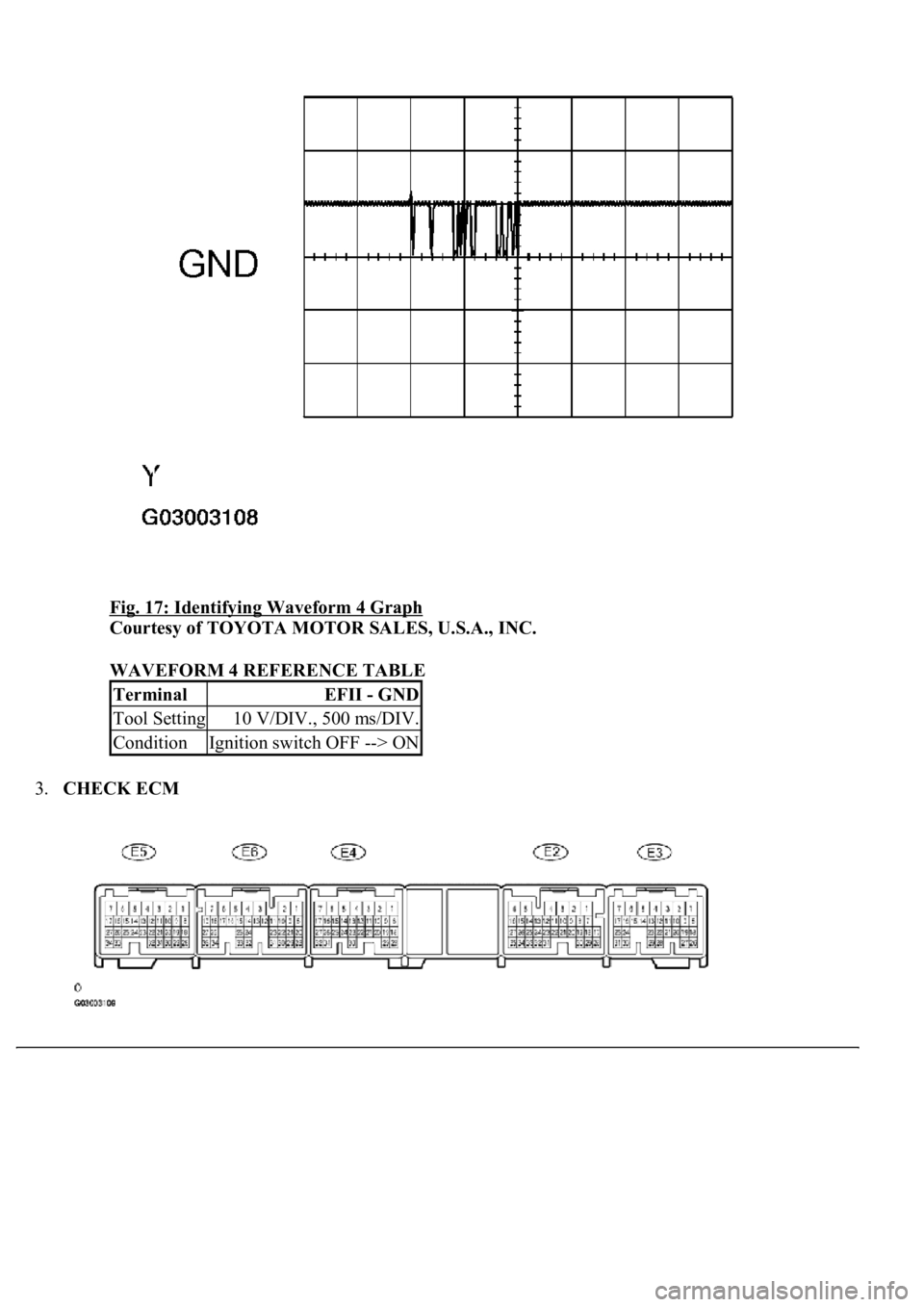

Fig. 17: Identifying Waveform 4 Graph
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WAVEFORM 4 REFERENCE TABLE
3.CHECK ECM
TerminalEFII - GND
Tool Setting10 V/DIV., 500 ms/DIV.
ConditionIgnition switch OFF --> ON

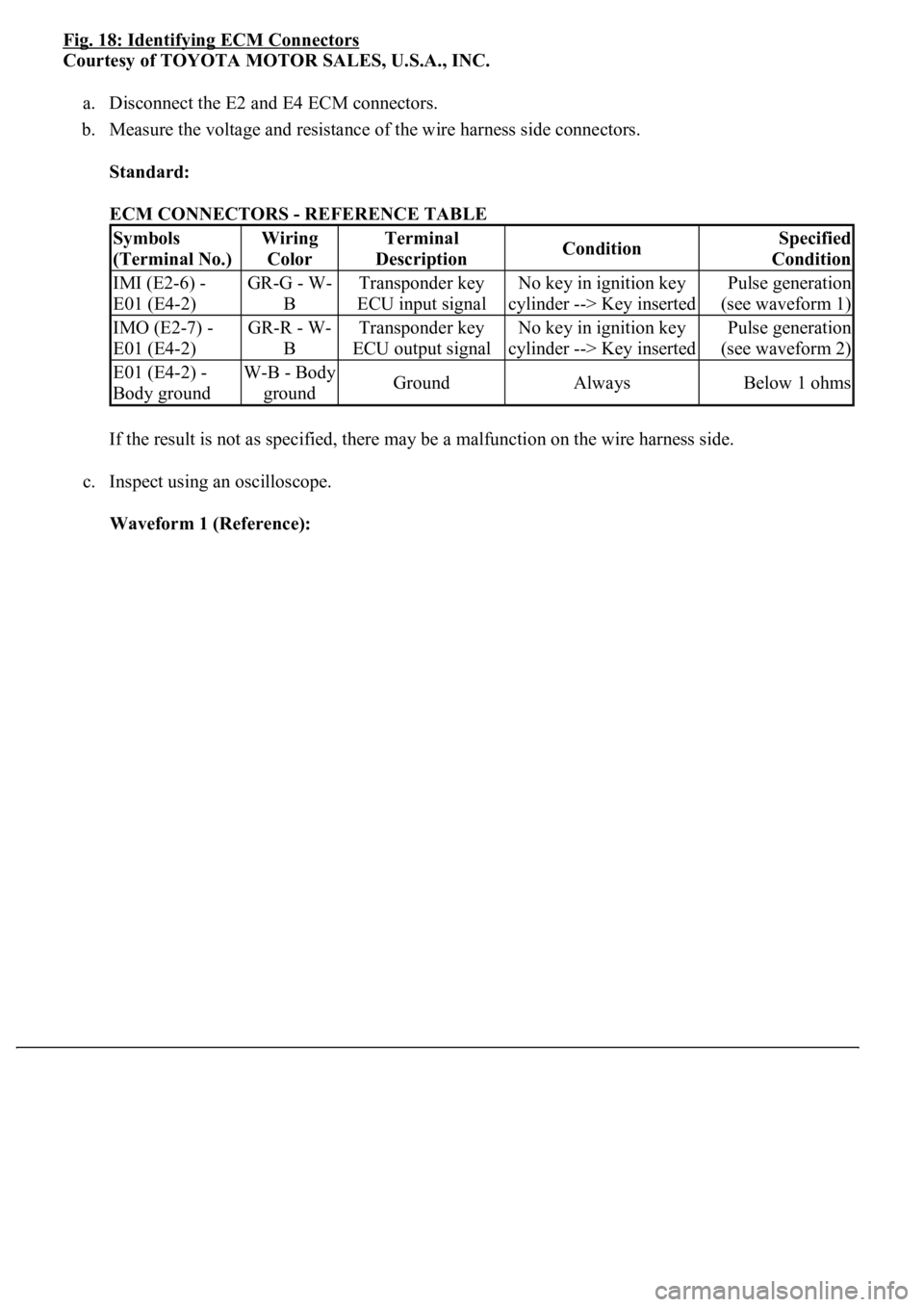

Fig. 18: Identifying ECM Connectors
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Disconnect the E2 and E4 ECM connectors.
b. Measure the voltage and resistance of the wire harness side connectors.
Standard:
ECM CONNECTORS - REFERENCE TABLE
If the result is not as specified, there may be a malfunction on the wire harness side.
c. Inspect using an oscilloscope.
Waveform 1 (Reference):
Symbols
(Terminal No.)Wiring
ColorTerminal
DescriptionConditionSpecified
Condition
IMI (E2-6) -
E01 (E4-2)GR-G - W-
BTransponder key
ECU input signalNo key in ignition key
cylinder --> Key insertedPulse generation
(see waveform 1)
IMO (E2-7) -
E01 (E4-2)GR-R - W-
BTransponder key
ECU output signalNo key in ignition key
cylinder --> Key insertedPulse generation
(see waveform 2)
E01 (E4-2) -
Body groundW-B - Body
groundGroundAlwaysBelow 1 ohms

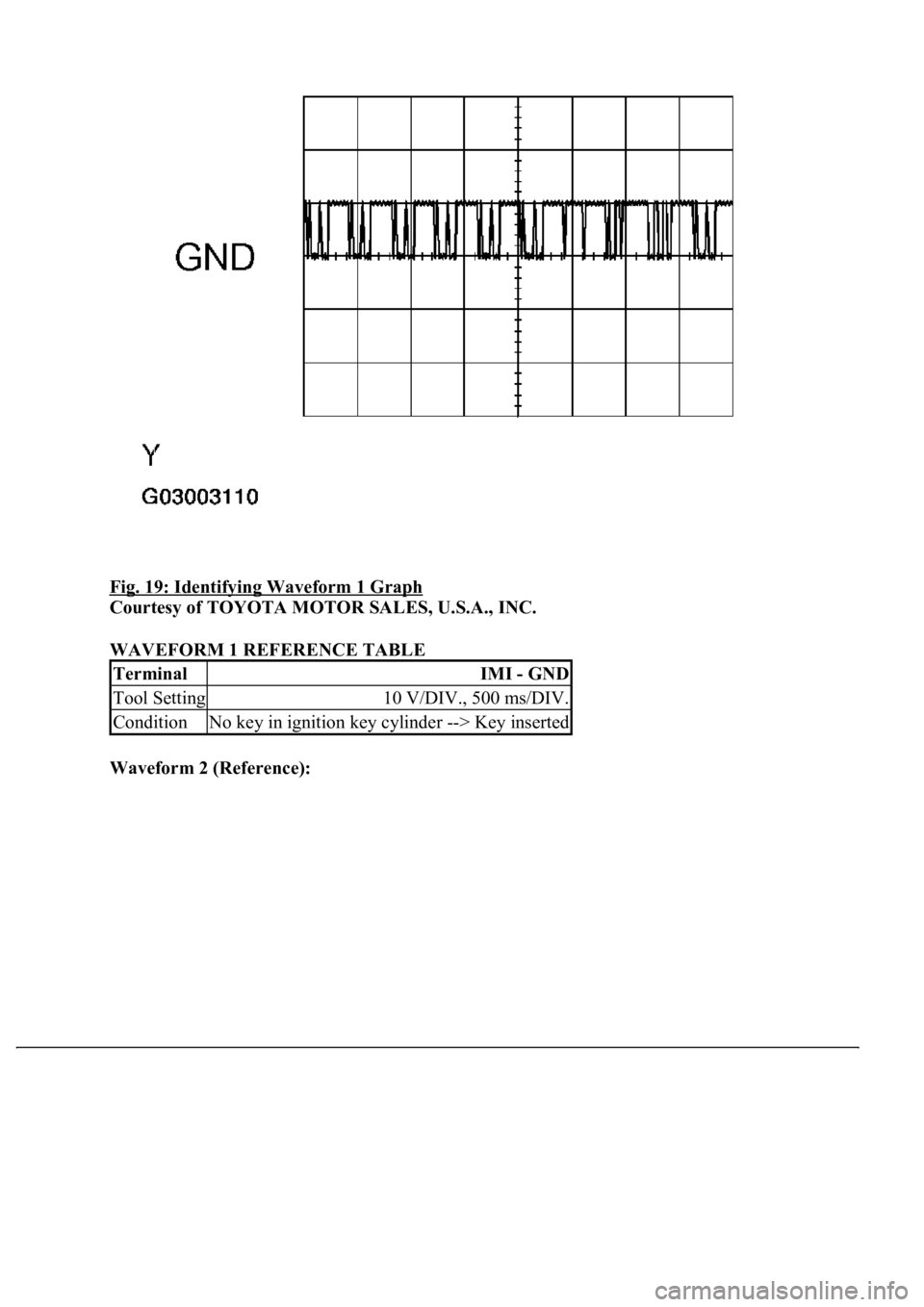

Fig. 19: Identifying Waveform 1 Graph
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WAVEFORM 1 REFERENCE TABLE
Waveform 2 (Reference):
TerminalIMI - GND
Tool Setting10 V/DIV., 500 ms/DIV.
ConditionNo key in ignition key cylinder --> Key inserted

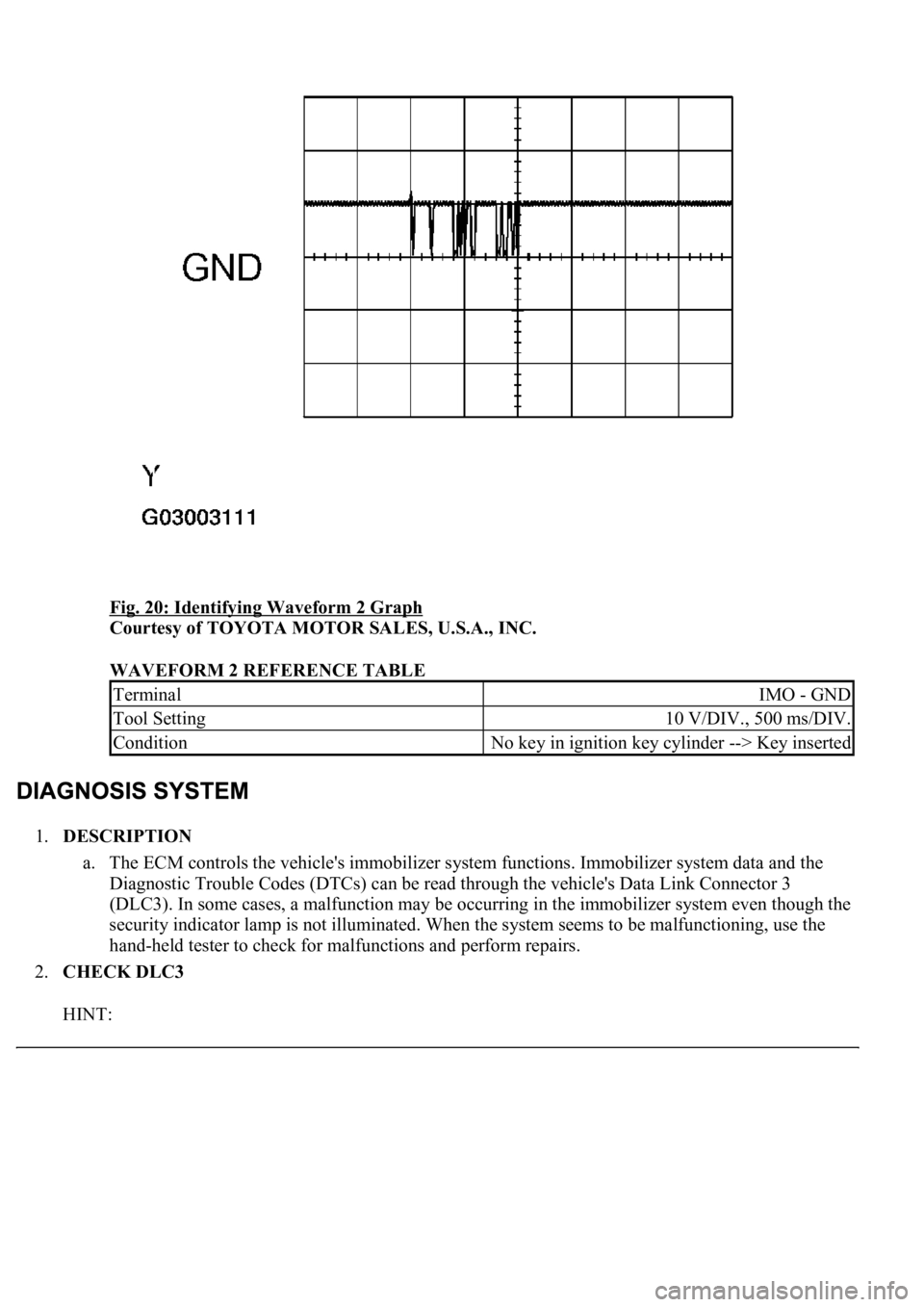

Fig. 20: Identifying Waveform 2 Graph
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
WAVEFORM 2 REFERENCE TABLE
1.DESCRIPTION
a. The ECM controls the vehicle's immobilizer system functions. Immobilizer system data and the
Diagnostic Trouble Codes (DTCs) can be read through the vehicle's Data Link Connector 3
(DLC3). In some cases, a malfunction may be occurring in the immobilizer system even though the
security indicator lamp is not illuminated. When the system seems to be malfunctioning, use the
hand-held tester to check for malfunctions and perform repairs.
2.CHECK DLC3
HINT:
TerminalIMO - GND
Tool Setting10 V/DIV., 500 ms/DIV.
ConditionNo key in ignition key cylinder --> Key inserted

The vehicle uses the ISO 15765-4 communication protocol. The terminal arrangement of the DLC3
complies with SAE J1962 and matches the ISO 15765-4 format.
Fig. 21: Identifying DLC3 Connector Terminals

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
DLC3 - REFERENCE TABLE
If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and
connector.
HINT:
Connect the cable of the han
d-held tester (with CAN VIM) to the DLC3, turn the ignition switch ON and
Symbols (Terminals No.)Terminal DescriptionConditionSpecified condition
SIL (7) - SG (5)Bus "+" lineDuring transmissionPulse generation
CG (4) - Body groundChassis groundAlwaysBelow 1 ohms
SG (5) - Body groundSignal groundAlwaysBelow 1 ohms
BAT (16) - Body groundBattery positiveAlways11 to 14V
