LEXUS LS430 2003 Factory Repair Manual

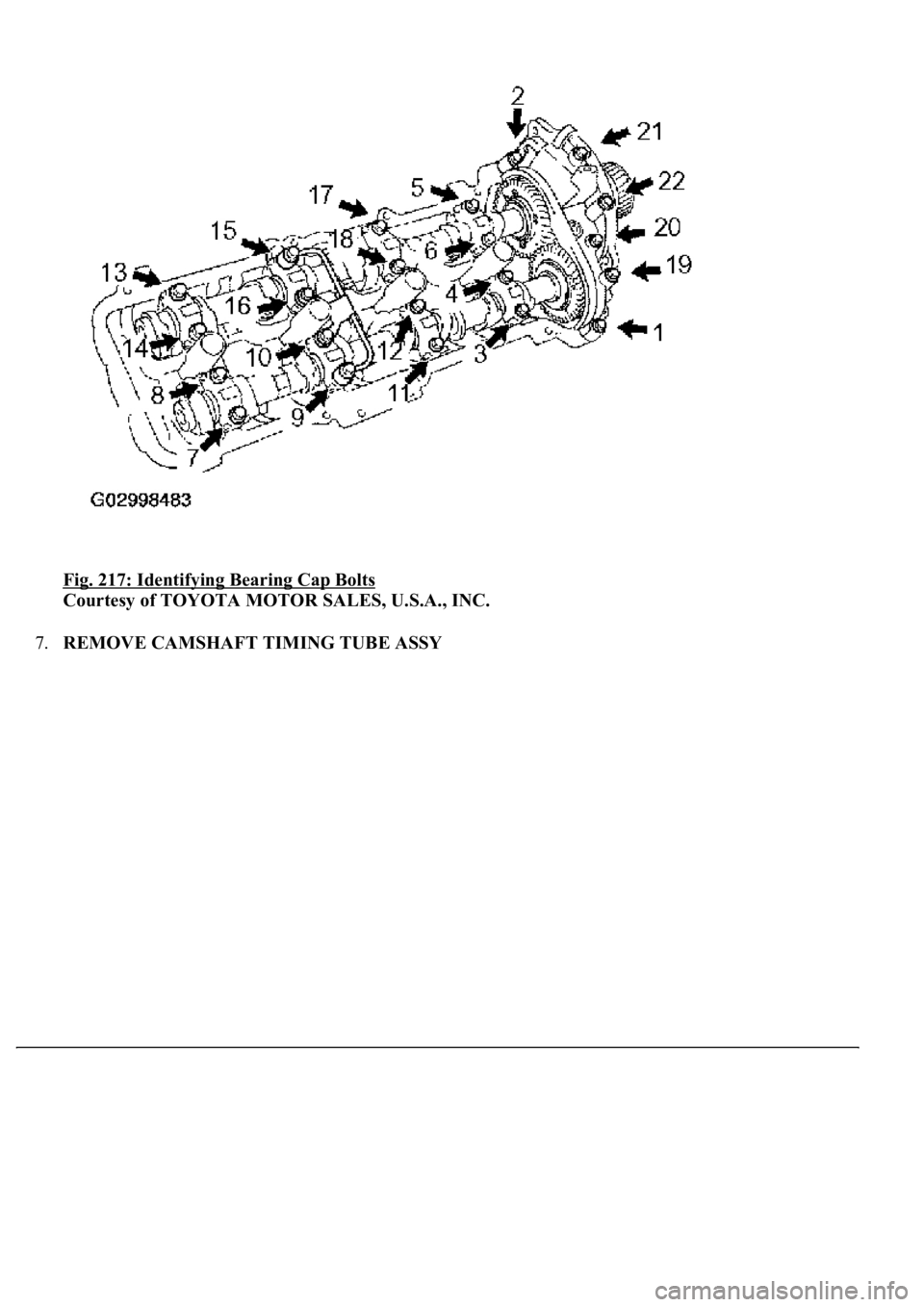

Fig. 217: Identifying Bearing Cap Bolts
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
7.REMOVE CAMSHAFT TIMING TUBE ASSY

Fig. 218: Mounting Hexagon Wrench Head Portion Of Intake Camshaft In A Vise
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
a. Mount the hexagon wrench head portion of the intake camshaft in a vise.
b. Remove the screw plug and seal washer.
c. Using a 10 mm hexagon wrench, remove the bolt.
d. Pull out the timin
g tube and drive gear assembly from the camshaft.

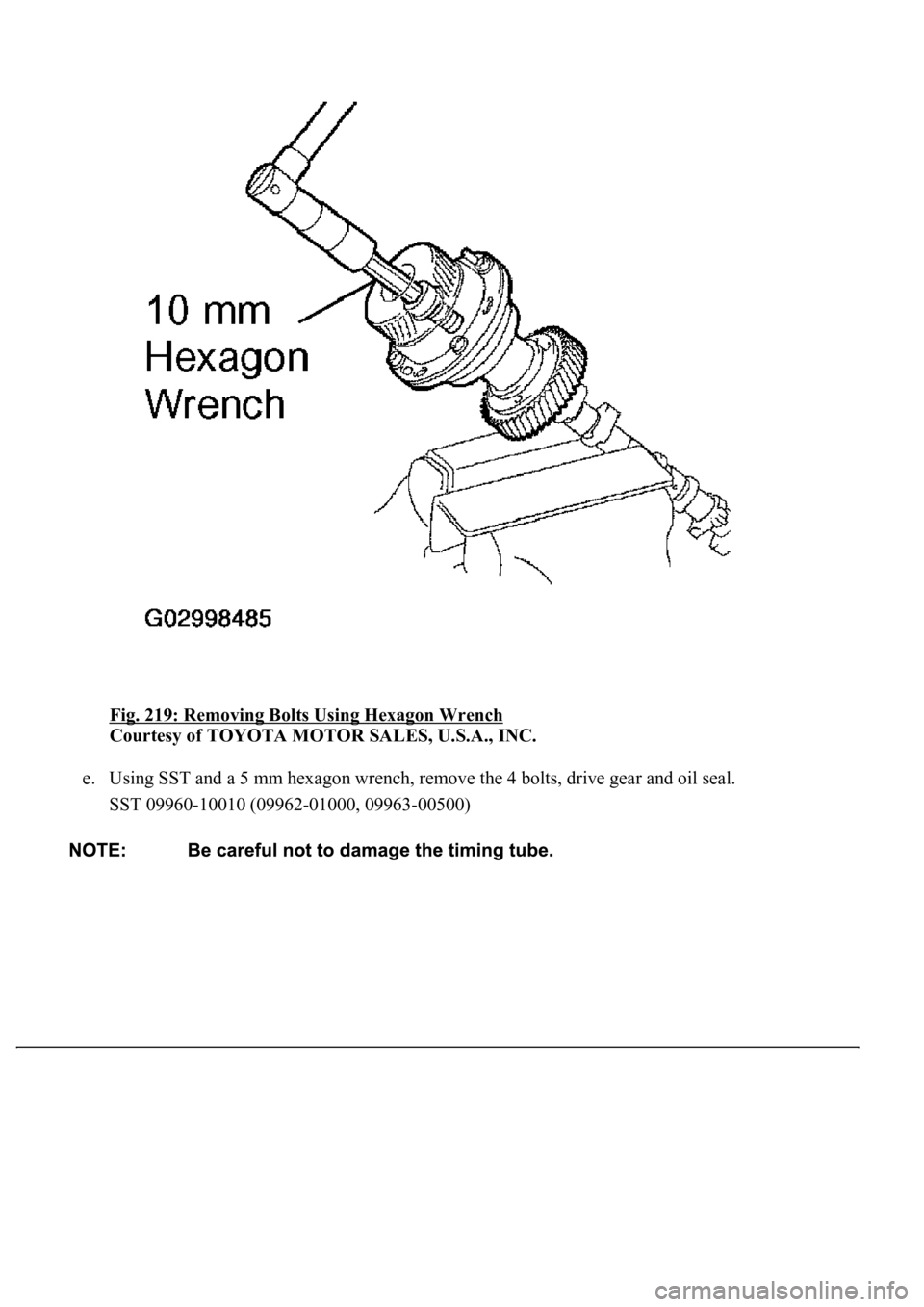

Fig. 219: Removing Bolts Using Hexagon Wrench
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Using SST and a 5 mm hexagon wrench, remove the 4 bolts, drive gear and oil seal.
SST 09960-10010 (09962-01000, 09963-00500)

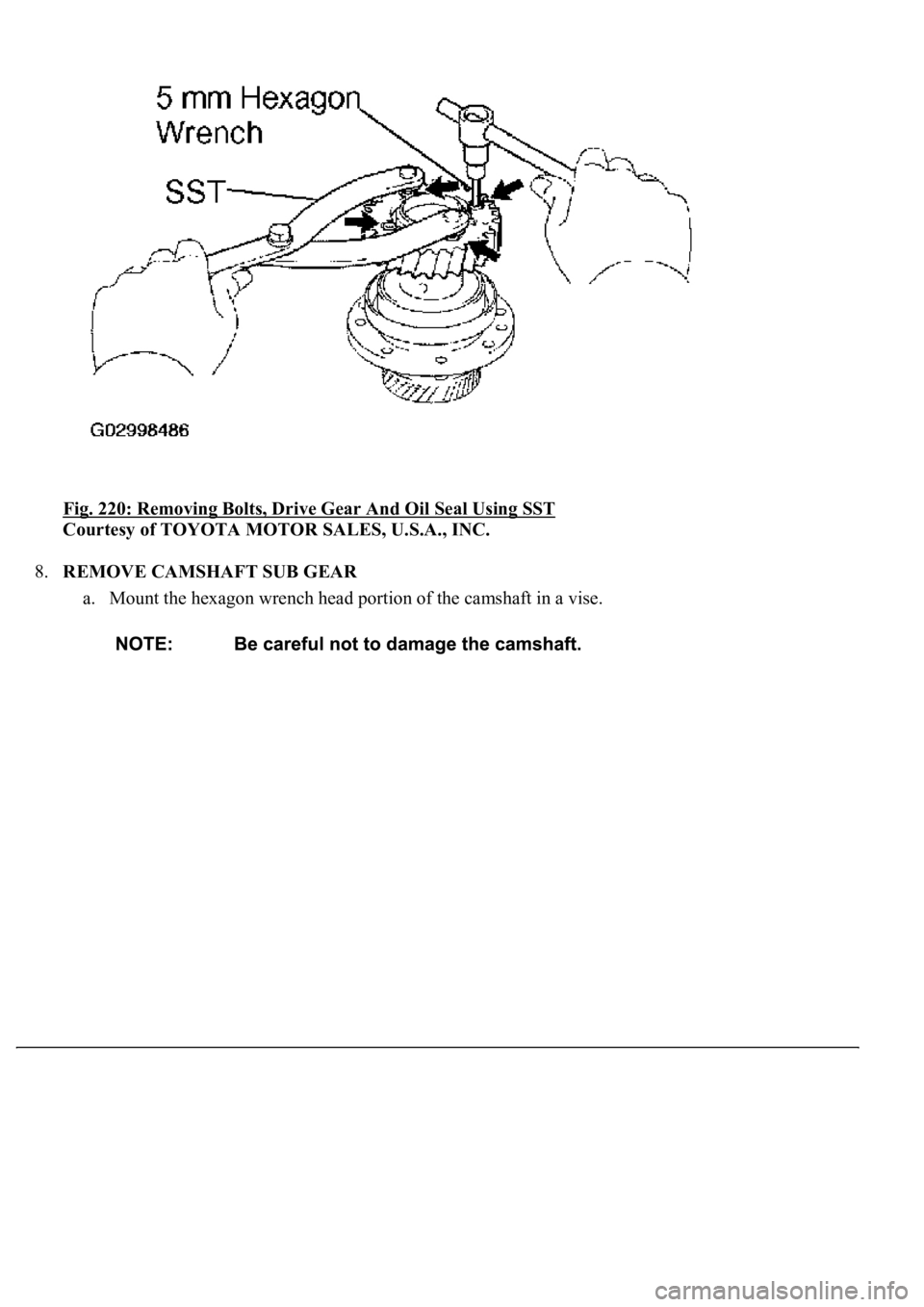

Fig. 220: Removing Bolts, Drive Gear And Oil Seal Using SST
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
8.REMOVE CAMSHAFT SUB GEAR
a. Mount the hexagon wrench head portion of the camshaft in a vise.

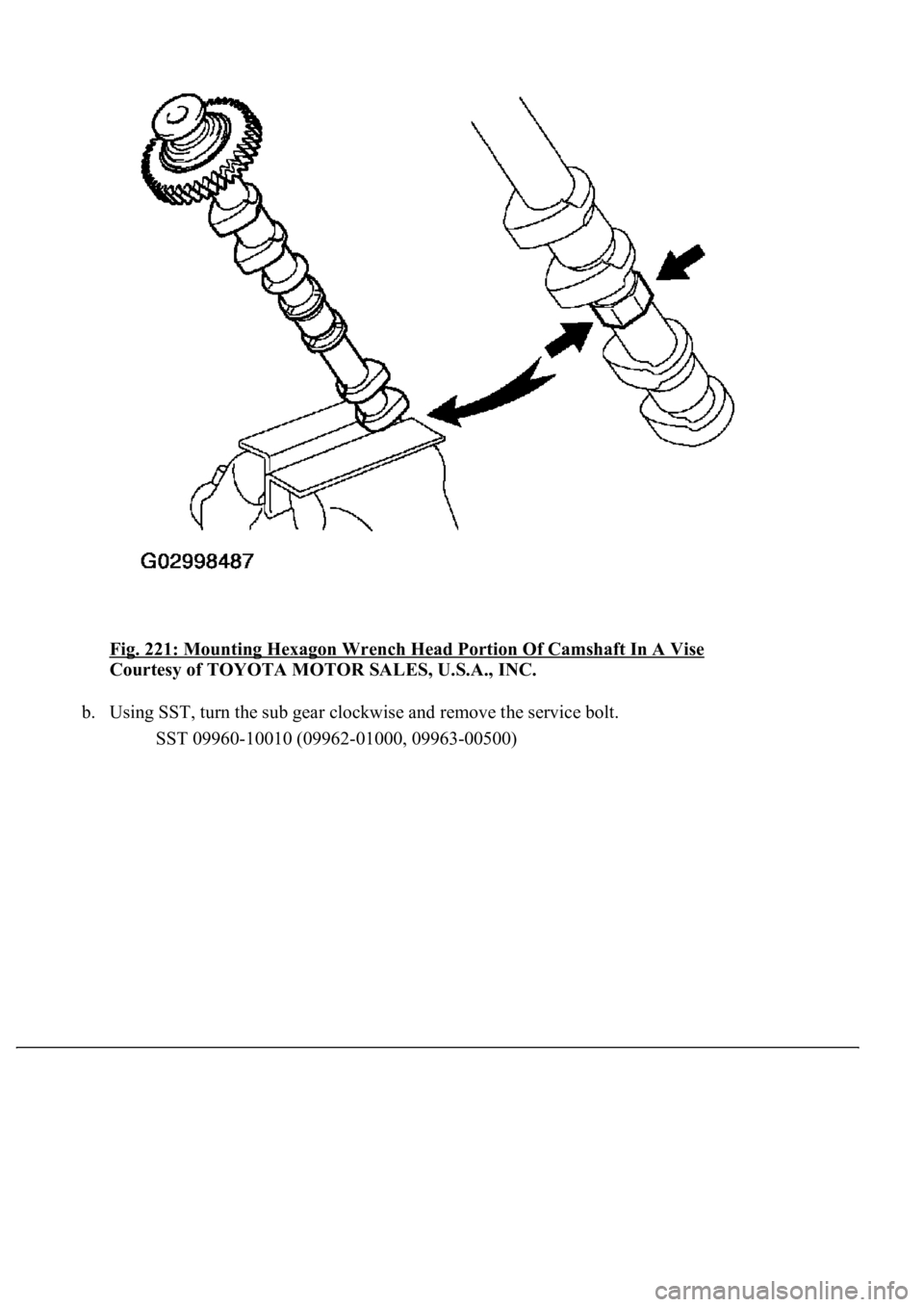

Fig. 221: Mounting Hexagon Wrench Head Portion Of Camshaft In A Vise
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using SST, turn the sub gear clockwise and remove the service bolt.
SST 09960-10010 (09962-01000, 09963-00500)

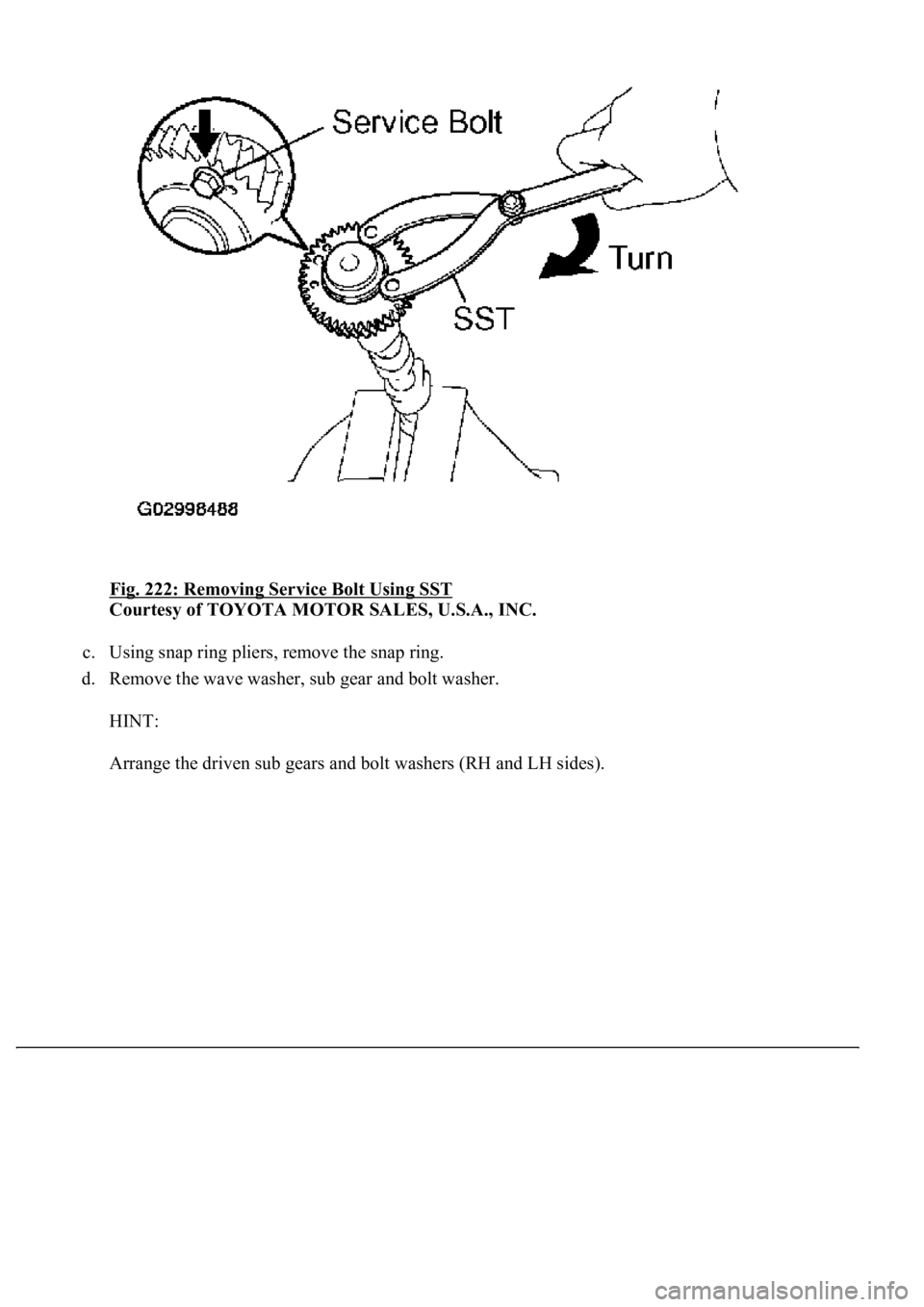

Fig. 222: Removing Service Bolt Using SST
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Using snap ring pliers, remove the snap ring.
d. Remove the wave washer, sub gear and bolt washer.
HINT:
Arran
ge the driven sub gears and bolt washers (RH and LH sides).

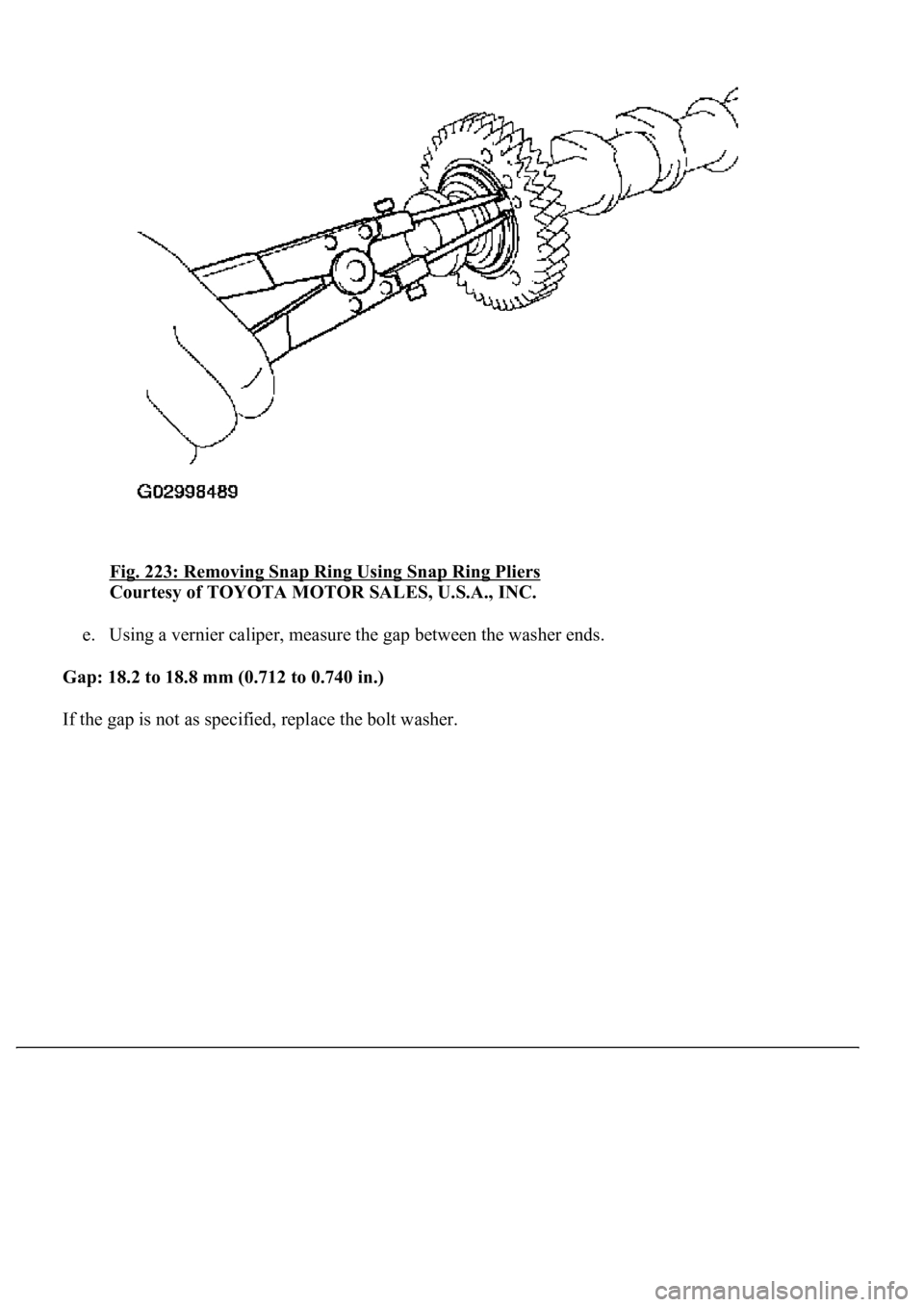

Fig. 223: Removing Snap Ring Using Snap Ring Pliers
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
e. Using a vernier caliper, measure the gap between the washer ends.
Gap: 18.2 to 18.8 mm (0.712 to 0.740 in.)
If the
gap is not as specified, replace the bolt washer.

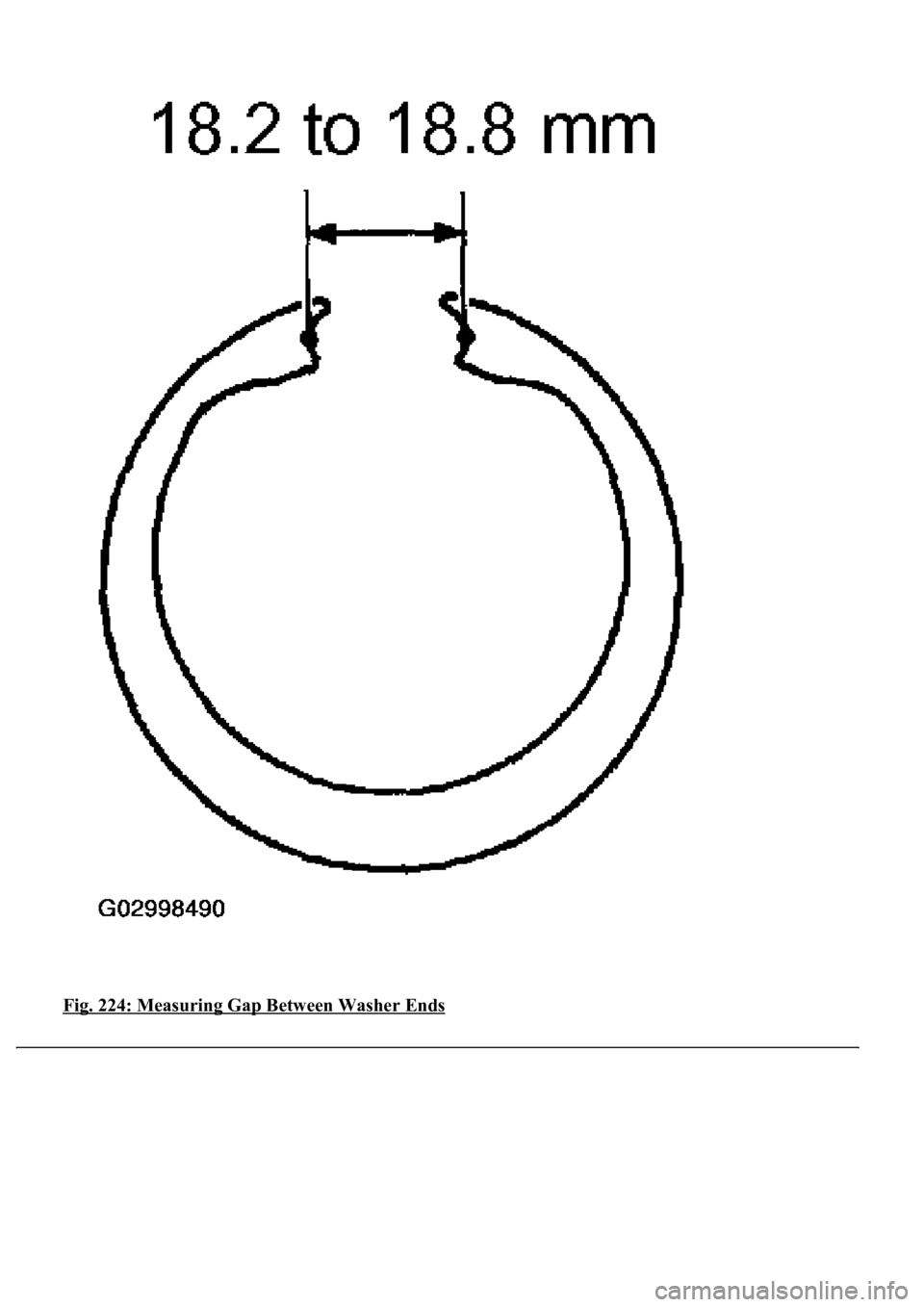

Fig. 224: Measuring Gap Between Washer Ends

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
9.INSTALL CAMSHAFT SUB GEAR
a. Install the bolt washer (1), sub gear (2) and wave washer (3).
HINT:
Attach the pins on the gears to the gear bolt washer ends.
Fig. 225: Installing Camshaft Sub Gear

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
b. Using snap ring pliers, install the snap ring.

<0029004c004a00110003001500150019001d0003002c0047004800510057004c0049005c004c0051004a0003003600510044005300030035004c0051004a000300380056004c0051004a0003003600510044005300030035004c0051004a00030033004f00
4c004800550056[
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
c. Mount the hexagon wrench head portion of the camshaft in a vise.
HINT:
Be careful not to damage the camshaft.
