MAZDA 626 1987 Workshop Manual

1 5 COMBINATION SWITCH
Steering angle sensor

Terminal Steering wheel position Resistance value
AO
to
AR Turn the wheel
a
little
at
a
time from
the

straight-ahead posi-
tion 180° to the right.
Decreases from about
25 kfi to about 200
fl.

AO
to
AR Straight-ahead position About
25 kfi

AO
to
AR Turn the wheel
a
little at
a
time from
the
straight-ahead posi-tion 180°
to
the left.
Increases from about 25 kfl to about 50 kfl.
AL
to
AR Straight-ahead position About
50 kfi
86U15X-014
—
i 50kn k Resistance
25M?
2000
" 180° 0° 180° " To the left To the right
86U15X-015
Note
When the steering wheel is turned more than
the specified angle in the above test, the re-
sistance value will become as shown in the
table below.

Terminal Steering wheel position Resistance value
AO
to
AR When turned 180°
or
more to the right from the straight-ahead po-sition.
Resistance slowly and gradually decreases after there
is
once
an
indication of about 50 kfl.
AO
to
AR When turned 180°
or

more
to
the left from
the straight-ahead po-
sition.
Resistance slowly and gradually increases after there
is
once
an
indication
of
about 200
fl.
15—16

CLUSTER SWITCH 15
CLUSTER SWITCH
STRUCTURAL VIEW
For Left Hand Drive
Rocker type
-A

M

Except
ECE
Rear def. SW
Push type
-<3»-
ivi
a
Rear
wiper
SW
Rear +washer SW
Digital clock
' Oscillator SW
Hazard SW
A
Digital clock
/ Oscillator SW ./ i
A
Hazard SW

Rear def.
SW
ECE only
lot
4 Hazard
SW
Rear fog
light
SW
76G15X-003
15—17

1 5 CLUSTER SWITCH
STRUCTURAL VIEW
15—18

CLUSTER SWITCH 15
e a
frtum
Illumination light
b
f
e -Q-
f d b d I f
Indicator light
76G15X-088
86U15X-018
g
TTTT
h f d b
from f „
IG SW
from a def. relay^
from ~ TWS unit
15 minules timer
To ground
h To panel
"controller
INSPECTION OF ROCKER TYPE
Hazard switch
1. Check for continuity between the terminals in each
position with an ohmmeter.

——____Terminal Position
^
a
b d
e
f

OFF
ON
-o

O
O:
Indicates continuity

2. If continuity is not as specified, replace the switch
or replace the light(s).
Defroster switch
1. Turn the ignition switch ON.
2. Push the defroster switch to ON, and check the
lights for lighting.
3. If the lights do not light, replace the lights.
4. Check that the switch goes off after 15 min from
switch ON.
5. Check the voltage between each terminal and a
body ground.

Position Terminal voltage
(V)
Position
b d f g h
OFF 0 12 12 0 12
ON 0 0 12 0 12
ON
(head light switch
ON) 0 0 12 2-12 12

OFF (head light switch
ON) 0 12 12 2-12 12
6. If the voltage of "d" terminal is 12V with switch off
but not OV with switch on, replace the defroster
switch.
If the voltage of "d" terminal is not 12V with switch
off, trouble is in defroster relay or harness.
If the voltages of the other terminals are not cor-
rect, trouble is in the other parts or harness.
86U15X-019
15—19

15 CLUSTER SWITCH
86U15X-020
86U15X-021
A itt
TTTT h f
from f IG SW
from 9
def. relay
•>o-15 min. timer _To ground
86U15X-022
INSPECTION OF FOUR SWITCH TYPE
Hazard switch
1. Check for continuity between terminals of the
switch.

Position a b
C
d
OFF O— —0
ON
pi Pi Pl
ON
u
O O:
Indicates continuity

2. If continuity is not as specified, replace the switch.
Defroster switch
1. Turn the ignition switch ON.
2. Check the light for lighting.
3. If the light doesn't light, replace the light.
4. Check that the switch goes off after 15 min from
switch on.
5. Check the voltage between each terminal and a
body ground.

Position Terminal voltage
(V)
Position
f g h

OFF
12 12 0

ON
12 0 0
6. If the voltage of terminal "g" is 12V with switch off
but not OV with switch on, replace the defroster
switch
If the voltage of terminal "g" is not 12V with switch
off, trouble is in defroster relay or harness.
If the voltage of terminal "f" and "h" is not cor-
rect, the trouble is in the other parts or harness.
Rear wiper and washer switch
1. Check for continuity between the terminals in each
position with an ohmmeter.

1———___Terminal Position
"——
a b d f h
Rear wiper switch OFF CK -0
—O Rear wiper switch ON
o--0
O-—O
Rear washer switch OFF Rear washer switch ON
o-
-O O-
—o
86U15X-023
O O:
Indicates continuity

2. If continuity is not as specified, replace the switch.
15—20

CLUSTER SWITCH 15
T T T T
h f d b
h
•I
9 76G15X-006
Rear fog light switch
1. Check for continuity between the terminals in each
position with an ohmmeter.

~
———
Terminal Position —•—— f
g
h
OFF O— —O
ON
o— —o— —o

O
O:
Indicates continuity

2. If continuity is not as specified, replace the switch
or replace the light(s).
15-21

15 METER
METER
STRUCTURAL VIEW
DIGITAL ELECTRONIC DISPLAY METER
ANALOG DISPLAY METER
76G15X-007
1. Speedometer 5. Warning and indicator lights
2. Tachometer 6. Tripmeter
3. Water temperature gauge 7. Twin tripmeter change switch
4. Fuel gauge 8. Fuel garge scale change switch
15—22

METER
15

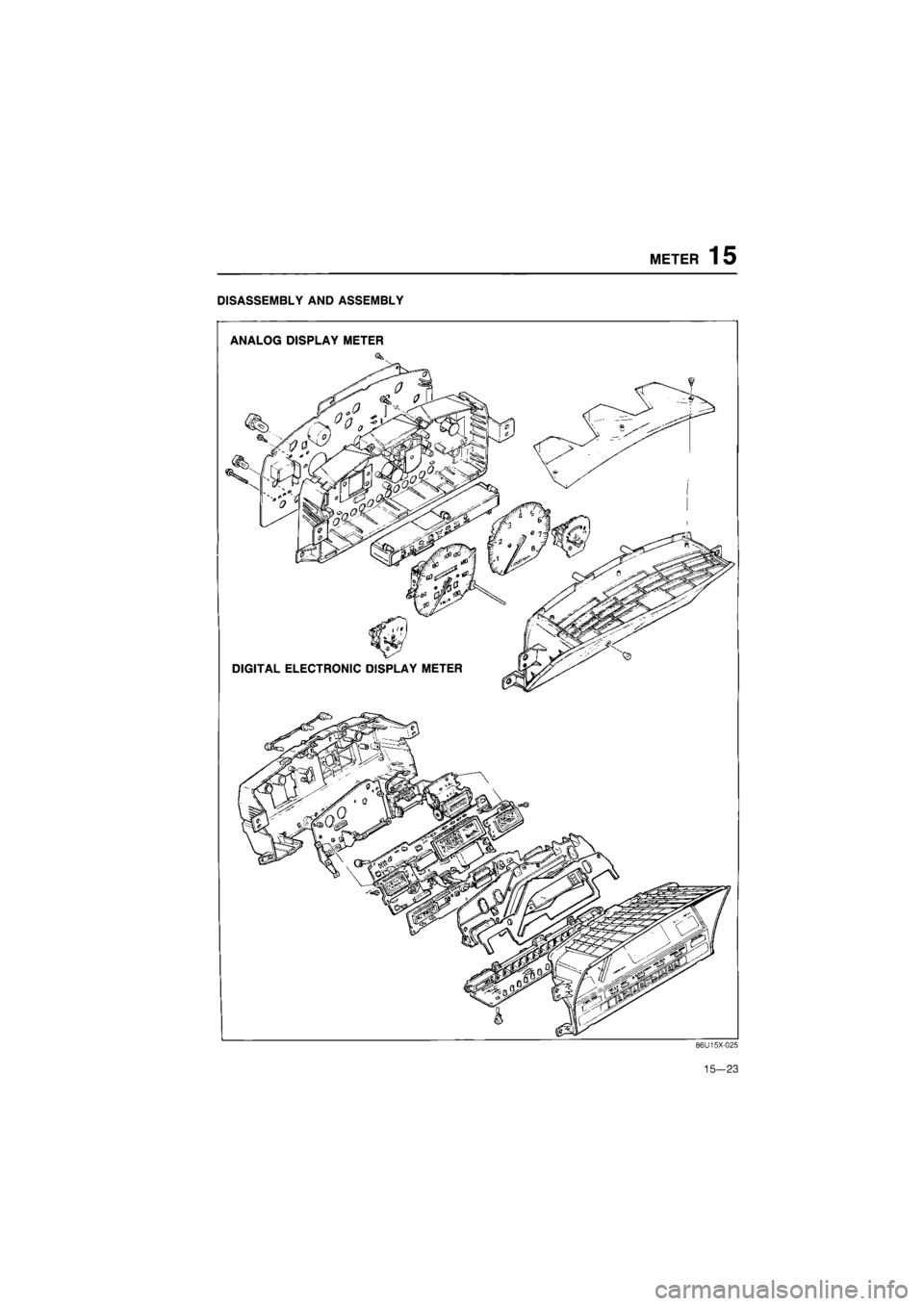

DISASSEMBLY
AND
ASSEMBLY
86U15X-025
15—23

15 METER
TROUBLESHOOTING
Note
Check the METER 10 or 15A fuse in the fuse box for fusing before troubleshooting.
76G15X-031
76G15X-032
15—24

METER
15

86U15X-028
15—25
