STRUT ASSEMBLY
FRONT SUSPENSION33-10
>>B<< STRUT NUT (SELF-LOCKING NUT)
INSTALLATION
1. Ensure that the bearing is seated correctly.
CAUTION
Do not use an impact wrench to tighten the bolt
of special tool spring compressor body
(MB991237), otherwise the special tool will break.
2. Install following special tools to the strut assembly
same as its removal.
•MB991237: Spring Compressor Body
•MB991238: Arm Set
3. While the coil spring is being compressed by the
special tools, temporarily tighten the strut nut
(self-locking nut).
4. Align the hole in the strut spring lower seat with
the hole in the spring upper seat.
NOTE:
Using a rod as shown facilitates the alignment.5. Align lower end of the coil spring with the groove
in the spring lower seat, and then loosen the
special tools.CAUTION
Do not use an impact wrench to tighten the
self-locking nut, otherwise the strut nut
(self-locking nut) will be damaged.
6. Using following special tools, tighten the strut nut
(self-locking nut) to 60 ± 10 N⋅m.
•MB991681: Wrench
•MB991682: Socket
INSPECTIONM1332001400188
•Check the strut bearing for wear or rust.
•Check the rubber parts for damage or
deterioration.
•Check the coil spring for deformation,
deterioration or damage.
•Check the strut for deformation.
AC001085 AB
MB991238
MB991237
AC006091 AB
Rod
AC006091 AB
MB991681 MB991682

LOWER ARM
FRONT SUSPENSION33-11
LOWER ARM

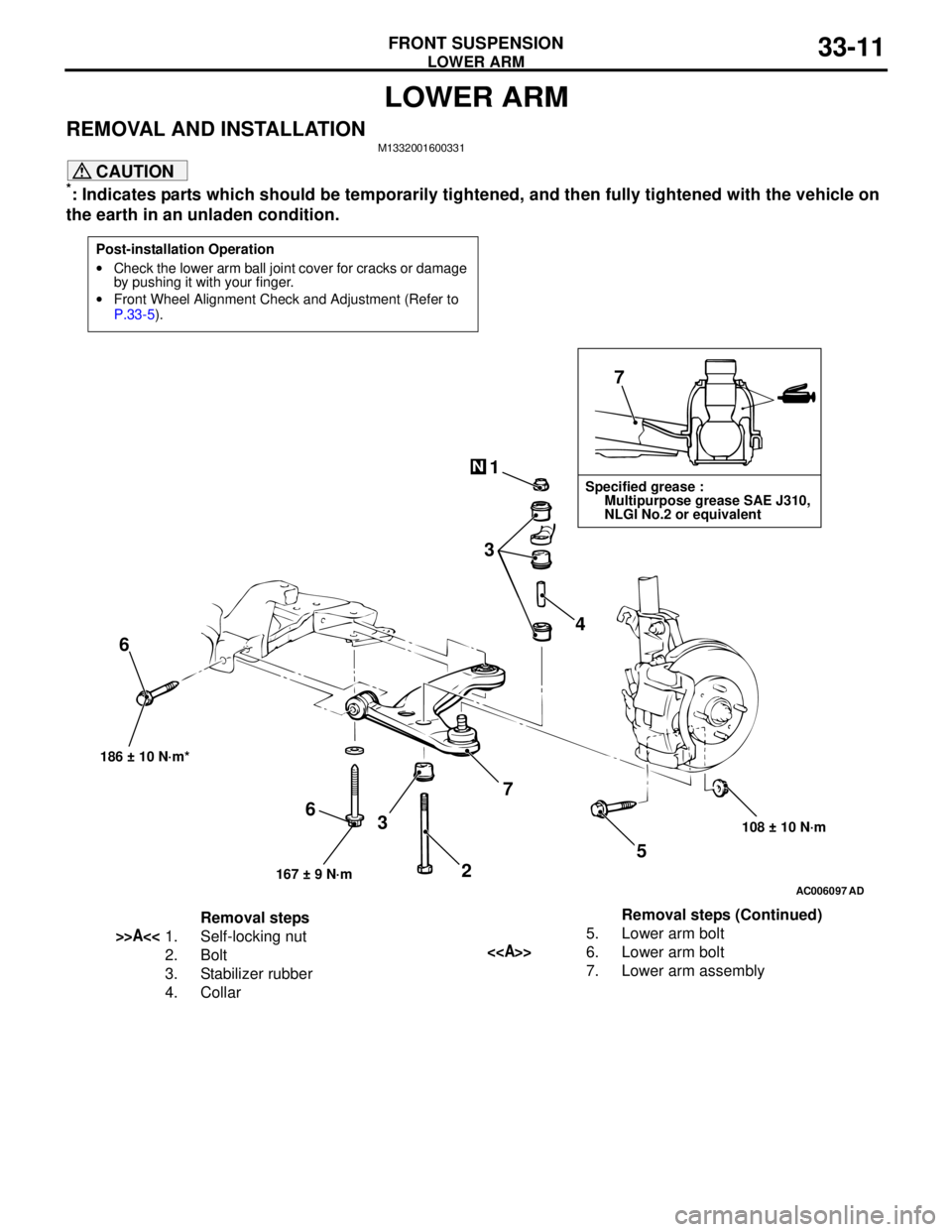

REMOVAL AND INSTALLATIONM1332001600331
CAUTION
*: Indicates parts which should be temporarily tightened, and then fully tightened with the vehicle on
the earth in an unladen condition.
Post-installation Operation
•Check the lower arm ball joint cover for cracks or damage
by pushing it with your finger.
•Front Wheel Alignment Check and Adjustment (Refer to
P.33-5).
AC006097AD
7
1
3
4
5
108 ± 10 N·m 186 ± 10 N·m*
7
3 6
N
Specified grease :
Multipurpose grease SAE J310,
NLGI No.2 or equivalent
167 ± 9 N·m
6
2
Removal steps
>>A<<1. Self-locking nut
2. Bolt
3. Stabilizer rubber
4. Collar5. Lower arm bolt<>6. Lower arm bolt
7. Lower arm assemblyRemoval steps (Continued)

LOWER ARM
FRONT SUSPENSION33-12
REMOVAL SERVICE POINT
<> LOWER ARM BOLT REMOVAL
Lift the transmission with a transmission jack, and
then withdraw the lower arm bolt (front) on the lower
arm assembly (L.H.).
INSTALLATION SERVICE POINT
>>A<< SELF-LOCKING NUT
INSTALLATION
Tighten the self-locking nut until the stabilizer link
thread part protruding length meets the standard
value.
Standard value (A): 22 ± 1.5 mm
INSPECTIONM1332001700286
•Check the lower arm bushings for wear and
deterioration.
•Check the lower arm assembly for bend or
breakage.
•Check all bolts for condition and straightness.
LOWER ARM BALL JOINT ROTATION
STARTING TORQUE CHECK
1. After shaking the ball joint stud several times, use
special tool preload socket (MB991006) to
measure the rotation starting torque of the ball
joint.
Standard value: 0 − 3.9 N⋅m
2. If the measured value is not within the standard
value, or if the ball joint is difficult to turn or does
not turn smoothly, replace the lower arm
assembly.
LOWER ARM BALL JOINT COVER
CHECK
1. Check the lower arm ball joint cover for cracks or
damage by pushing it with your finger.
2. If the lower arm ball joint cover is cracked or
damaged, replace the lower arm assembly.
NOTE: Cracks or damage to the dust cover may
cause damage to the ball joint. When it is
damaged during service work, replace the lower
arm ball joint cover.
LOWER ARM BALL JOINT COVER
REPLACEMENT
M1332008200260
If the lower arm ball joint cover is damaged
accidentally during service work, replace the lower
arm ball joint cover as follows:
1. Remove the lower arm ball joint cover.
2. Apply specified grease to the lip and the inside of
a new lower arm ball joint cover.
Specified grease: Multipurpose grease SAE
J310, NLGI No.2 or equivalent
Grease amount for the inside the dust cover
(reference): 8 − 10g
AC006133ADLower arm bolt (front)Transmission jackPiece of wood
AC101741AC
A
AC001091 AB
MB991006

LOWER ARM
FRONT SUSPENSION33-13

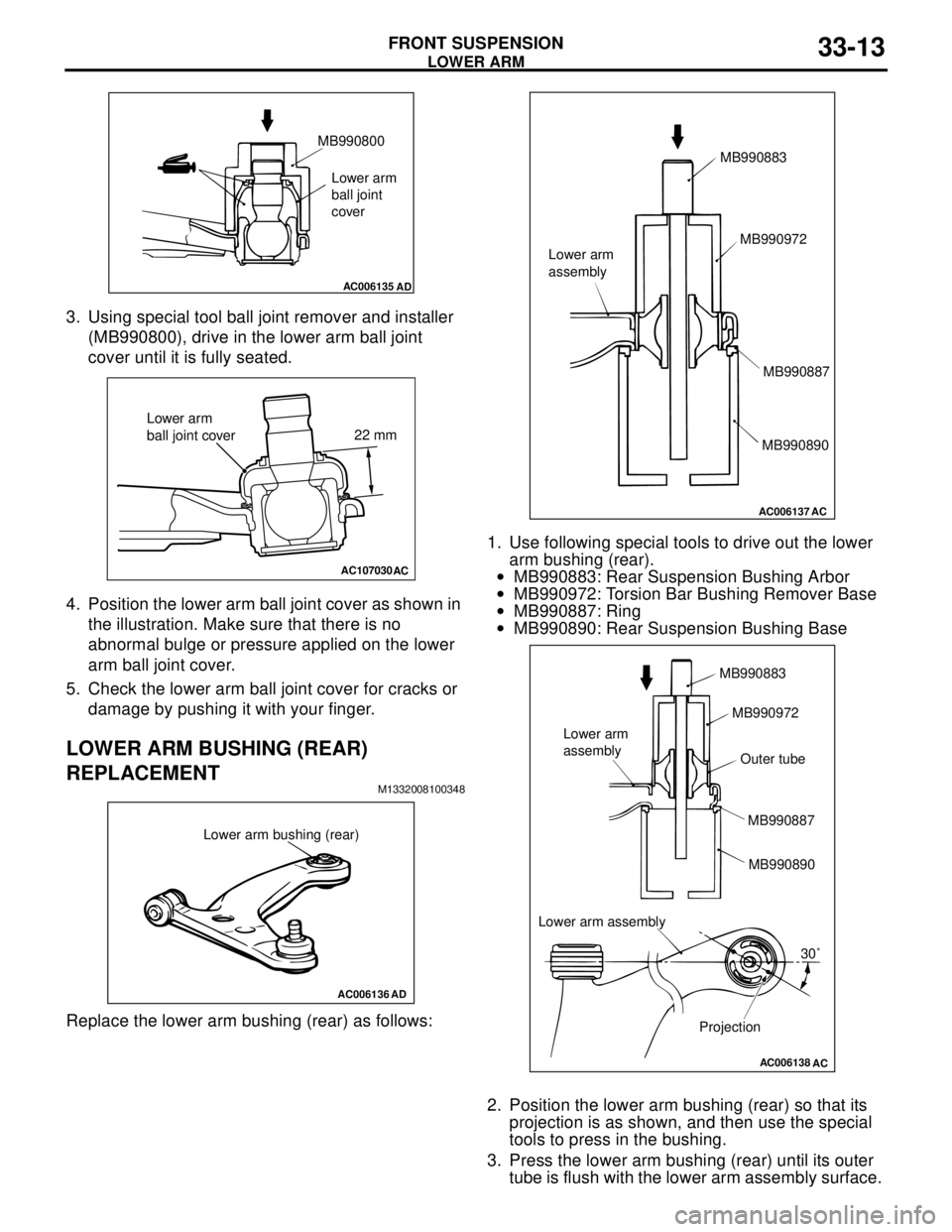

3. Using special tool ball joint remover and installer
(MB990800), drive in the lower arm ball joint
cover until it is fully seated.
4. Position the lower arm ball joint cover as shown in
the illustration. Make sure that there is no
abnormal bulge or pressure applied on the lower
arm ball joint cover.
5. Check the lower arm ball joint cover for cracks or
damage by pushing it with your finger.
LOWER ARM BUSHING (REAR)
REPLACEMENT
M1332008100348
Replace the lower arm bushing (rear) as follows:1. Use following special tools to drive out the lower
arm bushing (rear).
•MB990883: Rear Suspension Bushing Arbor
•MB990972: Torsion Bar Bushing Remover Base
•MB990887: Ring
•MB990890: Rear Suspension Bushing Base
2. Position the lower arm bushing (rear) so that its
projection is as shown, and then use the special
tools to press in the bushing.
3. Press the lower arm bushing (rear) until its outer
tube is flush with the lower arm assembly surface.
AC006135
AD
MB990800
Lower arm
ball joint
cover
AC107030AC
22 mm
Lower arm
ball joint cover
AC006136
AD
Lower arm bushing (rear)
AC006137
AC
MB990883
MB990972
MB990887
MB990890 Lower arm
assembly
AC006138
AC
MB990883
MB990972
MB990887
MB990890 Lower arm
assembly
Projection30˚ Lower arm assemblyOuter tube

STABILIZER BAR
FRONT SUSPENSION33-14
STABILIZER BAR
REMOVAL AND INSTALLATIONM1332004000468
CAUTION
•Before removing the steering wheel and air bag module assembly, refer to GROUP 52B, Service
Precautions P.52B-5 and Air Bag Module and Clock Spring P.52B-210. Also, put the front wheels in
straight-ahead position. Failure to do so may damage the SRS clock spring and render the SRS air
bag inoperative, which results serious driver injury.
•
*: Indicates parts which should be initially tightened, and then fully tightened after placing the
vehicle horizontally and loading the full weight of the engine on the vehicle body.
Pre-removal Operation
•Steering Wheel and Air Bag Module Assembly Removal
(Comfort: refer to GROUP 37, Steering Wheel
P.37-17/Sport: refer to GROUP 37, Steering Wheel
P.37-19).
•Clock Spring Removal (Refer to GROUP 52B, Air Bag
Modules and Clock Spring P.52B-210).
•Centermember Removal (Refer to GROUP 32, Engine
Roll Stopper, Centermember P.32-7).
•Front Exhaust Pipe Removal (Refer to GROUP 15,
Exhaust Pipe and Main Muffler P.15-11).Post-installation Operation
•Front Exhaust Pipe Installation (Refer to GROUP 15,
Exhaust Pipe and Main Muffler P.15-11).
•Centermember Installation (Refer to GROUP 32, Engine
Roll Stopper, Centermember P.32-7).
•Clock Spring Installation (Refer to GROUP 52B, Air Bag
Modules and Clock Spring P.52B-210).
•Steering Wheel and Air Bag Module Assembly Installation
(Comfort: refer to GROUP 37, Steering Wheel
P.37-17/Sport: refer to GROUP 37, Steering Wheel
P.37-19).
•Check the dust covers for cracks or damage by pushing it
with your finger.
•Checking Steering Wheel Position with Wheels Straight
Ahead
•Front Wheel Alignment Check and Adjustment (Refer to
P.33-5).

STABILIZER BAR
FRONT SUSPENSION33-15
AC006139
AD
49 ± 10 N·m
108 ± 10 N·m
167 ± 9 N·m 167 ± 9 N·m 52 ± 7 N·m*25 ± 5 N·m 21 ± 4 N·m 18 ± 2 N·m
7 6
9
10
1
2
2 3
5
4 2 11
8

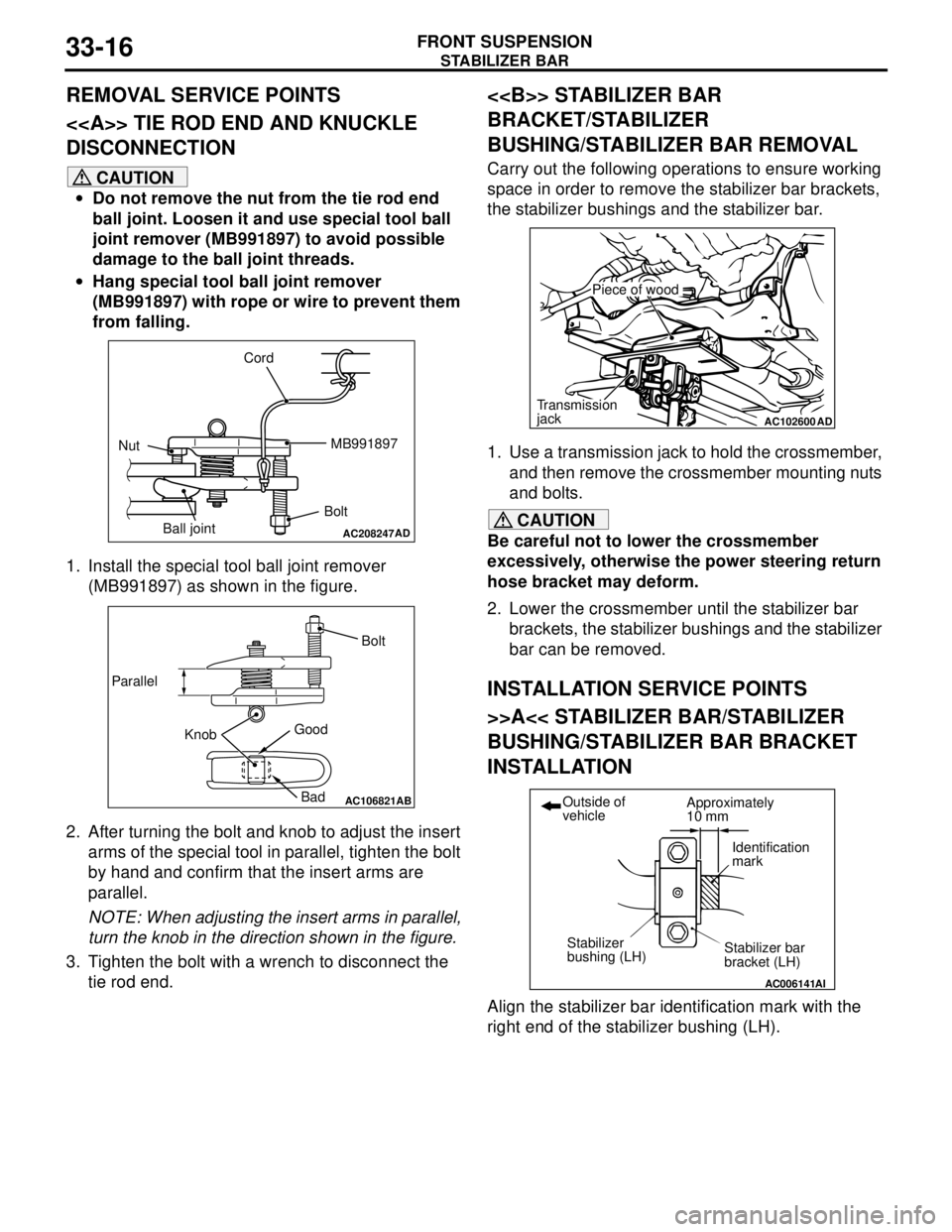

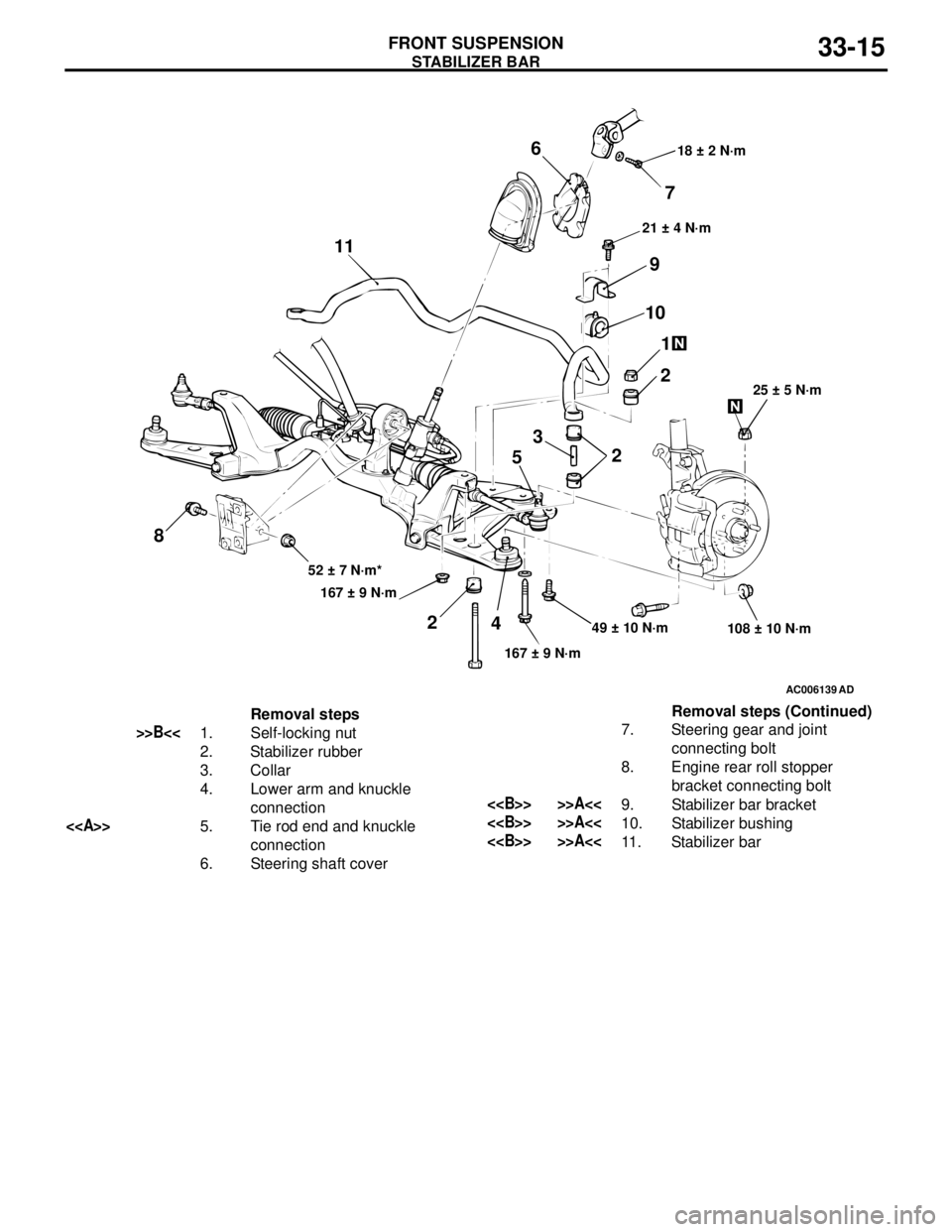

Removal steps
>>B<<1. Self-locking nut
2. Stabilizer rubber
3. Collar
4. Lower arm and knuckle
connection
<>5. Tie rod end and knuckle
connection
6. Steering shaft cover7. Steering gear and joint
connecting bolt
8. Engine rear roll stopper
bracket connecting bolt
<> >>A<<9. Stabilizer bar bracket
<> >>A<<10. Stabilizer bushing
<> >>A<<11. Stabilizer barRemoval steps (Continued)
