Page 991 of 1659

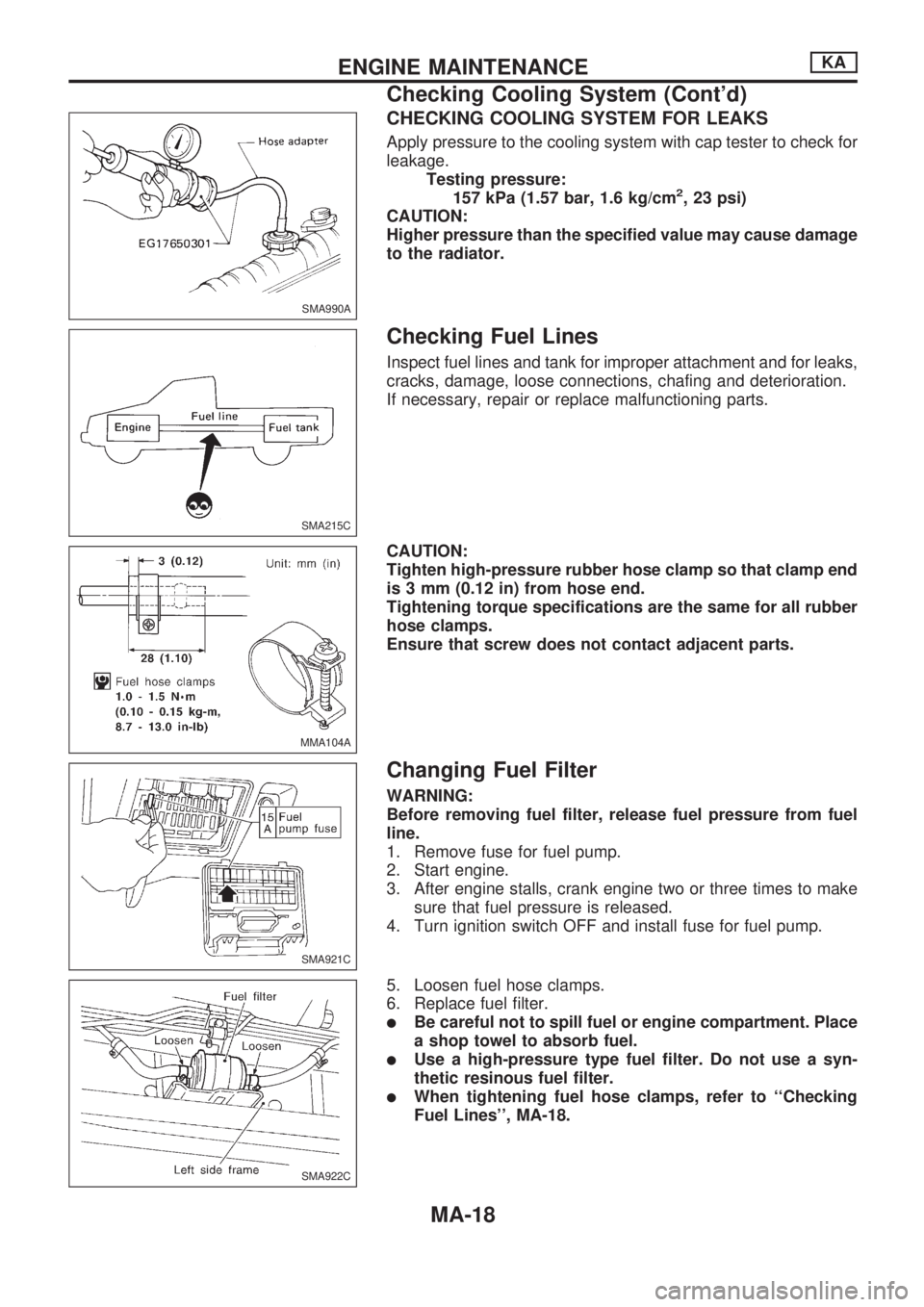

NISSAN PICK-UP 1998  Repair Manual CHECKING COOLING SYSTEM FOR LEAKS
Apply pressure to the cooling system with cap tester to check for
leakage.
Testing pressure:
157 kPa (1.57 bar, 1.6 kg/cm
2, 23 psi)
CAUTION:
Higher pressure than the

Page 992 of 1659

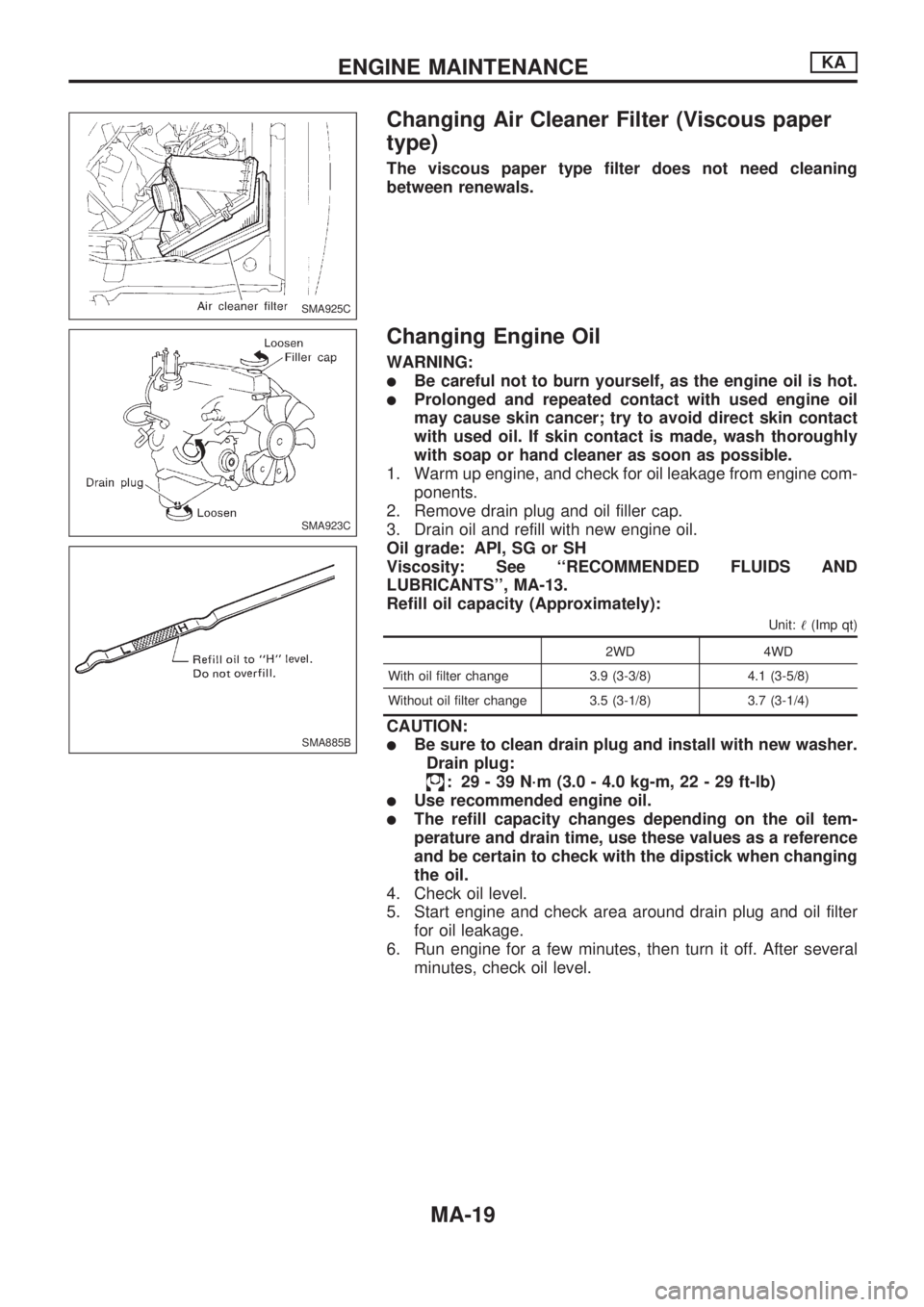

NISSAN PICK-UP 1998  Repair Manual Changing Air Cleaner Filter (Viscous paper
type)
The viscous paper type filter does not need cleaning
between renewals.
Changing Engine Oil
WARNING:
lBe careful not to burn yourself, as the engine oil

Page 993 of 1659

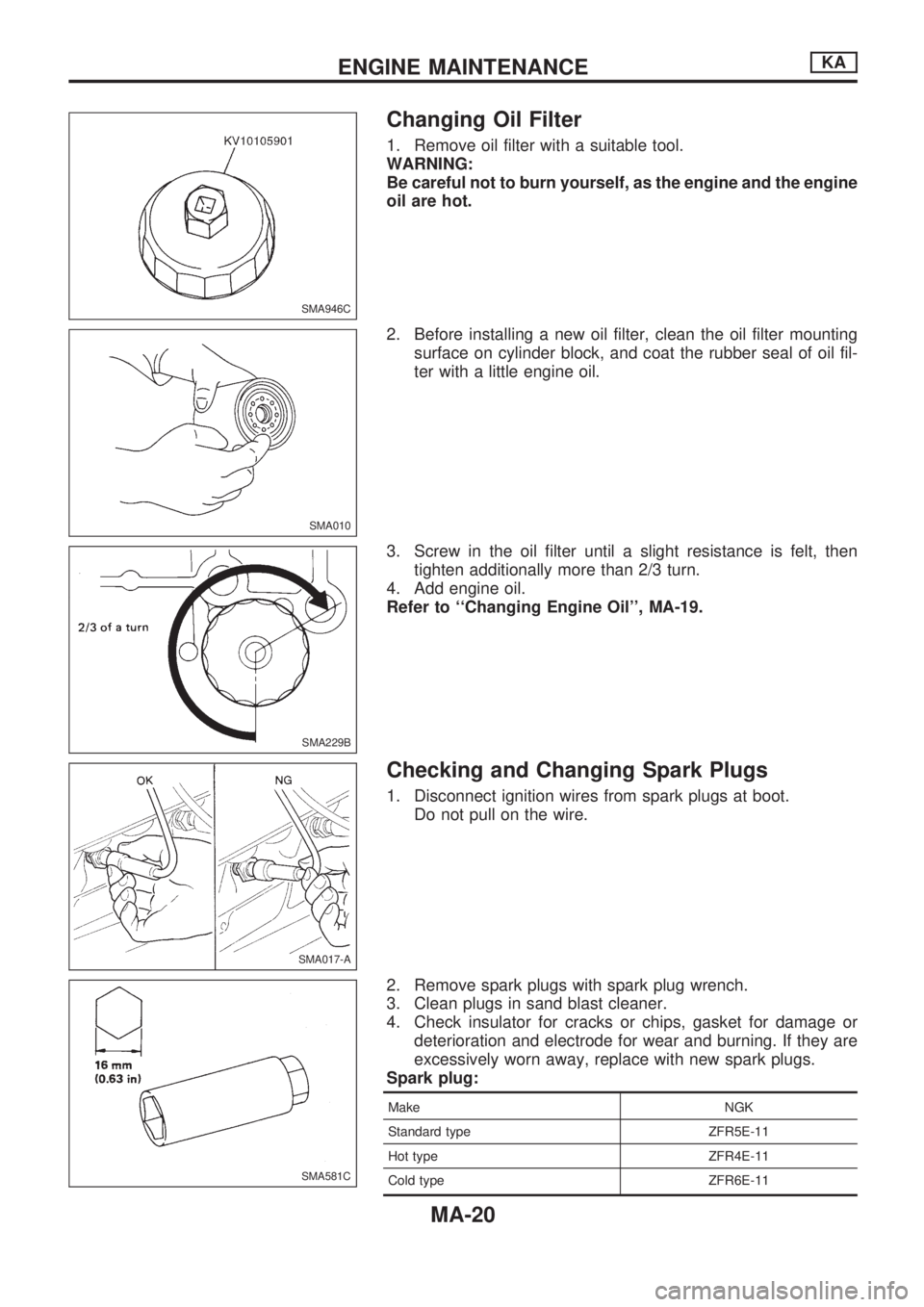

NISSAN PICK-UP 1998  Repair Manual Changing Oil Filter
1. Remove oil filter with a suitable tool.
WARNING:
Be careful not to burn yourself, as the engine and the engine
oil are hot.
2. Before installing a new oil filter, clean the oil

Page 994 of 1659

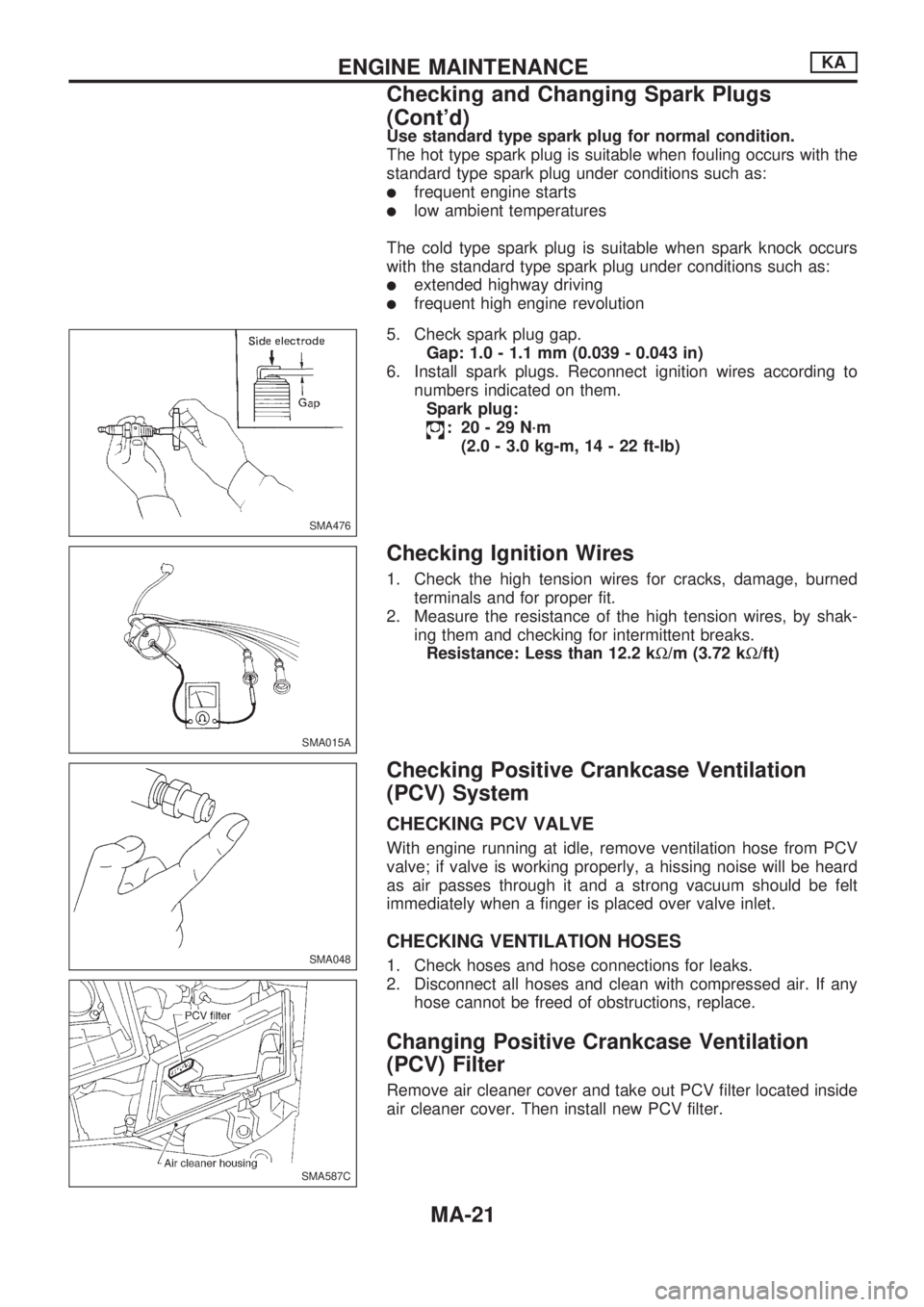

NISSAN PICK-UP 1998  Repair Manual Use standard type spark plug for normal condition.
The hot type spark plug is suitable when fouling occurs with the
standard type spark plug under conditions such as:
lfrequent engine starts
llow ambi

Page 995 of 1659

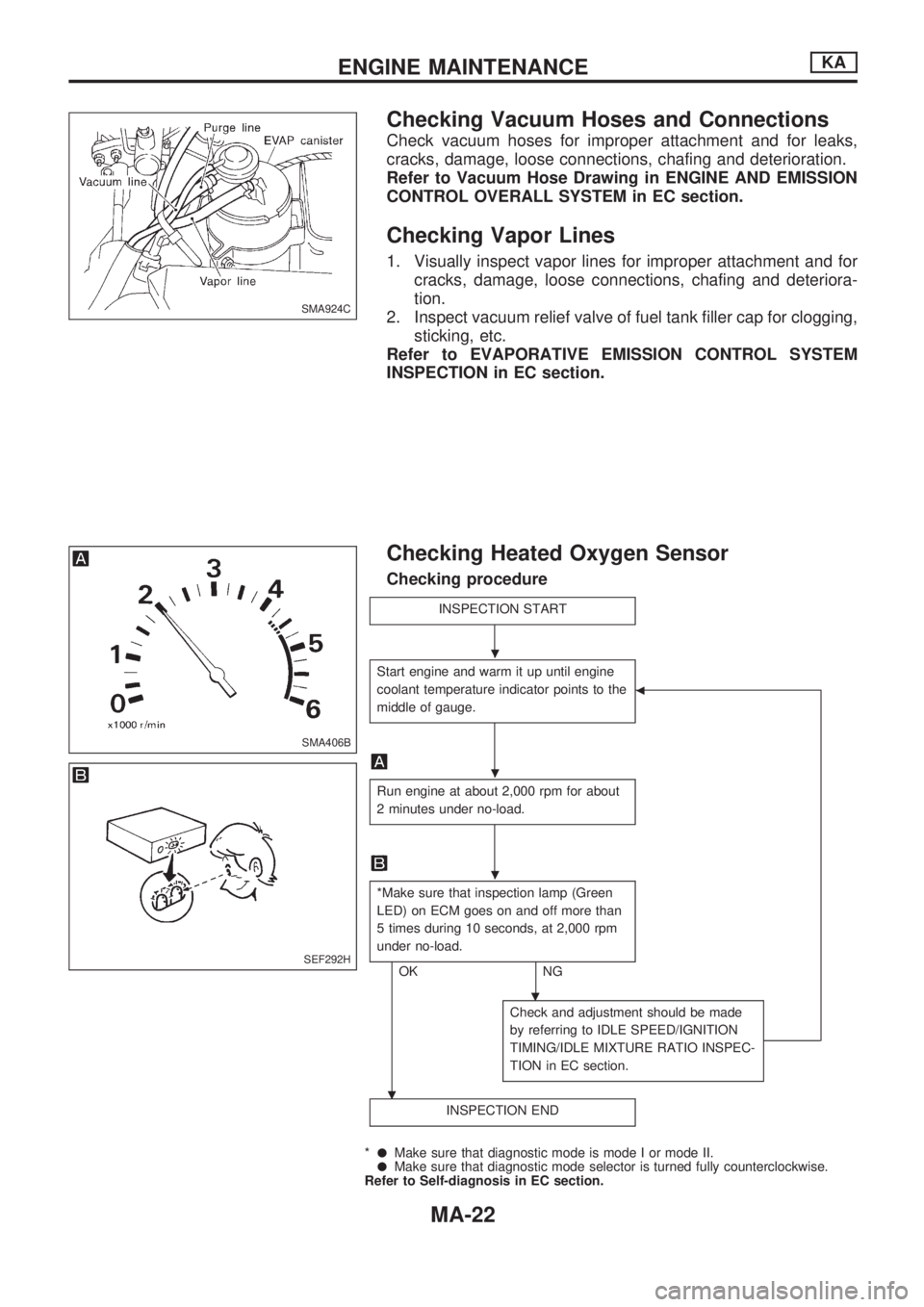

NISSAN PICK-UP 1998  Repair Manual Checking Vacuum Hoses and Connections
Check vacuum hoses for improper attachment and for leaks,
cracks, damage, loose connections, chafing and deterioration.
Refer to Vacuum Hose Drawing in ENGINE AND

Page 996 of 1659

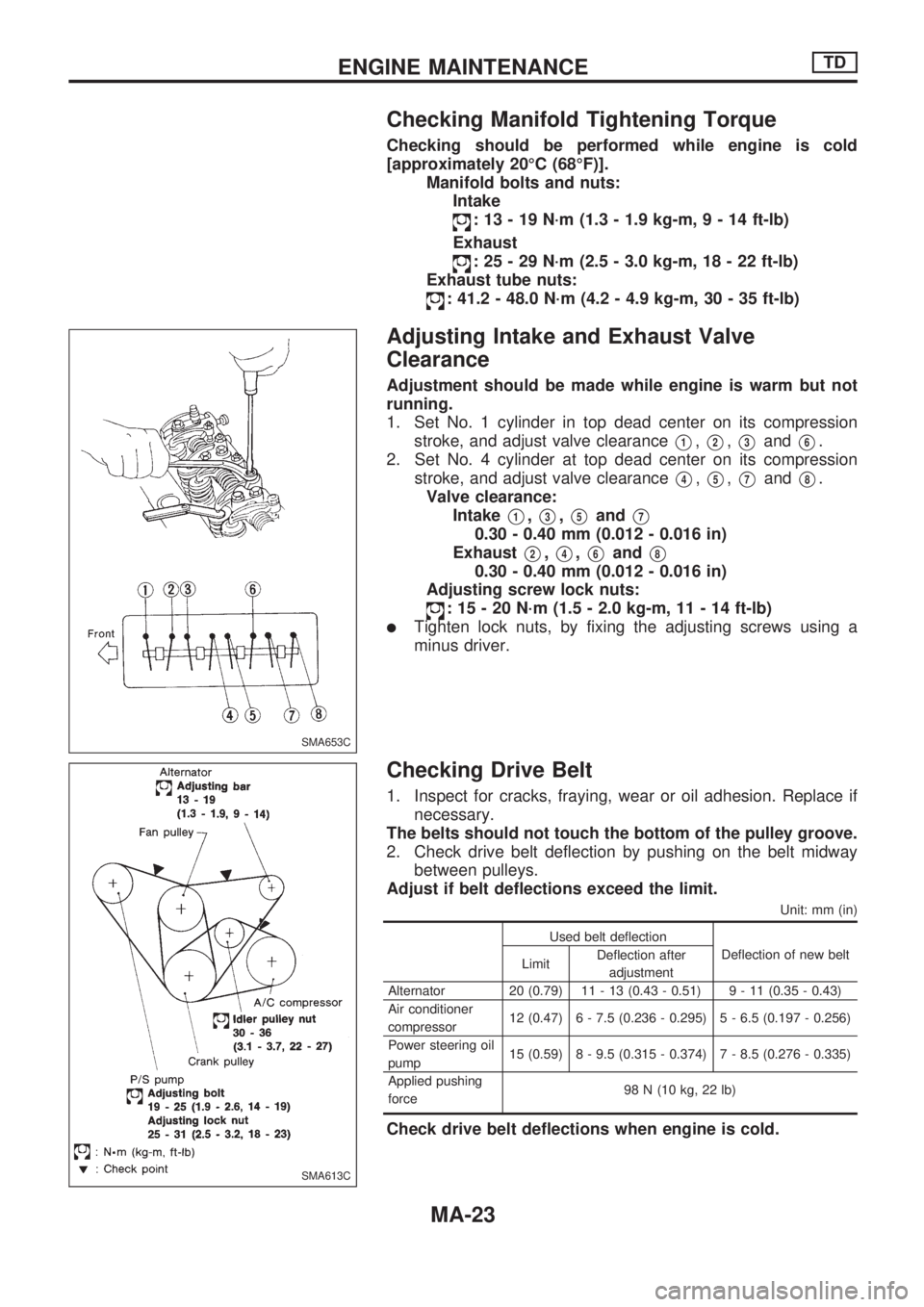

NISSAN PICK-UP 1998  Repair Manual Checking Manifold Tightening Torque
Checking should be performed while engine is cold
[approximately 20ÉC (68ÉF)].
Manifold bolts and nuts:
Intake
: 13 - 19 N´m (1.3 - 1.9 kg-m,9-14ft-lb)
Exhaust
:

Page 997 of 1659

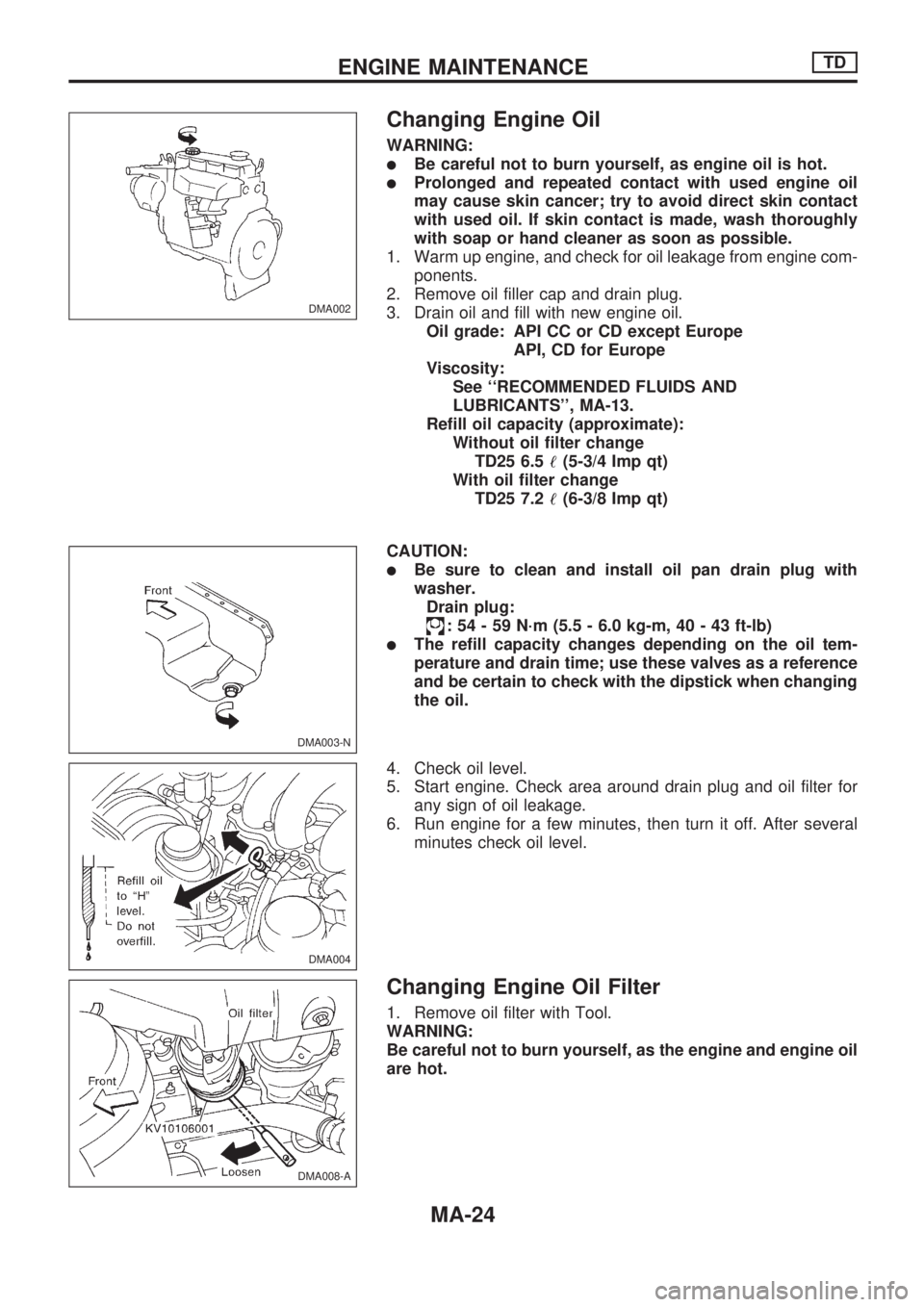

NISSAN PICK-UP 1998  Repair Manual Changing Engine Oil
WARNING:
lBe careful not to burn yourself, as engine oil is hot.
lProlonged and repeated contact with used engine oil
may cause skin cancer; try to avoid direct skin contact
with u

Page 998 of 1659

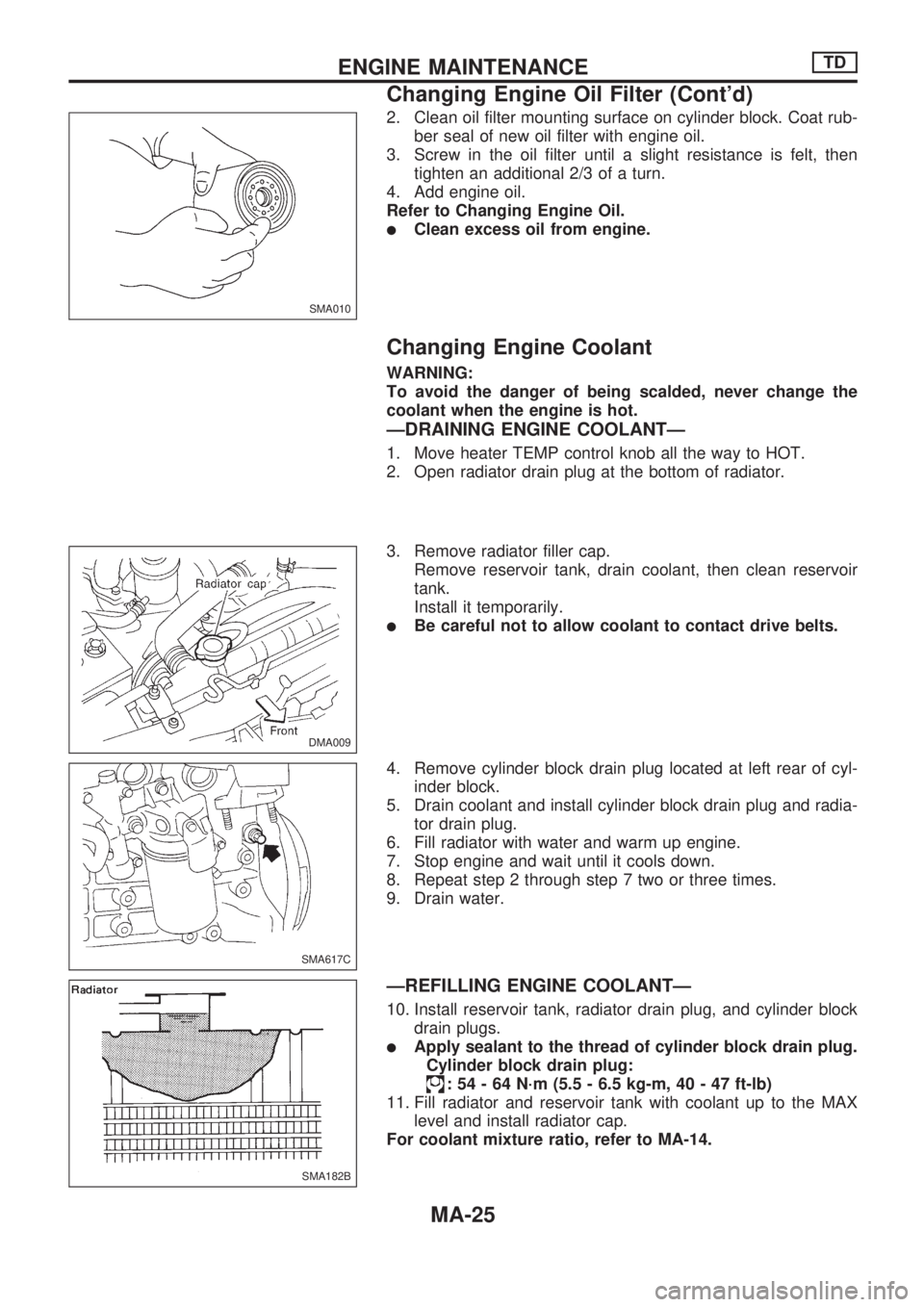

NISSAN PICK-UP 1998  Repair Manual 2. Clean oil filter mounting surface on cylinder block. Coat rub-
ber seal of new oil filter with engine oil.
3. Screw in the oil filter until a slight resistance is felt, then
tighten an additional 2

Page 999 of 1659

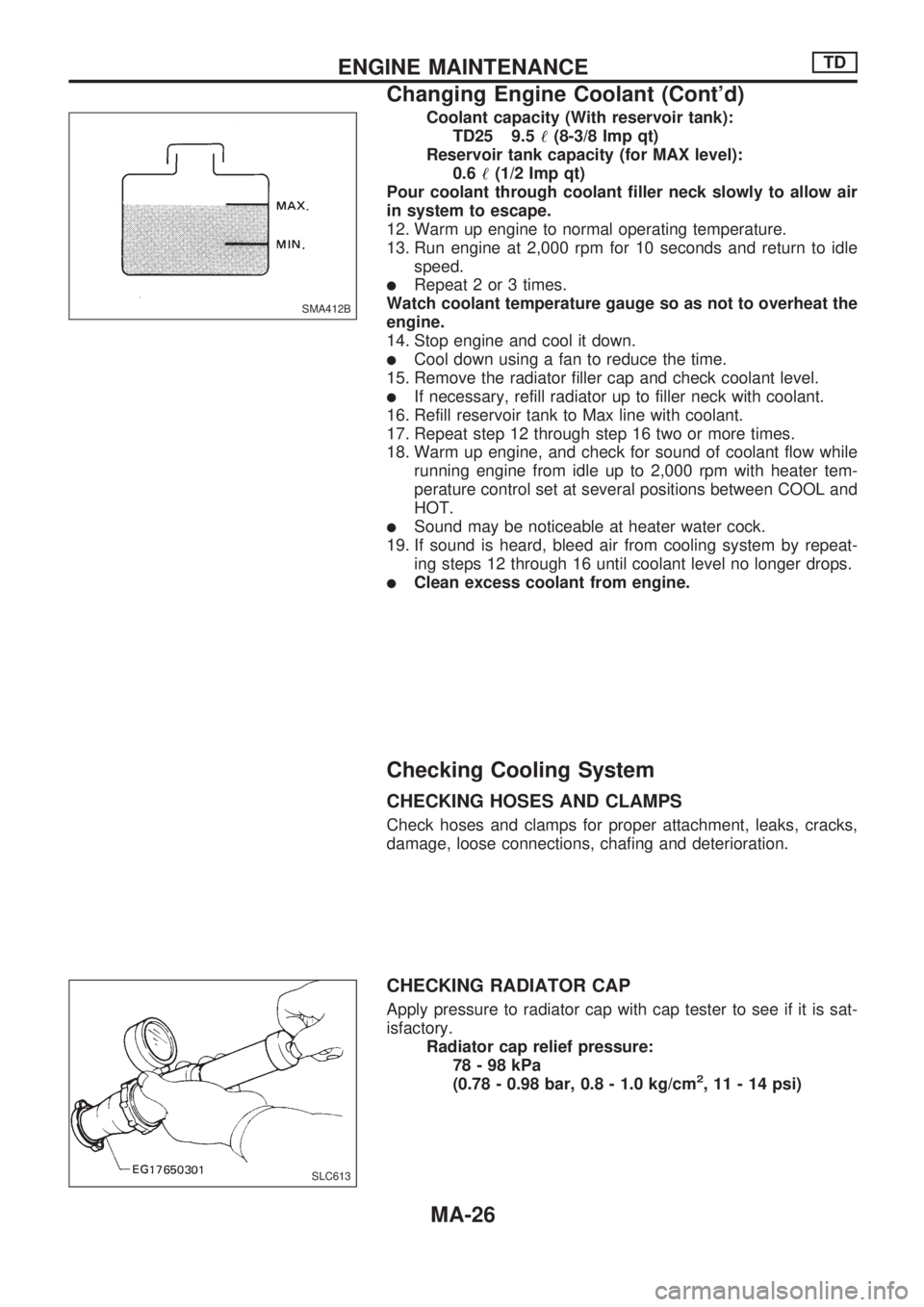

NISSAN PICK-UP 1998  Repair Manual Coolant capacity (With reservoir tank):
TD25 9.5!(8-3/8 Imp qt)
Reservoir tank capacity (for MAX level):
0.6!(1/2 Imp qt)
Pour coolant through coolant filler neck slowly to allow air
in system to esca

Page 1000 of 1659

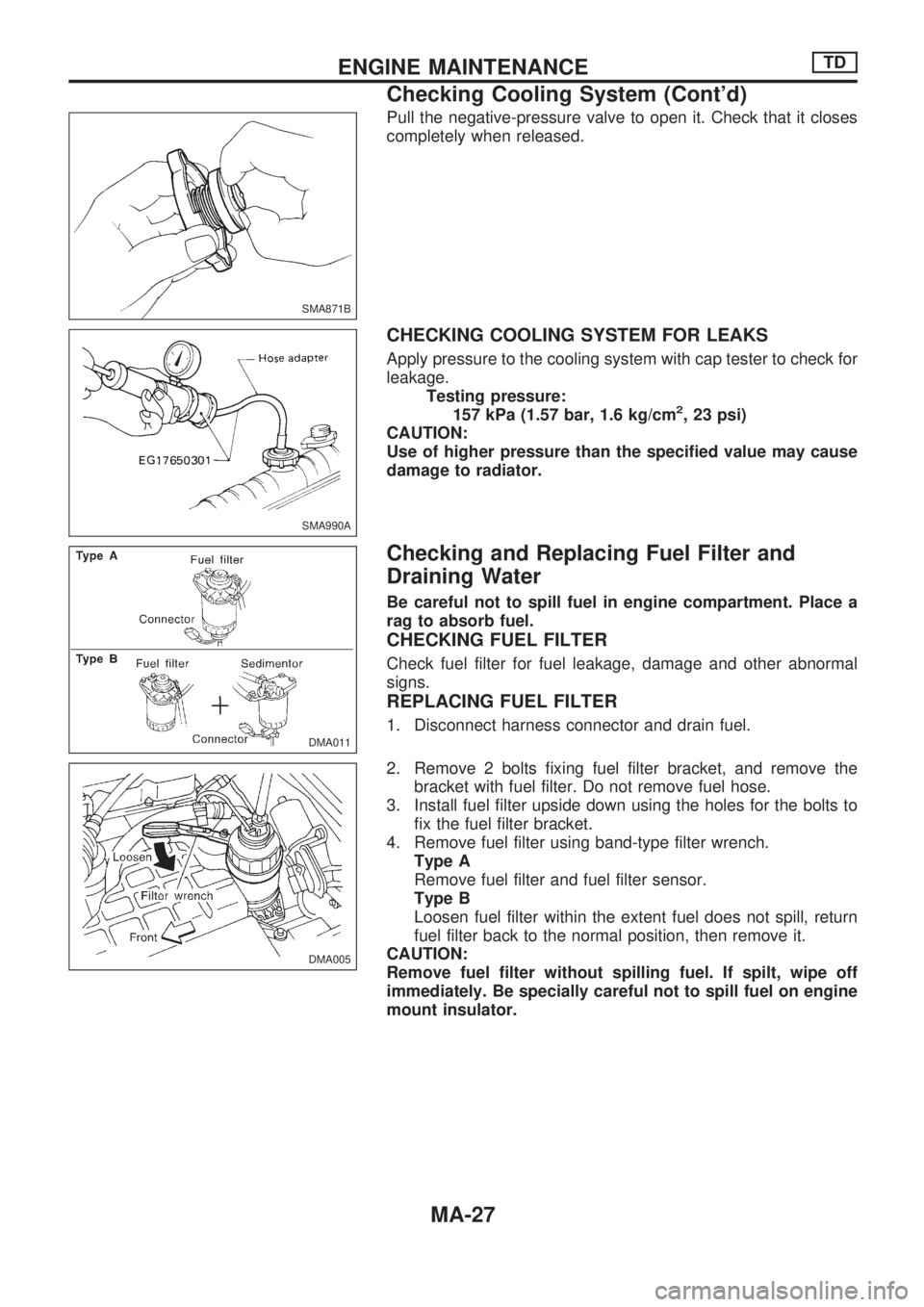

NISSAN PICK-UP 1998  Repair Manual Pull the negative-pressure valve to open it. Check that it closes
completely when released.
CHECKING COOLING SYSTEM FOR LEAKS
Apply pressure to the cooling system with cap tester to check for
leakage.
