NISSAN PICK-UP 1998 Repair Manual

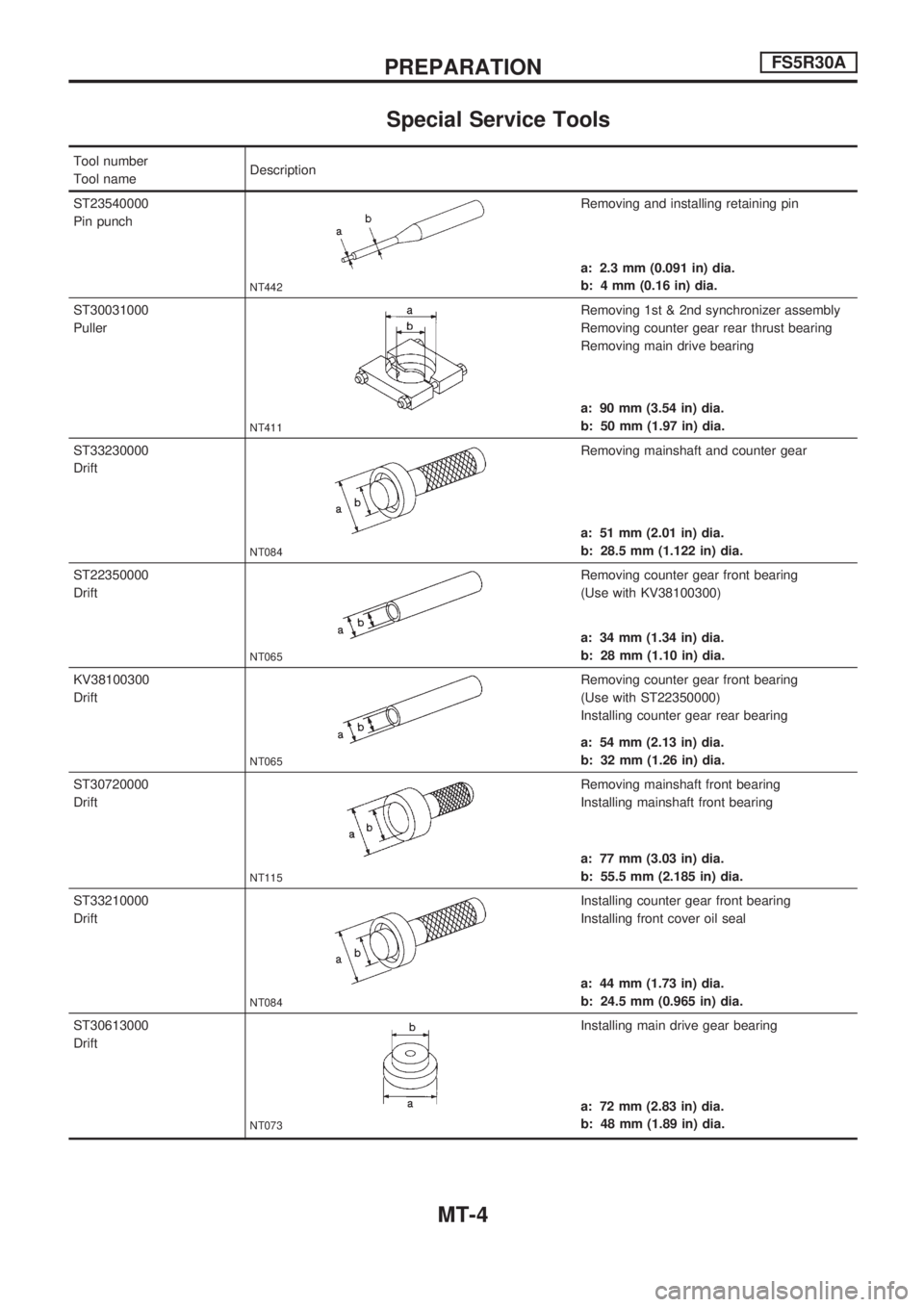

Special Service Tools
Tool number
Tool nameDescription
ST23540000
Pin punch
NT442
Removing and installing retaining pin
a: 2.3 mm (0.091 in) dia.
b: 4 mm (0.16 in) dia.
ST30031000
Puller
NT411
Removing 1st & 2nd synchronizer assembly
Removing counter gear rear thrust bearing
Removing main drive bearing
a: 90 mm (3.54 in) dia.
b: 50 mm (1.97 in) dia.
ST33230000
Drift
NT084
Removing mainshaft and counter gear
a: 51 mm (2.01 in) dia.
b: 28.5 mm (1.122 in) dia.
ST22350000
Drift
NT065
Removing counter gear front bearing
(Use with KV38100300)
a: 34 mm (1.34 in) dia.
b: 28 mm (1.10 in) dia.
KV38100300
Drift
NT065
Removing counter gear front bearing
(Use with ST22350000)
Installing counter gear rear bearing
a: 54 mm (2.13 in) dia.
b: 32 mm (1.26 in) dia.
ST30720000
Drift
NT115
Removing mainshaft front bearing
Installing mainshaft front bearing
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.
ST33210000
Drift
NT084
Installing counter gear front bearing
Installing front cover oil seal
a: 44 mm (1.73 in) dia.
b: 24.5 mm (0.965 in) dia.
ST30613000
Drift
NT073
Installing main drive gear bearing
a: 72 mm (2.83 in) dia.
b: 48 mm (1.89 in) dia.
PREPARATIONFS5R30A
MT-4

Tool number
Tool nameDescription
ST37750000
Drift
NT065
Removing counter gear rear bearing
Installing OD gear bushing
Removing and installing mainshaft rear bear-
ing
Installing reverse cone
Installing reverse counter gear
Installing counter gear rear end bearing
a: 40 mm (1.57 in) dia.
b: 31 mm (1.22 in) dia.
ST22452000
Drift
NT065
Installing reverse hub
a: 45 mm (1.77 in) dia.
b: 36 mm (1.42 in) dia.
ST33220000
Drift
NT084
Installing mainshaft rear bearing
a: 37 mm (1.46 in) dia.
b: 22 mm (0.87 in) dia.

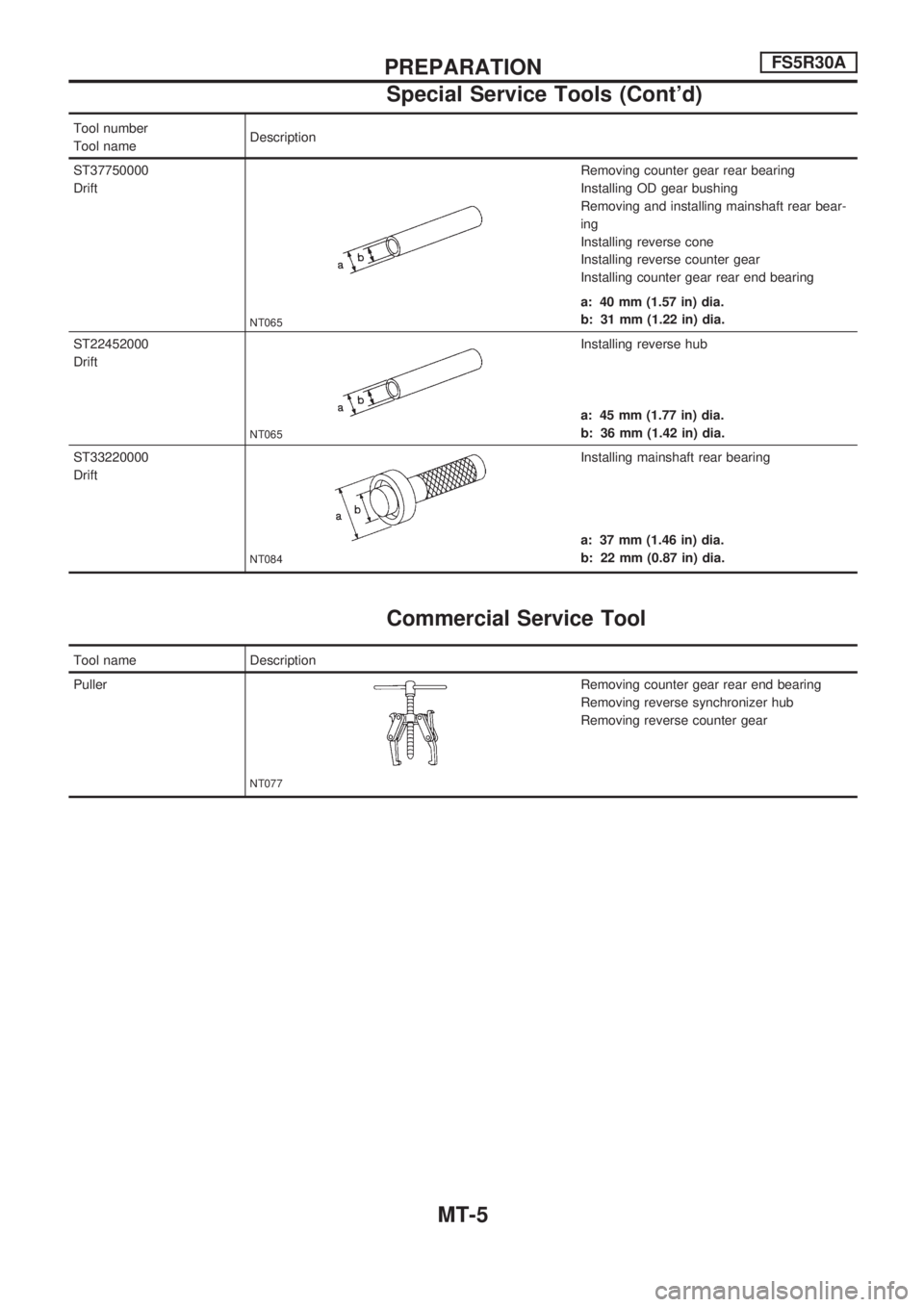

Commercial Service Tool
Tool name Description
Puller
NT077
Removing counter gear rear end bearing
Removing reverse synchronizer hub
Removing reverse counter gear
PREPARATIONFS5R30A
Special Service Tools (Cont'd)
MT-5

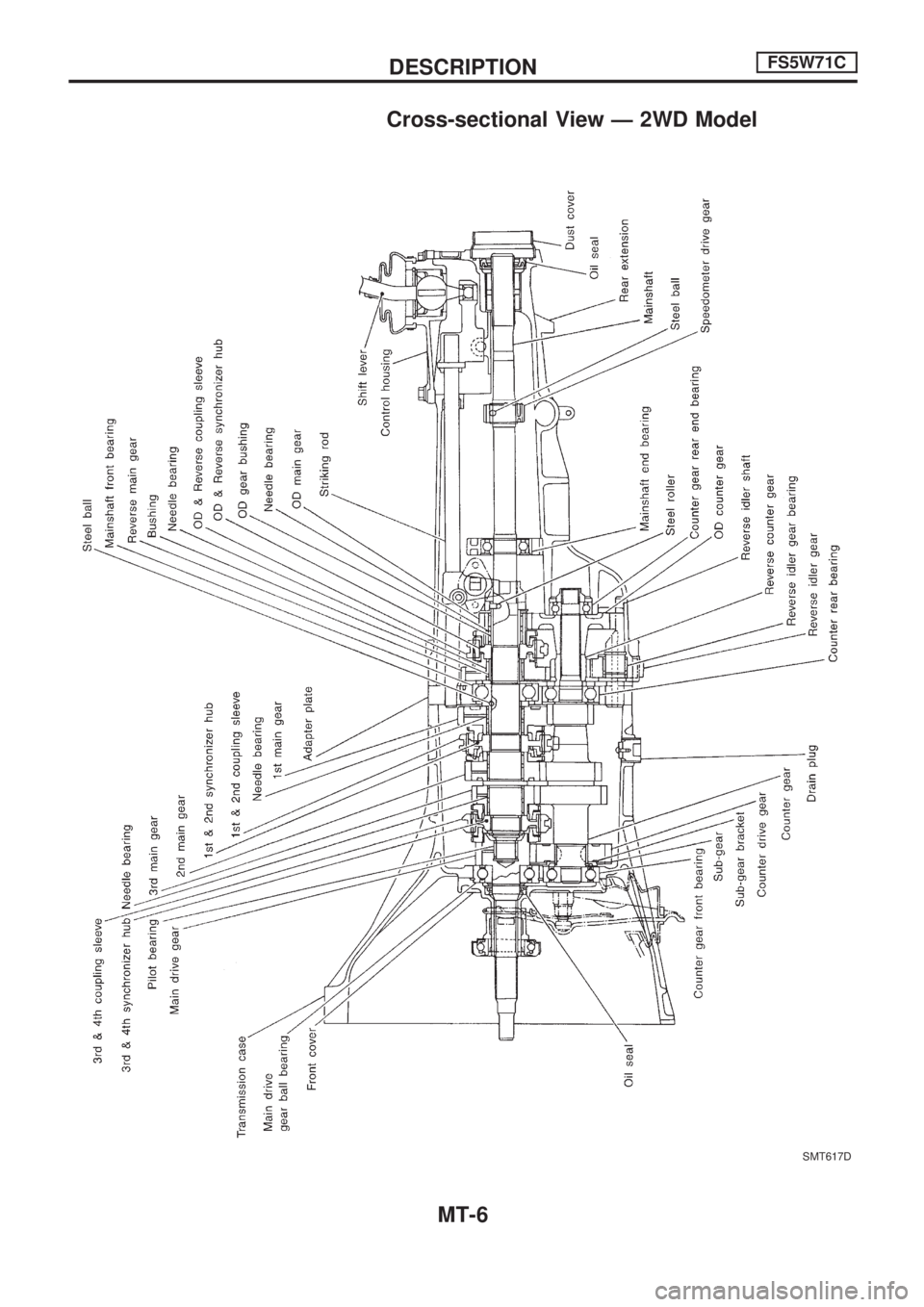

Cross-sectional View Ð 2WD Model
SMT617D
DESCRIPTIONFS5W71C
MT-6

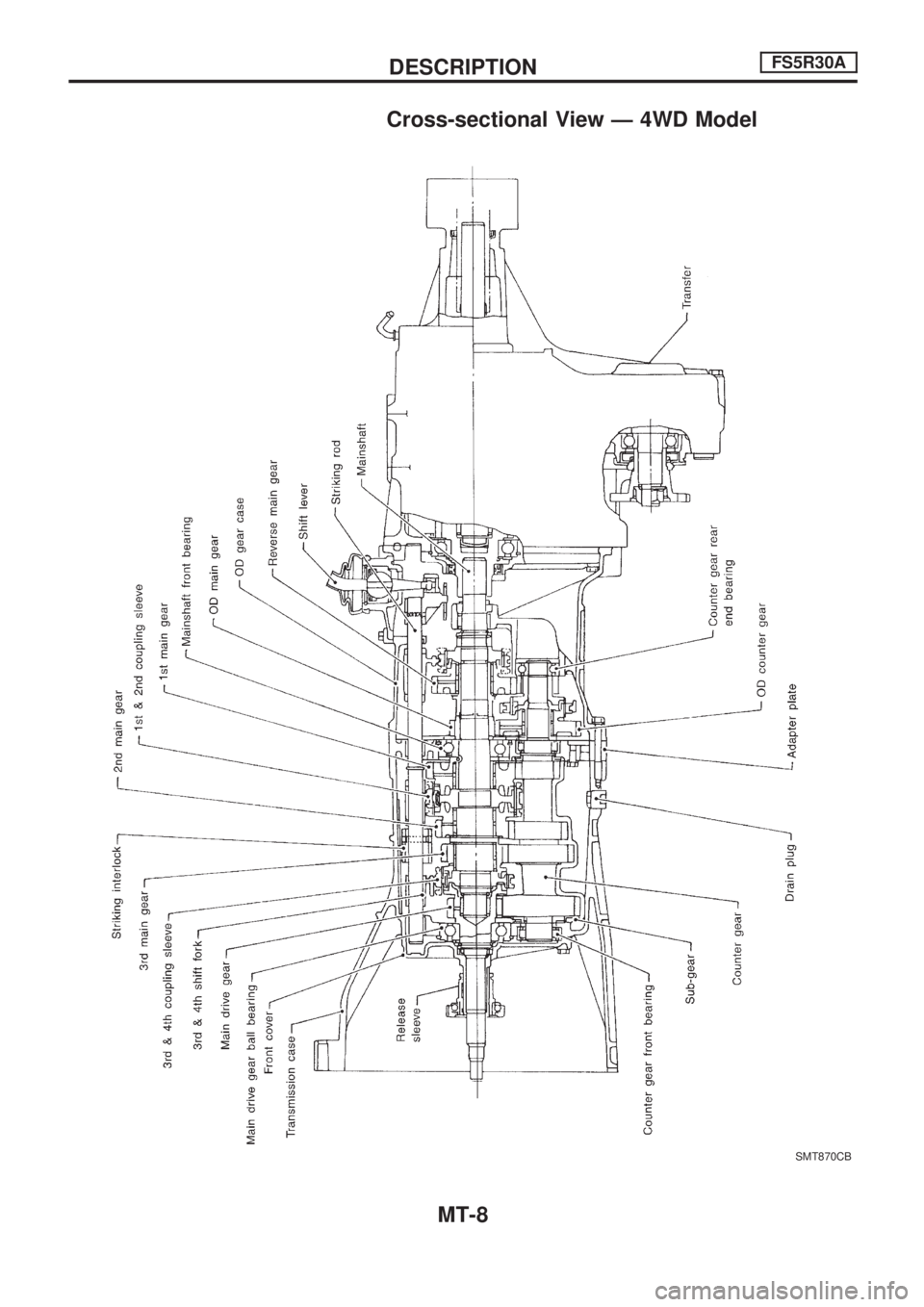

Cross-sectional View Ð 4WD Model
SMT154DA
DESCRIPTIONFS5W71C
MT-7

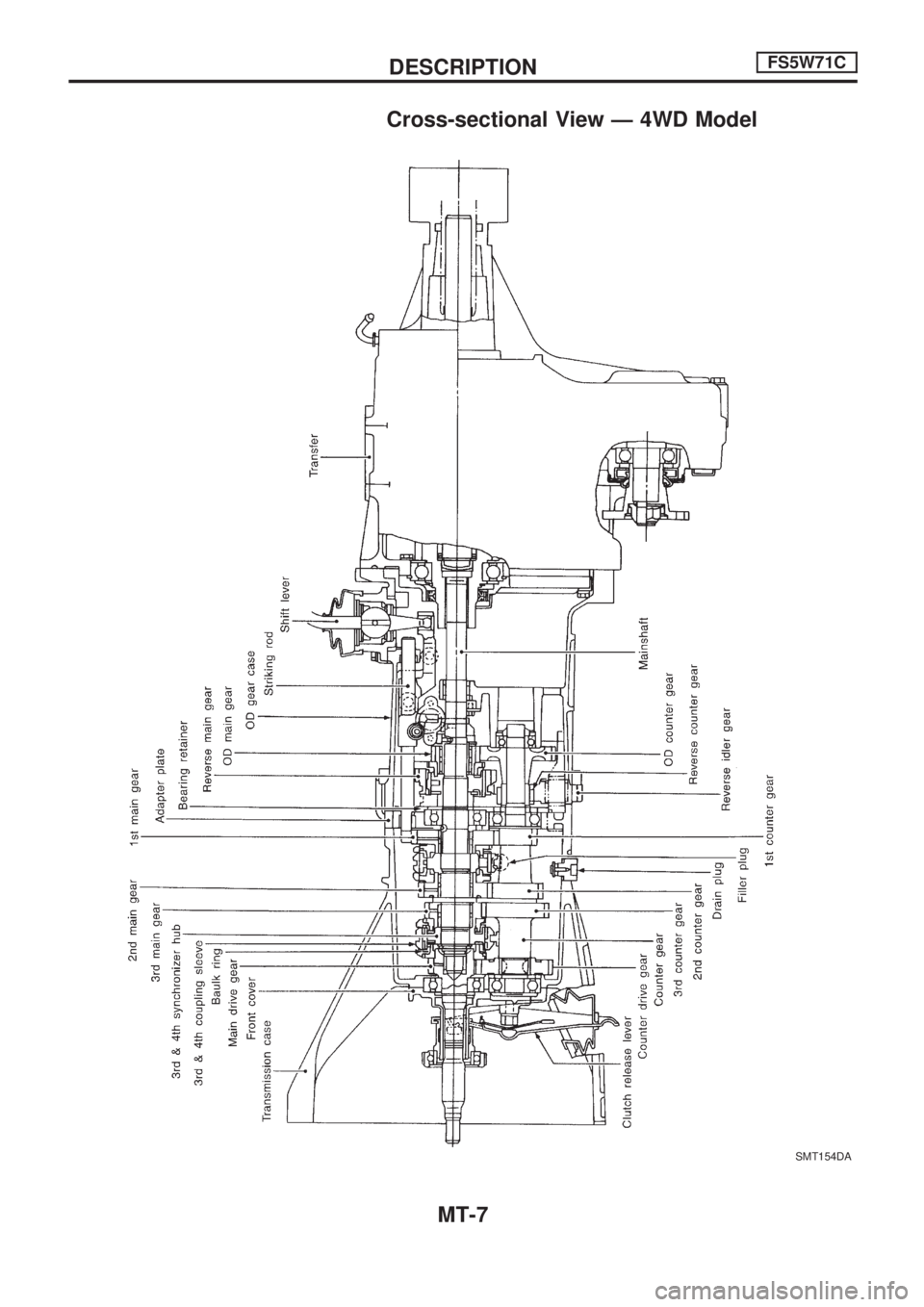

Cross-sectional View Ð 4WD Model
SMT870CB
DESCRIPTIONFS5R30A
MT-8

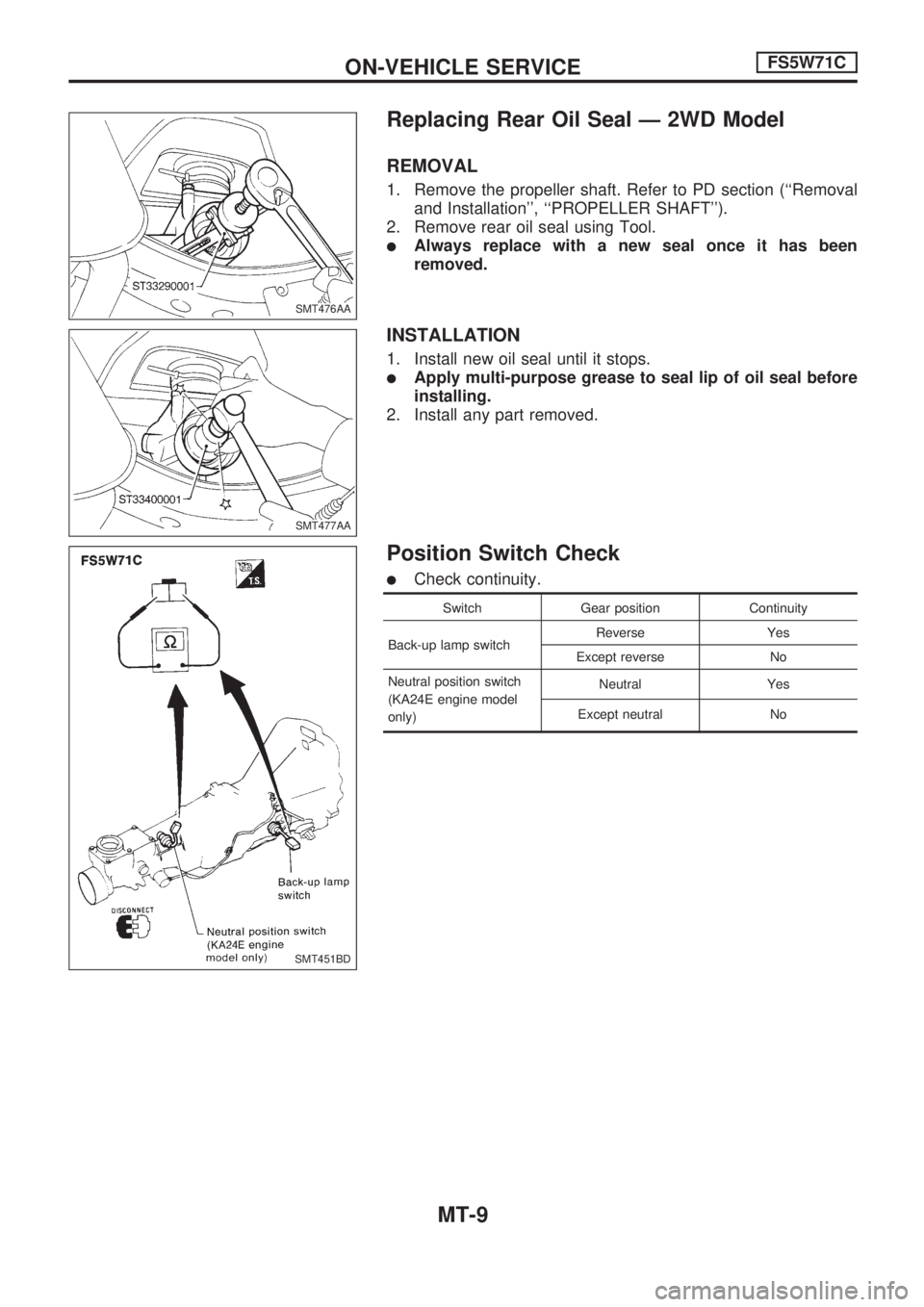

Replacing Rear Oil Seal Ð 2WD Model
REMOVAL
1. Remove the propeller shaft. Refer to PD section (``Removal
and Installation'', ``PROPELLER SHAFT'').
2. Remove rear oil seal using Tool.
lAlways replace with a new seal once it has been
removed.
INSTALLATION
1. Install new oil seal until it stops.
lApply multi-purpose grease to seal lip of oil seal before
installing.
2. Install any part removed.
Position Switch Check
lCheck continuity.
Switch Gear position Continuity
Back-up lamp switchReverse Yes
Except reverse No
Neutral position switch
(KA24E engine model
only)Neutral Yes
Except neutral No
SMT476AA
SMT477AA
SMT451BD
ON-VEHICLE SERVICEFS5W71C
MT-9

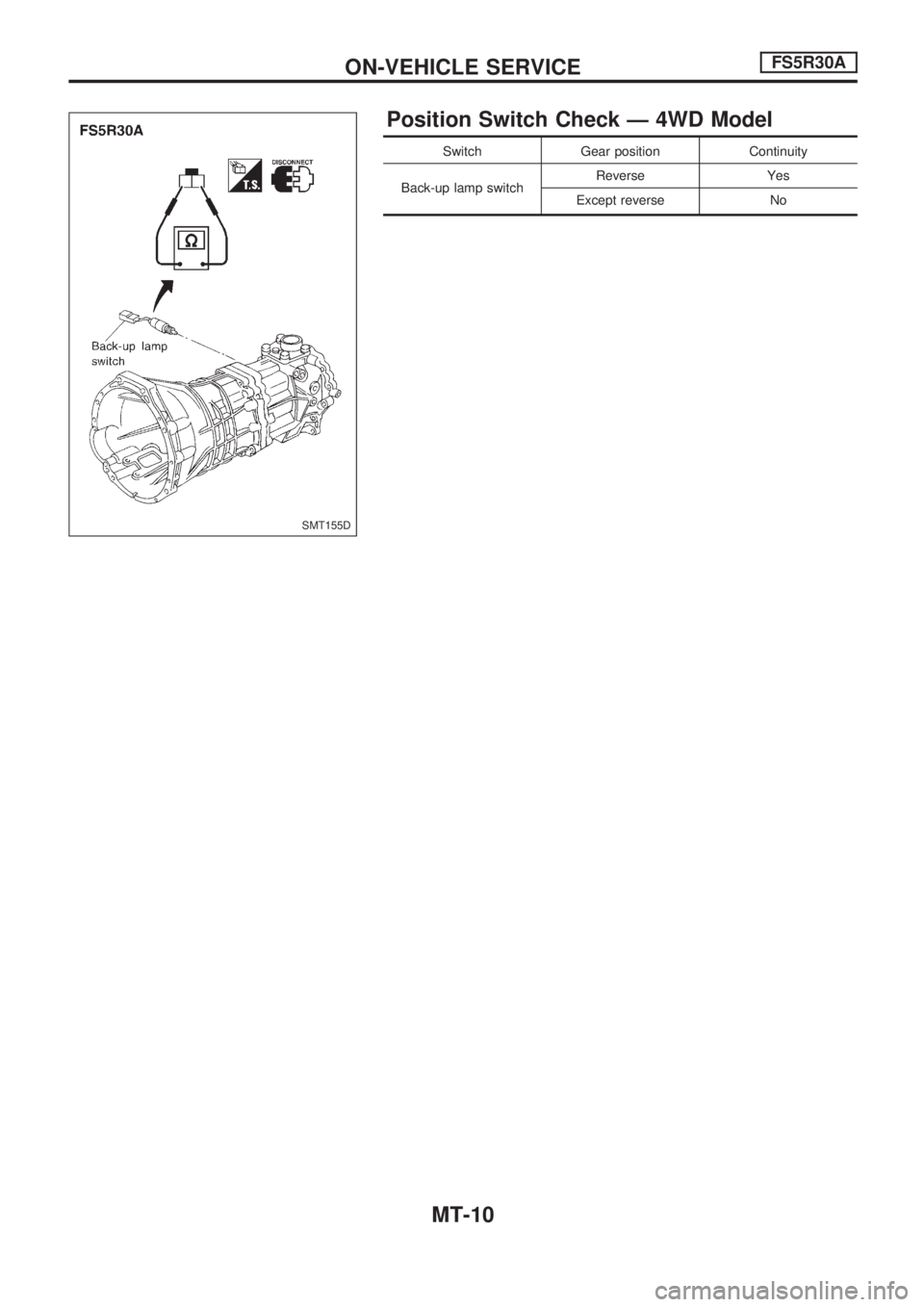

Position Switch Check Ð 4WD Model
Switch Gear position Continuity
Back-up lamp switchReverse Yes
Except reverse No
SMT155D
ON-VEHICLE SERVICEFS5R30A
MT-10

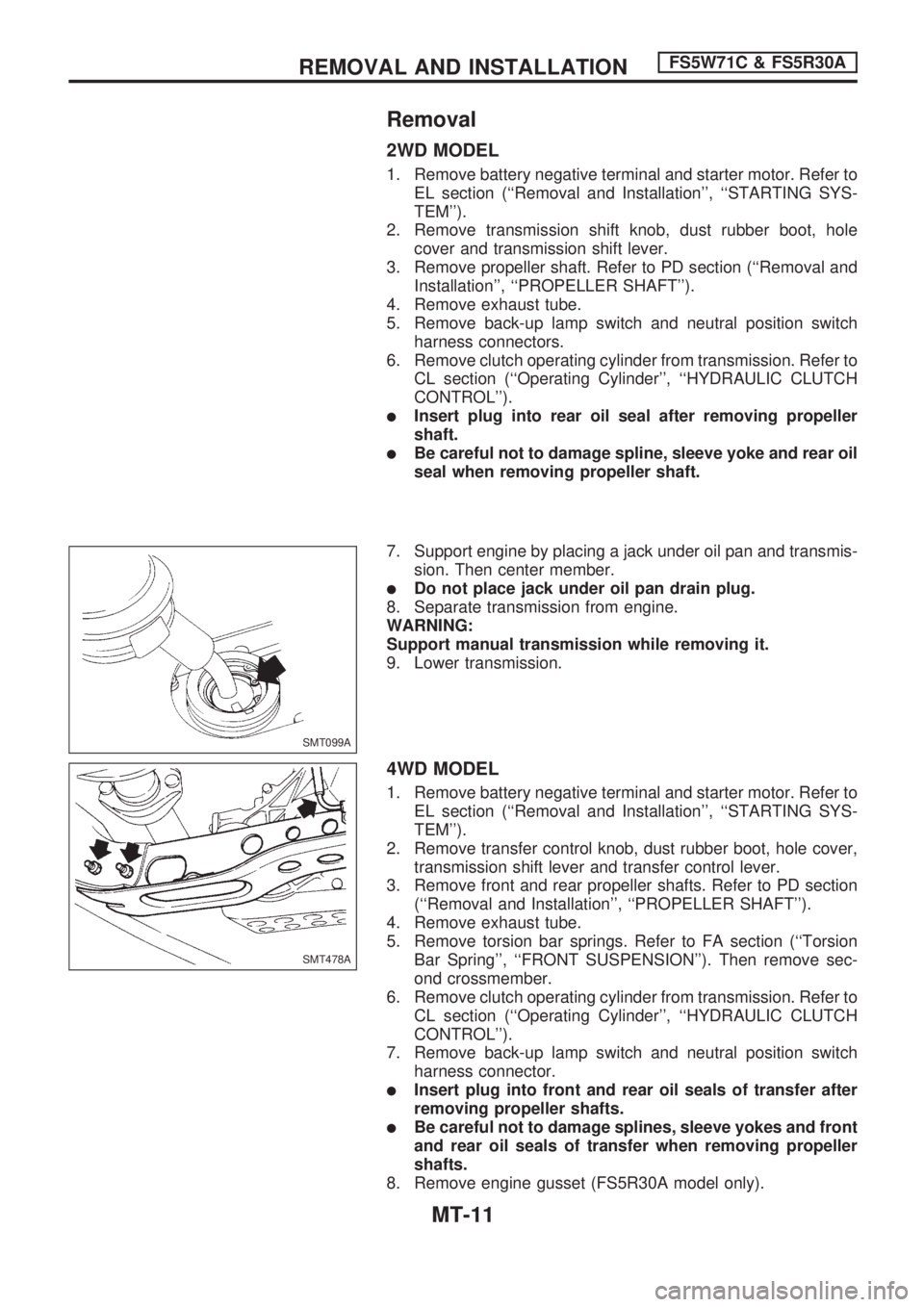

Removal
2WD MODEL
1. Remove battery negative terminal and starter motor. Refer to
EL section (``Removal and Installation'', ``STARTING SYS-
TEM'').
2. Remove transmission shift knob, dust rubber boot, hole
cover and transmission shift lever.
3. Remove propeller shaft. Refer to PD section (``Removal and
Installation'', ``PROPELLER SHAFT'').
4. Remove exhaust tube.
5. Remove back-up lamp switch and neutral position switch
harness connectors.
6. Remove clutch operating cylinder from transmission. Refer to
CL section (``Operating Cylinder'', ``HYDRAULIC CLUTCH
CONTROL'').
lInsert plug into rear oil seal after removing propeller
shaft.
lBe careful not to damage spline, sleeve yoke and rear oil
seal when removing propeller shaft.
7. Support engine by placing a jack under oil pan and transmis-
sion. Then center member.
lDo not place jack under oil pan drain plug.
8. Separate transmission from engine.
WARNING:
Support manual transmission while removing it.
9. Lower transmission.
4WD MODEL
1. Remove battery negative terminal and starter motor. Refer to
EL section (``Removal and Installation'', ``STARTING SYS-
TEM'').
2. Remove transfer control knob, dust rubber boot, hole cover,
transmission shift lever and transfer control lever.
3. Remove front and rear propeller shafts. Refer to PD section
(``Removal and Installation'', ``PROPELLER SHAFT'').
4. Remove exhaust tube.
5. Remove torsion bar springs. Refer to FA section (``Torsion
Bar Spring'', ``FRONT SUSPENSION''). Then remove sec-
ond crossmember.
6. Remove clutch operating cylinder from transmission. Refer to
CL section (``Operating Cylinder'', ``HYDRAULIC CLUTCH
CONTROL'').
7. Remove back-up lamp switch and neutral position switch
harness connector.
lInsert plug into front and rear oil seals of transfer after
removing propeller shafts.
lBe careful not to damage splines, sleeve yokes and front
and rear oil seals of transfer when removing propeller
shafts.
8. Remove engine gusset (FS5R30A model only).
SMT099A
SMT478A
REMOVAL AND INSTALLATIONFS5W71C & FS5R30A
MT-11

9. Support transfer and remove center member.
10. Support transmission and remove engine rear member.
11. Separate transmission and transfer from engine.
12. Lower transmission and transfer.
Installation

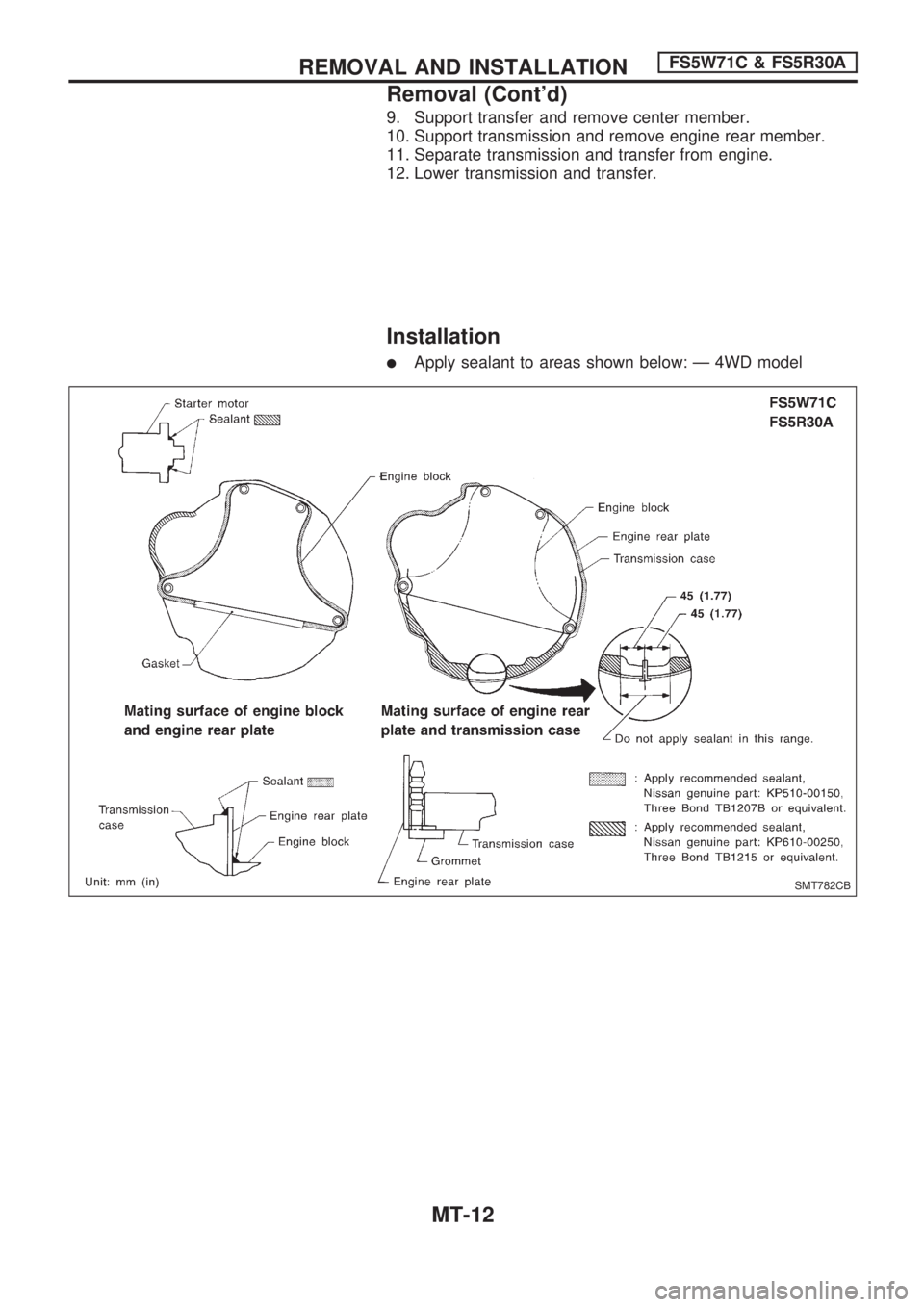

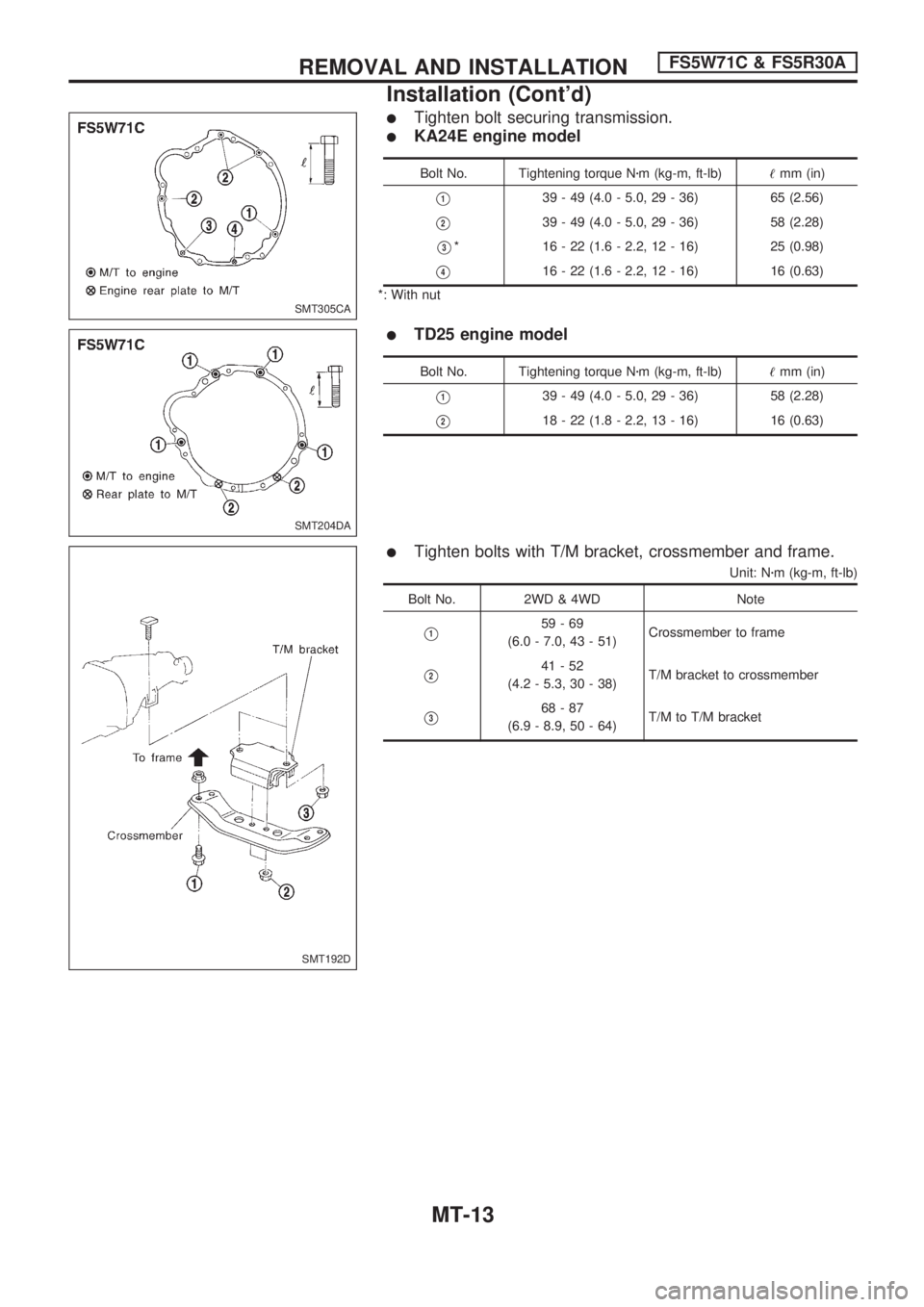

lApply sealant to areas shown below: Ð 4WD model
SMT782CB
REMOVAL AND INSTALLATIONFS5W71C & FS5R30A
Removal (Cont'd)
MT-12

lTighten bolt securing transmission.
lKA24E engine model
Bolt No. Tightening torque Nzm (kg-m, ft-lb)!mm (in)
V139 - 49 (4.0 - 5.0, 29 - 36) 65 (2.56)
V239 - 49 (4.0 - 5.0, 29 - 36) 58 (2.28)
V3* 16 - 22 (1.6 - 2.2, 12 - 16) 25 (0.98)
V416 - 22 (1.6 - 2.2, 12 - 16) 16 (0.63)
*: With nut
lTD25 engine model
Bolt No. Tightening torque Nzm (kg-m, ft-lb)!mm (in)
V139 - 49 (4.0 - 5.0, 29 - 36) 58 (2.28)
V218 - 22 (1.8 - 2.2, 13 - 16) 16 (0.63)
lTighten bolts with T/M bracket, crossmember and frame.
Unit: Nzm (kg-m, ft-lb)
Bolt No. 2WD & 4WD Note
V159-69
(6.0 - 7.0, 43 - 51)Crossmember to frame
V241-52
(4.2 - 5.3, 30 - 38)T/M bracket to crossmember
V368-87
(6.9 - 8.9, 50 - 64)T/M to T/M bracket
SMT305CA
SMT204DA
SMT192D
REMOVAL AND INSTALLATIONFS5W71C & FS5R30A
Installation (Cont'd)
