NISSAN TIIDA 2007 Service Repair Manual

CHG-10
< COMPONENT DIAGNOSIS >[HR16DE]
B TERMINAL CIRCUIT
B TERMINAL CIRCUIT
DescriptionINFOID:0000000001724475
The terminal “1” (B) circuit supplies power to charge the battery and operate the vehicles electrical system.
Diagnosis ProcedureINFOID:0000000001724476
1.CHECK TERMINAL “1” CONNECTION
1. Turn ignition switch OFF.
2. Verify terminal “1” is clean and tight.
Is the inspection result normal?
YES >> GO TO 2
NO >> Repair terminal “1” connection. Confirm repair by performing complete Starting/Charging system
test. Refer to Technical Service Bulletin.
2.CHECK TERMINAL “1” CIRCUIT
Check voltage between generator connector F2 terminal 1 and
ground.
Is voltage reading as specified?
YES >> GO TO 3.
NO >> Check harness for open between generator and fusible
link.
3.CHECK TERMINAL “1” CONNECTION (VOLTAGE DROP TEST)
1. Start engine, then engine running at idle and warm.
2. Check voltage between battery positive terminal and generator
connector F2 terminal 1.
Is the voltage reading as specified?
YES >> Terminal “1” circuit is normal. Refer to CHG-33, "Work
Flow".
NO >> Check harness between battery and generator for high resistance.
(+)
(-) Voltage
Connector Terminal
F2 1 Ground Battery voltage
ALMIA0197ZZ
(+)
(-) Voltage
Connector Terminal
F2 1 Battery positive terminal Less than 0.2V
ALMIA0198ZZ

CHG
L TERMINAL CIRCUIT
CHG-11
< COMPONENT DIAGNOSIS >[HR16DE]
C
D
E
F
G
H
I
J
K
L B A
O
P N
L TERMINAL CIRCUIT
DescriptionINFOID:0000000001724477
The terminal “2” (L) circuit controls the charge warning lamp. The charge warning lamp illuminates when the
ignition switch is set to ON or START. When the generator is providing sufficient voltage with the engine run-
ning, the charge warning lamp will go off. If the charge warning lamp illuminates with the engine running, a
malfunction is indicated.
Diagnosis ProcedureINFOID:0000000001724478
1.CHECK CHARGE WARNING LAMP CIRCUIT CONNECTION
Verify generator connector F2 terminal 2 is clean and tight.
Is the connection secure?
YES >> GO TO 2
NO >> Repair the connection. Confirm repair by performing complete Starting/Charging system test.
Refer to Technical Service Bulletin.
2.CHECK CHARGE WARNING LAMP CIRCUIT
1. Disconnect generator connector F2.
2. Apply ground to generator harness connector F2 terminal 2 with
the ignition switch in the ON position.
Does the charge lamp illuminate?
YES >> Check generator function. Refer to CHG-33, "Work
Flow".
NO >> GO TO 3
3.CHECK HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect the generator connector F2 and combination meter
connector M24.
3. Check continuity between generator harness connector F2 (A)
terminal 2 and combination meter harness connector M24 (B)
terminal 38.
4. Check continuity between generator harness connector F2 ter-
minal 2 and ground.
Are the continuity results as specified?
YES >> Replace the combination meter. Refer to XX-XX, "*****".
NO >> Repair the harness or connector.Charge lamp should illuminate
ALMIA0200ZZ
AB
Continuity
Connector Terminal Connector Terminal
F2 2 M24 38 Yes
A
—
Continuity
Connector Terminal
F2 2 Ground No
ALMIA0326GB

CHG-12
< COMPONENT DIAGNOSIS >[HR16DE]
S TERMINAL CIRCUIT
S TERMINAL CIRCUIT
DescriptionINFOID:0000000001724479
The output voltage of the generator is controlled by the IC regulator at terminal “3” (S) detecting the input volt-
age. Terminal “3” circuit detects the battery voltage to adjust the generator output voltage with the IC regulator.
Diagnosis ProcedureINFOID:0000000001724480
1.CHECK VOLTAGE REGULATOR CIRCUIT CONNECTION
Check to see if connector F2 terminal 3 is clean and tight.
Is the inspection result normal?
YES >> GO TO 2
NO >> Repair terminal connection. Confirm repair by performing complete Starting/Charging system test.
Refer to Technical Service Bulletin.
2.CHECK VOLTAGE REGULATOR CIRCUIT
Check voltage between generator harness connector F2 terminal 3
and ground.
Does battery voltage exist?
YES >> Refer to CHG-33, "Work Flow".
NO >> Check harness for open between generator and fuse.3 - ground Battery voltage
ALMIA0201ZZ

CHG
CHARGING SYSTEM
CHG-13
< COMPONENT DIAGNOSIS >[HR16DE]
C
D
E
F
G
H
I
J
K
L B A
O
P N
CHARGING SYSTEM
Wiring DiagramINFOID:0000000001724481
AWMWA0022GB

CHG-14
< SYMPTOM DIAGNOSIS >[HR16DE]
CHARGING SYSTEM
SYMPTOM DIAGNOSIS
CHARGING SYSTEM
Symptom TableINFOID:0000000001724482
Symptom Reference
Battery discharged
Refer to CHG-5, "
Work Flow". The charge warning lamp does not illuminate when the ignition
switch is set to ON.
The charge warning lamp does not turn OFF after the engine
starts.
The charging warning lamp turns ON when increasing the engine
speed.

CHG
GENERATOR
CHG-15
< ON-VEHICLE REPAIR >[HR16DE]
C
D
E
F
G
H
I
J
K
L B A
O
P N
ON-VEHICLE REPAIR
GENERATOR
Removal and InstallationINFOID:0000000001689492
REMOVAL
1. Disconnect the battery cable from the negative terminal.
2. Remove drive belt. Refer to EM-16, "
Removal and Installation".
3. Disconnect generator connector (1).
4. Remove “B” terminal nut (2) and “B” terminal harness.
5. Remove upper generator bolt (3) and generator lower bolt (4).
6. Remove generator upward from the vehicle.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Be sure to tighten “B” terminal nut carefully.
 Temporarily tighten the generator bolts in order from the lower to the upper, and then tighten them in order
from the upper to the lower.
CAUTION:
For the generator, the front side (pulley side) surface is the reference surface. Fit the reference sur-
face to the generator mating part, and then tighten the bolts.
 Install generator, and check tension of belt. Refer to EM-15, "
Checking".
1. Generator bracket bolt 2. Generator bracket 3. Generator bolt
4. Generator 5. “B” terminal harness 6. “B” terminal nut
7. Generator connector
SKIB1945J
JPMIA0082ZZ

CHG-16
< SERVICE DATA AND SPECIFICATIONS (SDS) [HR16DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
GeneratorINFOID:0000000001689489
Applied modelHR16DE
Ty p eA2TJ0291ZE
MITSUBISHI
Nominal rating [V - A] 12 - 120
Ground polarityNegative
Minimum revolution under no-load (When 13.5
V is applied)[rpm] Less than 1,300
Hot output current (When 13.5 V is applied) [A/rpm]More than 27/1,300
More than 95/2,500
More than 116/5,000
Regulated output voltage [V] 14.1 - 14.7
Minimum length of brush [mm (in)] More than 5.00 (0.197)
Brush spring pressure [N (g, oz)] 4.1 - 5.3 (418 - 541, 14.7 - 19.1)
Slip ring minimum outer diameter [mm (in)] More than 22.1 (0.870)
Rotor (Field coil) resistance [Ω] 1.7 - 2.2

CHG
PRECAUTIONS
CHG-17
< PRECAUTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L B A
O
P N
PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001731368
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.
WARNING:
 To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
 Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.
 Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

CHG-18
< PREPARATION >[MR18DE]
PREPARATION
PREPARATION
PREPARATION
Special Service ToolsINFOID:0000000001691351
Tool number
Tool nameDescription
KV10118200 (included in the adapter
kit: Mot. 1732)
Alternator pulley adapterRemoving and installing alternator pulley
PKIA1241E

CHG
DIAGNOSIS AND REPAIR WORKFLOW
CHG-19
< BASIC INSPECTION >[MR18DE]
C
D
E
F
G
H
I
J
K
L B A
O
P N
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORKFLOW

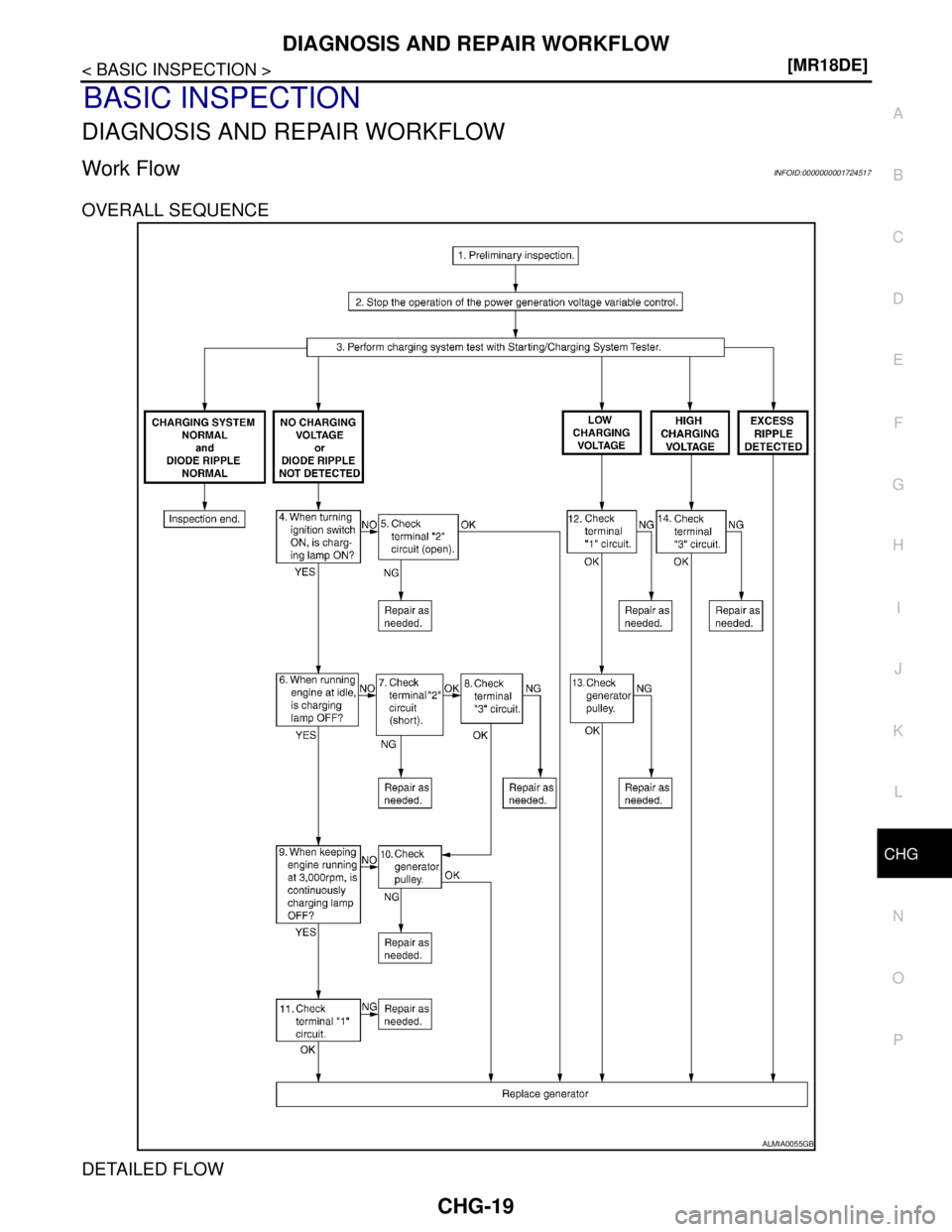

Work FlowINFOID:0000000001724517
OVERALL SEQUENCE
DETAILED FLOW
ALMIA0055GB
