OVERHAUL
TM-215
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

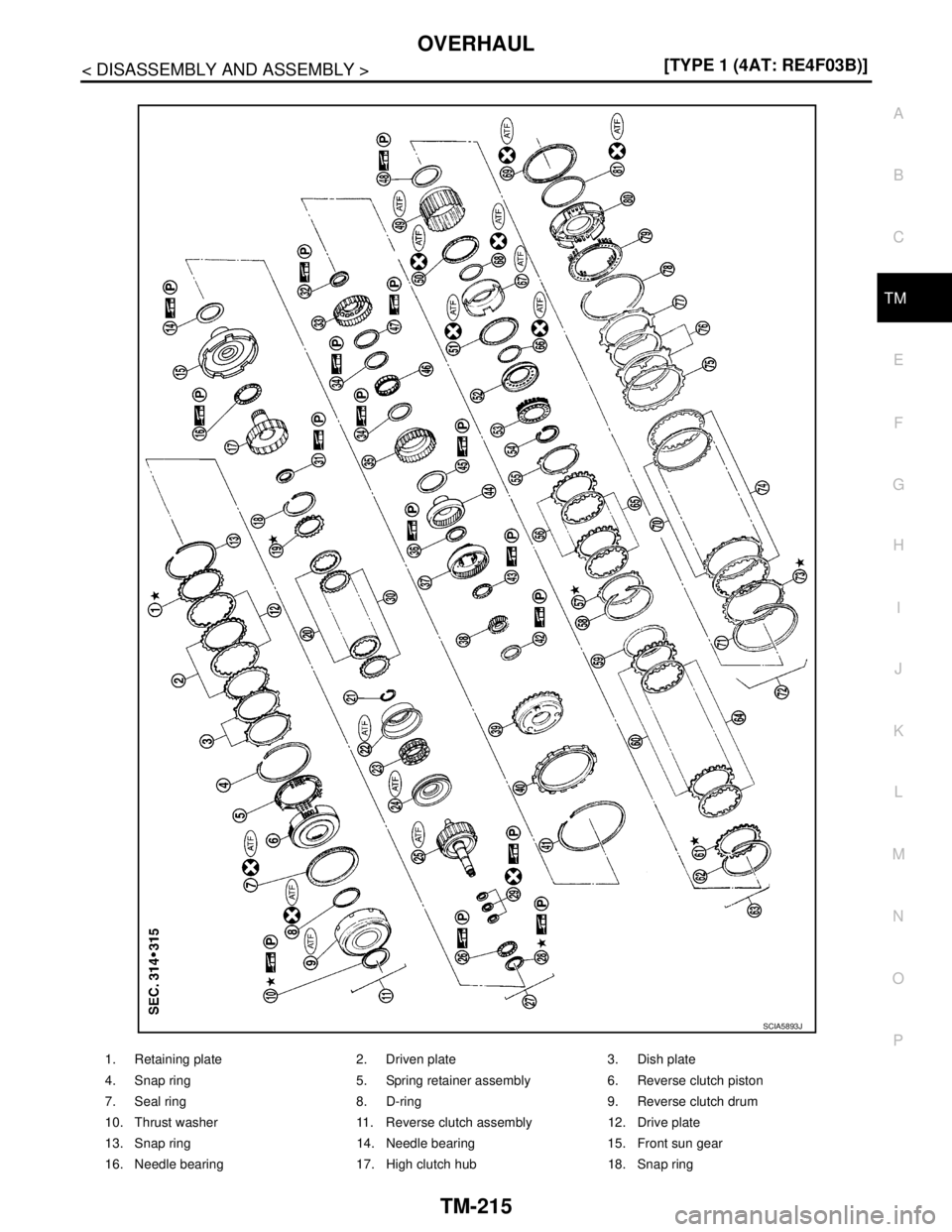

1. Retaining plate 2. Driven plate 3. Dish plate
4. Snap ring 5. Spring retainer assembly 6. Reverse clutch piston
7. Seal ring 8. D-ring 9. Reverse clutch drum
10. Thrust washer 11. Reverse clutch assembly 12. Drive plate
13. Snap ring 14. Needle bearing 15. Front sun gear
16. Needle bearing 17. High clutch hub 18. Snap ring
SCIA5893J

TM-216
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
OVERHAUL
19. Retaining plate 20. Drive plate 21. Snap ring
22. Cancel cover 23. Spring retainer assembly 24. High clutch piston
25. Input shaft assembly (high clutch
drum)26. Needle bearing 27. High clutch assembly
28. Bearing race 29. Seal ring 30. Driven plate
31. Needle bearing 32. Needle bearing 33. Overrun clutch hub
34. End bearing 35. Forward clutch hub 36. Needle bearing
37. Rear planetary carrier 38. Rear sun gear 39. Front planetary carrier
40. Low one-way clutch 41. Snap ring 42. Needle bearing
43. Needle bearing 44. Rear internal gear 45. Thrust washer
46. Forward one-way clutch 47. Thrust washer 48. Thrust washer
49. Forward clutch drum 50. Seal ring 51. Seal ring
52. Overrun clutch piston 53. Spring retainer assembly 54. Snap ring
55. Dish plate 56. Driven plate 57. Retaining plate
58. Snap ring 59. Dish plate 60. Driven plate
61. Retaining plate 62. Snap ring 63. Forward clutch assembly and over-
run clutch assembly
64. Drive plate 65. Drive plate 66. D-ring
67. Forward clutch piston 68. D-ring 69. Seal ring
70. Driven plate 71. Snap ring 72. Low & reverse brake assembly
73. Retaining plate 74. Drive plate 75. Retaining plate
76. Dish plate 77. Driven plate 78. Snap ring
79. Spring retainer assembly 80. Low & reverse brake piston 81. D-ring

OVERHAUL
TM-217
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

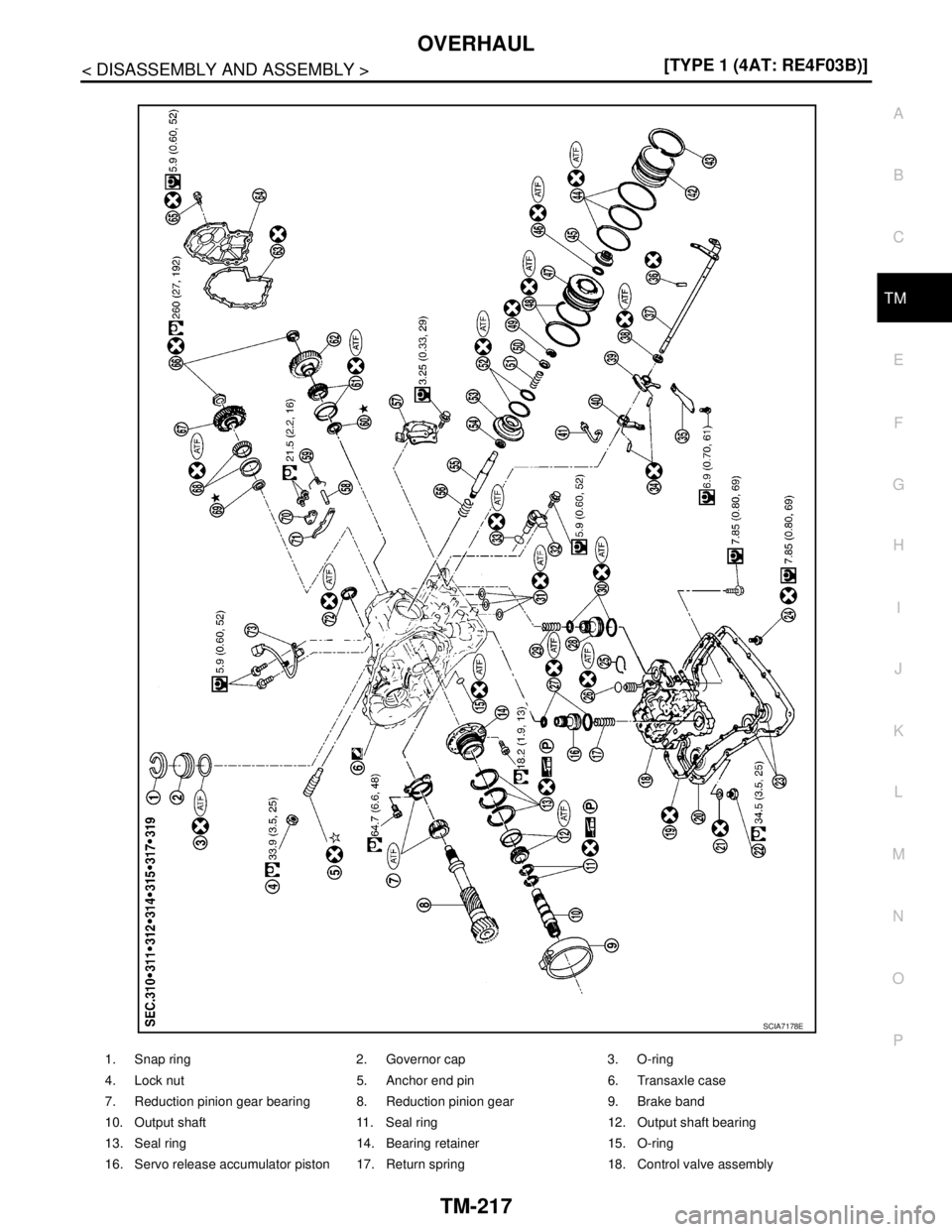

1. Snap ring 2. Governor cap 3. O-ring
4. Lock nut 5. Anchor end pin 6. Transaxle case
7. Reduction pinion gear bearing 8. Reduction pinion gear 9. Brake band
10. Output shaft 11. Seal ring 12. Output shaft bearing
13. Seal ring 14. Bearing retainer 15. O-ring
16. Servo release accumulator piston 17. Return spring 18. Control valve assembly
SCIA7178E

TM-218
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
OVERHAUL
19. Oil pan gasket 20. Oil pan 21. Drain plug gasket
22. Drain plug 23. Magnet 24. Oil pan fitting bolt
25. Snap ring 26. O-ring 27. O-ring
28. N-D accumulator piston 29. Return spring 30. O-ring
31. Lip seal 32. Turbine revolution sensor (power
train revolution sensor)33. O-ring
34. Retaining pin 35. Detent spring 36. Retaining pin
37. Manual shaft 38. Manual shaft oil seal 39. Manual plate
40. Parking rod plate 41. Parking rod 42. OD servo piston retainer
43. Snap ring 44. O-ring 45. OD servo piston
46. D-ring 47. Servo piston retainer 48. O-ring
49. E-ring 50. Spring retainer 51. OD servo return spring
52. D-ring 53. Band servo piston 54. Band servo thrust washer
55. Band servo piston stem 56. 2nd servo return spring 57. PNP switch
58. Parking shaft 59. Return spring 60. Output gear adjusting spacer
61. Output gear bearing 62. Output gear 63. Side cover gasket
64. Side cover 65. Side cover fitting bolt 66. Lock nut
67. Idler gear 68. Idler gear bearing 69. Reduction pinion gear adjusting
shim
70. Parking actuator support 71. Parking pawl 72. LH differential side oil seal
73. Revolution sensor
: Apply locking sealant (Loctite #518).

OVERHAUL
TM-219
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

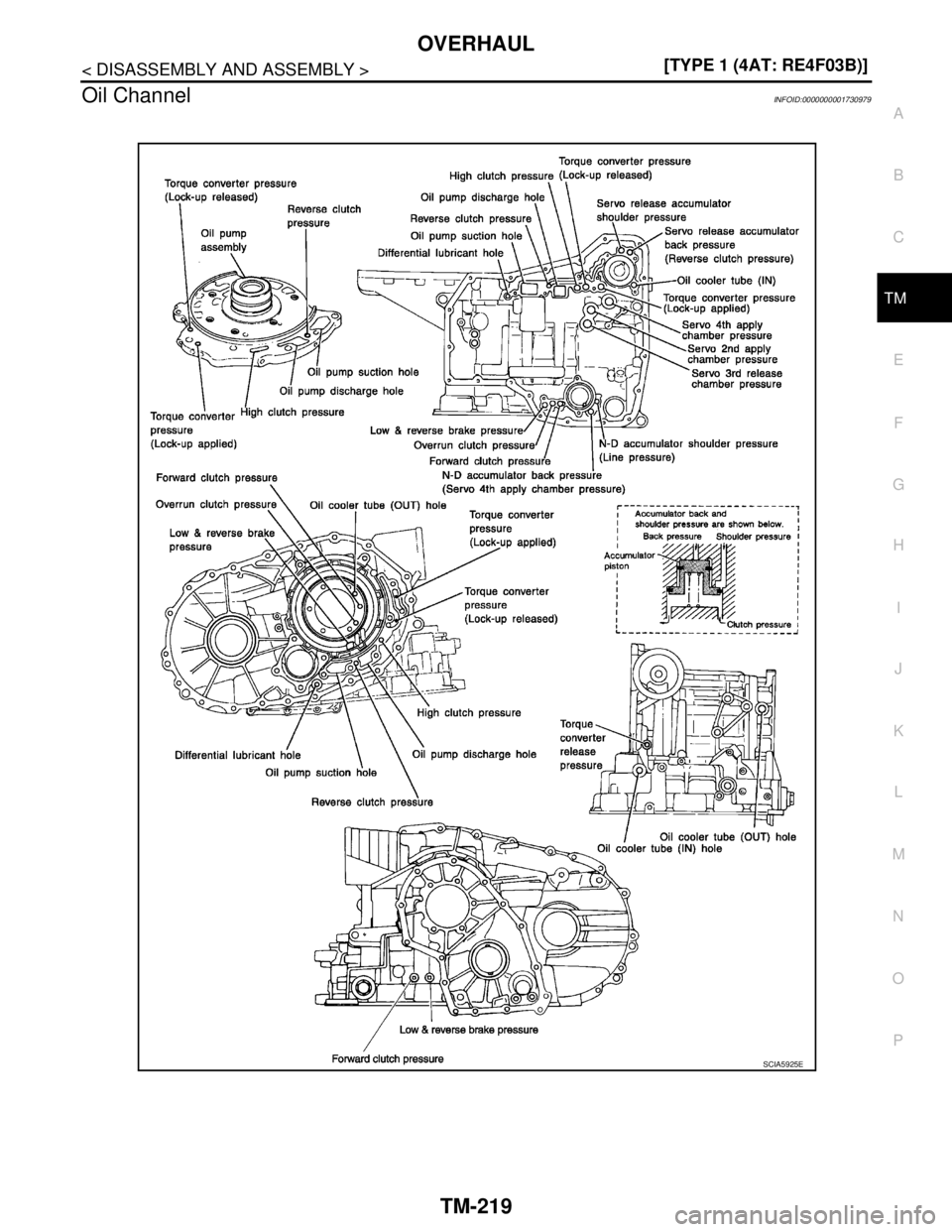

Oil ChannelINFOID:0000000001730979
SCIA5925E

TM-220
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
OVERHAUL

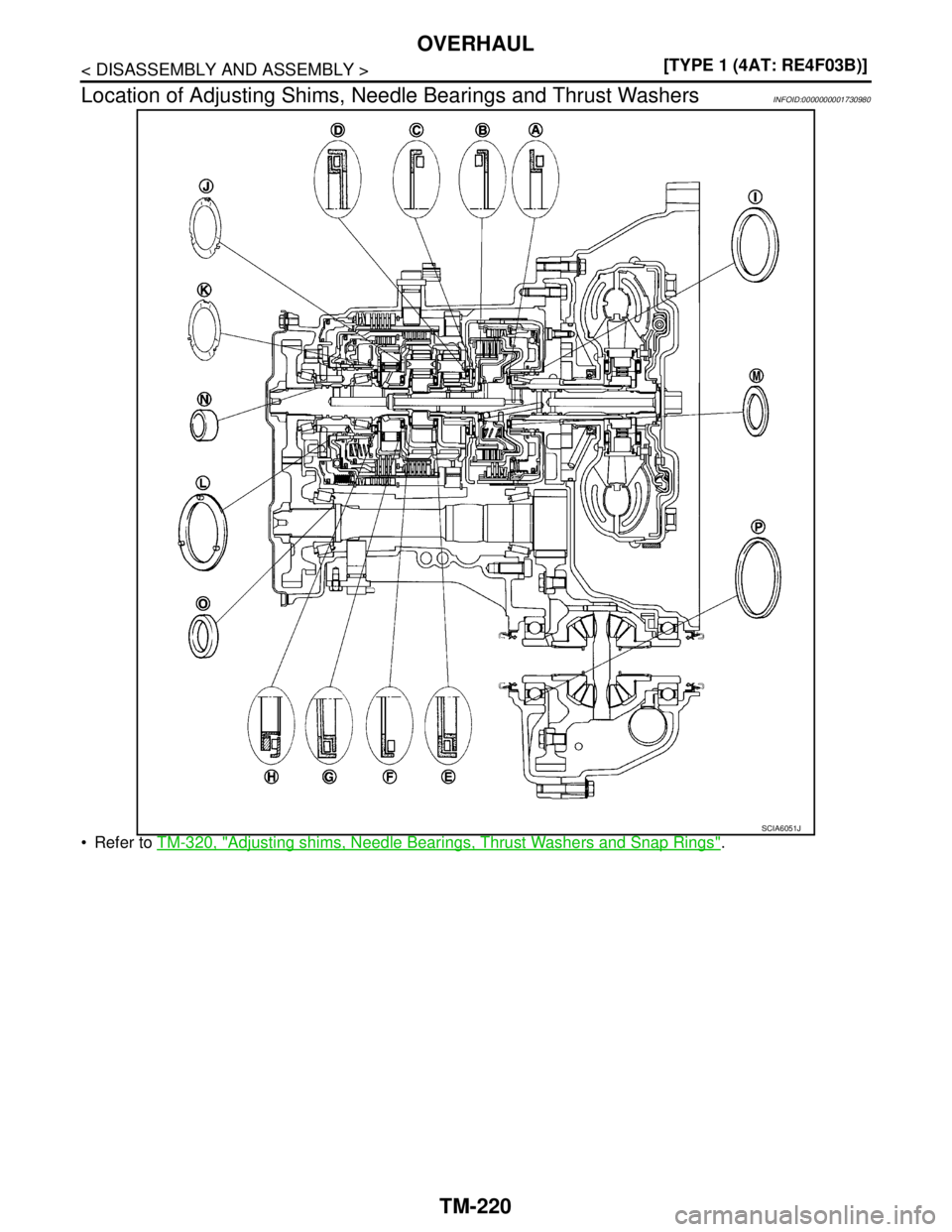

Location of Adjusting Shims, Needle Bearings and Thrust Washers
INFOID:0000000001730980
 Refer to TM-320, "Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings".
SCIA6051J

OVERHAUL
TM-221
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

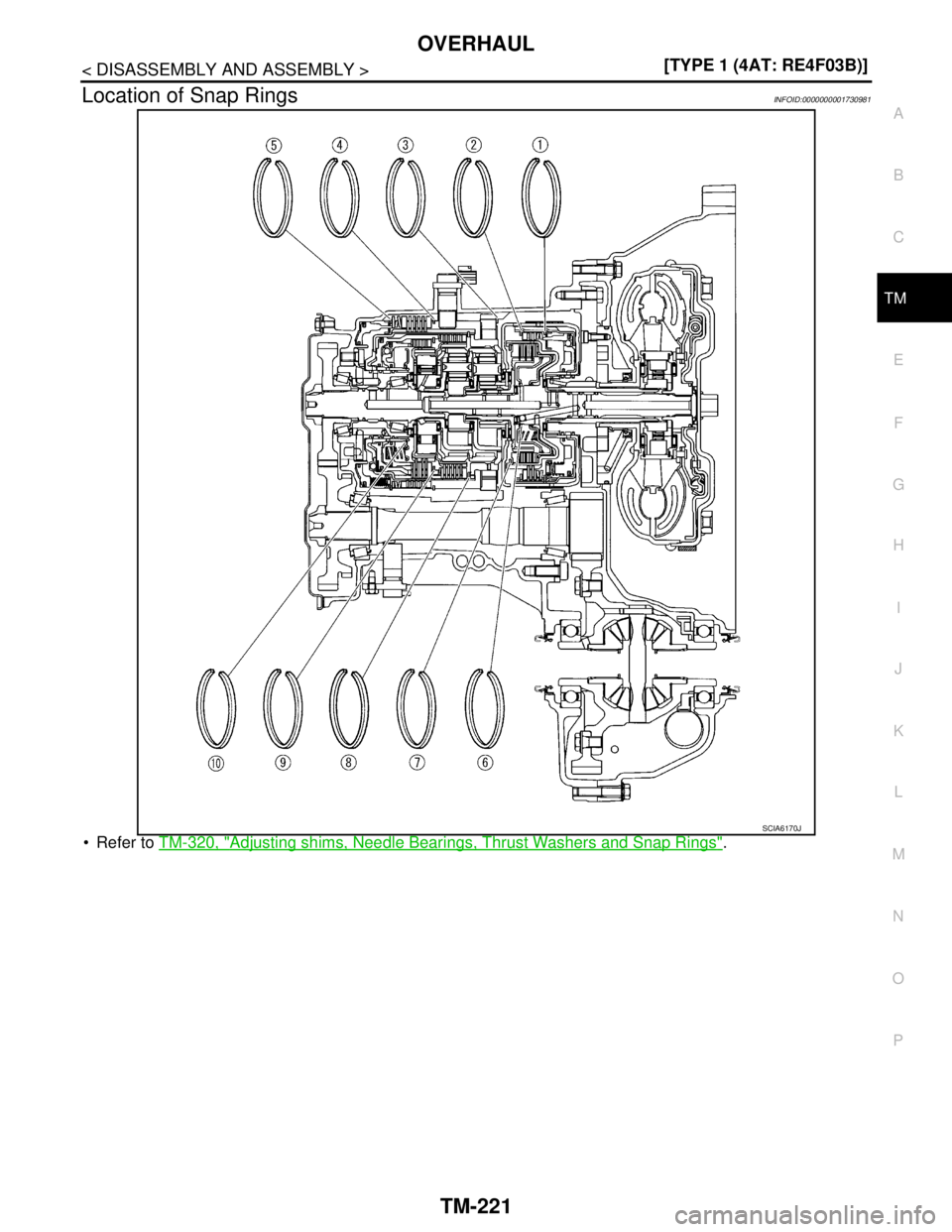

Location of Snap RingsINFOID:0000000001730981
 Refer to TM-320, "Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings".
SCIA6170J

TM-222
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
DISASSEMBLY
DISASSEMBLY
DisassemblyINFOID:0000000001730982

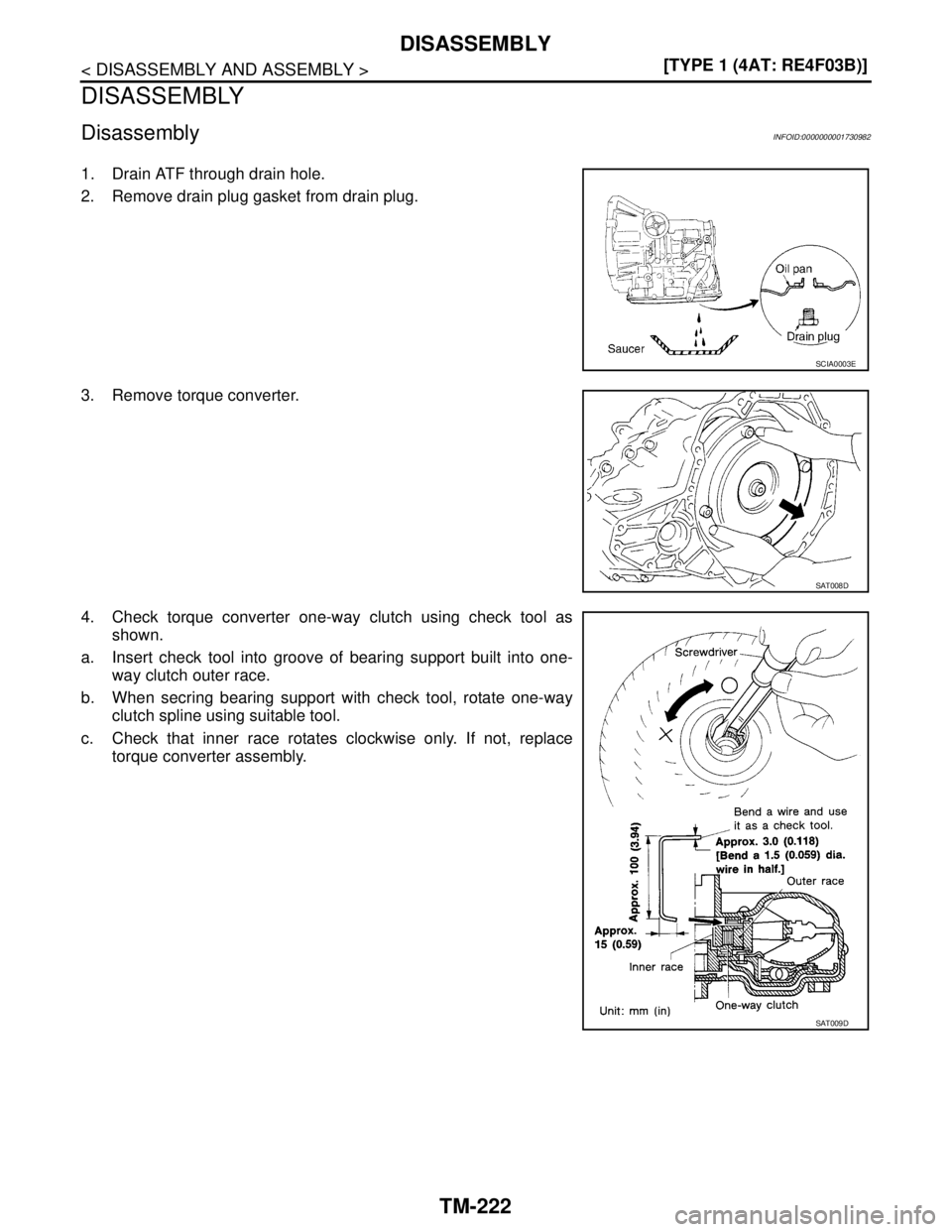

1. Drain ATF through drain hole.
2. Remove drain plug gasket from drain plug.
3. Remove torque converter.
4. Check torque converter one-way clutch using check tool as
shown.
a. Insert check tool into groove of bearing support built into one-
way clutch outer race.
b. When secring bearing support with check tool, rotate one-way
clutch spline using suitable tool.
c. Check that inner race rotates clockwise only. If not, replace
torque converter assembly.
SCIA0003E
SAT008D
SAT009D

DISASSEMBLY
TM-223
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

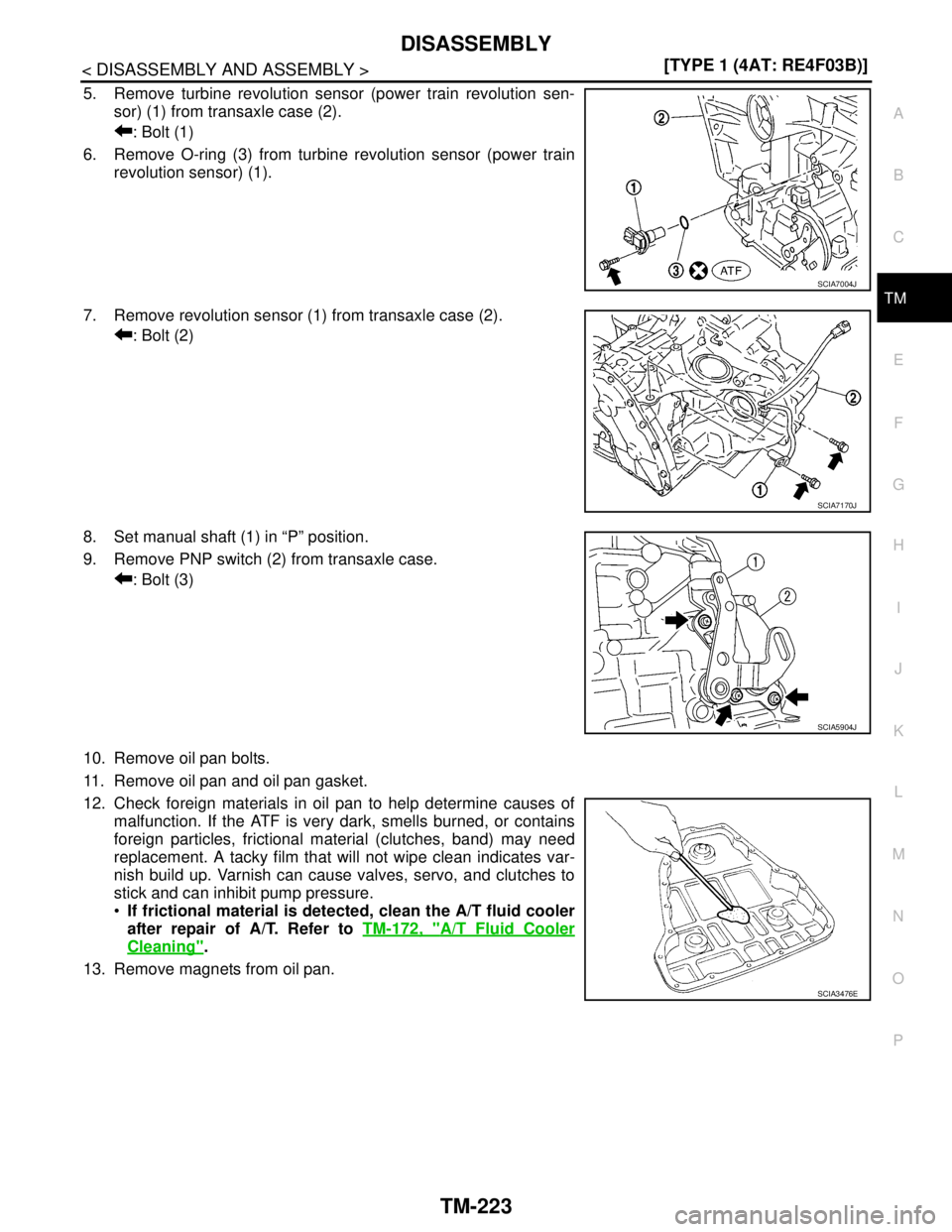

5. Remove turbine revolution sensor (power train revolution sen-
sor) (1) from transaxle case (2).
: Bolt (1)
6. Remove O-ring (3) from turbine revolution sensor (power train
revolution sensor) (1).
7. Remove revolution sensor (1) from transaxle case (2).
: Bolt (2)
8. Set manual shaft (1) in “P” position.
9. Remove PNP switch (2) from transaxle case.
: Bolt (3)
10. Remove oil pan bolts.
11. Remove oil pan and oil pan gasket.
12. Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, frictional material (clutches, band) may need
replacement. A tacky film that will not wipe clean indicates var-
nish build up. Varnish can cause valves, servo, and clutches to
stick and can inhibit pump pressure.
If frictional material is detected, clean the A/T fluid cooler
after repair of A/T. Refer to TM-172, "
A/T Fluid Cooler
Cleaning".
13. Remove magnets from oil pan.
SCIA7004J
SCIA7170J
SCIA5904J
SCIA3476E

TM-224
< DISASSEMBLY AND ASSEMBLY >[TYPE 1 (4AT: RE4F03B)]
DISASSEMBLY
14. Remove control valve assembly according to the following pro-
cedures.
a. Remove snap ring (1) from terminal body (2).
CAUTION:
Do not expand snap ring (1) excessively.
b. Push terminal body (2) into transaxle case.
c. Remove control valve assembly bolts (A), (B) and (C).
Bolt length, number and location:
d. Remove control valve assembly from transaxle case.
CAUTION:
Do not drop manual valve.
15. Remove manual valve from control valve assembly.
Inspect the sliding surfaces of manual valve and valve
body, and replace if damaged or dented.
CAUTION:
Do not drop manual valve.
16. Remove O-ring from terminal body.
17. Remove return spring from servo release accumulator piston.
SCIA6030J
Bolt symbol A B C
Bolt length “ ” [mm (in)]
40.0 mm
(1.575 in)33.0 mm
(1.299 in)43.5 mm
(1.713 in)
Number of bolts 5 6 2
SCIA5911J
SCIA3150E
SCIA3477E
