NISSAN TIIDA 2007 Service Repair Manual

A/T FLUID
TM-475
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
11. Position an oil pan under the banjo bolts that connect the A/T fluid cooler steel lines to the A/T.
12. Remove the banjo bolts.
13. Flush each steel line from the cooler side back toward the A/T by spraying Transmission Cooler Cleaner
in a continuous stream for 5 seconds.
14. Blow compressed air regulated to 5 - 9 kg/cm
2 (70 - 130 psi) through each steel line from the cooler side
back toward the A/T for 10 seconds to force out any remaining A/T fluid.
15. Ensure all debris is removed from the steel cooler lines.
16. Ensure all debris is removed from the banjo bolts and fittings.
17. Perform "A/T FLUID COOLER DIAGNOSIS PROCEDURE".
A/T FLUID COOLER DIAGNOSIS PROCEDURE
NOTE:
Insufficient cleaning of the cooler inlet hose exterior may lead to inaccurate debris identification.
1. Position an oil pan under the A/T inlet and outlet cooler hoses.
2. Clean the exterior and tip of the cooler inlet hose.
3. Insert the extension adapter hose of a can of Transmission
Cooler Cleaner (Nissan P/N 999MP-AM006) into the cooler out-
let hose.
CAUTION:
 Wear safety glasses and rubber gloves when spraying the
Transmission Cooler Cleaner.
 Spray Transmission Cooler Cleaner only with adequate
ventilation.
 Avoid contact with eyes and skin.
 Do not breath vapors or spray mist.
4. Hold the hose and can as high as possible and spray Transmis-
sion Cooler Cleaner in a continuous stream into the cooler outlet
hose until A/T fluid flows out of the cooler inlet hose for 5 seconds.
5. Tie a common white, basket-type coffee filter to the end of the
cooler inlet hose.
6. Insert the tip of an air gun into the end of the cooler outlet hose.
7. Wrap a shop rag around the air gun tip and end of cooler outlet
hose.
8. Blow compressed air regulated to 5 - 9 kg/cm
2 (70 - 130 psi)
through the cooler outlet hose to force any remaining A/T fluid
into the coffee filter.
9. Remove the coffee filter from the end of the cooler inlet hose.
10. Perform "A/T FLUID COOLER INSPECTION PROCEDURE".
A/T FLUID COOLER INSPECTION PROCEDURE
SCIA5629E
SCIA5631E
SCIA5632E

TM-476
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]
A/T FLUID

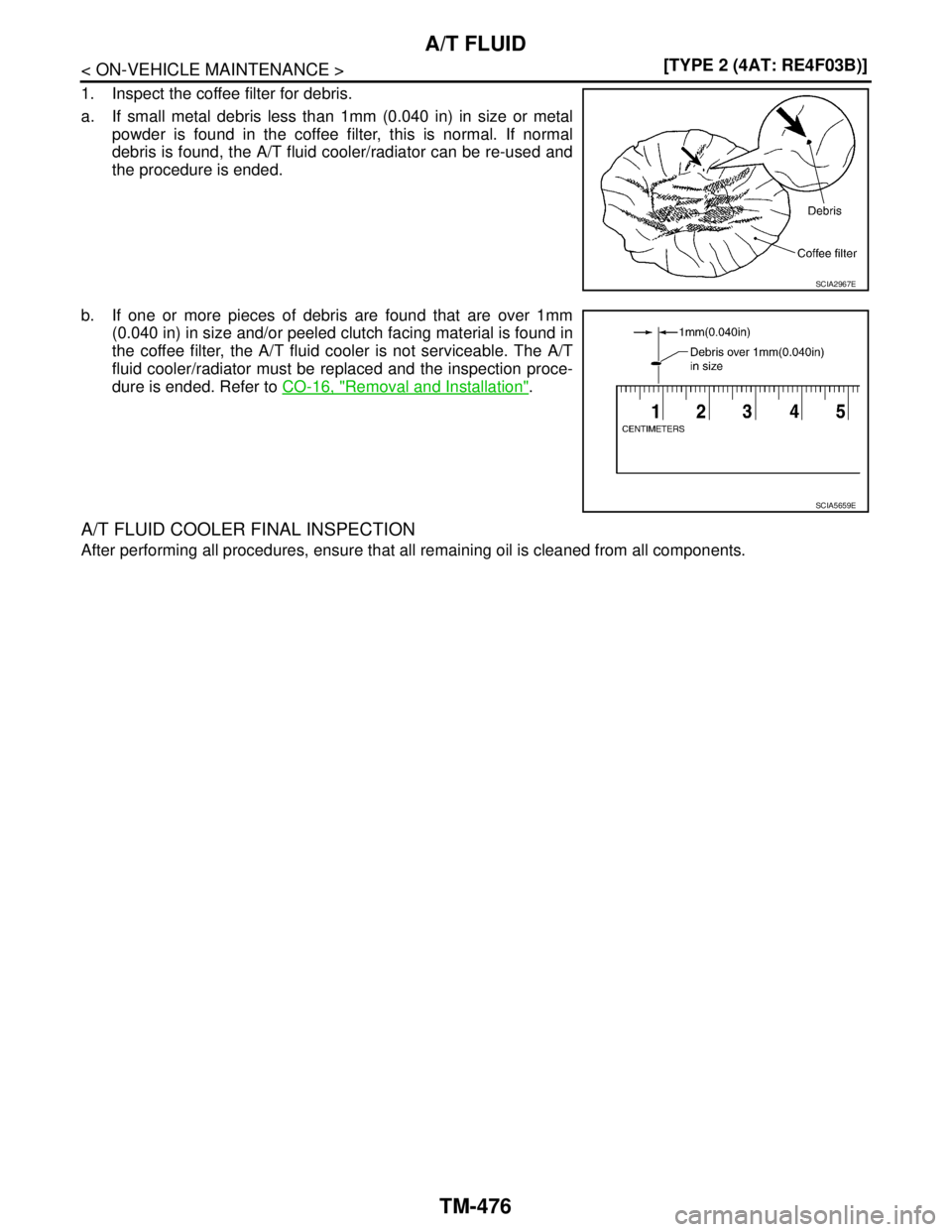

1. Inspect the coffee filter for debris.
a. If small metal debris less than 1mm (0.040 in) in size or metal
powder is found in the coffee filter, this is normal. If normal
debris is found, the A/T fluid cooler/radiator can be re-used and
the procedure is ended.
b. If one or more pieces of debris are found that are over 1mm
(0.040 in) in size and/or peeled clutch facing material is found in
the coffee filter, the A/T fluid cooler is not serviceable. The A/T
fluid cooler/radiator must be replaced and the inspection proce-
dure is ended. Refer to CO-16, "
Removal and Installation".
A/T FLUID COOLER FINAL INSPECTION
After performing all procedures, ensure that all remaining oil is cleaned from all components.
SCIA2967E
SCIA5659E

STALL TEST
TM-477
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

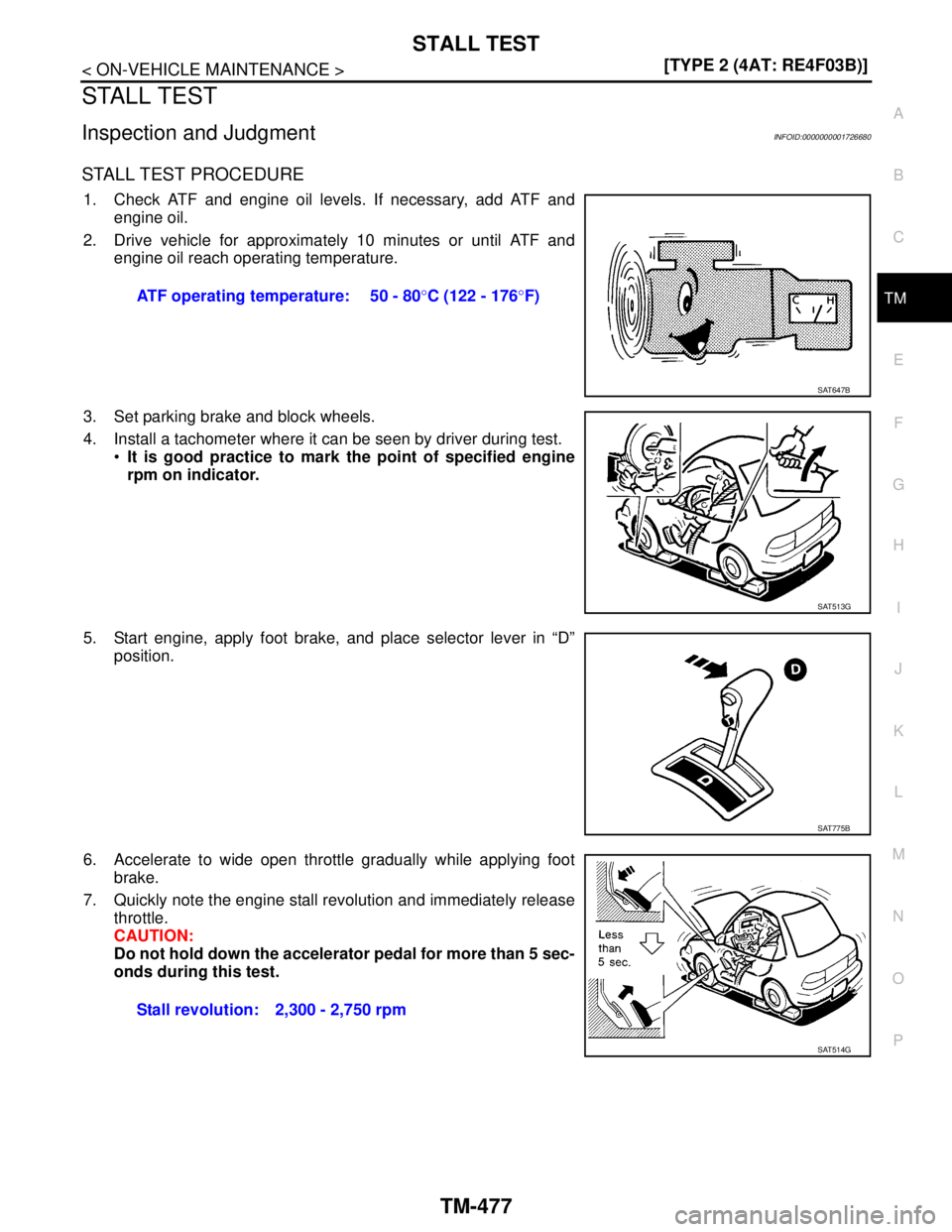

STALL TEST
Inspection and JudgmentINFOID:0000000001726680
STALL TEST PROCEDURE
1. Check ATF and engine oil levels. If necessary, add ATF and
engine oil.
2. Drive vehicle for approximately 10 minutes or until ATF and
engine oil reach operating temperature.
3. Set parking brake and block wheels.
4. Install a tachometer where it can be seen by driver during test.
It is good practice to mark the point of specified engine
rpm on indicator.
5. Start engine, apply foot brake, and place selector lever in “D”
position.
6. Accelerate to wide open throttle gradually while applying foot
brake.
7. Quickly note the engine stall revolution and immediately release
throttle.
CAUTION:
Do not hold down the accelerator pedal for more than 5 sec-
onds during this test.ATF operating temperature: 50 - 80°C (122 - 176°F)
SAT647B
SAT513G
SAT775B
Stall revolution: 2,300 - 2,750 rpm
SAT514G

TM-478
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]

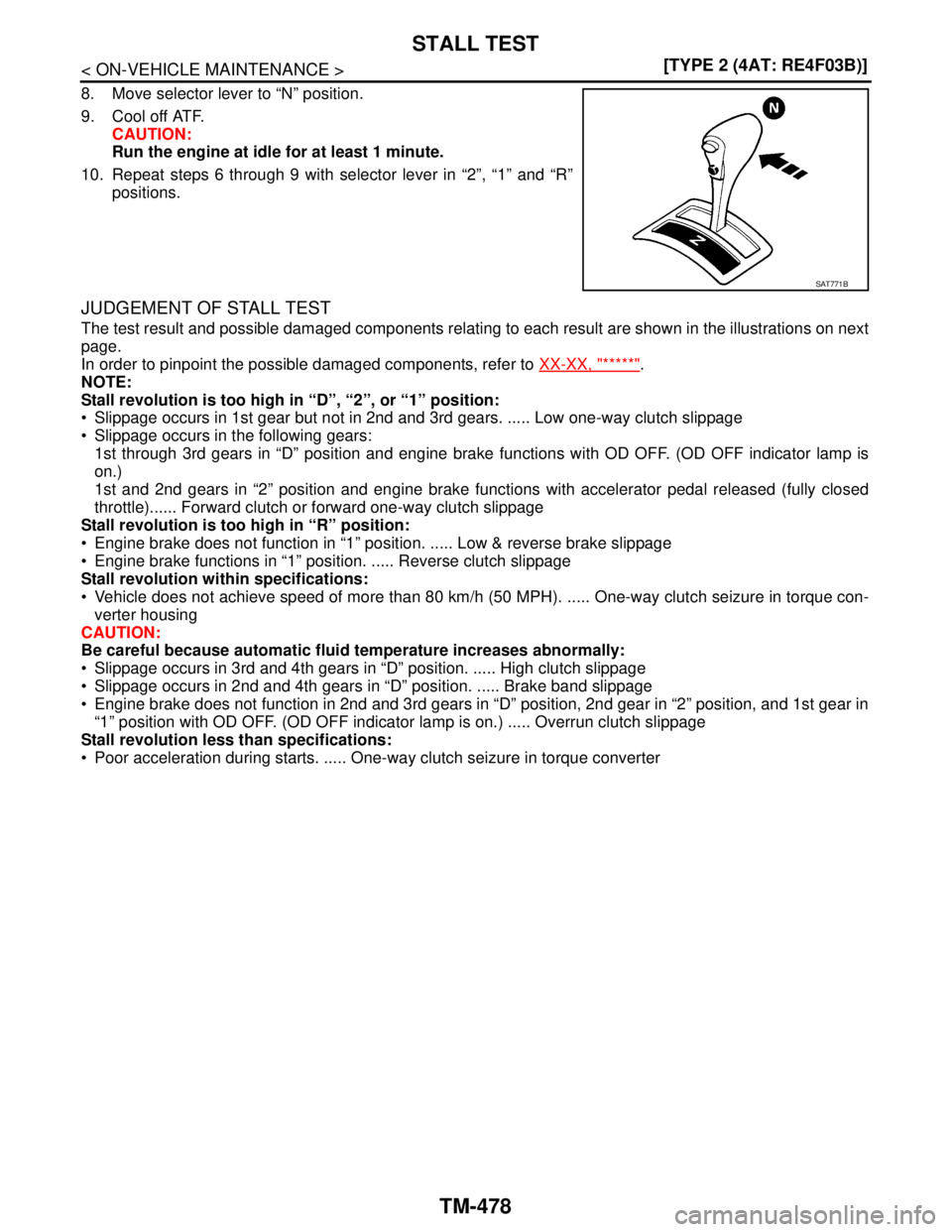

STALL TEST
8. Move selector lever to “N” position.
9. Cool off ATF.
CAUTION:
Run the engine at idle for at least 1 minute.
10. Repeat steps 6 through 9 with selector lever in “2”, “1” and “R”
positions.

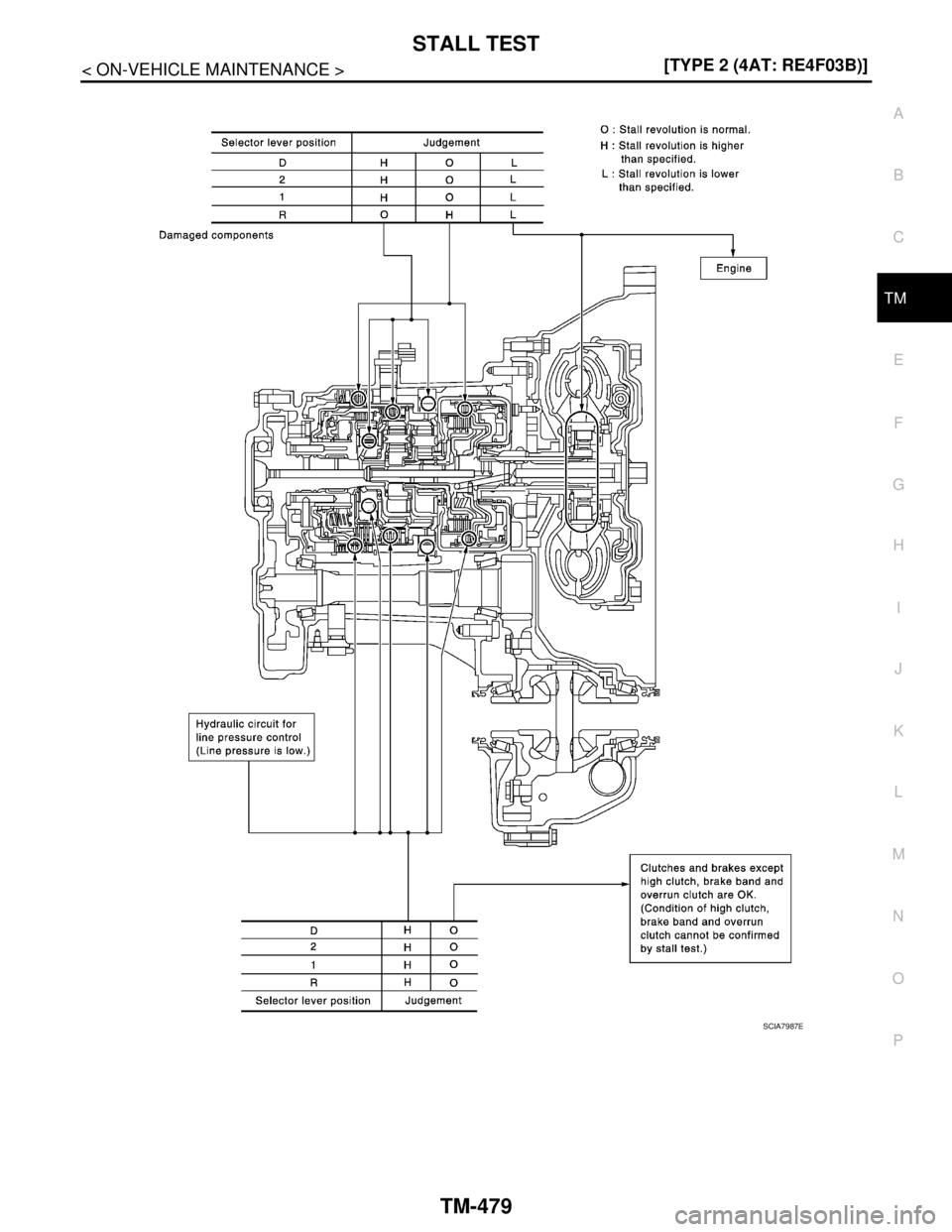

JUDGEMENT OF STALL TEST
The test result and possible damaged components relating to each result are shown in the illustrations on next
page.
In order to pinpoint the possible damaged components, refer to XX-XX, "*****"
.
NOTE:
Stall revolution is too high in “D”, “2”, or “1” position:
 Slippage occurs in 1st gear but not in 2nd and 3rd gears. ..... Low one-way clutch slippage
 Slippage occurs in the following gears:
1st through 3rd gears in “D” position and engine brake functions with OD OFF. (OD OFF indicator lamp is
on.)
1st and 2nd gears in “2” position and engine brake functions with accelerator pedal released (fully closed
throttle)...... Forward clutch or forward one-way clutch slippage
Stall revolution is too high in “R” position:
 Engine brake does not function in “1” position. ..... Low & reverse brake slippage
 Engine brake functions in “1” position. ..... Reverse clutch slippage
Stall revolution within specifications:
 Vehicle does not achieve speed of more than 80 km/h (50 MPH). ..... One-way clutch seizure in torque con-
verter housing
CAUTION:
Be careful because automatic fluid temperature increases abnormally:
 Slippage occurs in 3rd and 4th gears in “D” position. ..... High clutch slippage
 Slippage occurs in 2nd and 4th gears in “D” position. ..... Brake band slippage
 Engine brake does not function in 2nd and 3rd gears in “D” position, 2nd gear in “2” position, and 1st gear in
“1” position with OD OFF. (OD OFF indicator lamp is on.) ..... Overrun clutch slippage
Stall revolution less than specifications:
 Poor acceleration during starts. ..... One-way clutch seizure in torque converter
SAT771B

STALL TEST
TM-479
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
SCIA7987E

TM-480
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]

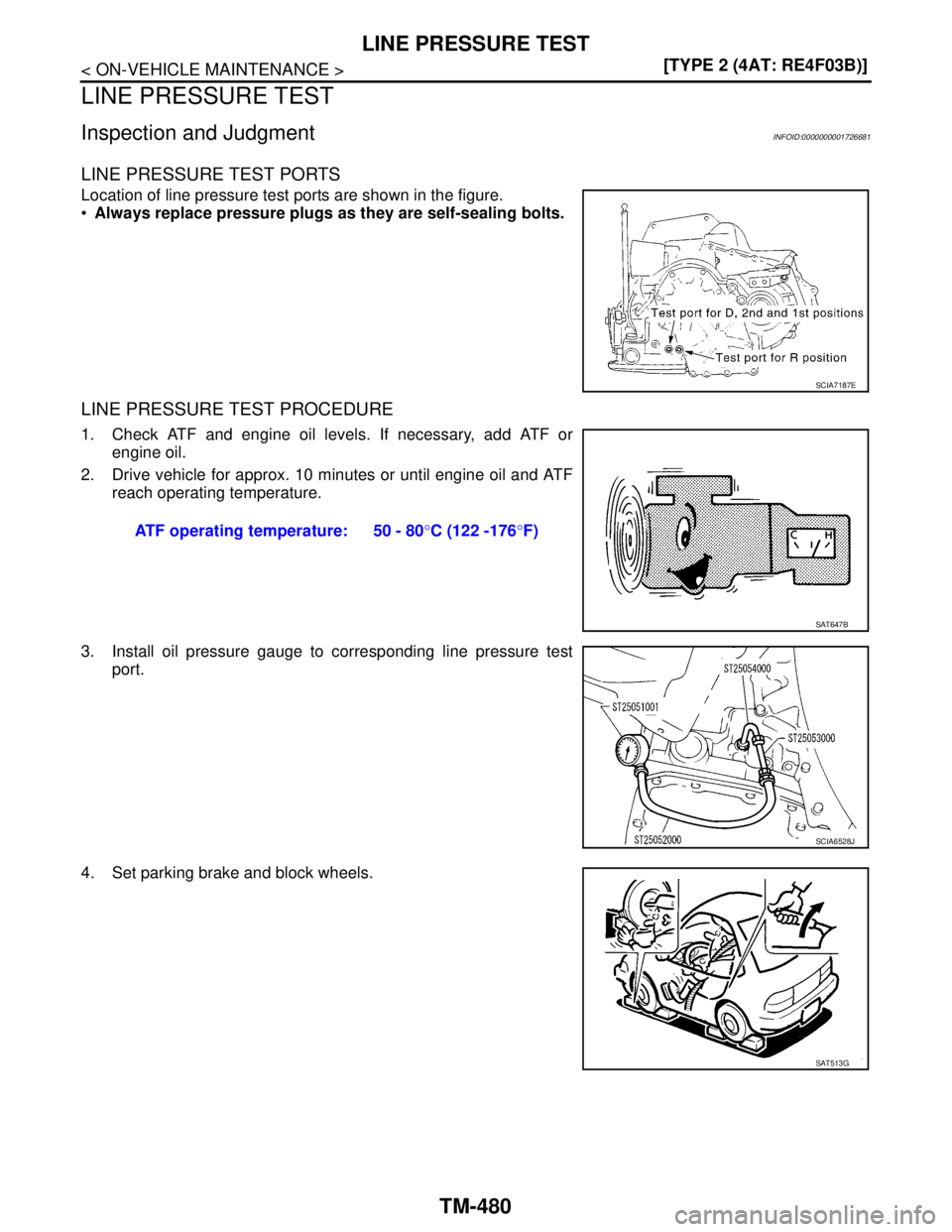

LINE PRESSURE TEST
LINE PRESSURE TEST
Inspection and JudgmentINFOID:0000000001726681
LINE PRESSURE TEST PORTS
Location of line pressure test ports are shown in the figure.
Always replace pressure plugs as they are self-sealing bolts.
LINE PRESSURE TEST PROCEDURE
1. Check ATF and engine oil levels. If necessary, add ATF or
engine oil.
2. Drive vehicle for approx. 10 minutes or until engine oil and ATF
reach operating temperature.
3. Install oil pressure gauge to corresponding line pressure test
port.
4. Set parking brake and block wheels.
SCIA7187E
ATF operating temperature: 50 - 80°C (122 -176°F)
SAT647B
SCIA6528J
SAT513G

LINE PRESSURE TEST
TM-481
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P
5. Start engine and measure line pressure at idle and stall speed.
CAUTION:
 Keep the brake pedal pressed all the way down during
measurement.
 When measuring the line pressure at the stall speed, refer
to "STALL TEST".
LINE PRESSURE
JUDGEMENT OF LINE PRESSURE TEST
SAT493G
Engine speedLine pressure [kPa (kg/cm
2, psi)]
D, 2nd and 1st positions R position
Idle speed 500 (5.1, 73) 778 (7.9, 113)
Stall speed 1,173 (12.0, 170) 1,825 (18.6, 265)
Judgement Suspected parts
At idleLine pressure is low in all positions.  Oil pump wear
 Control piston damage
 Pressure regulator valve or plug sticking
 Spring for pressure regulator valve damaged
 Fluid pressure leakage between oil strainer and pressure regulator valve
 Clogged strainer
Line pressure is low in particular posi-
tion. Fluid pressure leakage between manual valve and particular clutch
 For example, line pressure is:
− Low in “R” and “1” positions, but
− Normal in “D”, and “2” positions.
Therefore, fluid leakage exists at or around low and reverse brake circuit.
Refer to TM-14, "
Shift Mechanism".
Line pressure is high.  Accelerator pedal position signal malfunction
 A/T fluid temperature sensor damaged
 Line pressure solenoid valve sticking
 Short circuit of line pressure solenoid valve circuit
 Pressure modifier valve sticking
 Pressure regulator valve or plug sticking
 Open in dropping resistor circuit
At stall
speedLine pressure is low.  Accelerator pedal position signal malfunction
 Line pressure solenoid valve sticking
 Short circuit of line pressure solenoid valve circuit
 Pressure regulator valve or plug sticking
 Pressure modifier valve sticking
 Pilot valve sticking

TM-482
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]

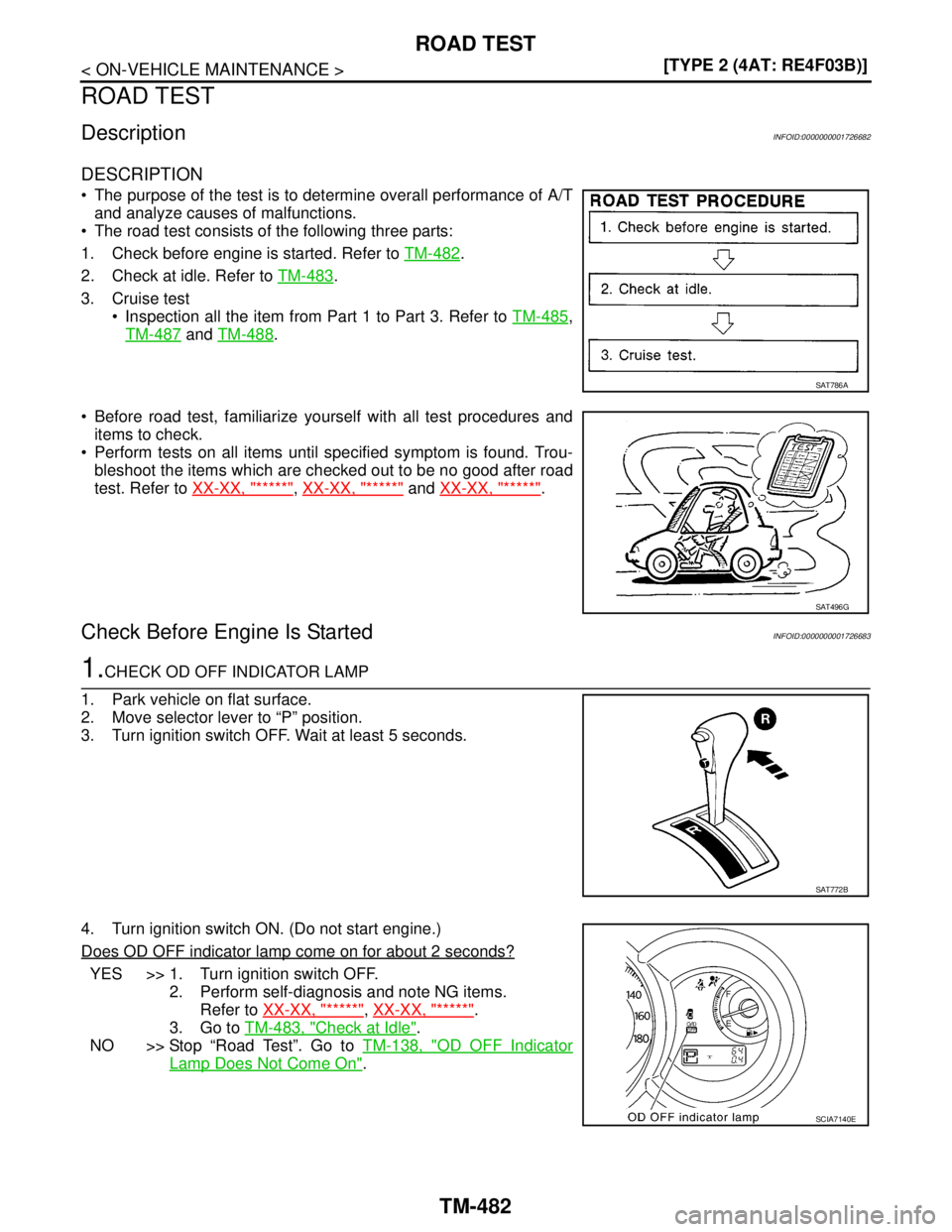

ROAD TEST
ROAD TEST
DescriptionINFOID:0000000001726682
DESCRIPTION
 The purpose of the test is to determine overall performance of A/T
and analyze causes of malfunctions.
 The road test consists of the following three parts:
1. Check before engine is started. Refer to TM-482
.
2. Check at idle. Refer to TM-483
.
3. Cruise test
 Inspection all the item from Part 1 to Part 3. Refer to TM-485
,
TM-487
and TM-488.
 Before road test, familiarize yourself with all test procedures and
items to check.
 Perform tests on all items until specified symptom is found. Trou-
bleshoot the items which are checked out to be no good after road
test. Refer to XX-XX, "*****"
, XX-XX, "*****" and XX-XX, "*****".
Check Before Engine Is StartedINFOID:0000000001726683
1.CHECK OD OFF INDICATOR LAMP
1. Park vehicle on flat surface.
2. Move selector lever to “P” position.
3. Turn ignition switch OFF. Wait at least 5 seconds.
4. Turn ignition switch ON. (Do not start engine.)
Does OD OFF indicator lamp come on for about 2 seconds?
YES >> 1. Turn ignition switch OFF.
2. Perform self-diagnosis and note NG items.
Refer to XX-XX, "*****"
, XX-XX, "*****".
3. Go to TM-483, "
Check at Idle".
NO >> Stop “Road Test”. Go to TM-138, "
OD OFF Indicator
Lamp Does Not Come On".
SAT786A
SAT496G
SAT772B
SCIA7140E

ROAD TEST
TM-483
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
MA
B
TM
N
O
P

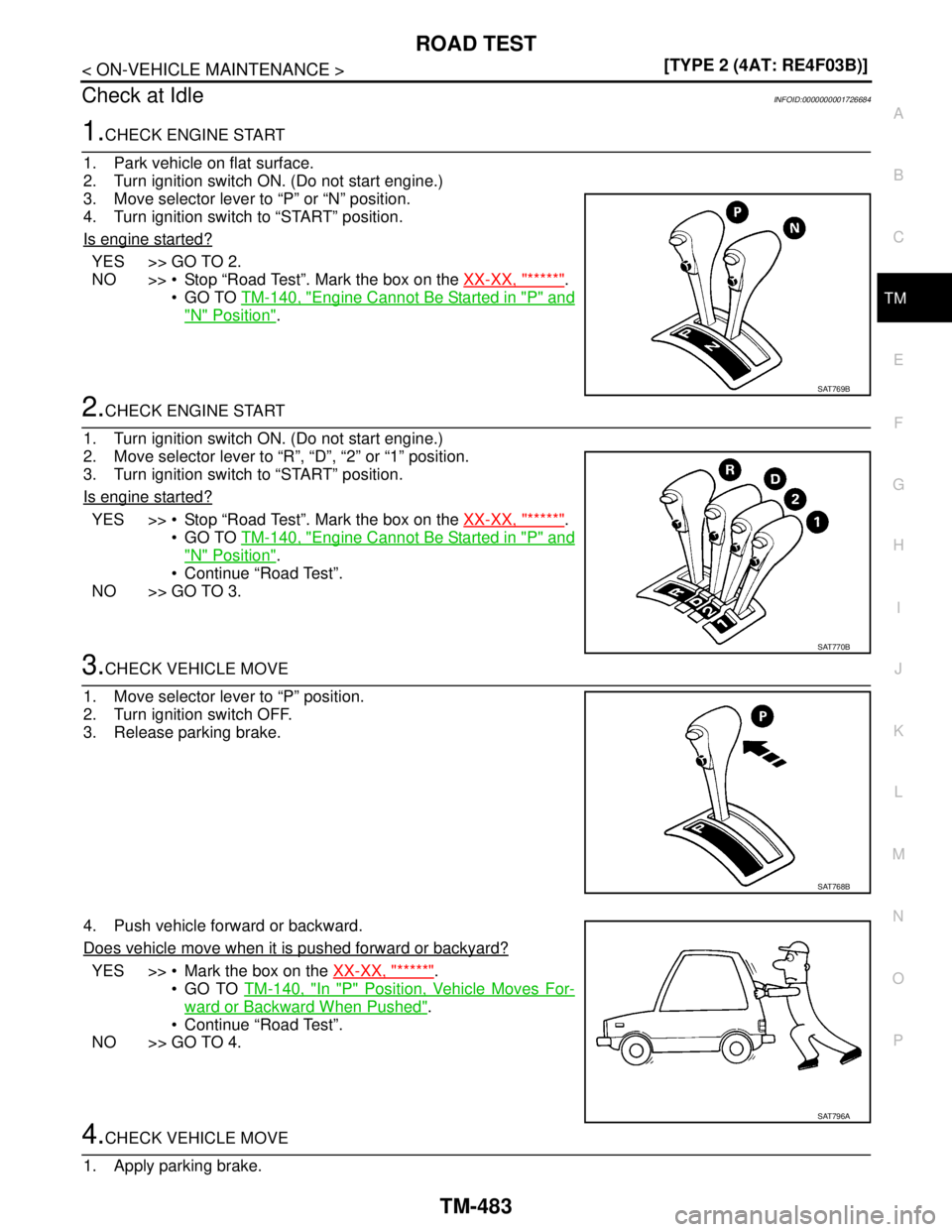

Check at IdleINFOID:0000000001726684
1.CHECK ENGINE START
1. Park vehicle on flat surface.
2. Turn ignition switch ON. (Do not start engine.)
3. Move selector lever to “P” or “N” position.
4. Turn ignition switch to “START” position.
Is engine started?
YES >> GO TO 2.
NO >>  Stop “Road Test”. Mark the box on the XX-XX, "*****"
.
 GO TO TM-140, "
Engine Cannot Be Started in "P" and
"N" Position".
2.CHECK ENGINE START
1. Turn ignition switch ON. (Do not start engine.)
2. Move selector lever to “R”, “D”, “2” or “1” position.
3. Turn ignition switch to “START” position.
Is engine started?
YES >>  Stop “Road Test”. Mark the box on the XX-XX, "*****".
 GO TO TM-140, "
Engine Cannot Be Started in "P" and
"N" Position".
 Continue “Road Test”.
NO >> GO TO 3.
3.CHECK VEHICLE MOVE
1. Move selector lever to “P” position.
2. Turn ignition switch OFF.
3. Release parking brake.
4. Push vehicle forward or backward.
Does vehicle move when it is pushed forward or backyard?
YES >>  Mark the box on the XX-XX, "*****".
 GO TO TM-140, "
In "P" Position, Vehicle Moves For-
ward or Backward When Pushed".
 Continue “Road Test”.
NO >> GO TO 4.
4.CHECK VEHICLE MOVE
1. Apply parking brake.
SAT769B
SAT770B
SAT768B
SAT796A

TM-484
< ON-VEHICLE MAINTENANCE >[TYPE 2 (4AT: RE4F03B)]
ROAD TEST
2. Start engine.
3. Move selector lever to “N” position.
4. Release parking brake.
Does vehicle move forward or backward?
YES >>  Mark the box on the XX-XX, "*****".
GO TO TM-141, "
In "N" Position, Vehicle Moves".
 Continue “Road Test”.
NO >> GO TO 5.
5.CHECK SHIFT SHOCK
1. Apply foot brake.
2. Move selector lever to “R” position.
Is there large shock when changing from
“N” to “R” position?
YES >>  Mark the box on the XX-XX, "*****".
GO TO TM-142, "
Large Shock "N" → "R" Position" .
 Continue “Road Test”.
NO >> GO TO 6.
6.CHECK VEHICLE MOVE
Release foot brake for several seconds.
Does vehicle creep backward when foot brake is released?
YES >> GO TO 7.
NO >>  Mark the box on the XX-XX, "*****"
.
GO TO TM-142, "
Vehicle Does Not Creep Backward
in "R" Position".
 Continue “Road Test”.
7.CHECK VEHICLE MOVE
SAT771B
SAT797A
SAT772B
SAT799A
