NISSAN X-TRAIL 2003 Electronic Repair Manual

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-125
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
TCM Terminals and Reference ValueECS004QV
PREPARATION
lMeasure voltage between each terminal and terminal 25 or 48
by following “TCM INSPECTION TABLE”.
A/T does not shift to “D4”whendriv-
ing with overdrive control switch
“ON”.OFF vehicle9. Brake bandAT-530,
"Band
Servo Pis-
ton Assem-
bly"
¬
10. Overrun clutchAT-512,
"Forward
and Overrun
Clutches"
¬
Engine is stopped at “R”, “D”, “2”
and “1” positions.ON vehicle1. Fluid levelAT-64,
"FLUID
LEVEL
CHECK"
¬
2. Torque converter clutch solenoid valveAT-421,
"TORQUE
CON-
VERTER
CLUTCH
SOLENOID
VA LV E"
AT-181,
"DTC P0740
TORQUE
CON-
VERTER
CLUTCH
SOLENOID
VA LV E"
3. Shift solenoid valve AAT-406,"SHIFT
SOLENOID
VA LV E A"
AT-193,
"DTC P0750
SHIFT
SOLENOID
VA LV E A"
4. Shift solenoid valve BAT-4 11 ,"SHIFT
SOLENOID
VA LV E B"
AT-198,
"DTC P0755
SHIFT
SOLENOID
VA LV E B"
5. Control valve assemblyAT-454,
"Control
Va lv e
Assembly
and Accu-
mulators"
¬ Symptom Condition Diagnostic ItemReference Page
Except for
Euro-OBDEURO-OBD
SAT216J

AT-126
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
TCM HARNESS CONNECTOR TERMINAL LAYOUT
TCM INSPECTION TABLE
(Data are reference values.)
SCIA0712E
Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)
1R/WLine pressure
solenoid valveWhen releasing accelerator pedal
after warming up engine.1.5 - 3.0V
When depressing accelerator pedal
fully after warming up engine.0V
2P/BLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal
after warming up engine.5 - 14V
When depressing accelerator pedal
fully after warming up engine.0V
3GY/RTorque converter
clutch solenoid
valveWhen A/T performs lock-up. 8 - 15V
When A/T does not perform lock-up. 0V
5*2 B/W CAN(H) — — —
6*2 L/R CAN(L) — — —
10 BR/W Power source
orWhen turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V
11 L / WShift solenoid
valve AWhen shift solenoid valve A oper-
ates.
(When driving in “D
1”or“D4”.)Battery voltage
When shift solenoid valve A does not
operate.
(When driving in “D
2”or“D3”.)0V
12 L/YShift solenoid
valve BWhen shift solenoid valve B oper-
ates.
(When driving in “D
1”or“D2”.)Battery voltage
When shift solenoid valve B does not
operate.
(When driving in “D
3”or“D4”.)0V
13 R/LO/D OFF indica-
tor lampWhen setting overdrive control or A/
T check switch in “OFF” position.0V
When setting overdrive control or A/
T check switch in “ON” position.Battery voltage
19 BR/W Power source
orSame as No. 10

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
AT-127
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
20 L/BOverrun clutch
solenoid valveWhen overrun clutch solenoid valve
operates.Battery voltage
When overrun clutch solenoid valve
does not operate.0V
22 L/OROverdrive control
switch
andWhen setting overdrive control
switch in “ON” positionBattery voltage
When setting overdrive control
switch in “OFF” position0V
25 B/W Ground — — 0V
26 BR/YPNP switch “1”
position
andWhen setting selector lever to “1”
position.Battery voltage
When setting selector lever to other
positions.0V
27 LPNP switch “2”
positionWhen setting selector lever to “2”
position.Battery voltage
When setting selector lever to other
positions.0V
28 R/BPower source
(Memory back-up)
orWhen turning ignition switch to
“OFF”.Battery voltage
When turning ignition switch to “ON”. Battery voltage
29 W Revolution sensorWhen moving at 20 km/h (12 MPH),
use the CONSULT-II pulse frequency
measuring function.*1
CAUTION:
Connect the diagnosis data link
cable to the vehicle diagnosis
connector.
*1: A circuit tester cannot be used to
test this item.450 Hz
When vehicle parks.Under 1.3V or
over 4.5V
30 *3 G/B CONSULT- II (RX) — —
31 *3 GY/L CONSULT- II (TX) — —
32 *2 RThrottle position
sensor
(Power source)
orWhenturningignitionswitchto"ON". 4.5-5.5V
When turning ignition switch to
"OFF".0V
34 W/GPNP switch “D”
position
andWhen setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 L/WPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
39 *2 L/OREngine speed sig-
nal
andEC-XX, "ECM INSPECTION
TABLE".— Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)

AT-128
[EURO-OBD]
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
*2: These terminals are connected to the ECM.
*3: These terminals are connected to the data link connector.40 L/BVehicle speed
sensorWhen moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for 1 m (3 ft) or more.Vo ltag e v a rie s
between less
than 0V and
more than 4.5V
41 W/RThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle: 0.5V
Fully-open throt-
tle: 4V
42 BThrottle position
sensor
(Ground)———
45 P Stop lamp switchWhen depressing brake pedal. Battery voltage
When releasing brake pedal. 0V
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20°C
(68°F).1.5V
When ATF temperature is 80°C
(176°F).0.5V
48 B/W Ground — — — Te r m i -
nal No.Wire color Item ConditionJudgementstan-
dard(Approx.)

CAN COMMUNICATION
AT-129
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
CAN COMMUNICATIONPFP:23710
System DescriptionECS004VP
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
FOR A/T MODELS
System diagram
Input/output signal chart
T: Transmit R: Receive
SKIA0884E
Signals ECM TCM
Engine speed signal T R
Engine coolant temperature signal T R
Accelerator pedal position signal T R
A/T self-diagnosis signal R T

AT-130
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
PFP:32006
DescriptionECS004QW
lThe PNP switch assembly includes a transmission range switch.
lThe transmission range switch detects the selector lever posi-
tion and sends a signal to the TCM.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SCIA0752E
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
26 BR/YPNP switch “1”
position
andWhen setting selector lever to “1”
position.Battery voltage
When setting selector lever to other
positions.0V
27 LPNP switch “2”
positionWhen setting selector lever to “2”
position.Battery voltage
When setting selector lever to other
positions.0V
34 W/GPNP switch “D”
positionWhen setting selector lever to “D”
position.Battery voltage
When setting selector lever to other
positions.0V
35 L/WPNP switch “R”
positionWhen setting selector lever to “R”
position.Battery voltage
When setting selector lever to other
positions.0V
36 GPNP switch “N” or
“P” positionWhen setting selector lever to “N” or
“P” position.Battery voltage
When setting selector lever to other
positions.0V
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
:PNPSW/CIRC
TCM does not receive the correct voltage
signal from the switch based on the gear
position.
lHarness or connectors
(The PNP switch circuit is open or
shorted.)
lPNP switch : P0705

DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-131
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCE-
DURE” has been previously conducted, always turn ignition
switch “OFF” and wait at least 5 seconds before conducting the
next test.
After the repair, perform the following procedure to confirm the mal-
function is eliminated.
With CONSULT-II
1. Turn ignition switch “ON”.
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3V
Selector lever: D position (OD “ON” or “OFF”)
With GST
Follow the procedure “With CONSULT-II”.
SAT014K
SAT020K

AT-132
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH

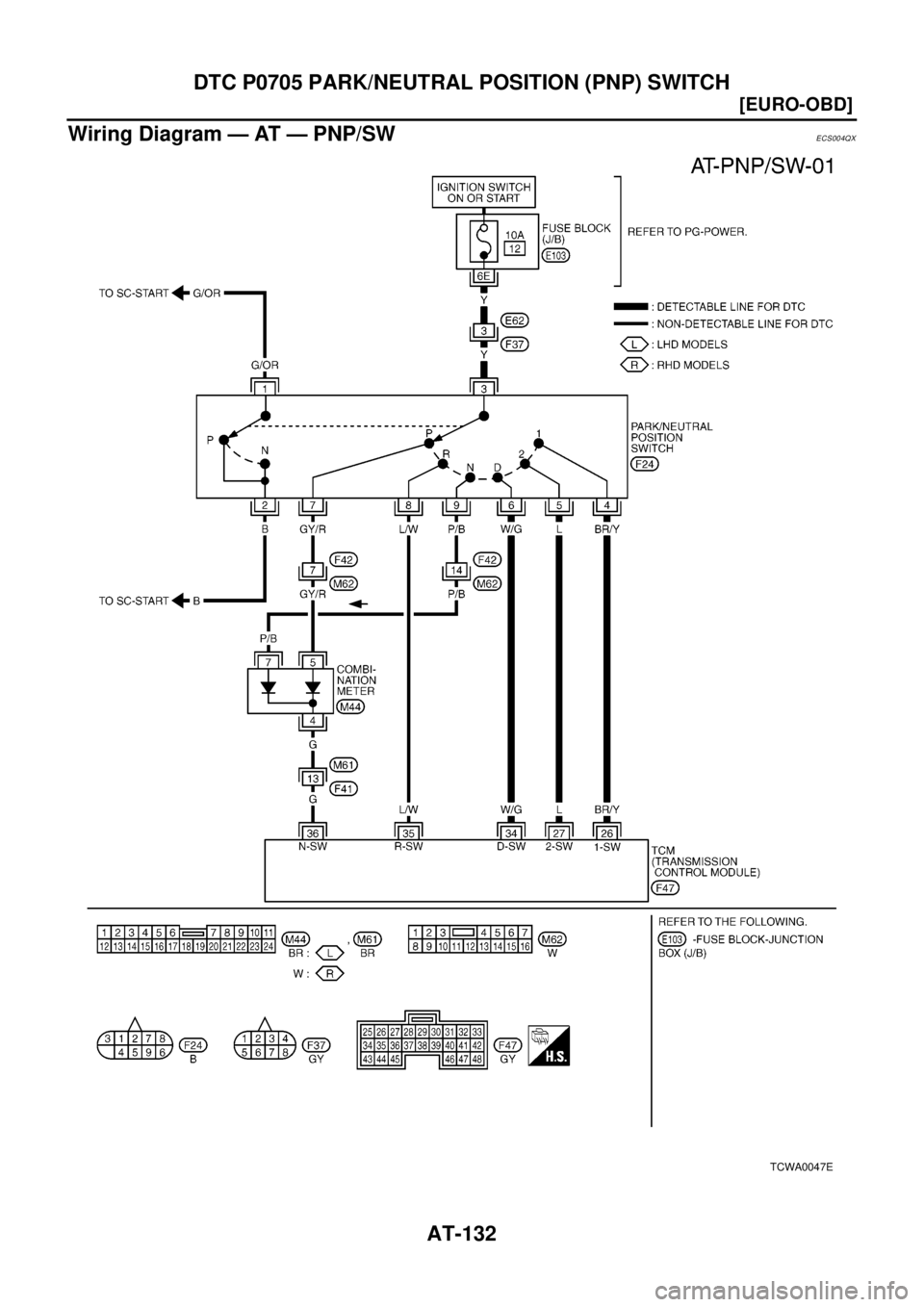

Wiring Diagram — AT — PNP/SW
ECS004QX
TCWA0047E

DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
AT-133
[EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
Diagnostic ProcedureECS004QY
1.CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Read out “P/N”, “R”, “D”, “2” and “1” position switches moving
selector lever to each position.
Check the signal of the selector lever position is indicated prop-
erly.
OK or NG
OK >> GO TO 3
NG >> Check the following items:
lPNP switch
Refer to “Component Inspection”,AT-135, "
Compo-
nent Inspection".
lHarness for short or open between ignition switch and
PNP switch (Main harness)
lHarness for short or open between PNP switch and
TCM (Main harness)
lIgnition switch and fuse
Refer toPG-2, "
POWER SUPPLY ROUTING", “POWER SUPPLY ROUTING”.
lDiode (P, N positions)
SAT014K
SAT701J

AT-134
[EURO-OBD]
DTC P0705 PARK/NEUTRAL POSITION (PNP) SWITCH
2.CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 3
NG >> Check the following items:
lPNP switch
Refer to “Component Inspection”,AT - 1 3 5 , "
Component Inspection".
lHarness for short or open between ignition switch and PNP switch (Main harness)
lHarness for short or open between PNP switch and TCM (Main harness)
lIgnition switch and fuse
Refer toPG-2, "
POWER SUPPLY ROUTING", “POWER SUPPLY ROUTING”.
lDiode (P, N positions)
3.CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure,AT- 1 3 1 , "
DIAGNOSTIC TROUBLE CODE
(DTC) CONFIRMATION PROCEDURE".
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Vo l ta g e :
B : Battery voltage
0:0V
MTBL0136
SCIA0753E
