NISSAN X-TRAIL 2003 Electronic Repair Manual

PERIODIC MAINTENANCE
MA-9
C
D
E
F
G
H
I
J
K
MA
B
MA
NOTE:
lMaintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving
Conditions”.
l(1) If valve noise increases, check valve clearance.
l(2) Never use CG-4 oil.
l(3) Oil filter element assembly and O-ring seal are replacement parts.
l(4) First replace at 100,000 Km (60,000 miles)/60 months, then every 60,000Km (36,000 miles)/36 months. After first
replacement, perform "I" (checking the mixture ratio and correcting the mixture ratio if necessary) at the middle of
replacement interval.
l(5) If engine power decreases, black exhaust smoke is emitted or engine noise increases, perform this maintenance item.
CHASSIS AND BODY MAINTENANCE (YD22DDTI DIESEL ENGINE)
(Annual Mileage <30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, L = Lubricate. Engine oil (Use API CD, CE, CF, CF-4 oil.)See NOTE
(2)RRRRRRLU-19
Engine oil filter (Use Eco filter or equivalent)See NOTE
(3)RRRRRRLU-20
Engine anti-freeze coolant (Use genuine Nissan Anti-
freeze coolant (L2N) or equivalent)See NOTE
(4)IRCO-30
Coolingsystem IIIIIICO-28
Fuel lines I I IFL-14
Air cleaner filterRREM-112
Fuel filterDRDRDRFL-15
Fuel injectorSee NOTE
(5)EC-727
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence page Perform either at number of kilometers (miles) or
months, whichever comes first.km x 1,000
(Miles x
1,000)
Months20
(12)
1240
(24)
2460
(36)
3680
(48)
48100
(60)
60120
(72)
72
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform either at number of kilometers
(miles) or months, whichever comes first.km x 1,000
(Miles x 1,000)
Months20
(12)
1240
(24)
2460
(36)
3680
(48)
48100
(60)
60120
(72)
72
Underhood and under vehicle
Headlampaiming IIIIIILT- 6
Brake & clutch, systems and fluid (For level
& leaks)IIIIIIMA-38,MA-35
Brake fluidRRRMA-39
Brake booster vacuum hoses, connections
& check valveIIIBR-19
Power steering fluid & lines (For level &
leaks)IIIIIIMA-41
Manualtransaxlegearoil(Forlevel&leaks) IIIIIIMA-35,
Transfergearoil(Forlevel&leaks) IIIIIIMA-37
Differential gear oil (For level & leaks or
replace)IIRIIRMA-37

MA-10
PERIODIC MAINTENANCE
NOTE:
l(1) Inspect once per year.
lMaintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving
Conditions”.
MAINTENANCE UNDER SEVERE DRIVING CONDITIONS
(Annual Mileage <30,000 Km/year)
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle is
mainly operated under severe driving conditions as shown below, more frequent maintenance must be per-
formed on the following items as shown in the table.
Severe driving conditions
A — Driving in dusty conditions
B — Repeatedly driving short distances
C — Towing a trailer or caravan
D—Extensiveidling
E — Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F — Driving in high humidity or mountainous areas
G — Driving in areas using salt or other corrosive materials
H — Driving on rough and/or muddy roads or in the desert
I — Driving with frequent use of braking or in mountainous areas
J — Frequent off road use or driving in water
K —Sustained high speed driving
L — For models without Euro-OBD system
Maintenance operation: Check = Check and correct or replace as necessary. Steering gear & linkage, axle & suspension
parts, propeller shaft, front drive shafts &
exhaust systemIIIIIIMA-40
,MA-41
,MA-37,MA-
42,MA-35
Wheel alignment (If necessary, rotate & bal-
ance wheels)IIIIIIFSU-6,MA-38
Brake pads, rotors & other brake compo-
nentsIIIIIIMA-40,MA-39
,MA-39
Foot brake, parking brake & clutch (For free
play, stroke & operation)IIIIIIBR-6,CL-5
Ventilation air filterRRRRRRAT C -11 4
Body corrosion See NOTE (1)MA-42
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform either at number of kilometers
(miles) or months, whichever comes first.km x 1,000
(Miles x 1,000)
Months20
(12)
1240
(24)
2460
(36)
3680
(48)
48100
(60)
60120
(72)
72
Driving conditionMaintenance itemMainte-
nance
opera-
tionMaintenance intervalRefer-
ence
page
A...........Air cleaner filterPetrol models ReplaceEvery 30,000 km
(18,000 miles) or 24
monthsEM-16
Diesel models ReplaceEvery 30,000 km
(18,000 miles) or 18
monthsEM-112
ABCD
........Engine oil &
engine oil filterPetrol models ReplaceEvery 7,500 km (4,500
miles) or 6 monthsLU-8
,LU-
9
Diesel models ReplaceEvery 10,000 km (6,000
miles) or 6 monthsLU-19,
LU-20

PERIODIC MAINTENANCE
MA-11
C
D
E
F
G
H
I
J
K
MA
B
MA
ENGINE AND EMISSION CONTROL MAINTENANCE (QR20DE PETROL ENGINE)
(Annual Mileage >30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace,. A...E.......FuelfilterDiesel modelsCheck &
drain
waterEvery 10,000 km (6,000
miles) or 6 monthsFL-16
ReplaceEvery 20,000 km
(12,000 miles) or 12
monthsFL-15
...........LHeatedoxygen
sensor 1Petrol models InspectEvery 30,000 km
(18,000 miles) or 24
monthsEC-581
.....F......BrakefluidPetrol models ReplaceEvery 15,000 km (9,000
miles) or 12 monthsMA-39Diesel models ReplaceEvery 20,000 km
(12,000 miles) or 12
monthsMA-39
..C
....H
....Differential gear
oilPetrol models ReplaceEvery 30,000 km
(18,000 miles) or 24
monthsMA-37
Diesel models ReplaceEvery 30,000 km
(18,000 miles) or 18
monthsMA-37
..C....H....Automatic tran-
saxle fluidPetrol models ReplaceEvery 30,000 km
(18,000 miles) or 24
monthsMA-37
......GH....Steering gear &
linkage, axle &
suspension
parts, propeller
shaft, front drive
shafts & exhaust
systemPetrol models InspectEvery 7,500 km (4,500
miles) or 6 monthsMA-
40,MA-41
,MA-37
,MA-42
,MA-35
Diesel models InspectEvery 10,000 km (6,000
miles) or 6 monthsMA-
40,MA-41
,MA-37
,MA-42
,MA-35
A.C...GHI...Brake pads,
rotors & other
brake compo-
nentsPetrol models InspectEvery 7,500 km (4,500
miles) or 6 monthsMA-
40,MA-39
,MA-39
Diesel models InspectEvery 10,000 km (6,000
miles) or 6 monthsMA-40,MA-39
,MA-39
A...........Ventilation air fil-
terPetrol models ReplaceEvery 15,000 km (9,000
miles) or 12 monthsAT C -11 4Diesel models ReplaceEvery 10,000 km (6,000
miles) or 6 monthsAT C -11 4
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence
page Perform on a kilometer basis, but on an annual
basis when driving less than 15,000 km (9.000
miles) per yearkm x
1,000
(Miles x
1,000)
Months15
(9)30
(18)45
(27)60
(36)75
(45)90
(54)105
(63)120
(72)
Engine compartment and under vehicle
Intake and exhaust valve clearanceSee
NOTE (1)EM-40

MA-12
PERIODIC MAINTENANCE
NOTE:
lMaintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving
Conditions”.
l(1)Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
l(2) Replace the drive belts if found damaged or if the auto belt tensioner reading reaches the maximum limit.
l(3) First replace at 90,000 Km (54,000 miles), then every 60,000 km (36,000 miles). Perform "I" (Checking the mixture ratio
and correcting the mixture ratio if necessary) at the middle of replacement interval.
l(4) Fuel filter is maintenance-free. For service procedures, refer to FL section.
l(5) Perform only according to "Maintenance Under Severe Driving conditions" for models without Euro-OBD system. For
models with Euro-OBD system, periodic maintenance is not required.
CHASSIS AND BODY MAINTENANCE (QR20DE PETROL ENGINE)
(Annual Mileage >30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, L = Lubricate. Drive beltsSee
NOTE (2)IIIIIIIIEM-13
Engine oil (Use recommended oil.)R R RRRRRRLU-8
Engine oil filter (Use NISSAN genuine part or
equivalent)R R RRRRRRLU-9
Engine anti-freeze coolant (Use genuine NISSAN
Anti-Freeze Coolant (L2N) or equivalent.)See
NOTE (3)IRICO-9
Cooling system I I I ICO-7
Fuel linesIIFL-3
Air cleaner filterRREM-16
Fuel filter (In-tank type)See
NOTE (4)FL-4
Spark plugs R R R REM-28
EVAP vapor lines (With carbon canister) I IEC-372orEC-
647
Heated oxygen sensor 1See
NOTE (5)EC-581
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence
page Perform on a kilometer basis, but on an annual
basis when driving less than 15,000 km (9.000
miles) per yearkm x
1,000
(Miles x
1,000)
Months15
(9)30
(18)45
(27)60
(36)75
(45)90
(54)105
(63)120
(72)
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform either at number of kilometers
(miles) or months, whichever comes
first.km x 1,000
(Miles x 1,000)
Months15
(9)30
(18)45
(27)60
(36)75
(45)90
(54)105
(63)120
(72)
Underhood and under vehicle
Headlamp aiming I I I ILT- 6
Brake & clutch, systems and fluid (For
level & leaks)IIIIMA-35,MA-
38
Brake fluidRRMA-39
Brake booster vacuum hoses, connec-
tions & check valveIIBR-19
Power steering fluid & lines (For level
&leaks)IIIIMA-41

PERIODIC MAINTENANCE
MA-13
C
D
E
F
G
H
I
J
K
MA
B
MA
NOTE:
l(1) Inspect once per year.
lMaintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving
Conditions”.
ENGINE AND EMISSION CONTROL MAINTENANCE (YD22DDTI DIESEL ENGINE)
(Annual Mileage >30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, D = Check filter and drain water Manual transaxle gear oil (For level &
leaks)IIIIMA-35
Automatic transaxle fluid (For level &
leaks)IIIIMA-36
Transfer gear oil (For level & leaks) I I I IMA-37
Differential gear oil (For level & leaks
or replace)IRIRMA-37,MA-
37
Steering gear & linkage, axle & sus-
pension parts, propeller shaft, front
drive shafts & exhaust systemIIIIMA-41
,MA-
41,MA-37
,MA-42,
"Drive
Shaft"MA-
35,MA-42
Wheel alignment (If necessary, rotate
& balance wheels)IIIIFSU-6,MA-
38
Brake pads, rotors & other brake com-
ponentsIIIIMA-40,MA-
39,MA-39
Foot brake, parking brake & clutch (For
free play, stroke & operation)IIIIBR-6,PB-3,
CL-5
Ventilation air filterRRRRAT C -11 4
Body corrosion See NOTE (1)MA-42
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform either at number of kilometers
(miles) or months, whichever comes
first.km x 1,000
(Miles x 1,000)
Months15
(9)30
(18)45
(27)60
(36)75
(45)90
(54)105
(63)120
(72)
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence page Perform either at number of kilometers (miles) or
months, whichever comes first.km x 1,000
(Miles x
1,000)
Months20
(12)40
(24)60
(36)80
(48)100
(60)120
(72)
Engine compartment and under vehicle
Intake & exhaust valve clearanceSee NOTE
(1)EM-154
Drivebelts IIIIIIEM-110
Engine oil (Use API CD, CE, CF, CF-4 oil.)See NOTE
(2)RRRRRR
LU-19
Engine oil filter (Use Eco filter or equivalent)See NOTE
(3)RRRRRRLU-20
Engine anti-freeze coolant (Use genuine Nissan Anti-
freeze coolant (L2N) or equivalent)See NOTE
(4)IRCO-30
Coolingsystem IIIIIICO-28
Fuel linesII
FL-14

MA-14
PERIODIC MAINTENANCE
NOTE:
lMaintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving
Conditions”.
l(1) If valve noise increases, check valve clearance.
l(2) Never use CG-4 oil.
l(3) Oil filter element assembly and O-ring seal are replacement parts.
l(4) First replace at 100,000 Km (60,000 miles), then every 60,000Km (36,000 miles). After first replacement, perform "I"
(checking the mixture ratio and correcting the mixture ratio if necessary) at the middle of replacement interval.
l(5) If engine power decreases, black exhaust smoke is emitted or engine noise increases, perform this maintenance item.
CHASSIS AND BODY MAINTENANCE (YD22DDTI DIESEL ENGINE)
(Annual Mileage >30,000 Km/year)
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace, L = Lubricate. Air cleaner filterRREM-112
Fuel filterDDRDDRFL-15
Fuel injectorSee NOTE
(5)EC-727
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Refer-
ence page Perform either at number of kilometers (miles) or
months, whichever comes first.km x 1,000
(Miles x
1,000)
Months20
(12)40
(24)60
(36)80
(48)100
(60)120
(72)
MAINTENANCE OPERATIONMAINTENANCE INTERVAL
Reference
page Perform either at number of kilometers
(miles) or months, whichever comes first.km x 1,000
(Miles x 1,000)
Months20
(12)40
(24)60
(36)80
(48)100
(60)120
(72)
Underhood and under vehicle
Headlamp aiming I I ILT- 6
Brake & clutch, systems and fluid (For level
&leaks)IIIIIIMA-38,MA-35
Brake fluidRRMA-39
Brake booster vacuum hoses, connections
& check valveIIBR-19
Power steering fluid & lines (For level &
leaks)IIIIIIMA-41
Manual transaxle gear oil (For level & leaks) I I IMA-35,
Transfergearoil(Forlevel&leaks) IIIIIIMA-37
Differential gear oil (For level & leaks or
replace)IIRIIRMA-37
Steering gear & linkage, axle & suspension
parts, propeller shaft, front drive shafts &
exhaust systemIIMA-40,MA-41
,MA-37,MA-
42,MA-35
Wheel alignment (If necessary, rotate & bal-
ance wheels)IIIFSU-6,MA-38
Brake pads, rotors & other brake compo-
nentsIIIIIIMA-40,MA-39
,MA-39
Foot brake, parking brake & clutch (For free
play, stroke & operation)IIIIIIBR-6,CL-5
Ventilation air filterRRRRRRAT C -11 4
Body corrosion See NOTE (1)MA-42

PERIODIC MAINTENANCE
MA-15
C
D
E
F
G
H
I
J
K
MA
B
MA
NOTE:
l(1) Inspect once per year.
lMaintenance items with “ ” should be performed more frequently according to “Maintenance Under Severe Driving
Conditions”.
MAINTENANCE UNDER SEVERE DRIVING CONDITIONS
(Annual Mileage >30,000 Km/year)
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle is
mainly operated under severe driving conditions as shown below, more frequent maintenance must be per-
formed on the following items as shown in the table.
Severe driving conditions
A — Driving in dusty conditions
B — Repeatedly driving short distances
C — Towing a trailer or caravan
D — Extensive idling
E — Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F — Driving in high humidity or mountainous areas
G — Driving in areas using salt or other corrosive materials
H — Driving on rough and/or muddy roads or in the desert
I — Driving with frequent use of braking or in mountainous areas
J — Frequent off road use or driving in water
K —Sustained high speed driving
L — For models without Euro-OBD system
Maintenance operation: Check = Check and correct or replace as necessary.
Driving conditionMaintenance itemMainte-
nance
opera-
tionMaintenance intervalRefer-
ence
page
A
...........Air cleaner filterPetrol models ReplaceEvery 30,000 km
(18,000 miles)EM-16
Diesel models ReplaceEvery 30,000 km
(18,000 miles)EM-112
ABCD
........Engine oil &
engine oil filterPetrol models ReplaceEvery 7,500 km (4,500
miles)LU-8
,LU-
9
Diesel models ReplaceEvery 10,000 km (6,000
miles)LU-19,LU-20
A...E.......FuelfilterDiesel modelsCheck &
drain
waterEvery 10,000 km (6,000
miles)FL-16
ReplaceEvery 30,000 km
(18,000 miles)FL-15
...........LHeatedoxygen
sensor 1Petrol models InspectEvery 60,000 km
(36,000 miles)EC-581
.....F......BrakefluidPetrol models ReplaceEvery 30,000 km
(18,000 miles)MA-39Diesel models ReplaceEvery 30,000 km
(18,000 miles)MA-39
..C
....H
....Differential gear
oilPetrol models ReplaceEvery 30,000 km
(18,000 miles)MA-37Diesel models ReplaceEvery 30,000 km
(18,000 miles)MA-37
..C....H....Automatic tran-
saxle fluidPetrol models ReplaceEvery 60,000 km
(36,000 miles)MA-37

MA-16
PERIODIC MAINTENANCE
......GH....Steering gear &
linkage, axle &
suspension
parts, propeller
shaft, front drive
shafts & exhaust
systemPetrol models InspectEvery 30,000 km
(18,000 miles)MA-
40,MA-41
,MA-37
,MA-42
,MA-35
Diesel models InspectEvery 30,000 km
(18,000 miles)MA-
40,MA-41
,MA-37
,MA-42
,MA-35
A.C...GHI...Brake pads,
rotors & other
brake compo-
nentsPetrol models InspectEvery 15,000 km (9,000
miles)MA-
40,MA-39
,MA-39
Diesel models InspectEvery 10,000 km (6,000
miles)MA-40,MA-39
,MA-39
A...........Ventilation air fil-
terPetrol models ReplaceEvery 15,000 km (9,000
miles)AT C - 11 4Diesel models ReplaceEvery 10,000 km (6,000
miles)AT C - 11 4

RECOMMENDED FLUIDS AND LUBRICANTS
MA-17
C
D
E
F
G
H
I
J
K
MA
B
MA
RECOMMENDED FLUIDS AND LUBRICANTSPFP:00000
Fluids and LubricantsELS000C8
*1: For further details, see “SAE Viscosity Number”.
*2: Never use API CG-4.
*3: Use Genuine Nissan Anti-freeze Coolant (L2N)] or equivalent in its quality, in order to avoid possible aluminum corrosion within the
engine cooling system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be
covered by the warranty even if such incidents occurred during the warranty period.
*4: Contact a Nissan dealership for more information regarding suitable fluids, including recommended brand(s) of Dexron
TMIII/Mer-
conTMAutomatic Transmission Fluid.
*5: Never mix different types of fluids (DOT 3 and DOT 4).Capacity (Approximate)
Recommended Fluids/Lubricants
Liter Imp measure
Engine oil
Drain and refillWith oil filter
changeQR20DE 3.9 3-3/8 qt
lGasoline engine
API SG, SH or SJ*1
ILSAC grade GF-I or GF-II*1
ACEA 96-A2
lDiesel engine
API CF-4*1, *2
ACEA 98-B1 YD22DDTi 5.2 4-5/8 qt
Without oil filter
changeQR20DE 3.5 3-1/8 qt
YD22DDTi 4.9 4-3/8 qt
Dry engine (engine overhaul)QR20DE 4.5 4 qt
YD22DDTi 6.3 5-1/2 qt
Cooling system (with reservoir)QR20DE 7.1 6-1/4 qt
lGenuine Nissan Anti-freeze Coolant (L2N) or
equivalent in its quality*3 YD22DDTi 9.5 8-3/8 qt
Reservoir tankQR20DE 0.6 1/2 qt
YD22DDTi 0.6 1/2 qt
Manual transaxle gear oil
2.3 4pt
lGenuine Nissan gear oil or API GL-4, Viscosity
SAE 75W-85
Transfer gear oil 0.31 1/2 pt
lAPI GL-5*1, Viscosity SAE 80W-90
Differential gear oil 0.55 1 pt
lAPI GL-5*1, Viscosity SAE 80W-90
Automatic transaxle fluid 8.0 7.01 pt Genuine Nissan ATF or equivalent*4
Power steering fluid — —
Ty p e D e x r o n
TMIII or equivalent
Brake and clutch fluid — —
lDOT 3 or DOT 4 (US FMVSS No. 116)*5
Multi-purpose grease — — NLGI No. 2 (Lithium soap base)

MA-18
RECOMMENDED FLUIDS AND LUBRICANTS

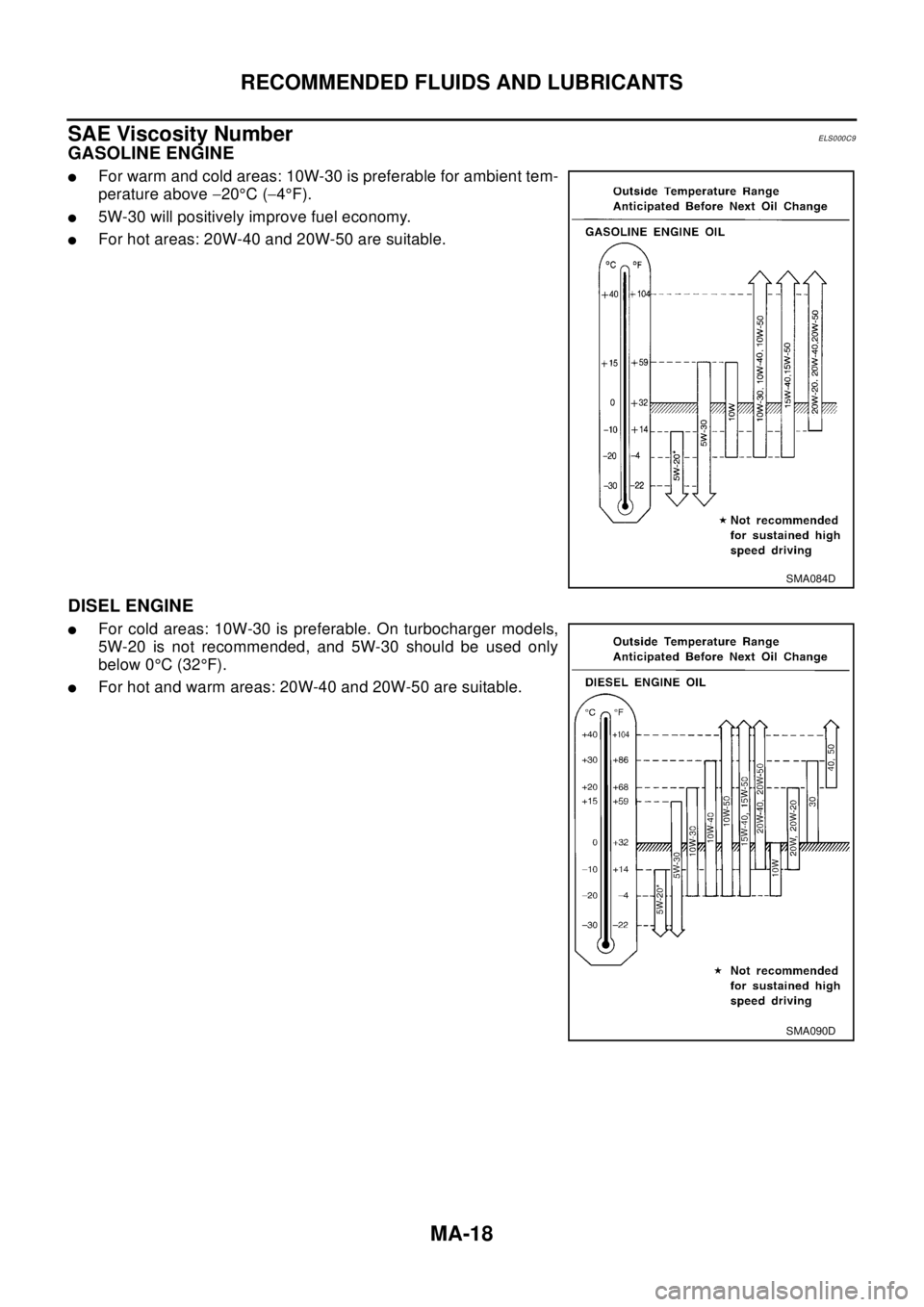

SAE Viscosity Number
ELS000C9
GASOLINE ENGINE
lFor warm and cold areas: 10W-30 is preferable for ambient tem-
perature above-20°C(-4°F).
l5W-30 will positively improve fuel economy.
lFor hot areas: 20W-40 and 20W-50 are suitable.
DISEL ENGINE
lFor cold areas: 10W-30 is preferable. On turbocharger models,
5W-20 is not recommended, and 5W-30 should be used only
below 0°C(32°F).
lFor hot and warm areas: 20W-40 and 20W-50 are suitable.
SMA084D
SMA090D
