Diagnostic ProcedureECS004UN
1.CHECK CAN COMMUNICATION CIRCUIT
With CONSULT-II
1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. The "CON COMM CIRCUIT" is detected.
Ye s o r N o ?
Yes >> Print out CONSULT-II screen, GO TO 2.
NG >> INSPECTION END
2.CHECK CAN COMMUNICATION SIGNALS
With CONSULT-II
1. Turn ignition switch to "ON" position. (Do not start engine.)
2. Select "CAN COMM SIGNALS" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
>> Print out CONSULT-II screen, go toLAN-5, "
CAN SYSTEM (FOR A/T MODELS)"

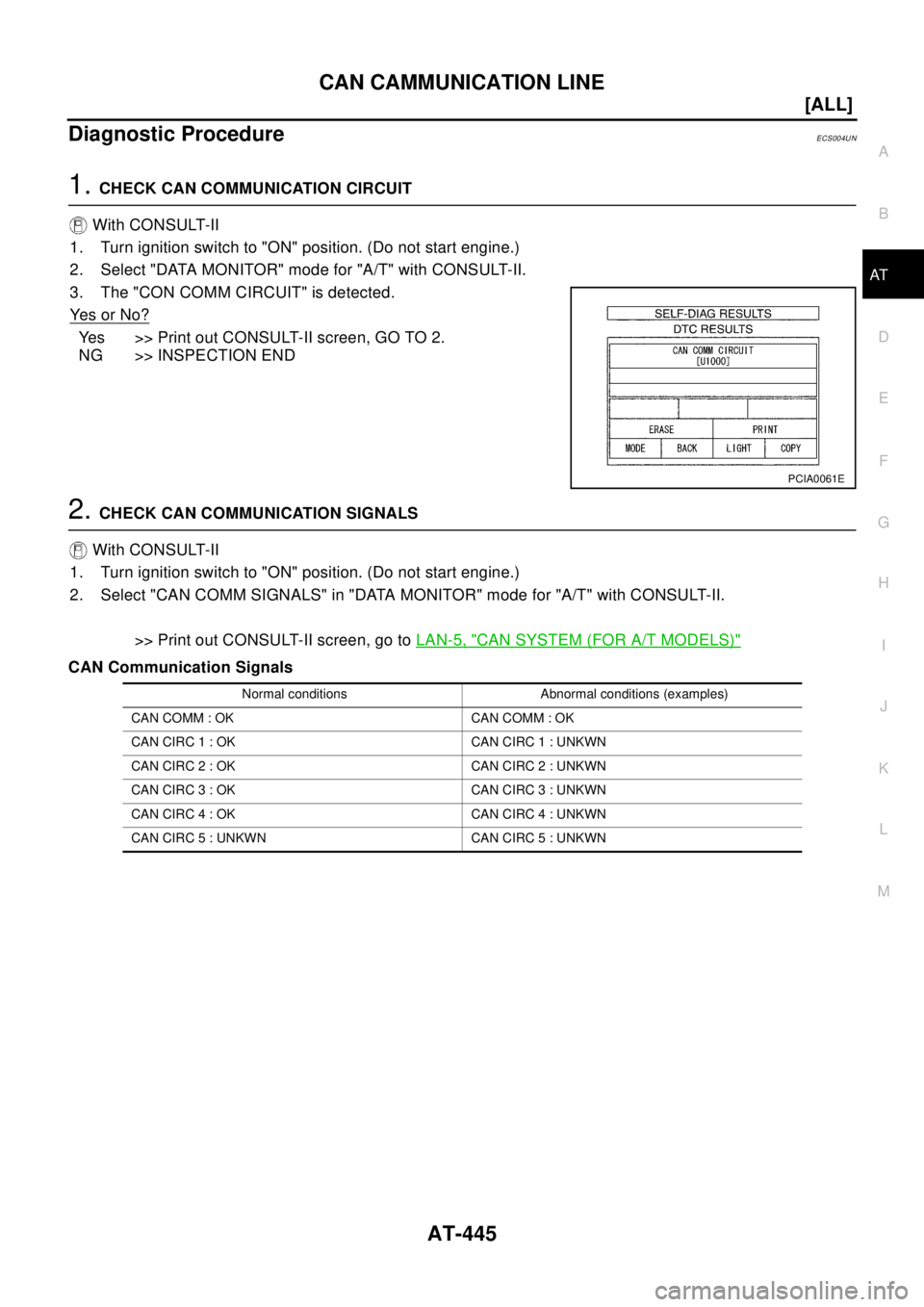

CAN Communication Signals
PCIA0061E
Normal conditions Abnormal conditions (examples)
CAN COMM : OK CAN COMM : OK
CANCIRC1:OK CANCIRC1:UNKWN
CANCIRC2:OK CANCIRC2:UNKWN
CANCIRC3:OK CANCIRC3:UNKWN
CANCIRC4:OK CANCIRC4:UNKWN
CANCIRC5:UNKWN CANCIRC5:UNKWN

AT-446
[ALL]
A/T SHIFT LOCK SYSTEM
A/T SHIFT LOCK SYSTEM
PFP:34950
DescriptionECS00405
lThe mechanical key interlock mechanism also operates as a shift lock:
With the key switch turned to ON, the selector lever cannot be shifted from “P” (parking) to any other posi-
tion unless the brake pedal is depressed.
With the key removed, the selector lever cannot be shifted from “P” to any other position.
The key cannot be removed unless the selector lever is placed in “P”.
lThe shift lock and key interlock mechanisms are controlled by the ON-OFF operation of the shift lock sole-
noid and by the operation of the rotator and slider located inside the key cylinder.
Shift Lock System Electrical Parts LocationECS00406
SCIA0781E

A/T SHIFT LOCK SYSTEM
AT-447
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

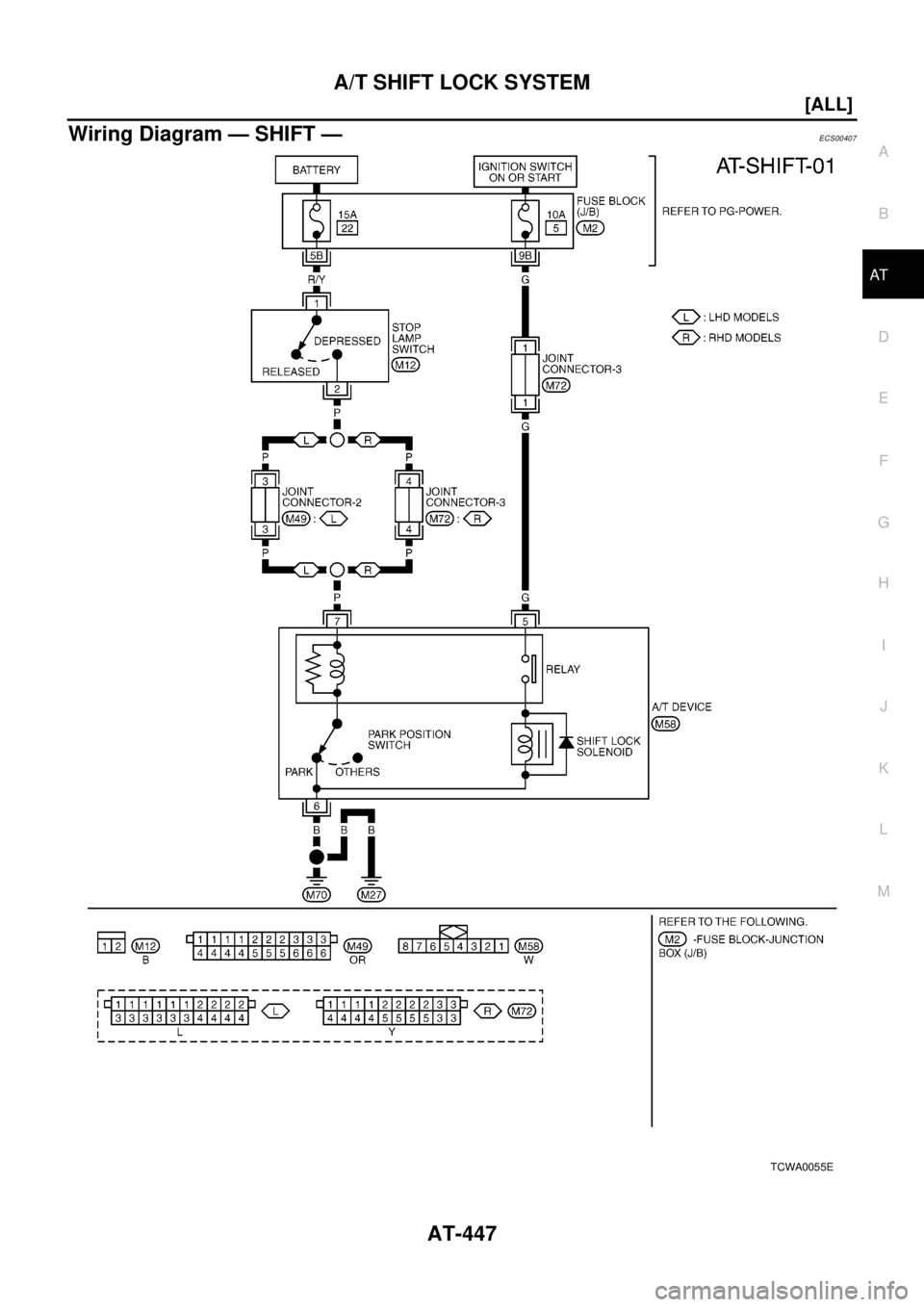

Wiring Diagram — SHIFT —ECS00407
TCWA0055E

AT-448
[ALL]
A/T SHIFT LOCK SYSTEM
Diagnostic Procedure
ECS00408
SYMPTOM 1:
lSelector lever cannot be moved from “P” position with key in ON position and brake pedal
applied.
lSelector lever can be moved from “P” position with key in ON position and brake pedal released.
lSelector lever can be moved from “P” position when key is removed from key cylinder.
SYMPTOM 2:
Ignition key cannot be removed when selector lever is set to “P” position. It can be removed when
selector lever is set to any position except “P”.
1.CHECKKEYINTERLOCKCABLE
Check key interlock cable for damage.
OK or NG
OK >> GO TO 2
NG >> Repair key interlock cable. Refer toAT - 4 5 2 , "
KEY INTERLOCK CABLE".
2.CHECK SELECTOR LEVER POSITION
Check selector lever position for damage.
OK or NG
OK >> GO TO 3
NG >> Check selector lever. Refer toAT - 4 5 6 , "
Park/Neutral Position (PNP) Switch Adjustment".
3.CHECK POWER SOURCE
1. Turn ignition switch to “ON” position.
(Do not start engine.)
2. Check voltage between stop lamp switch harness terminal 1 and ground.
OK or NG
OK >> GO TO 4
NG >> Check the following items:
1. Harness for short or open between battery and stop
lamp switch harness terminal 1
2. Fuse
3. Ignition switch (Refer toPG-2, "
POWER SUPPLY
ROUTING".) Voltage : Battery voltageSCIA0782E

A/T SHIFT LOCK SYSTEM
AT-449
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
4.CHECK INPUT SIGNAL (A/T DEVICE)
Turn ignition switch to “ON” position.
(Do not start engine.)
lCheck voltage between A/T device harness terminal 7 and ground.
OK or NG
OK >> GO TO 5
NG >> Check the following items:
1. Harness for short and open between battery and stop
lamp switch harness connector 1.
2. Harness for short or open between stop lamp switch harness connector 2 and A/T device har-
ness connector 7.
3. Fuse
4. Stop lamp switch (Refer toAT- 4 5 0 , "
A/T DEVICE CHECK".)
5.CHECK GROUND CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect A/T device harness connector.
3. Check continuity between A/T device harness terminal 6 and ground.
If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. Voltage:
Brake pedal depressd:
Battery voltage
Brake pedal released:
0V
SCIA0783E
Continuity should exist.
SCIA0784E

AT-450
[ALL]
A/T SHIFT LOCK SYSTEM

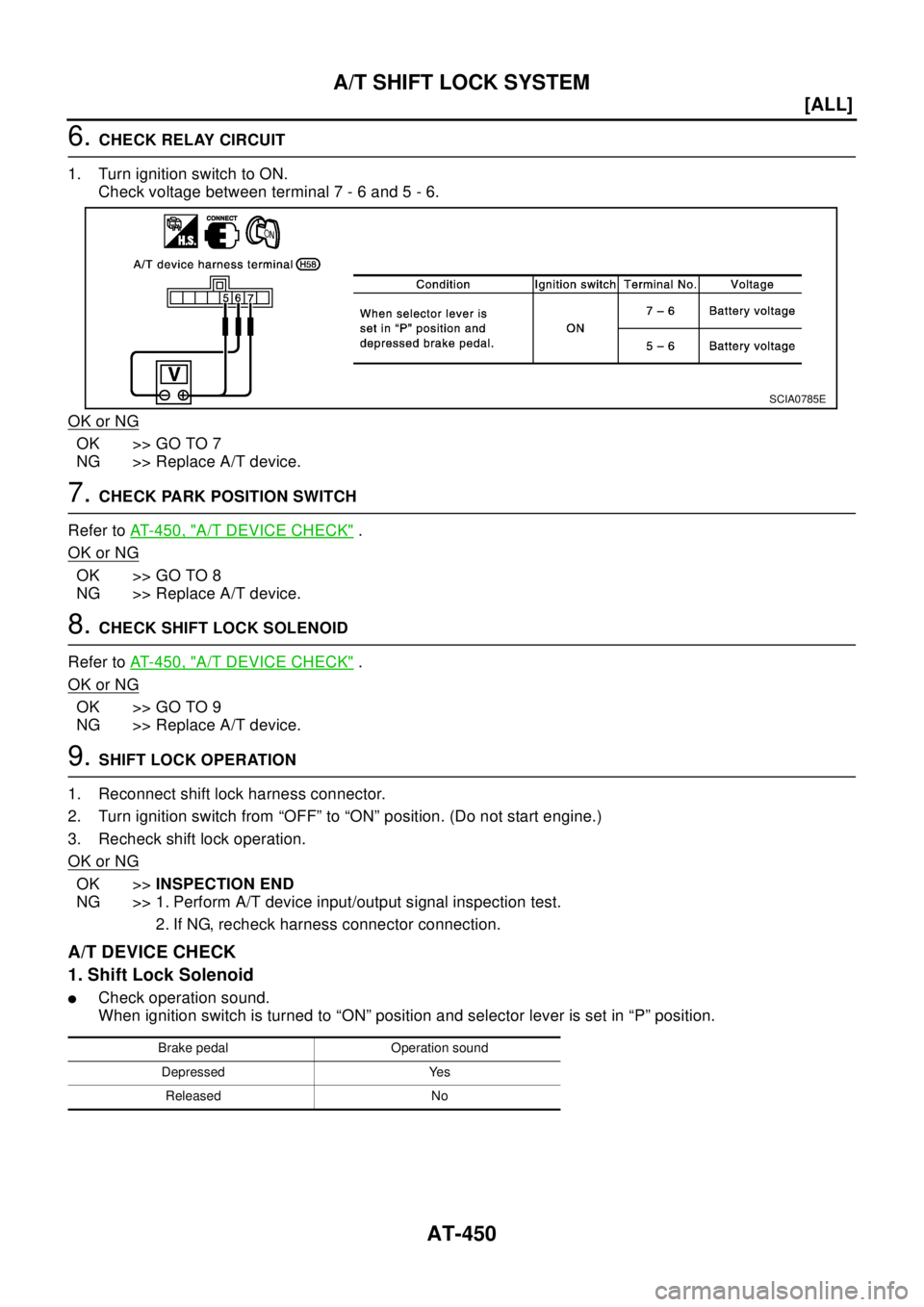

6.CHECK RELAY CIRCUIT
1. Turn ignition switch to ON.
Check voltage between terminal 7 - 6 and 5 - 6.
OK or NG
OK >> GO TO 7
NG >> Replace A/T device.
7.CHECKPARKPOSITIONSWITCH
Refer toAT-450, "
A/T DEVICE CHECK".
OK or NG
OK >> GO TO 8
NG >> Replace A/T device.
8.CHECK SHIFT LOCK SOLENOID
Refer toAT-450, "
A/T DEVICE CHECK".
OK or NG
OK >> GO TO 9
NG >> Replace A/T device.
9.SHIFT LOCK OPERATION
1. Reconnect shift lock harness connector.
2. Turn ignition switch from “OFF” to “ON” position. (Do not start engine.)
3. Recheck shift lock operation.
OK or NG
OK >>INSPECTION END
NG >> 1. Perform A/T device input/output signal inspection test.
2. If NG, recheck harness connector connection.
A/T DEVICE CHECK
1. Shift Lock Solenoid
lCheck operation sound.
When ignition switch is turned to “ON” position and selector lever is set in “P” position.
SCIA0785E
Brake pedal Operation sound
Depressed Yes
Released No

A/T SHIFT LOCK SYSTEM
AT-451
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

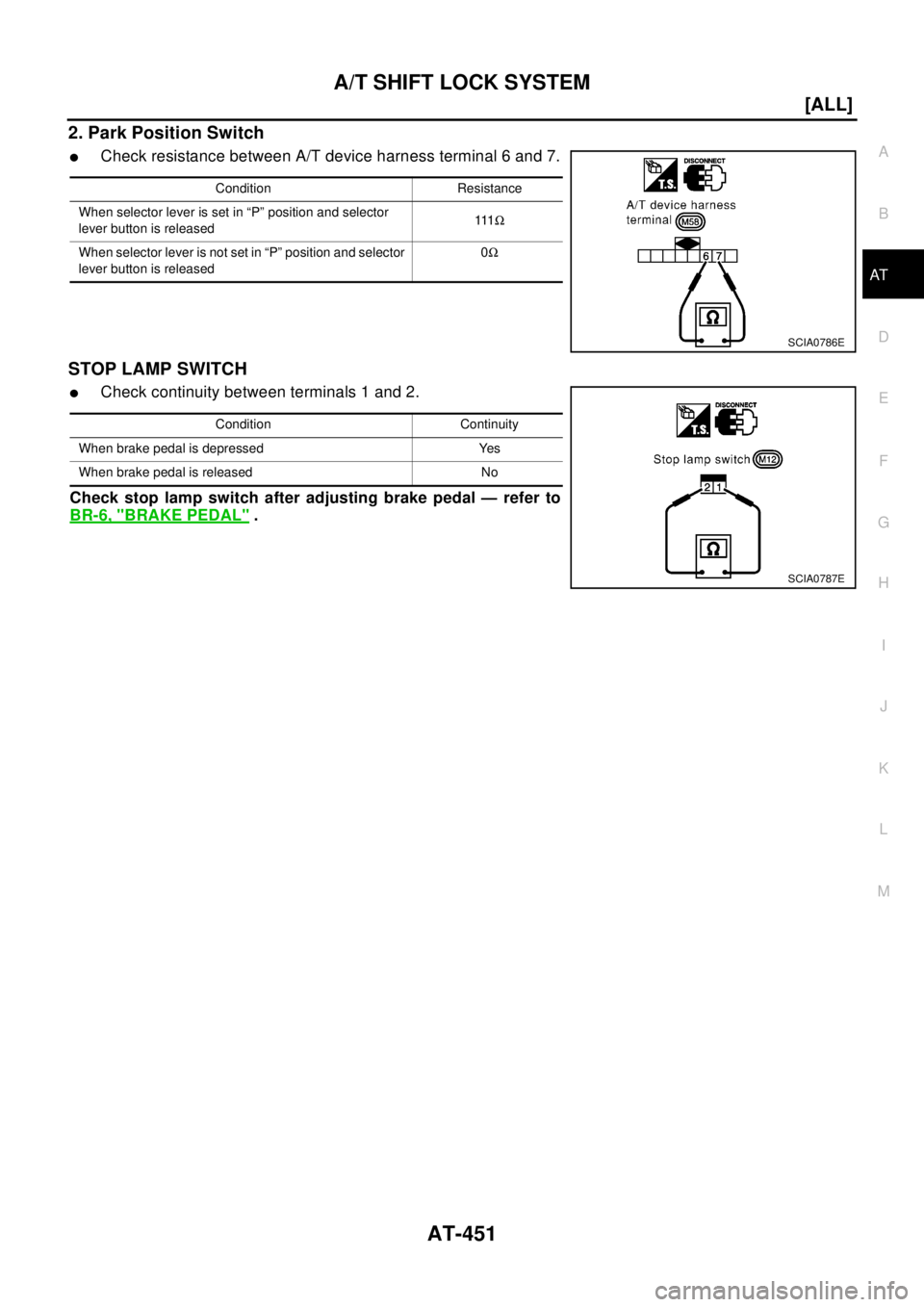

2. Park Position Switch
lCheck resistance between A/T device harness terminal 6 and 7.
STOP LAMP SWITCH
lCheck continuity between terminals 1 and 2.
Check stop lamp switch after adjusting brake pedal — refer to
BR-6, "
BRAKE PEDAL".
Condition Resistance
When selector lever is set in “P” position and selector
lever button is released111W
When selector lever is not set in “P” position and selector
lever button is released0W
SCIA0786E
Condition Continuity
When brake pedal is depressed Yes
When brake pedal is released No
SCIA0787E

AT-452
[ALL]
KEY INTERLOCK CABLE
KEY INTERLOCK CABLE
PFP:34908
ComponentsECS00409
CAUTION:
lInstall key interlock cable in such a way that it will not be damaged by sharp bends, twists or inter-
ference with adjacent parts.
lAfter installing key interlock cable to control device, make sure that casing cap and bracket are
firmly secured in their positions.
RemovalECS0040A
1. Unlock slider by squeezing lock tabs on slider from adjuster
holder and remove interlock rod from cable.
SAT996J
SAT853J

KEY INTERLOCK CABLE
AT-453
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
2. Remove lock plate from steering lock assembly and remove key
interlock cable.
InstallationECS0040B
1. Turn ignition key to lock position.
2. Set A/T selector lever to P position.
3. Set key interlock cable to steering lock assembly and install lock
plate.
4. Clamp cable to steering column and fix to control cable with
band.
5. Insert interlock rod into adjuster holder.
6. Install casing cap to bracket.
7. Move slider in order to fix adjuster holder to interlock rod.
SAT854J
SAT854J
SAT804E
SAT805E

AT-454
[ALL]
ON-VEHICLE SERVICE
ON-VEHICLE SERVICE
PFP:00000
Control Valve Assembly and AccumulatorsECS0040C
REMOVAL
1. Drain ATF from transaxle.
2. Remove oil pan and gasket.
3. Disconnect A/T solenoid valve harness connector.
4. Remove snap ring from A/T solenoid harness terminal body.
5. Remove A/T solenoid harness by pushing terminal body into
transmission case.
SAT992C
SAT064K
SCIA0789E
