SHIFT SOLENOID VALVE B
AT-415
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Component InspectionECS004TZ
SHIFT SOLENOID VALVE B
lFor removal, refer toAT-453, "Installation".
Resistance Check
lCheck resistance between two terminals.
Operation Check
lCheck solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SCIA0725E
Solenoid valve Terminal No.Resistance
(Approx.)
Shift solenoid
valve B1Ground5-20W
SCIA0726E

AT-416
[ALL]
OVERRUNCLUTCHSOLENOIDVALVE
OVERRUN CLUTCH SOLENOID VALVE
PFP:31940
DescriptionECS004U0
The overrun clutch solenoid valve is activated by the TCM in
response to signals sent from the inhibitor switch, overdrive control
switch, vehicle speed and throttle position sensors. The overrun
clutch operation will then be controlled.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. Drive vehicle under the following conditions:
Selector lever in “D” position, overdrive control switch in “OFF”
position and vehicle speed higher than 10 km/h (6 MPH).
SCIA0718E
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
20 L/BOverrun clutch
solenoid valveWhen overrun clutch solenoid valve
operates.Battery voltage
When overrun clutch solenoid valve
does not operate.0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: OVERRUN CLUTCH S/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
lHarness or connectors
(The solenoid circuit is open or shorted.)
lOverrun clutch solenoid valve
: 6th judgement flicker
SAT014K

OVERRUN CLUTCH SOLENOID VALVE
AT-417
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Without CONSULT-II
1. Start engine.
2. Drive vehicle under the following conditions:
Selector lever in “D” position, overdrive control switch in “OFF”
position and vehicle speed higher than 10 km/h (6 MPH).
3. Perform self-diagnosis.
Refer to “SELF-DIAGNOSTIC PROCEDURE (Without CON-
SULT-II)”,AT-416, "
OVERRUN CLUTCH SOLENOID VALVE".
SCIA0700E

AT-418
[ALL]
OVERRUNCLUTCHSOLENOIDVALVE

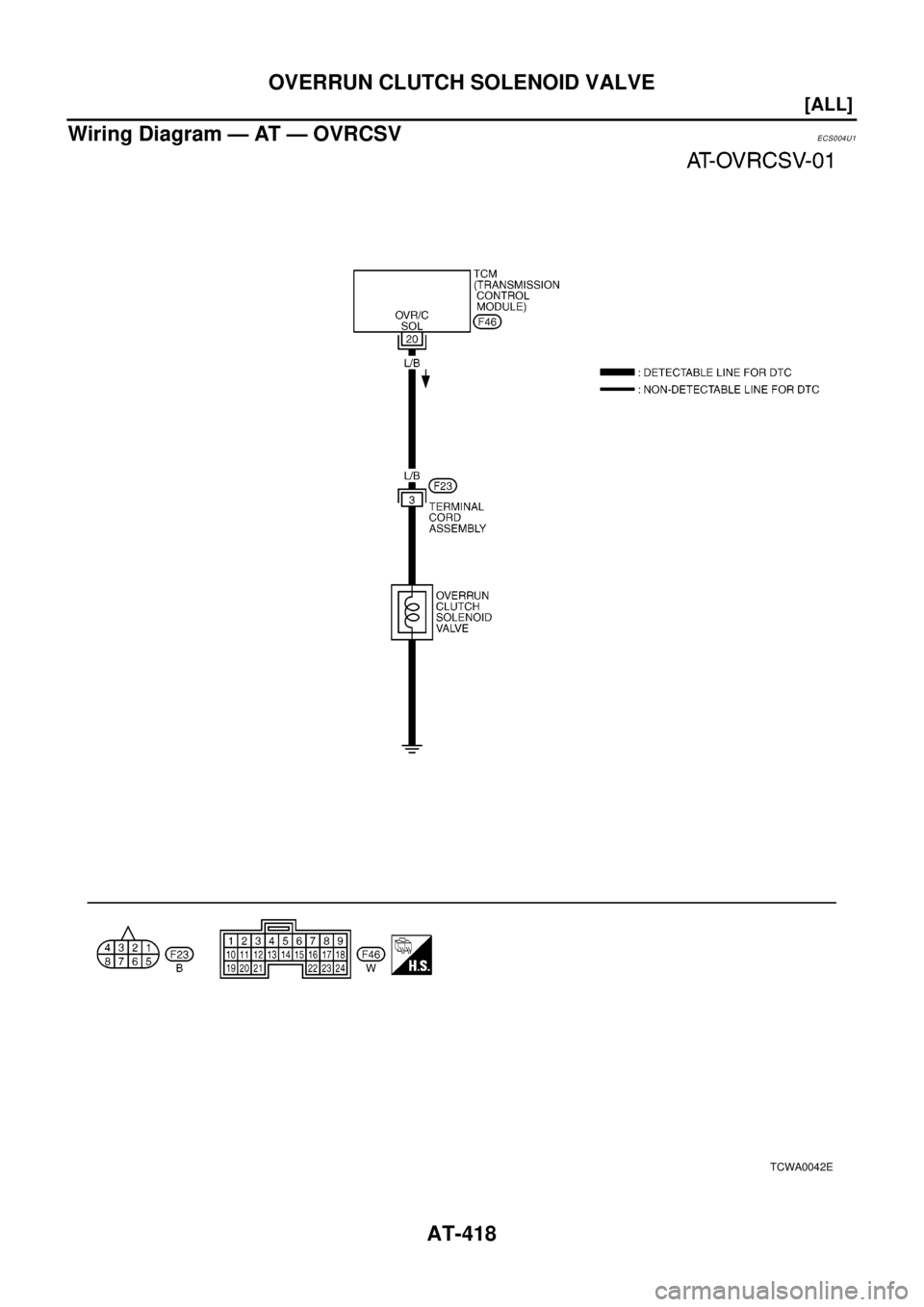

Wiring Diagram — AT — OVRCSV
ECS004U1
TCWA0042E

OVERRUN CLUTCH SOLENOID VALVE
AT-419
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

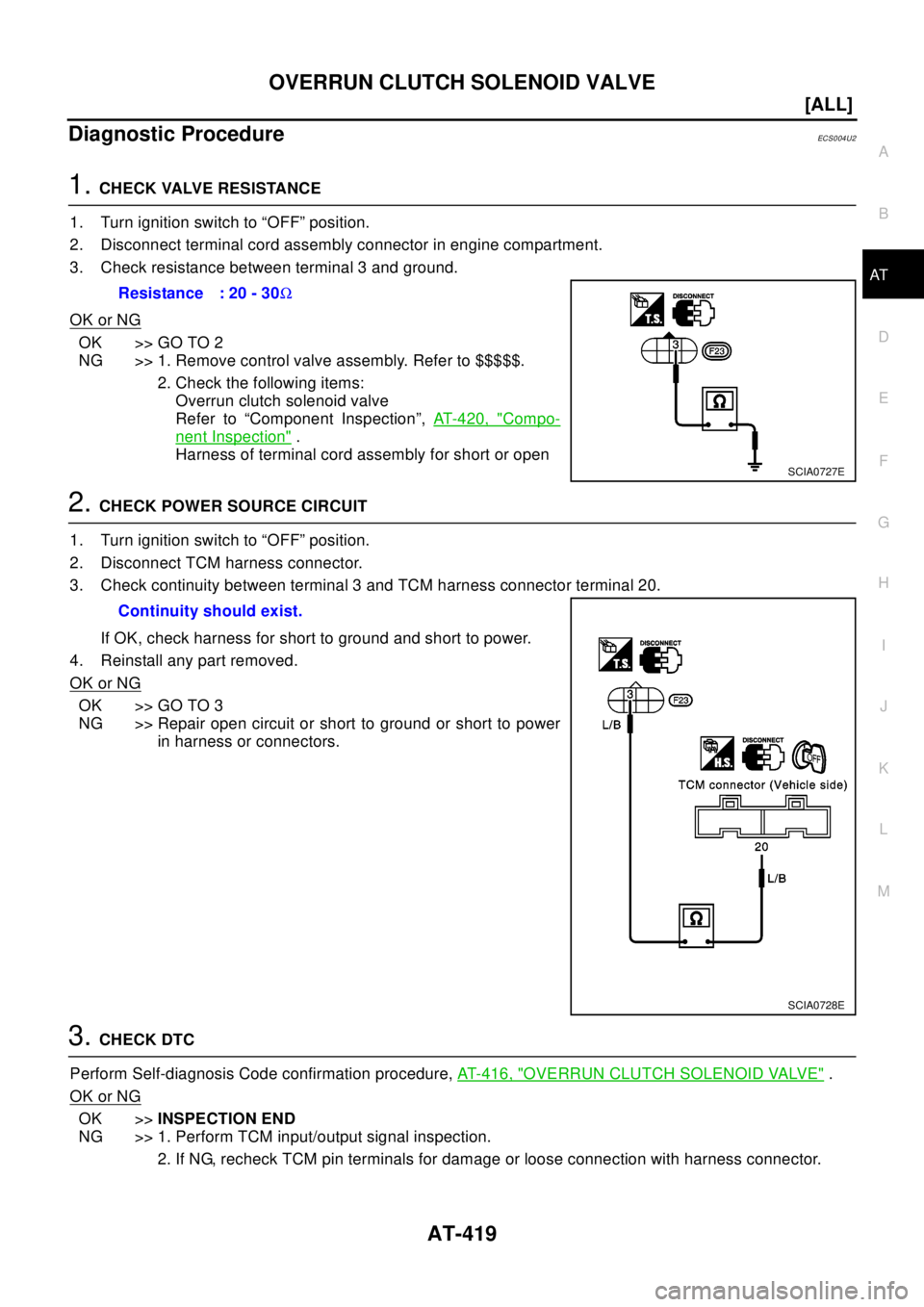

Diagnostic ProcedureECS0 04 U2
1.CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 3 and ground.
OK or NG
OK >> GO TO 2
NG >> 1. Remove control valve assembly. Refer to $$$$$.
2. Check the following items:
Overrun clutch solenoid valve
Refer to “Component Inspection”,AT-420, "
Compo-
nent Inspection".
Harness of terminal cord assembly for short or open
2.CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 3 and TCM harness connector terminal 20.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3.CHECK DTC
Perform Self-diagnosis Code confirmation procedure,AT-416, "
OVERRUN CLUTCH SOLENOID VALVE".
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance : 20 - 30W
SCIA0727E
Continuity should exist.
SCIA0728E

AT-420
[ALL]
OVERRUNCLUTCHSOLENOIDVALVE
Component Inspection
ECS004U3
OVERRUN CLUTCH SOLENOID VALVE
lFor removal, refer toAT-453, "Installation".
Resistance Check
lCheck resistance between two terminals.
Operation Check
lCheck solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SCIA0729E
Solenoid valve Terminal No.Resistance
(Approx.)
Overrun clutch
solenoid valve3 Ground 20 - 30W
SCIA0730E

TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-421
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
TORQUE CONVERTER CLUTCH SOLENOID VALVEPFP:31940
DescriptionECS0 04 U4
The torque converter clutch solenoid valve is activated, with the gear
in “D
4”, by the TCM in response to signals sent from the vehicle
speed and throttle position sensors. Lock-up piston operation will
then be controlled.
Lock-up operation, however, is prohibited when A/T fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is a
big jump in engine speed, there is no lock-up.
CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.
ON BOARD DIAGNOSIS LOGIC
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1. Start engine.
2. Select “SELF-DIAG RESULTS” mode for A/T with CONSULT-II.
3. DrivevehicleinD
1®D2®D3®D4®D4lock-up position.
SCIA0718E
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up “OFF”
¯
Lock-up “ON”Approximately 4%
¯
Approximately 94%
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
3GY/RTorque converter
clutch solenoid
valveWhen A/T performs lock-up. 8 - 15V
When A/T does not perform lock-up. 0V
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: T/C CLUTCH SOL/V
TCM detects an improper voltage drop
when it tries to operate the solenoid valve.
lHarness or connectors
(The solenoid circuit is open or shorted.)
lT/C clutch solenoid valve
: 7th judgement flicker
SAT014K

AT-422
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE
Without CONSULT-II
1. Start engine.
2. Drive vehicle in D
1®D2®D3®D4®D4lock-up position.
3. Perform self-diagnosis.
Refer to “SELF-DIAGNOSTIC PROCEDURE (Without CON-
SULT-II)”,AT-421, "
TORQUE CONVERTER CLUTCH SOLE-
NOID VALVE".
SCIA0701E

TORQUE CONVERTER CLUTCH SOLENOID VALVE
AT-423
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Wiring Diagram — AT — TCVECS0 04 U5
TCWA0043E

AT-424
[ALL]
TORQUE CONVERTER CLUTCH SOLENOID VALVE

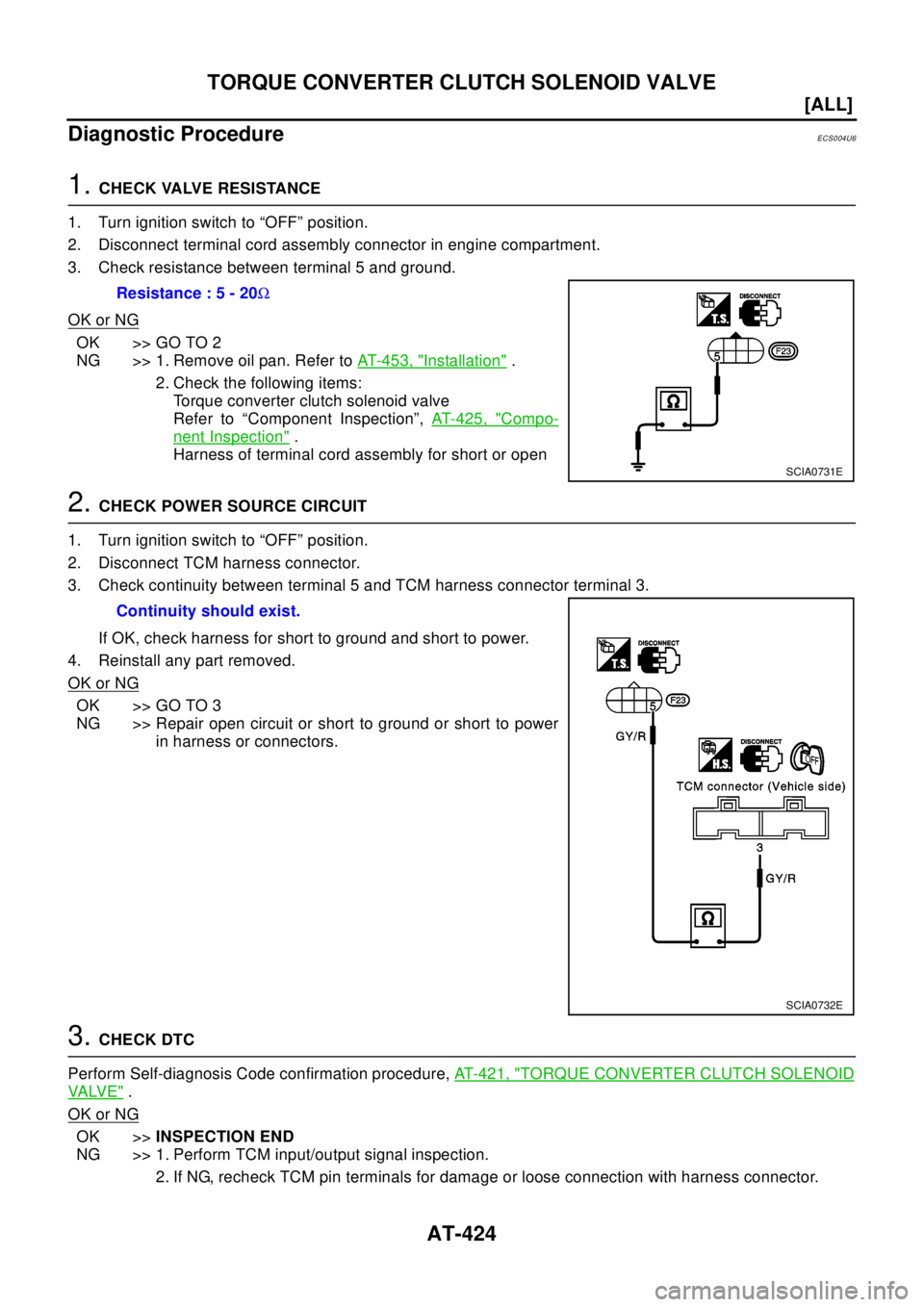

Diagnostic Procedure
ECS004U6
1.CHECK VALVE RESISTANCE
1. Turn ignition switch to “OFF” position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 5 and ground.
OK or NG
OK >> GO TO 2
NG >> 1. Remove oil pan. Refer toAT- 4 5 3 , "
Installation".
2. Check the following items:
Torque converter clutch solenoid valve
Refer to “Component Inspection”,AT-425, "
Compo-
nent Inspection".
Harness of terminal cord assembly for short or open
2.CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to “OFF” position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 5 and TCM harness connector terminal 3.
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 3
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
3.CHECK DTC
Perform Self-diagnosis Code confirmation procedure,AT - 4 2 1 , "
TORQUE CONVERTER CLUTCH SOLENOID
VA LV E".
OK or NG
OK >>INSPECTION END
NG >> 1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector. Resistance : 5 - 20W
SCIA0731E
Continuity should exist.
SCIA0732E
