RENAULT KANGOO 1997 KC / 1.G Sheet Metal Work Workshop Manual

LOWER STRUCTURE
Rear shock absorber reinforcement
41Q
13352R13351R1
A
CAT13327R6
B
12
CAT13327R5
23
14
41-59

LOWER STRUCTURE
Rear side member extension
41R
PRB4138
INTRODUCTION
The replacement of this part is a complementary
operation to the replacement of the rear end
cross member .
In the operation described below, there are only
descriptions of the joints specific to the part
concerned.
Information concerning the other parts will be
dealt with in the respective sections.
Use of the repair bench is advised, to ensure that
the rear cross member is correctly geometrically
positioned.
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part assembled with towing ring (left hand side).
JOINTS WITH:
Rear side member
PARTS CONCERNED (thickness in mm):
1Rear side member extension 1.5
2Rear side member 1.5
3Towing ring (left hand side) 1.5
41-60

LOWER STRUCTURE
Rear side member extension
41R
13221R2
CAA11536R7
A
1
2
CAA11538R5
B
1 2
13225R1
CAA11536R7
C
3
2
41-61

LOWER STRUCTURE

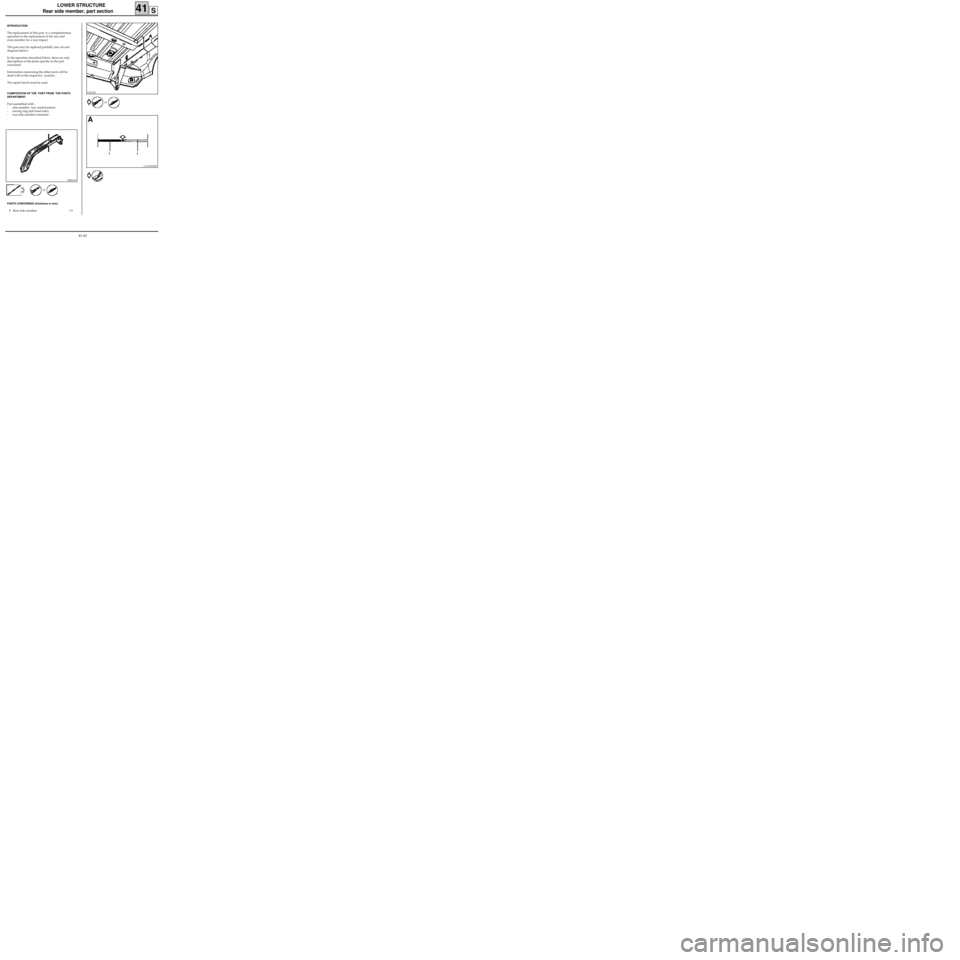

Rear side member, part section
41S
PRB4139
INTRODUCTION
The replacement of this part is a complementary
operation to the replacement of the rear end
cross member for a rear impact
This part may be replaced partially (see cut and
diagram below).
In the operation described below, there are only
descriptions of the joints specific to the part
concerned.
Information concerning the other parts will be
dealt with in the respective sections.
The repair bench must be used.
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part assembled with :
- side member rear reinforcement
- towing ring (left hand side),
- rear side member extension .
PARTS CONCERNED (thickness in mm):
1Rear side member 1.5
13221R3
or
CAS13033R1
A
1 1 or
41-62

LOWER STRUCTURE
Complete rear side member
41T
PRB4140
INTRODUCTION
The replacement of this part is a complementary
operation to the replacement of the side panel
with lining and the inner wheel arch for a rear
side impact.
It requires the partial replacement of the rear
floor, rear section and the front cross member of
the rear floor .
In the operation described below, there are only
descriptions of the joints specific to the part
concerned.
Information concerning the other parts will be
dealt with in the respective sections.
The repair bench must be used.
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part assembled with:
- side member rear reinforcement,
- towing ring (left hand side),
- rear side member extension ,
- upper shock absorber gusset,
- rear axle assembly mounting unit,
- upper gusset of rear axle assembly mounting,
- side member reinforcement,
- sill panel closure panel, rear section.
JOINTS WITH:
Sill panel closure panel
Centre cross member
Rear floor stiffener
PARTS CONCERNED (thickness in mm):
1Rear side member 1.5
2Rear floor 1
3Centre cross member 1.5
4Sill panel closure panel 1.2
5Sill panel closure panel,
rear section 1.5
6Rear floor stiffener 1
7Rear shock absorber lower gusset 1.5
41-63

LOWER STRUCTURE
Complete rear side member
41T
13232R213012R
CAA11536R6
A
5 4
CAO11694R1
B
5 4
41-64

LOWER STRUCTURE
Complete rear side member
41T
13237R
CAA11538-1R8
C
1
3
CAA11538-1R8
D
1
6
41-65

LOWER STRUCTURE
Complete rear side member
41T
13235R
CAA11538-1R1
E
1
3
CAS13024-2R5
F
1 73
41-66

LOWER STRUCTURE
Centre cross member of rear floor
41U
PRB4141
INTRODUCTION
The replacement of this part is a complementary
operation to the replacement of the rear side
member for a rear side impact.
In the operation described below, there are only
descriptions of the joints specific to the part
concerned.
Information concerning the other parts will be
dealt with in the respective sections.
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part assembled with :
- brake limiter mounting,
- emergency spare wheel mounting bearing.
JOINTS WITH:
Seat mounting reinforcement
PARTS CONCERNED (thickness in mm):
1Rear floor centre cross member 1.5
2Rear side member 1.5
3Rear axle assembly mounting unit
closure panel 1
13237R1
CAA11538R4
A
1
2
CAS13024-1R5
B
1 2 3
41-67

LOWER STRUCTURE
Seat anchoring reinforcement
41V
PRB4142
INTRODUCTION
The replacement of this part is a complementary
operation to the replacement of the rear floor
centre cross member, for a rear impact.
In the operation described below, there are only
descriptions of the joints specific to the part
concerned.
Information concerning the other parts will be
dealt with in the respective sections.
The repair bench must be used.
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part assembled with seat mounting reinforce-
ment.
JOINTS WITH:
Rear floor
Rear floor front cross member, front section
Rear floor centre cross member
PARTS CONCERNED (thickness in mm):
1Seat anchoring reinforcements 1.2
2Seat mounting reinforcement 1.5
3Rear floor front cross member,
front section 0.8
4Rear floor 1
5Rear floor centre cross member 1.5
