RENAULT KANGOO 1997 KC / 1.G Sheet Metal Work Workshop Manual

UPPER REAR STRUCTURE
Rear inner wheel arch
44E
PRB4417
INTRODUCTION
The replacement of this part is a complementary
operation to the wing panel with lining and rain
channel for a rear side impact.
In the operation described below there are only
descriptions of the joints specific to the part
concerned.
Information concerning other parts will be dealt
with in the respective section.
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part assembled with bumper reinforcement.
JOINTS WITH:
Rear floor
Rear side member
PARTS CONCERNED (thickness in mm):
1Rear inner wheel arch 1
2Bumper 1.5
3Bumper reinforcement 1.5
4Sill panel rear closure panel 1.5
5Rear shock absorber mounting
reinforcement 1.5
6Floor 0.8
44-30

UPPER REAR STRUCTURE
Rear inner wheel arch
44E
13471R
CAA11538-1R3
A
1
7
CAE11546-3R7
B
3
2 1
CAF11547-3R4
C3
7 2
CAN11690-2R6
D
17 5
44-31

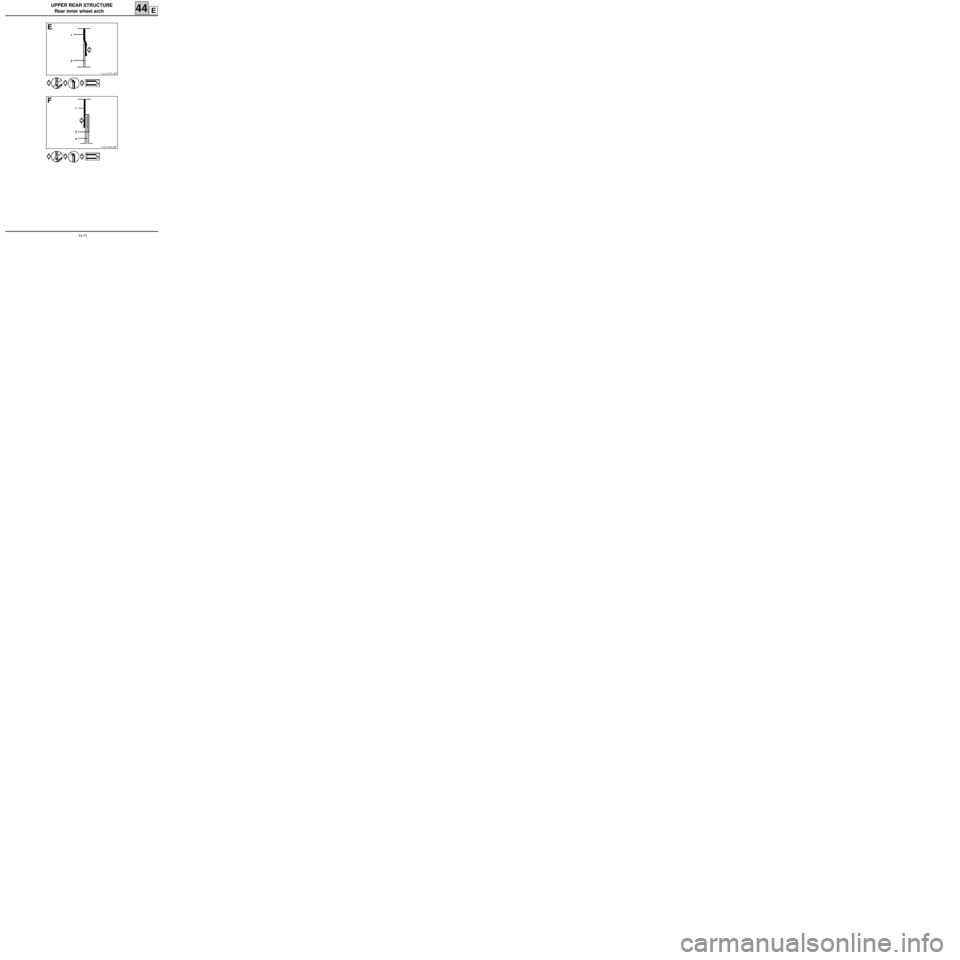

UPPER REAR STRUCTURE
Rear inner wheel arch
44E
CAA11537-1R7
E
1
2
CAP11696-2R7
F
1
5
4
44-32

UPPER REAR STRUCTURE
Lights mounting side panel rain channel
44F
PRB4418
INTRODUCTION
The replacement of this part may be carried out in
two ways :
1 - Complete replacement, complementary to the
side panel with lining.
2 - Partial replacement, complementary to the
rear end panel and rear end cross member
(see cut in the diagram below).
In the operation described below there are only
descriptions of the joints specific to the part
concerned.
Information concerning other parts will be dealt
with in the respective section.
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part assembled with :
- side panel extension,
- lights mounting with studs and welded nuts,
- bumper counter blade,
- tailgate counter balance reinforcement,
- welded nuts,
- upper hinge reinforcement.
JOINTS WITH:
Panel upper rain channel
Side panel lining
Rear floor
Rear end cross member
Roof stretcher lining
Roof
PARTS CONCERNED (thickness in mm):
1Lights mounting side panel rain
channel 1.5
2Panel upper rain channel 1.2
3Panel lining 0.7
4Rear floor 0.8
5Rear end cross member 1.02
6Roof stretcher 0.7
7Roof 0.7
8Wheel arch 1
9Side panel 1
10Rear wing panel extension 1
or
44-33

UPPER REAR STRUCTURE
Lights mounting side panel rain channel
44F
13211R1
CAW13605-1R2
A
76
2
CAO11694R4
B
1 6
1 - COMPLETE REPLACEMENT
44-34

UPPER REAR STRUCTURE
Lights mounting side panel rain channel
44F
13212R
CAA11536-3R2
C
17
CAA11536-3R2
D
19
CAA11536-5R2
E
1
7
44-35

UPPER REAR STRUCTURE
Lights mounting side panel rain channel
44F
13223R
CAQ11697R4
F
14
CAU13326R1
G
1
8
CAL11554-2R1
H
1 8 4
10 3
44-36

UPPER REAR STRUCTURE
Lights mounting side panel rain channel
44F
13223R1
2 - PARTIAL REPLACEMENT
or
13351S
CAV13467R3
I
10
10 Appearance after cutting.
44-37

UPPER REAR STRUCTURE
Rear wing panel extension
44G
PRB4419
INTRODUCTION
The replacement of this part is carried out partial-
ly following a rear side impact and is complemen-
tary to the rear wing panel (see diagram and me-
thod below).
The bumper side mounting must also be replaced
and is sold separately.
In the operation described below there are only
descriptions of the joints specific to the part
concerned.
Information concerning other parts will be dealt
with in the respective section.
COMPOSITION OF THE PART FROM THE PARTS
DEPARTMENT
Part only.
JOINTS WITH:
Wing panel lining
Lights mounting side panel rain channel
Bumper mounting
PARTS CONCERNED (thickness in mm):
1Rear wing panel extension 1
2Wing panel lining 0.7
3Acoustic insert 0.7
4Bumper mounting 1.2
44-38

UPPER REAR STRUCTURE
Rear wing panel extension
44G
13223R2
or
CAA11536-3R2a
A
11
1 1
12
or
2
CAN11689R5
B
11
CAA11536-1R3
C
2
1
CAA11538R7
D
41
44-39
