TOYOTA RAV4 1996 Service Repair Manual

1999-2000 MANUAL TRANSMISSION SERVICING
Toyota

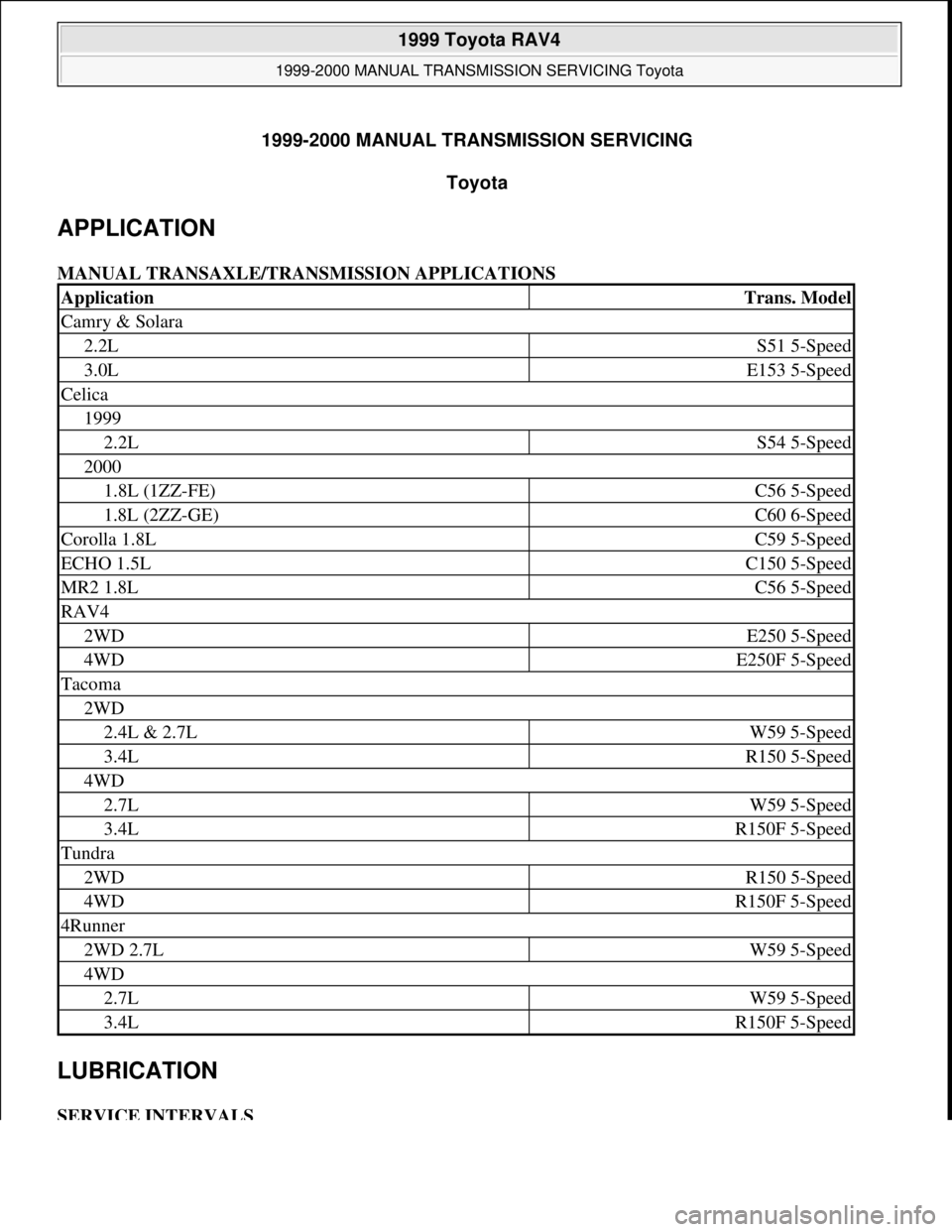

APPLICATION
MANUAL TRANSAXLE/TRANSMISSION APPLICATIONS
LUBRICATION
SERVICE INTERVALS
ApplicationTrans. Model
Camry & Solara
2.2LS51 5-Speed
3.0LE153 5-Speed
Celica
1999
2.2LS54 5-Speed
2000
1.8L (1ZZ-FE)C56 5-Speed
1.8L (2ZZ-GE)C60 6-Speed
Corolla 1.8LC59 5-Speed
ECHO 1.5LC150 5-Speed
MR2 1.8LC56 5-Speed
RAV4
2WDE250 5-Speed
4WDE250F 5-Speed
Tacoma
2WD
2.4L & 2.7LW59 5-Speed
3.4LR150 5-Speed
4WD
2.7LW59 5-Speed
3.4LR150F 5-Speed
Tundra
2WDR150 5-Speed
4WDR150F 5-Speed
4Runner
2WD 2.7LW59 5-Speed
4WD
2.7LW59 5-Speed
3.4LR150F 5-Speed

1999 Toyota RAV4
1999-2000 MANUAL TRANSMISSION SERVICING Toyota

1999 Toyota RAV4
1999-2000 MANUAL TRANSMISSION SERVICING Toyota
Microsoft
Sunday, November 22, 2009 10:47:31 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, November 22, 2009 10:47:35 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.

Transmission/Transaxle
Check transmission fluid level every 30,000 miles or 24 months. Service interval is not available for vehicles
operated under normal conditions. Under severe conditions such as trailer towing, police, taxi, local delivery
service or operating under dusty conditions, replace transmission fluid every 30,000 miles or 24 months.
Transfer Case
Check transfer case fluid level every 30,000 miles or 24 months. Service interval is not available for vehicles
operated under normal conditions. Under severe conditions such as trailer towing, police, taxi, local delivery
service or operating under dusty conditions, replace transfer case fluid every 30,000 miles or 24 months.
CHECKING FLUID LEVEL
Transmission/Transaxle (All Models)
Remove filler plug from side of transmission/transaxle. Fluid should be level with bottom edge of filler plug
hole. If fluid is low, fill with proper type fluid until fluid is level with filler plug opening. See
RECOMMENDED FLUID
. Reinstall filler plug.
Transfer Case (RAV4, Tacoma, Tundra & 4Runner)
Remove filler plug located on rear of transfer case. Fluid should be level with bottom edge of filler plug hole. If
fluid is low, fill with proper type fluid until fluid is level with filler plug opening. See RECOMMENDED
FLUID . Reinstall filler plug.
RECOMMENDED FLUID
For recommended fluid, see RECOMMENDED FLUID
table. For fluid capacity, see
TRANSAXLE/TRANSMISSION REFILL CAPACITIES
table under FLUID CAPACITIES.
RECOMMENDED FLUID
FLUID CAPACITIES
TRANSAXLE/TRANSMISSION REFILL CAPACITIES
(1)
ApplicationFluid Type
Transaxle/TransmissionSAE 75W-90/API GL-4 Or API GL-5 Gear Oil
Transfer CaseSAE 75W-90/API GL-4 Or API GL-5 Gear Oil
ApplicationQts. (L)
Camry & Solara
2.2L 4-Cylinder2.3 (2.2)
3.0L V64.4 (4.2)
Celica
1999

1999 Toyota RAV4
1999-2000 MANUAL TRANSMISSION SERVICING Toyota
Microsoft
Sunday, November 22, 2009 10:47:31 AMPage 2 © 2005 Mitchell Repair Information Company, LLC.

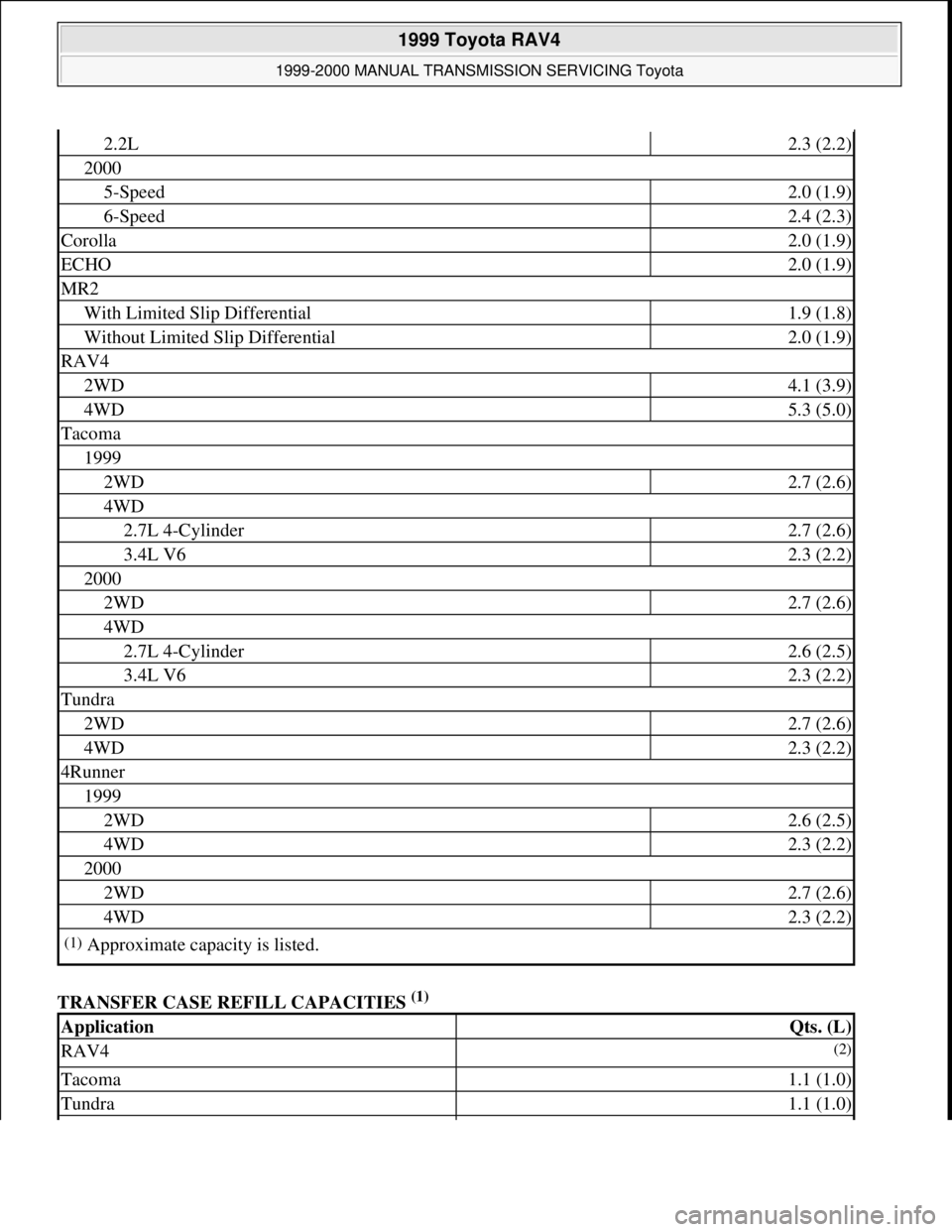

TRANSFER CASE REFILL CAPACITIES (1)
2.2L2.3 (2.2)
2000
5-Speed2.0 (1.9)
6-Speed2.4 (2.3)
Corolla2.0 (1.9)
ECHO2.0 (1.9)
MR2
With Limited Slip Differential1.9 (1.8)
Without Limited Slip Differential2.0 (1.9)
RAV4
2WD4.1 (3.9)
4WD5.3 (5.0)
Tacoma
1999
2WD2.7 (2.6)
4WD
2.7L 4-Cylinder2.7 (2.6)
3.4L V62.3 (2.2)
2000
2WD2.7 (2.6)
4WD
2.7L 4-Cylinder2.6 (2.5)
3.4L V62.3 (2.2)
Tundra
2WD2.7 (2.6)
4WD2.3 (2.2)
4Runner
1999
2WD2.6 (2.5)
4WD2.3 (2.2)
2000
2WD2.7 (2.6)
4WD2.3 (2.2)
(1)Approximate capacity is listed.
ApplicationQts. (L)
RAV4(2)
Tacoma1.1 (1.0)
Tundra1.1 (1.0)

1999 Toyota RAV4
1999-2000 MANUAL TRANSMISSION SERVICING Toyota
Microsoft
Sunday, November 22, 2009 10:47:31 AMPage 3 © 2005 Mitchell Repair Information Company, LLC.

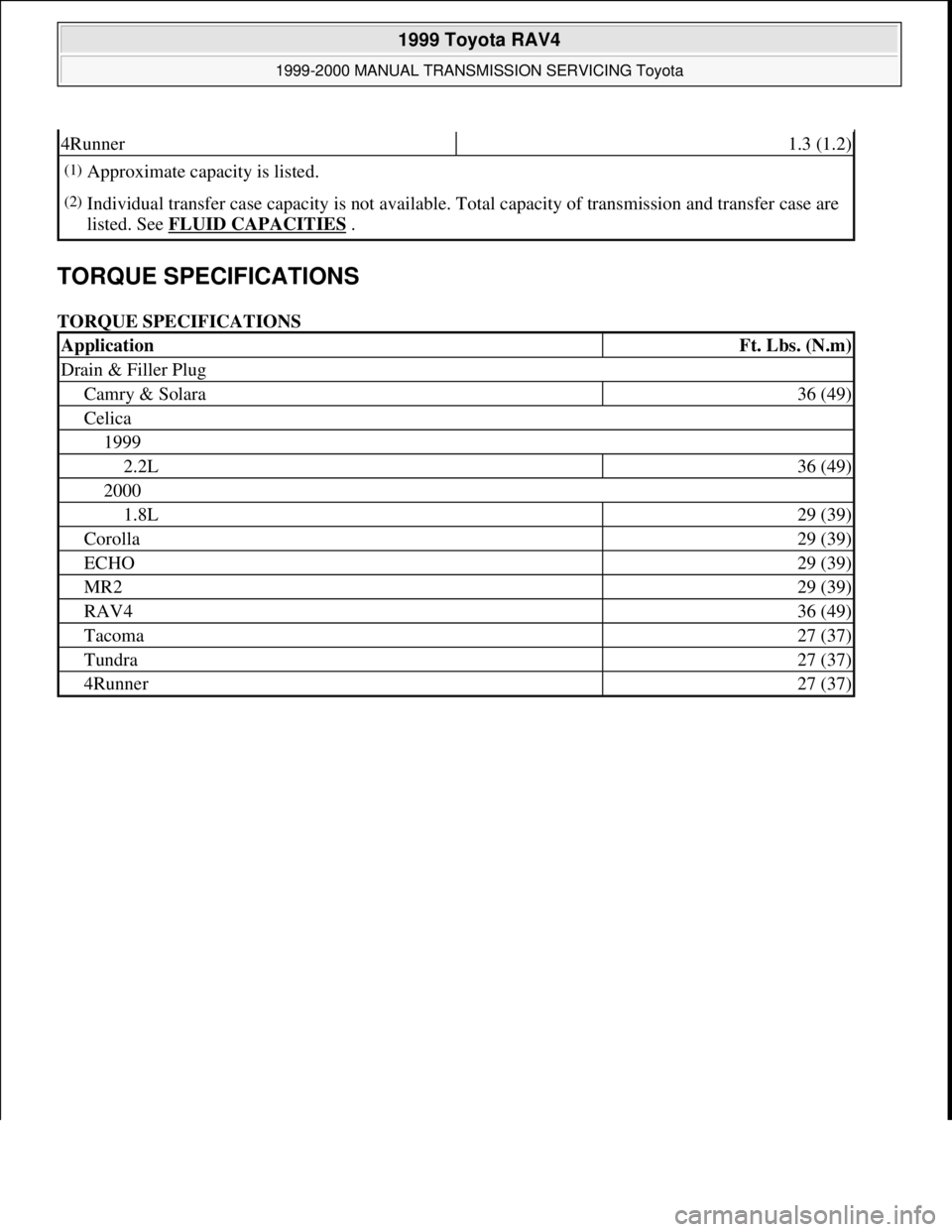

TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
4Runner1.3 (1.2)
(1)Approximate capacity is listed.
(2)Individual transfer case capacity is not available. Total capacity of transmission and transfer case are
listed. See FLUID CAPACITIES
.
ApplicationFt. Lbs. (N.m)
Drain & Filler Plug
Camry & Solara36 (49)
Celica
1999
2.2L36 (49)
2000
1.8L29 (39)
Corolla29 (39)
ECHO29 (39)
MR229 (39)
RAV436 (49)
Tacoma27 (37)
Tundra27 (37)
4Runner27 (37)

1999 Toyota RAV4
1999-2000 MANUAL TRANSMISSION SERVICING Toyota
Microsoft
Sunday, November 22, 2009 10:47:31 AMPage 4 © 2005 Mitchell Repair Information Company, LLC.

1999-2000 ACCESSORIES & EQUIPMENT
Power Mirrors
DESCRIPTION & OPERATION
Power mirrors are controlled by a dual control switch assembly, located on driver's door panel, instrument panel
or instrument panel center console. Left/right control switch directs current to desired mirror.
Horizontal/vertical control switch directs current to one of 2 motors located in mirror/motor assembly. Mirror
and motors must be removed and serviced as an assembly.
TROUBLE SHOOTING
BOTH POWER MIRRORS INOPERATIVE
Check fuse for power mirror switch. Check power mirror switch. See POWER MIRROR SWITCH
under
COMPONENT TESTS. Check power mirror motor(s). See POWER MIRROR MOTOR
under
COMPONENT TESTS. Check ground circuit and wiring harness. See WIRING DIAGRAMS
.
LEFT OR RIGHT POWER MIRROR INOPERATIVE
Check power mirror switch. See POWER MIRROR SWITCH
under COMPONENT TESTS. Check power
mirror motor(s). See POWER MIRROR MOTOR
under COMPONENT TESTS. Check ground circuit and
wiring harness. See WIRING DIAGRAMS
.
UP/DOWN OR LEFT/RIGHT FUNCTION INOPERATIVE
Check power mirror motor(s). See POWER MIRROR MOTOR
under COMPONENT TESTS. Check power
mirror switch. See POWER MIRROR SWITCH
under COMPONENT TESTS. Check ground circuit and
wiring harness. See WIRING DIAGRAMS
.
COMPONENT TESTS
POWER MIRROR SWITCH
Remove power mirror switch. Using ohmmeter, check continuity between appropriate mirror switch terminals.
Continuity should exist between specified terminals. See appropriate POWER MIRROR SWITCH
CONTINUITY TEST table. See Fig. 1
-Fig. 21. If switch fails any test, replace switch. NOTE: For additional information on heated mirrors, see REAR WINDOW & MIRROR
DEFOGGERS article.
NOTE: Mirror motor connectors may vary in configuration from vehicle to vehicle of
the same model.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Mirrors

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Mirrors
Microsoft
Sunday, November 22, 2009 10:55:57 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, November 22, 2009 10:56:02 AMPage 1 © 2005 Mitchell Repair Information Company, LLC.

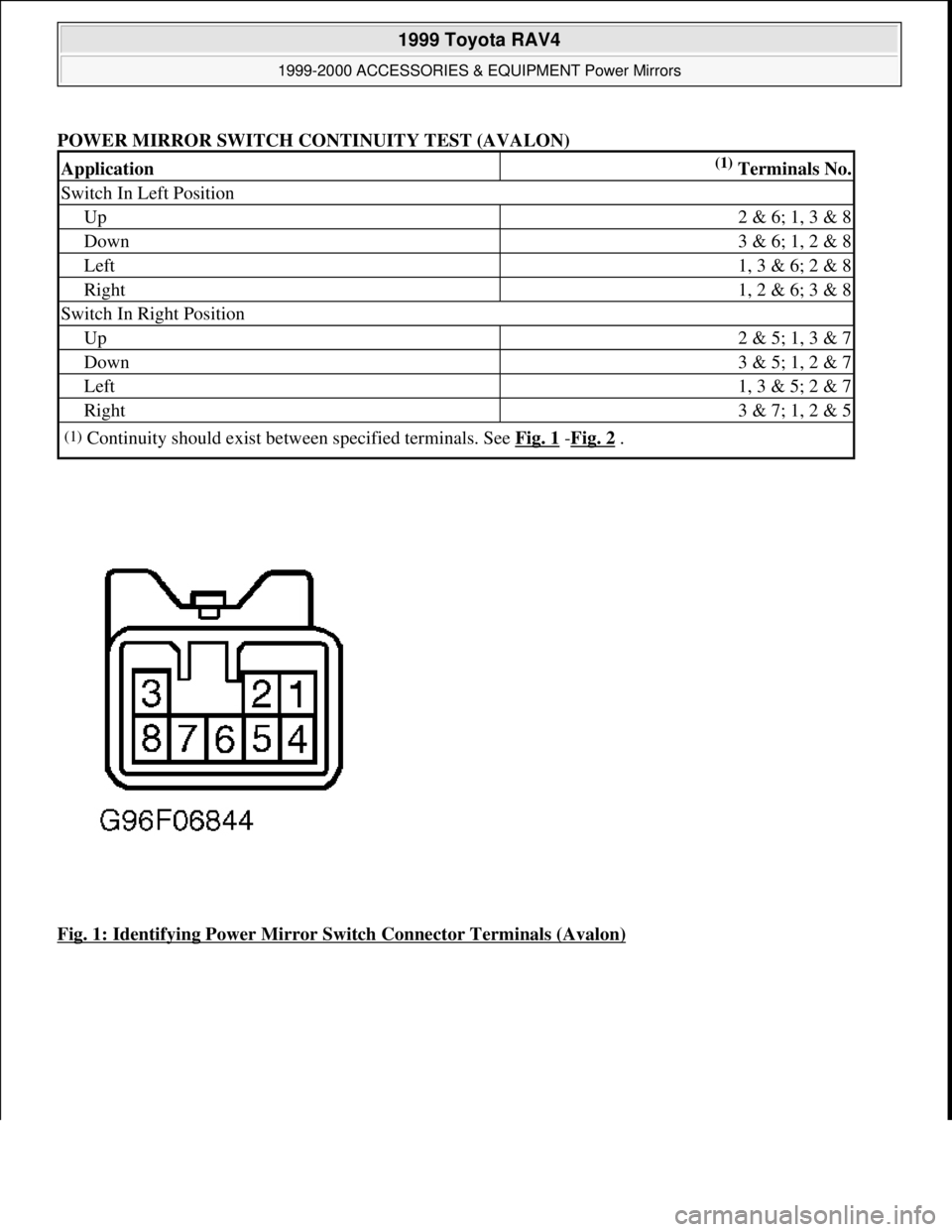

POWER MIRROR SWITCH CONTINUITY TEST (AVALON)
Fig. 1: Identifying Power Mirror Switch Connector Terminals (Avalon)
Application(1) Terminals No.
Switch In Left Position
Up2 & 6; 1, 3 & 8
Down3 & 6; 1, 2 & 8
Left1, 3 & 6; 2 & 8
Right1, 2 & 6; 3 & 8
Switch In Right Position
Up2 & 5; 1, 3 & 7
Down3 & 5; 1, 2 & 7
Left1, 3 & 5; 2 & 7
Right3 & 7; 1, 2 & 5
(1)Continuity should exist between specified terminals. See Fig. 1 -Fig. 2 .

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Mirrors
Microsoft
Sunday, November 22, 2009 10:55:58 AMPage 2 © 2005 Mitchell Repair Information Company, LLC.

Fig. 2: Identifying Power Mirror Motor Connector Terminals (Avalon)
POWER MIRROR SWITCH CONTINUITY TEST (CAMRY & CAMRY SOLARA)
Application(1) Terminals No.
Switch In Left Position
Up1 & 9; 6 & 10
Down1 & 10; 6 & 9
Left5 & 9; 6 & 10
Right5 & 10; 6 & 9
Switch In Right Position
Up6 & 10; 7 & 9
Down6 & 9; 7 & 10
Left6 & 10; 8 & 9
Right6 & 9; 8 & 10
(1)Continuity should exist between specified terminals. See Fig. 3 -Fig. 7 .

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Mirrors
Microsoft
Sunday, November 22, 2009 10:55:58 AMPage 3 © 2005 Mitchell Repair Information Company, LLC.

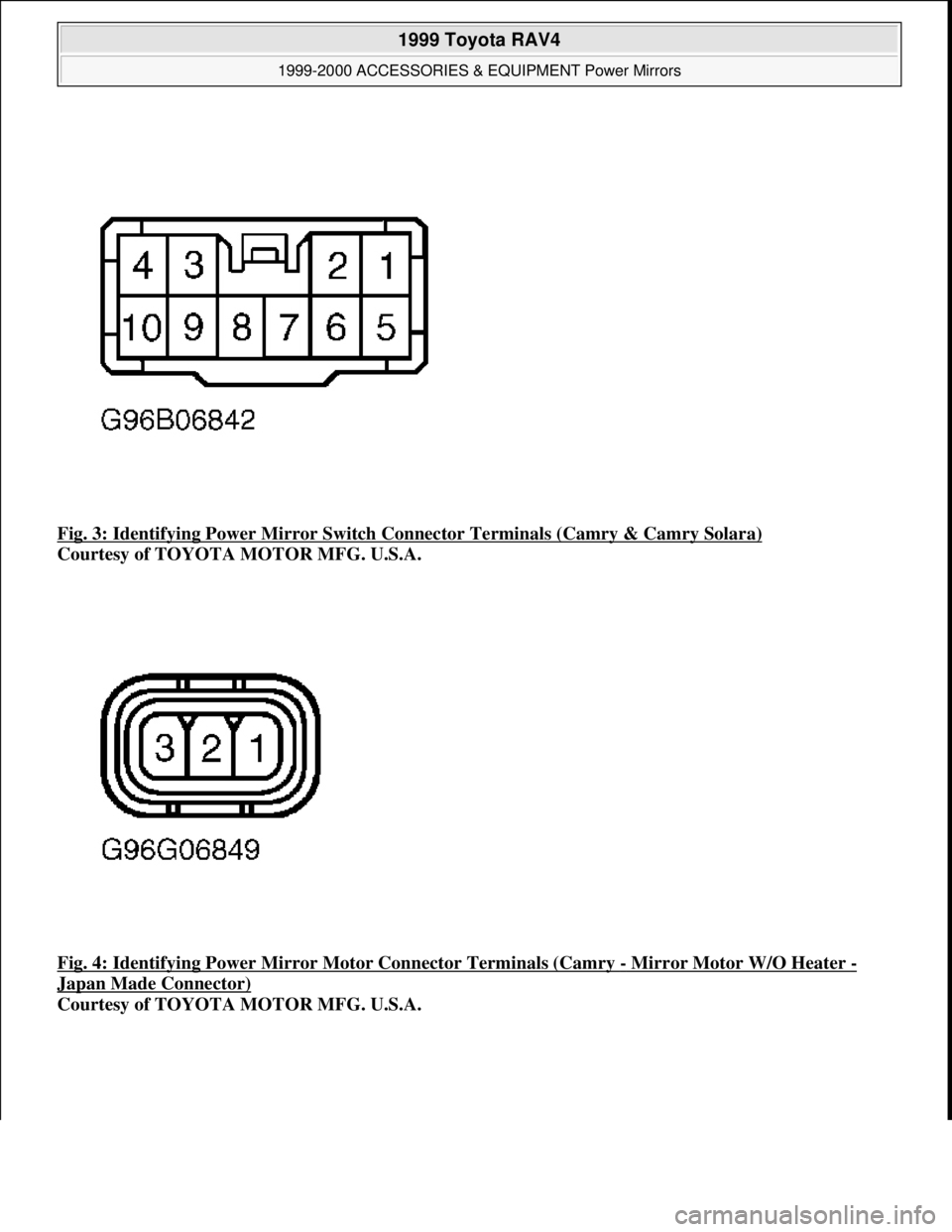

Fig. 3: Identifying Power Mirror Switch Connector Terminals (Camry & Camry Solara)
Courtesy of TOYOTA MOTOR MFG. U.S.A.
Fig. 4: Identifying Power Mirror Motor Connector Terminals (Camry
- Mirror Motor W/O Heater -
Japan Made Connector)

Courtesy of TOYOTA MOTOR MFG. U.S.A.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Mirrors
Microsoft
Sunday, November 22, 2009 10:55:58 AMPage 4 © 2005 Mitchell Repair Information Company, LLC.

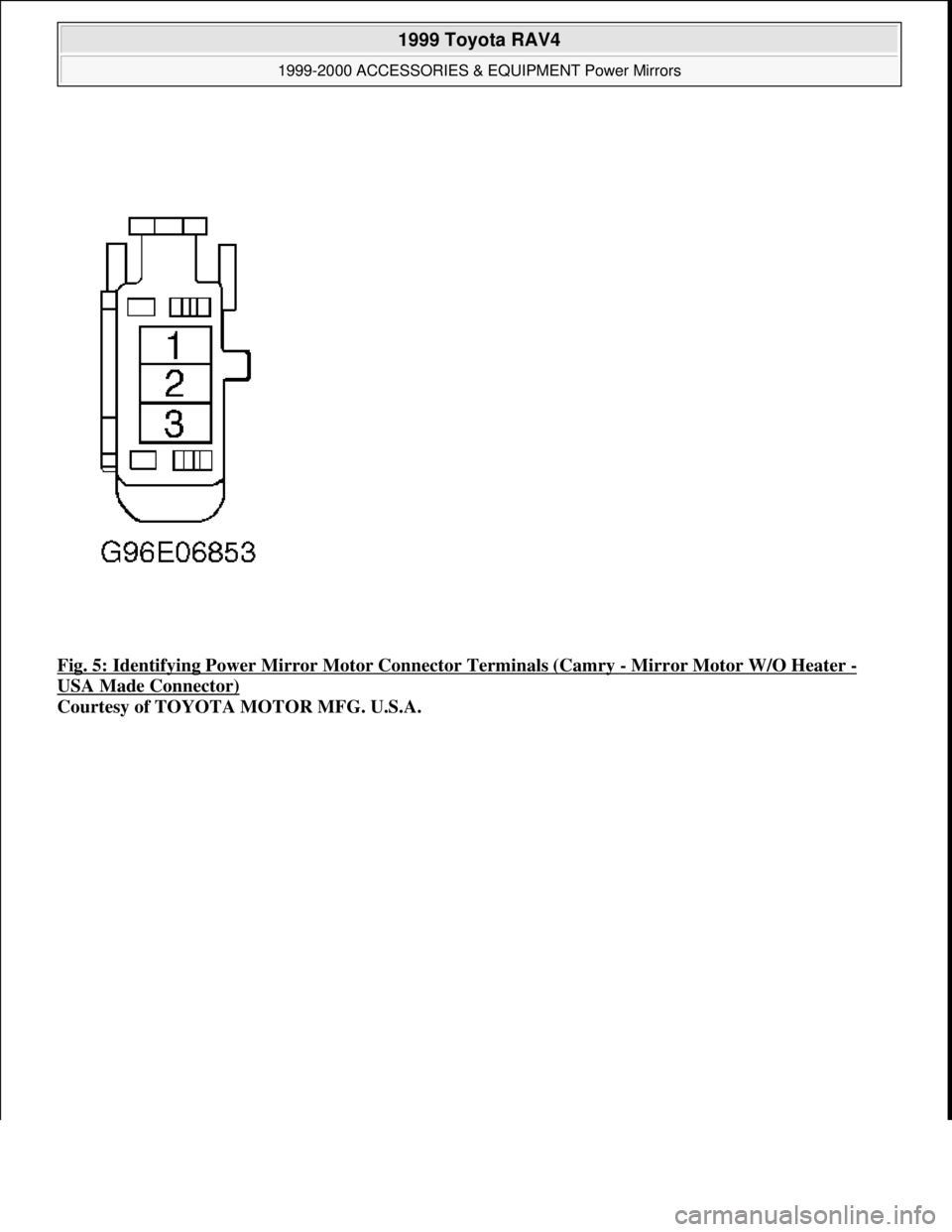

Fig. 5: Identifying Power Mirror Motor Connector Terminals (Camry - Mirror Motor W/O Heater -
USA Made Connector)

Courtesy of TOYOTA MOTOR MFG. U.S.A.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Mirrors
Microsoft
Sunday, November 22, 2009 10:55:58 AMPage 5 © 2005 Mitchell Repair Information Company, LLC.

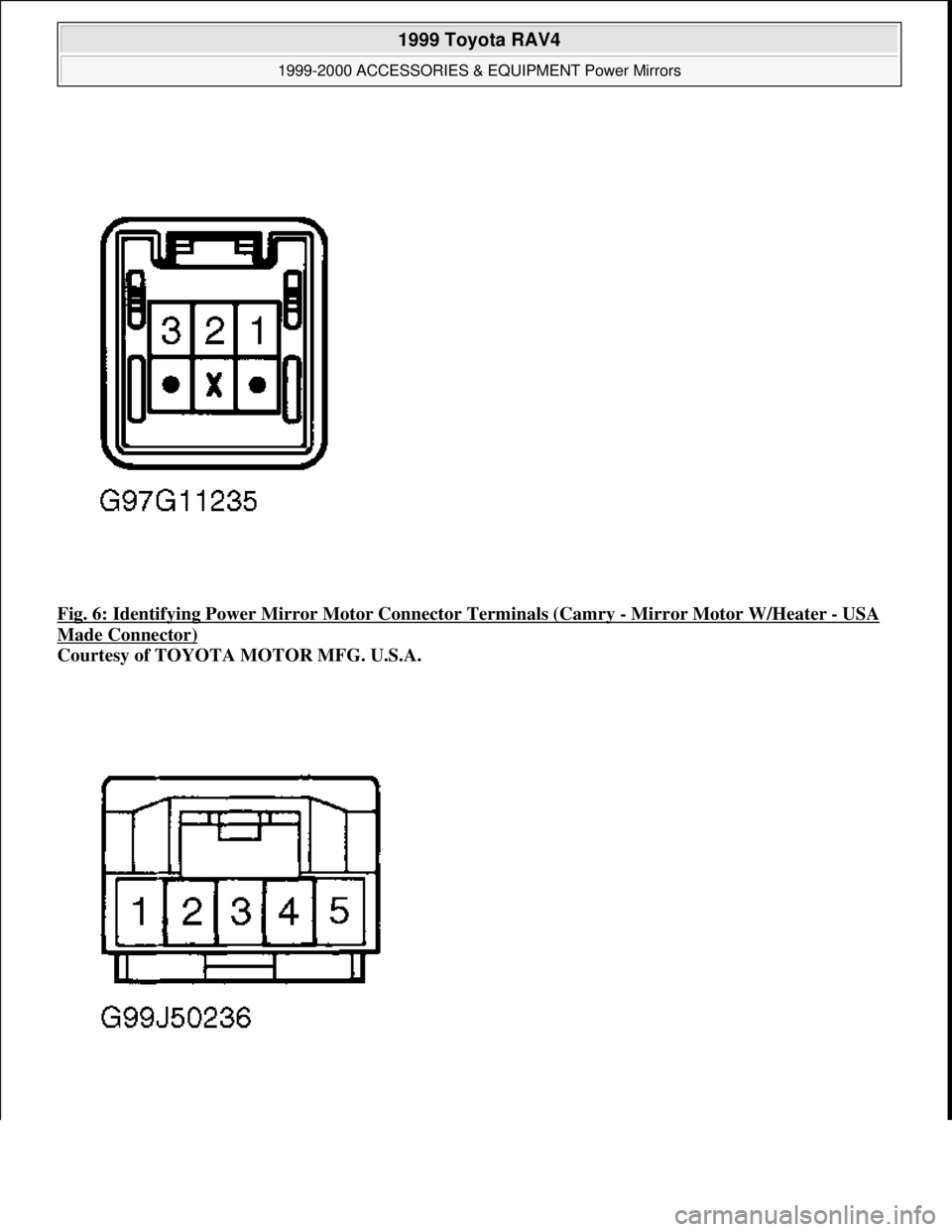

Fig. 6: Identifying Power Mirror Motor Connector Terminals (Camry - Mirror Motor W/Heater - USA
Made Connector)
Courtesy of TOYOTA MOTOR MFG. U.S.A.

1999 Toyota RAV4
1999-2000 ACCESSORIES & EQUIPMENT Power Mirrors
Microsoft
Sunday, November 22, 2009 10:55:58 AMPage 6 © 2005 Mitchell Repair Information Company, LLC.
