Page 121 of 1954

ACURA RL KA9 1996 Service Repair Manual

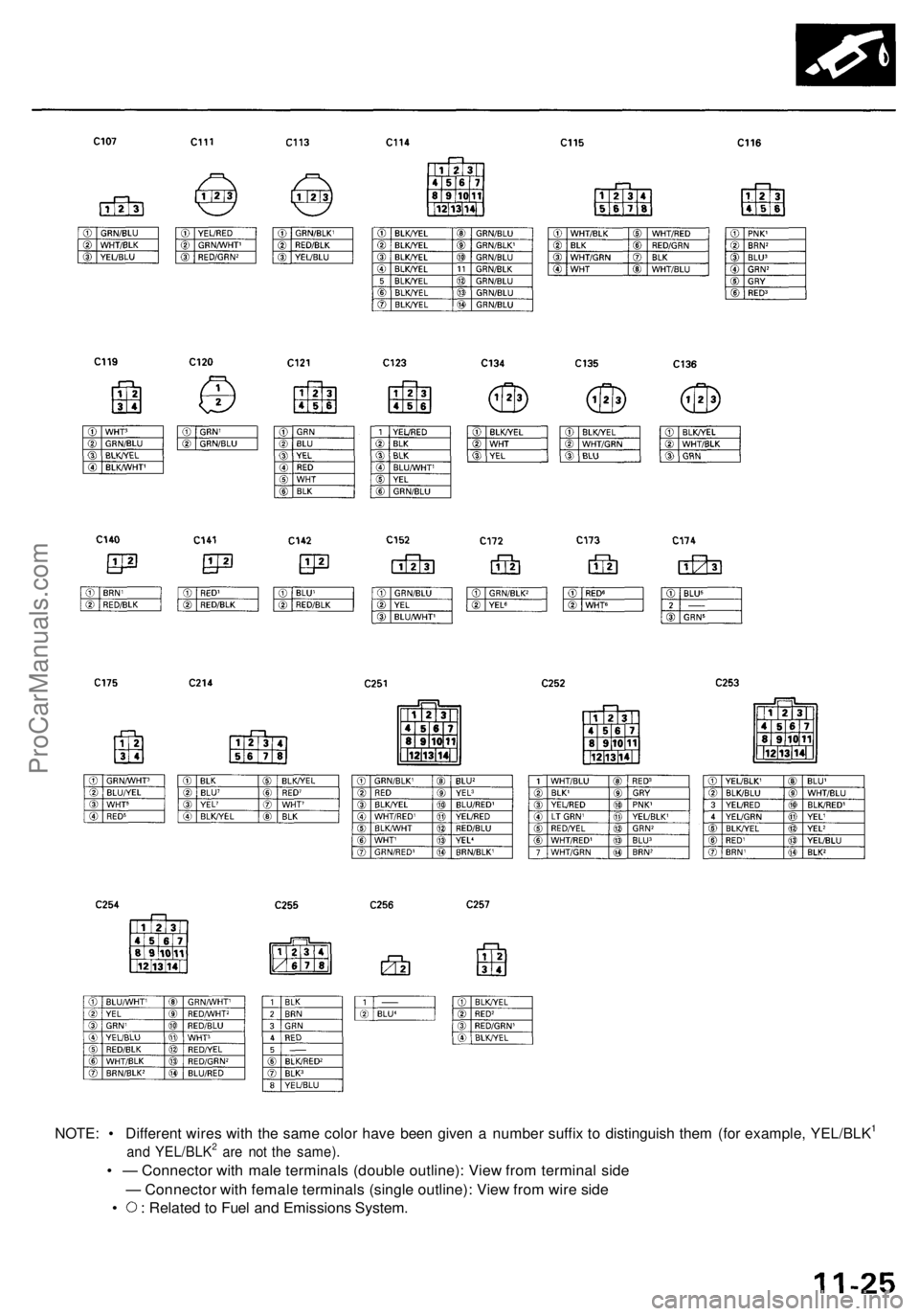

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

• — Connector with male terminals (doubl

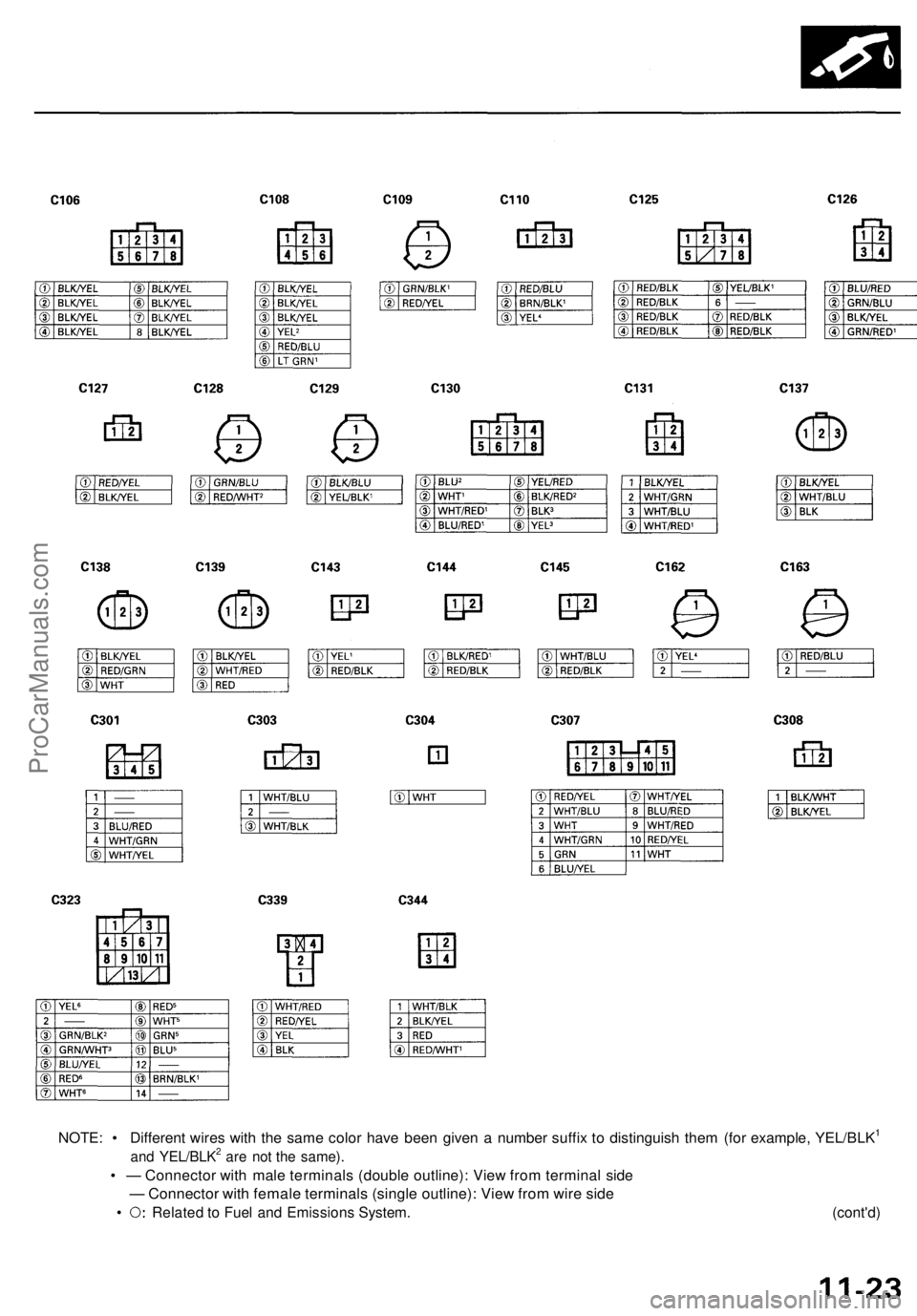

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire side

• Related to Fuel and Emissions System. (cont'd)ProCarManuals.com

Page 122 of 1954

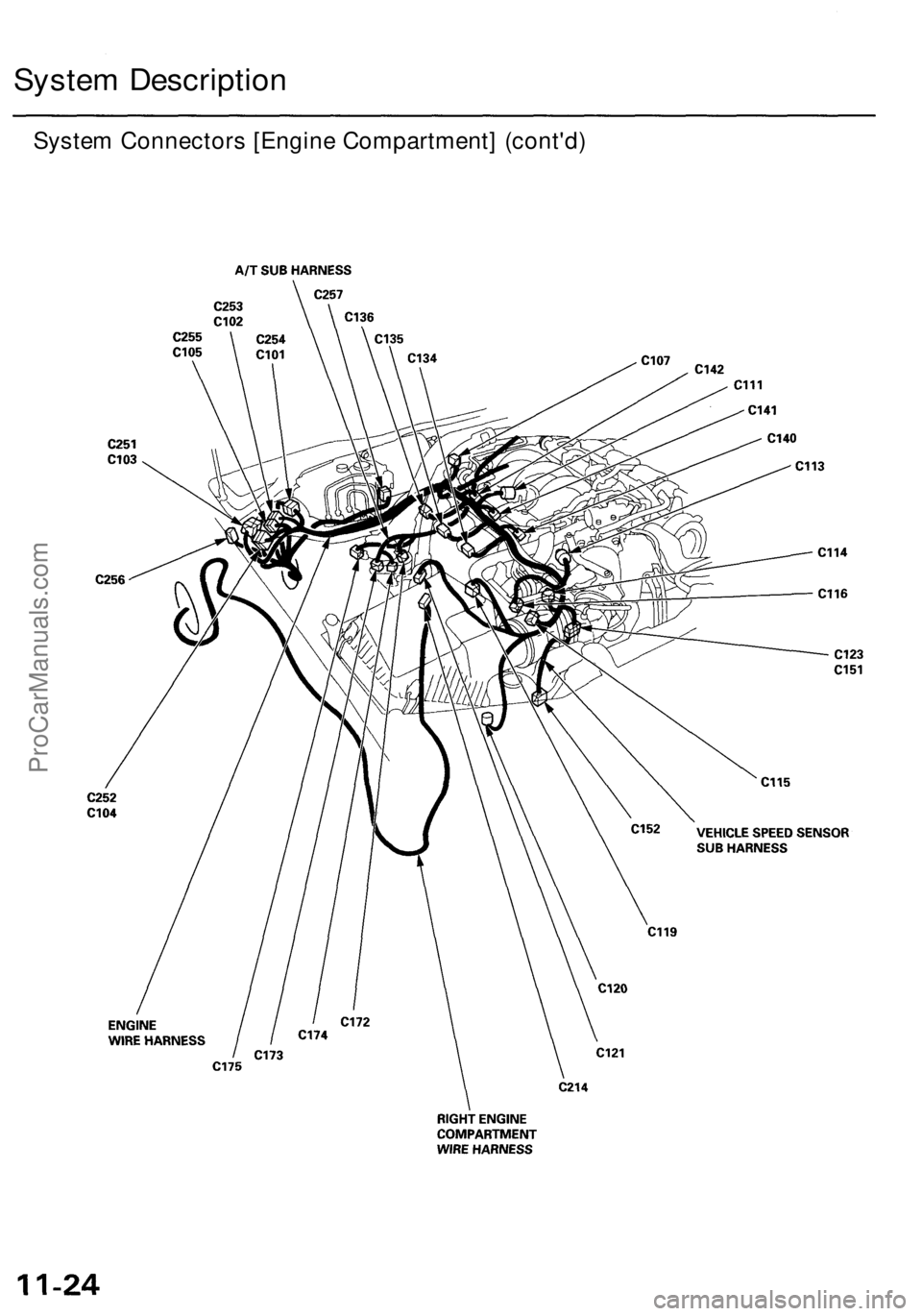

System Connectors [Engine Compartment] (cont'd)
System DescriptionProCarManuals.com

Page 123 of 1954

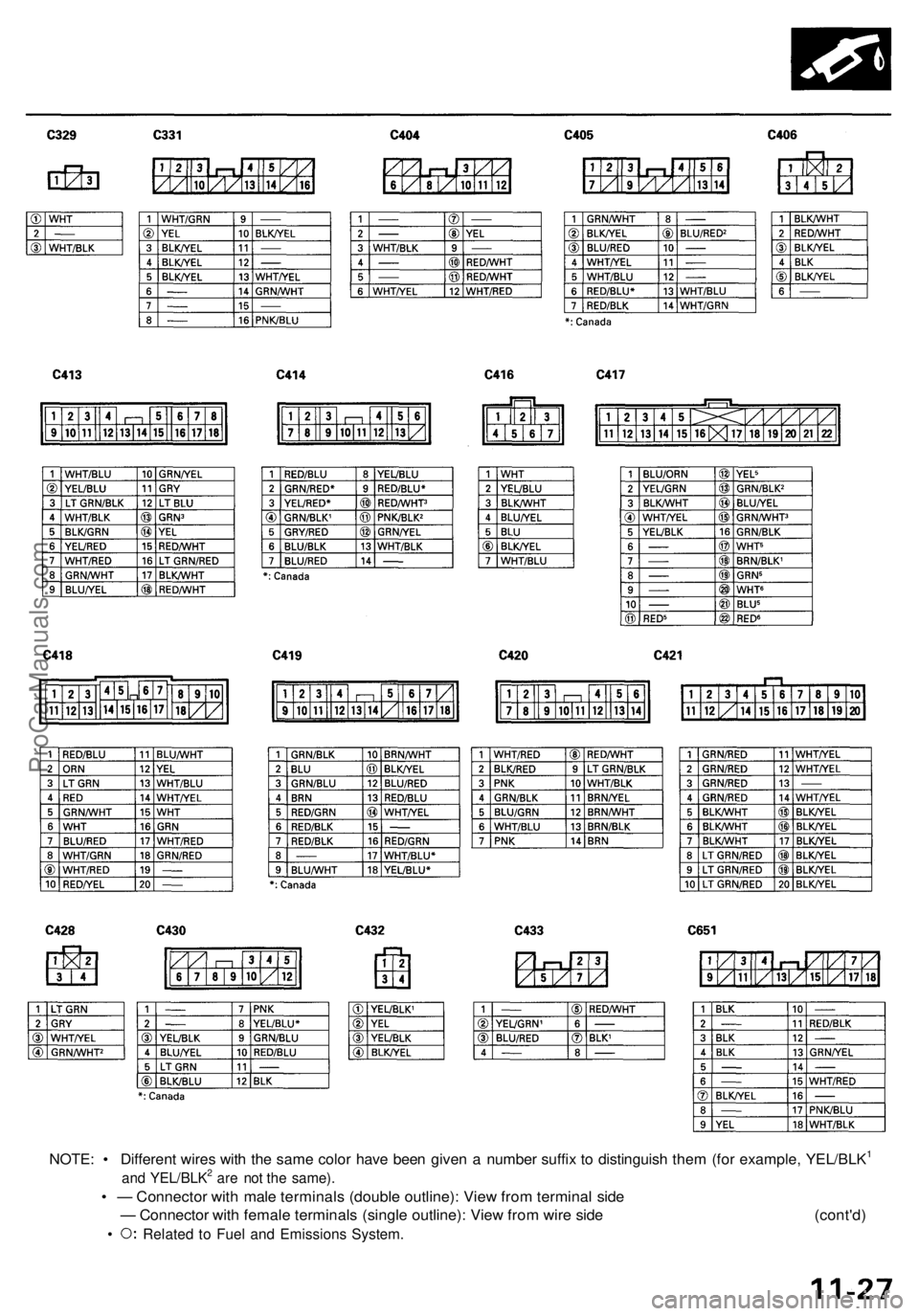

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire side

• : Related to Fuel and Emissions System.ProCarManuals.com

Page 124 of 1954

System Description

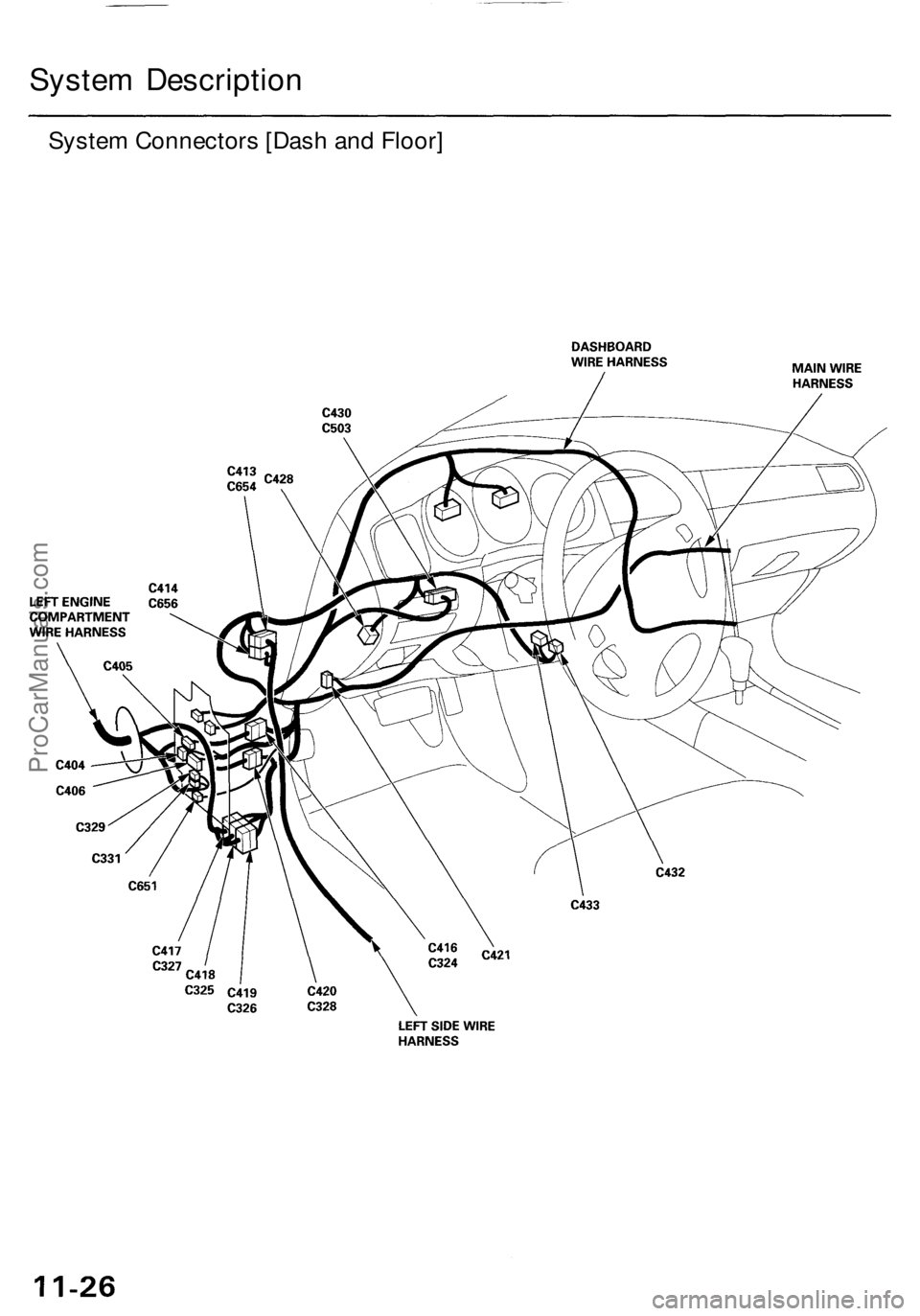

System Connectors [Dash and Floor]ProCarManuals.com

Page 125 of 1954

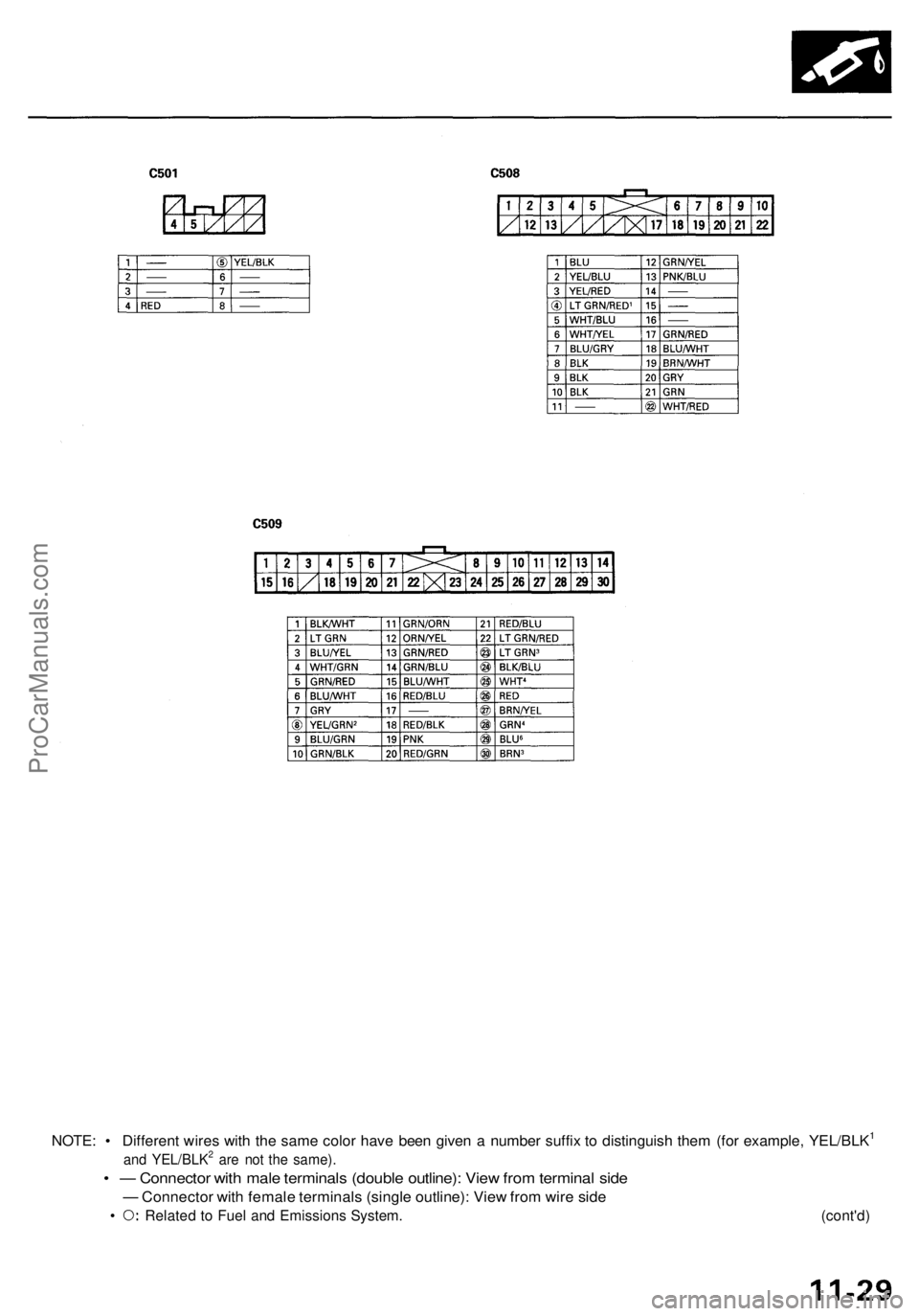

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

• — Connector with male terminals (double outline): View from terminal side

— Connector with female terminals (single outline): View from wire side (cont'd)

• Related to Fuel and Emissions System.ProCarManuals.com

Page 126 of 1954

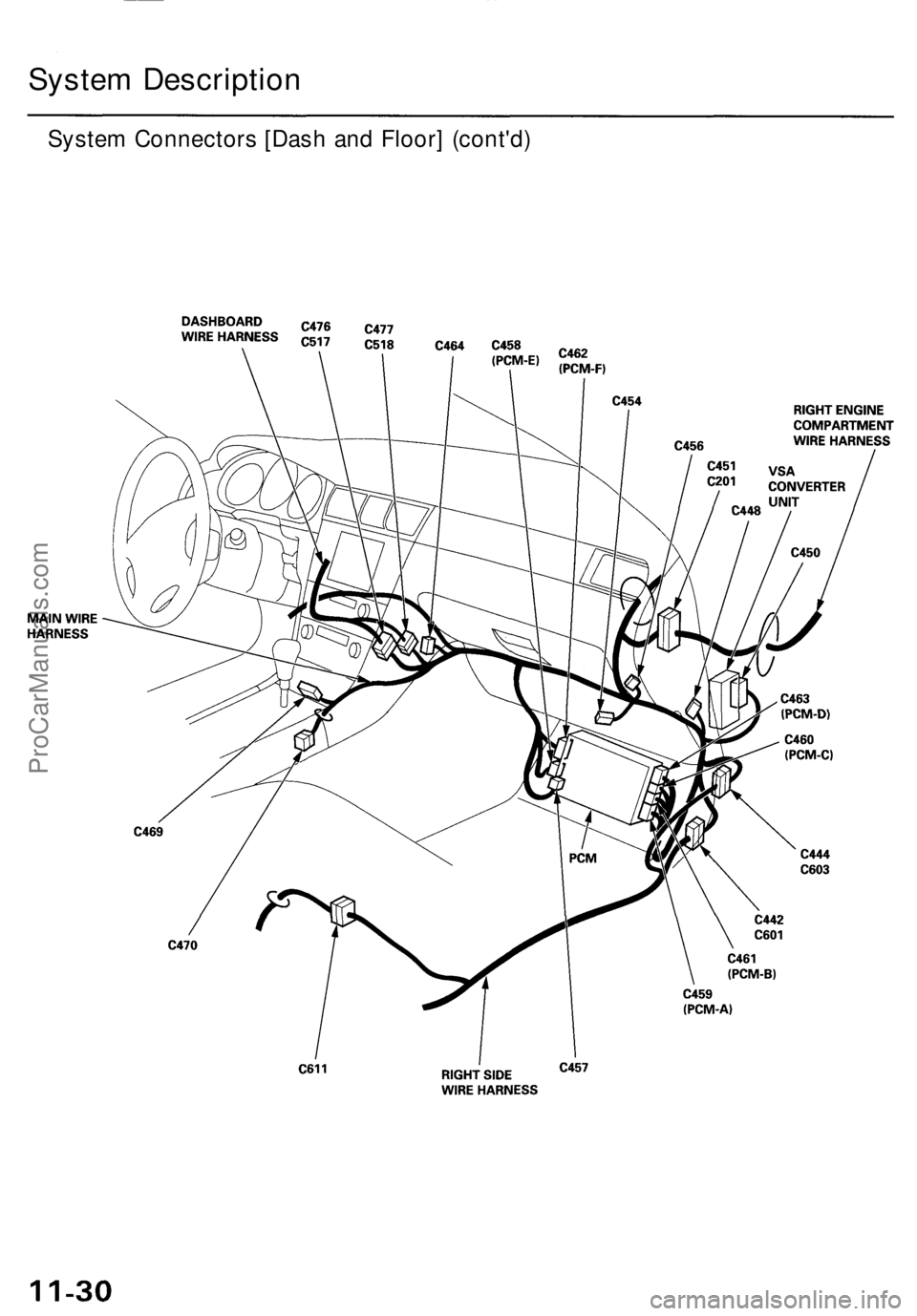

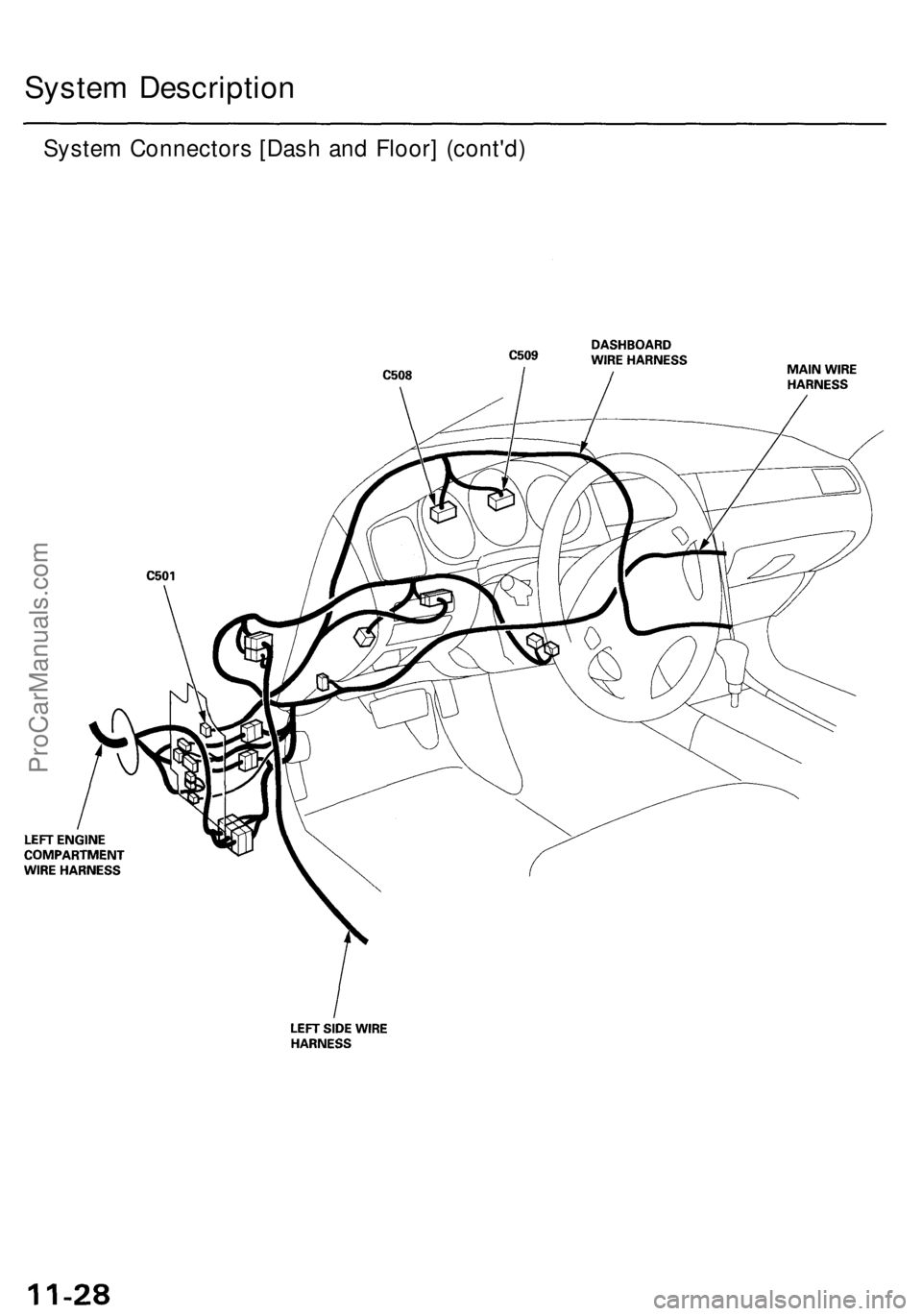

System Description

System Connectors [Dash and Floor] (cont'd)ProCarManuals.com

Page 127 of 1954

Page 128 of 1954

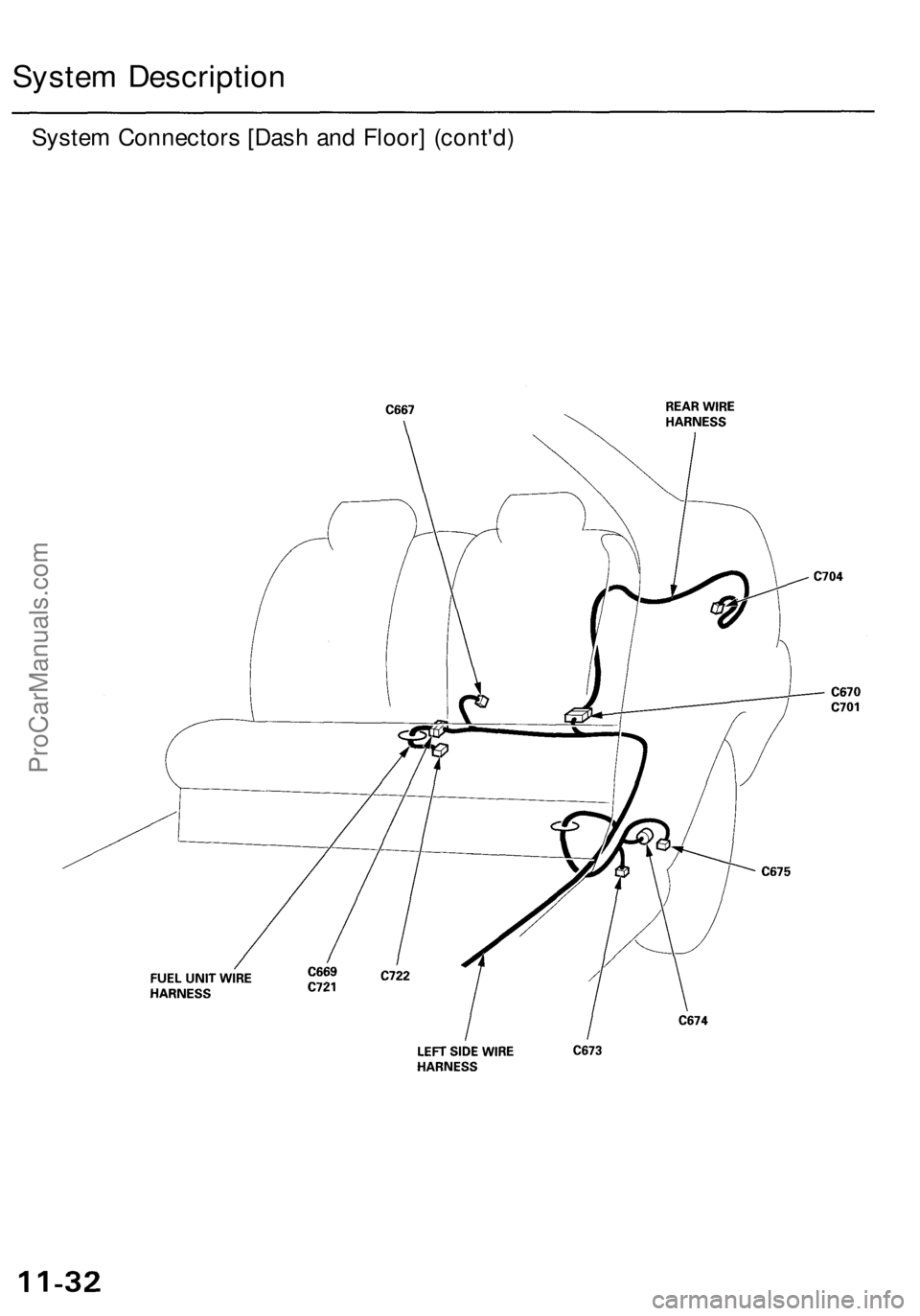

System Connectors [Dash and Floor] (cont'd)
System DescriptionProCarManuals.com

Page 129 of 1954

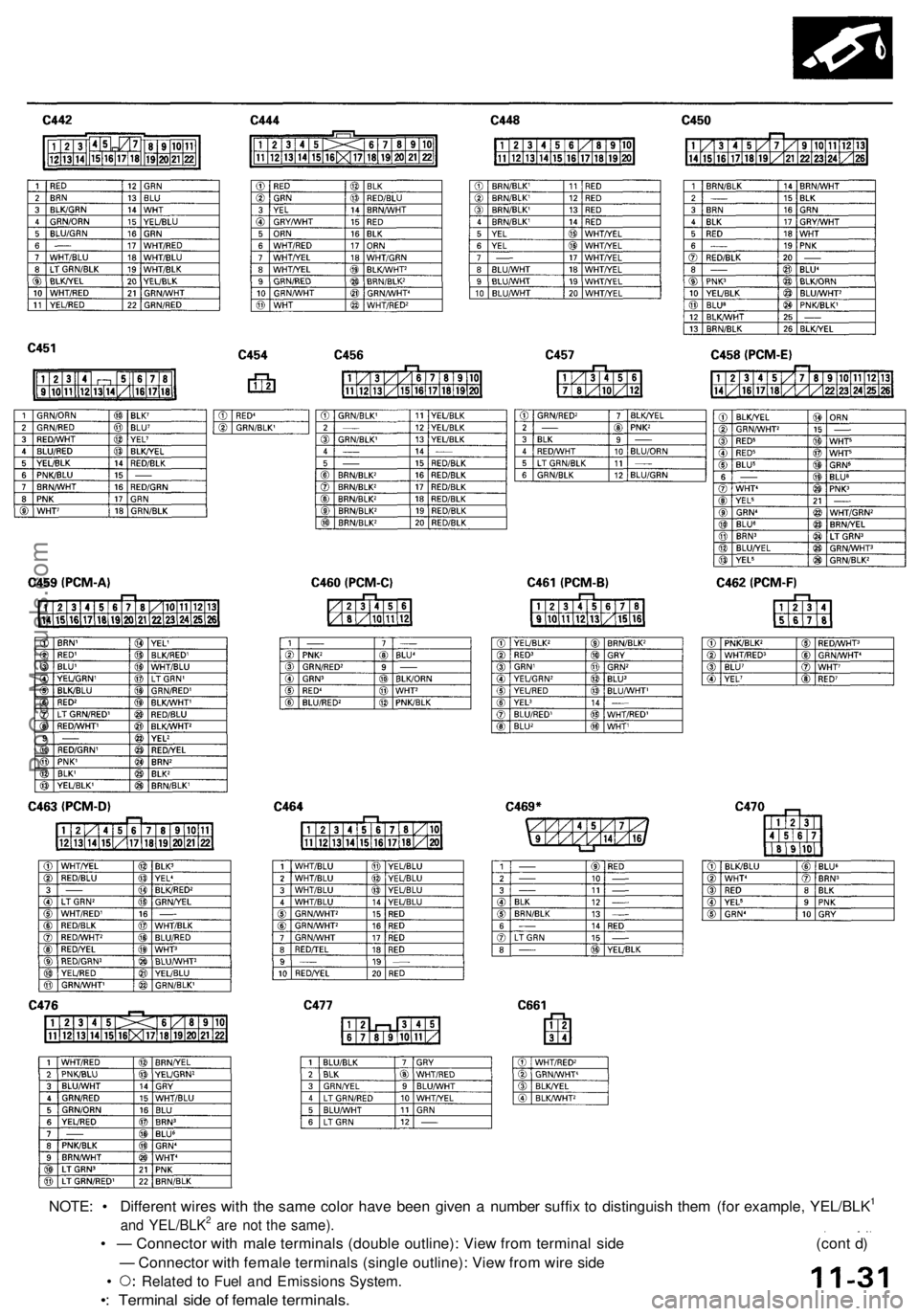

NOTE: • Different wires with the same color have been given a number suffix to distinguish them (for example, YEL/BLK1

and YEL/BLK2 are not the same).

• — Connector with male terminals (double outline): View from terminal side (cont d)

— Connector with female terminals (single outline): View from wire side

• Related to Fuel and Emissions System.

•: Terminal side of female terminals.ProCarManuals.com
