2AZ-FE ENGINE MECHANICAL – CYLINDER HEADEM–67
EM
4. INSPECT CAMSHAFT TIMING GEAR ASSEMBLY
(a) Check the lock of the camshaft timing gear.
(1) Clamp the camshaft in a vise, and confirm that
the camshaft timing gear is locked.
NOTICE:
Be careful not to damage the camshaft.
(b) Release the lock pin.

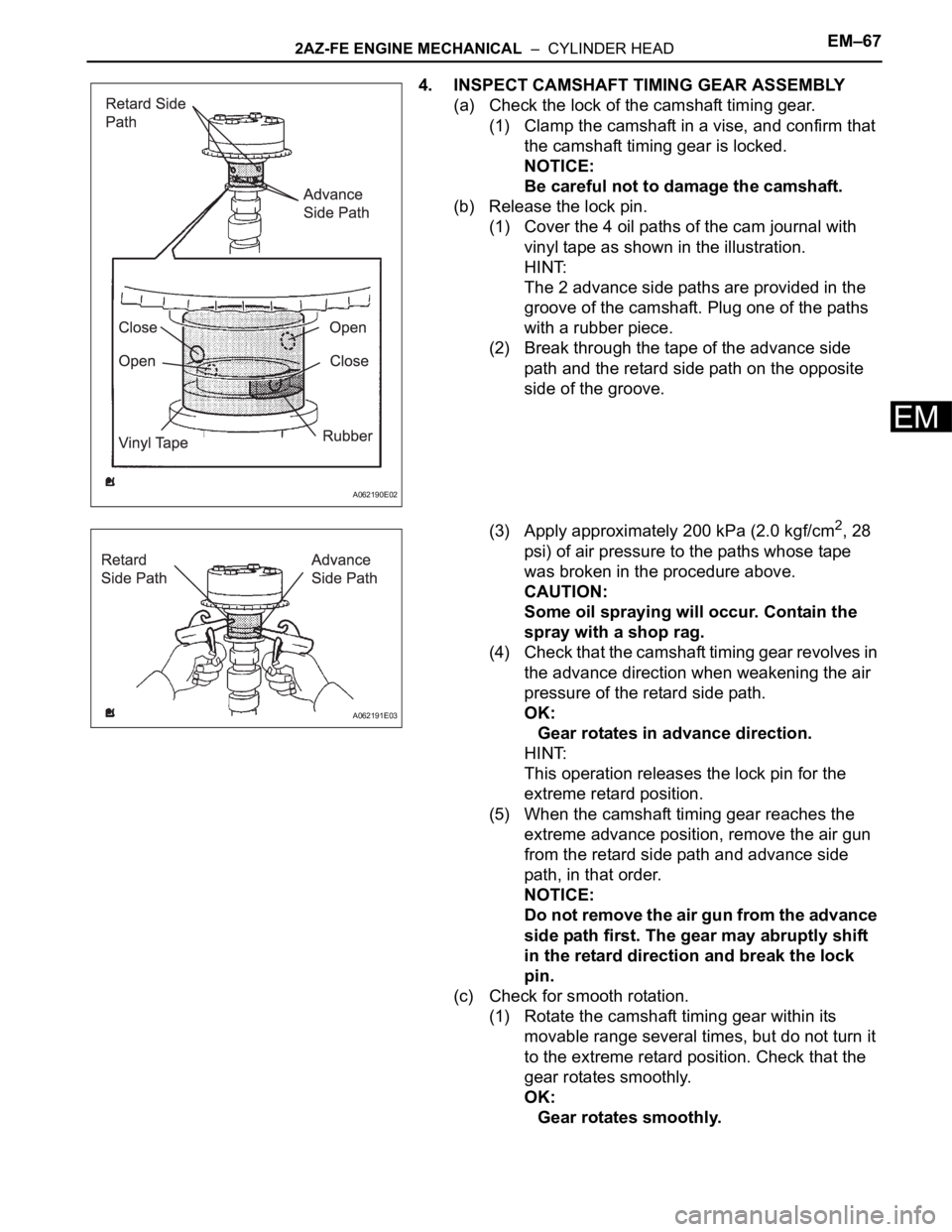

(1) Cover the 4 oil paths of the cam journal with
vinyl tape as shown in the illustration.
HINT:
The 2 advance side paths are provided in the
groove of the camshaft. Plug one of the paths
with a rubber piece.
(2) Break through the tape of the advance side
path and the retard side path on the opposite
side of the groove.
(3) Apply approximately 200 kPa (2.0 kgf/cm
2, 28
psi) of air pressure to the paths whose tape
was broken in the procedure above.
CAUTION:
Some oil spraying will occur. Contain the
spray with a shop rag.
(4) Check that the camshaft timing gear revolves in
the advance direction when weakening the air
pressure of the retard side path.
OK:
Gear rotates in advance direction.
HINT:
This operation releases the lock pin for the
extreme retard position.
(5) When the camshaft timing gear reaches the
extreme advance position, remove the air gun
from the retard side path and advance side
path, in that order.
NOTICE:
Do not remove the air gun from the advance
side path first. The gear may abruptly shift
in the retard direction and break the lock
pin.
(c) Check for smooth rotation.
(1) Rotate the camshaft timing gear within its
movable range several times, but do not turn it
to the extreme retard position. Check that the
gear rotates smoothly.
OK:
Gear rotates smoothly.
A062190E02
A062191E03

EM–682AZ-FE ENGINE MECHANICAL – CYLINDER HEAD
EM
NOTICE:
Do not use an air gun to perform the
smooth operation check.
(d) Check the lock in the extreme retard position.
(1) Confirm that the camshaft timing gear is locked
at the extreme retard position.
5. INSPECT CAMSHAFT

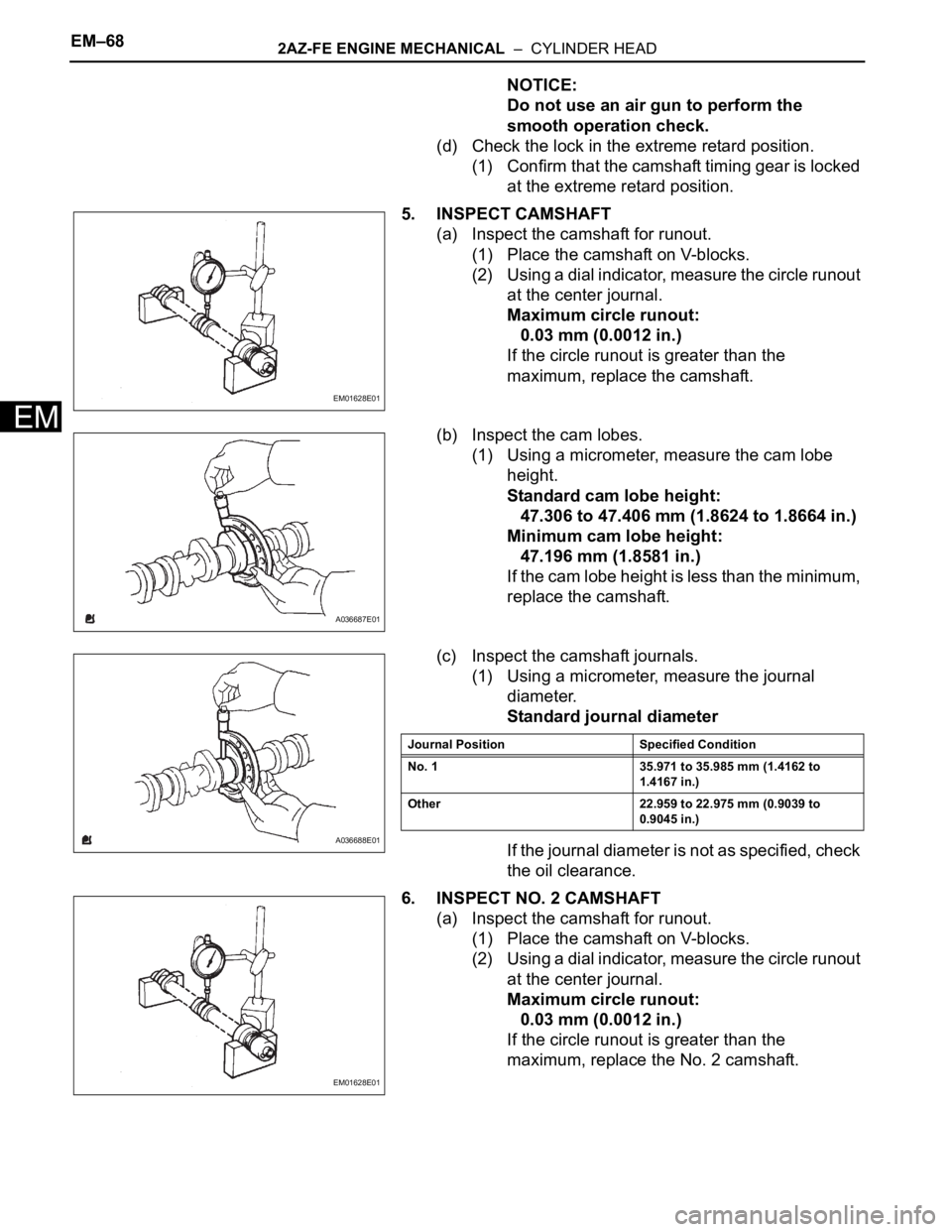

(a) Inspect the camshaft for runout.
(1) Place the camshaft on V-blocks.
(2) Using a dial indicator, measure the circle runout
at the center journal.
Maximum circle runout:
0.03 mm (0.0012 in.)
If the circle runout is greater than the
maximum, replace the camshaft.
(b) Inspect the cam lobes.
(1) Using a micrometer, measure the cam lobe
height.
Standard cam lobe height:
47.306 to 47.406 mm (1.8624 to 1.8664 in.)
Minimum cam lobe height:
47.196 mm (1.8581 in.)
If the cam lobe height is less than the minimum,
replace the camshaft.
(c) Inspect the camshaft journals.
(1) Using a micrometer, measure the journal
diameter.
Standard journal diameter
If the journal diameter is not as specified, check
the oil clearance.
6. INSPECT NO. 2 CAMSHAFT
(a) Inspect the camshaft for runout.
(1) Place the camshaft on V-blocks.
(2) Using a dial indicator, measure the circle runout
at the center journal.
Maximum circle runout:
0.03 mm (0.0012 in.)
If the circle runout is greater than the
maximum, replace the No. 2 camshaft.
EM01628E01
A036687E01
A036688E01
Journal Position Specified Condition
No. 1 35.971 to 35.985 mm (1.4162 to
1.4167 in.)
Other 22.959 to 22.975 mm (0.9039 to
0.9045 in.)
EM01628E01

2AZ-FE ENGINE MECHANICAL – CYLINDER HEADEM–69
EM
(b) Inspect the cam lobes.
(1) Using a micrometer, measure the cam lobe
height.
Standard cam lobe height:
45.983 to 46.083 mm (1.8104 to 1.8143 in.)
Minimum cam lobe height:
45.873 mm (1.8060 in.)
If the cam lobe height is less than the minimum,
replace the No. 2 camshaft.
(c) Inspect the camshaft journals.
(1) Using a micrometer, measure the journal
diameter.
Standard journal diameter
If the journal diameter is not as specified, check
the oil clearance.
7. INSPECT CAMSHAFT OIL CLEARANCE
(a) Clean the 10 bearing caps and camshaft journals.
(b) Place the 2 camshafts on the cylinder head.

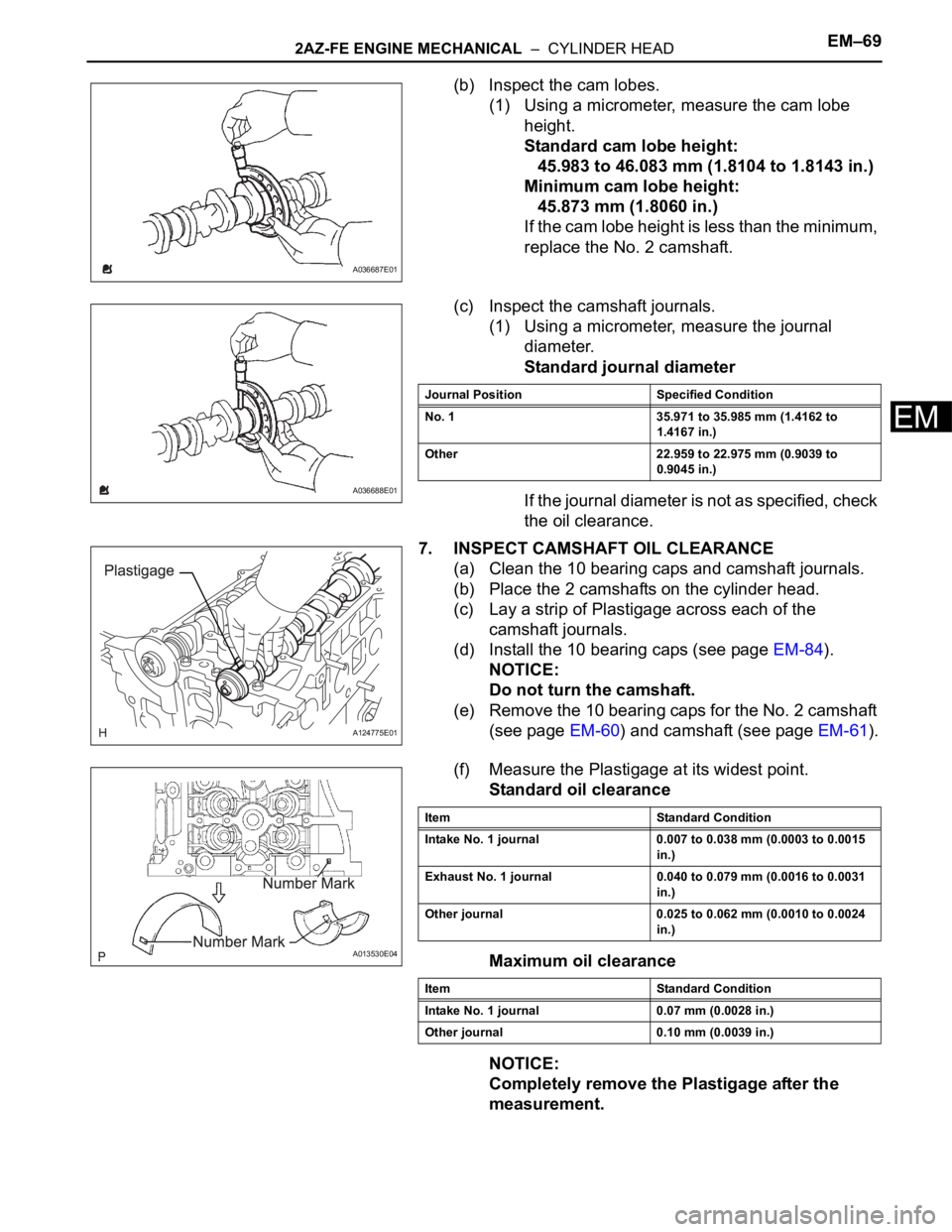

(c) Lay a strip of Plastigage across each of the
camshaft journals.
(d) Install the 10 bearing caps (see page EM-84).
NOTICE:
Do not turn the camshaft.
(e) Remove the 10 bearing caps for the No. 2 camshaft
(see page EM-60) and camshaft (see page EM-61).
(f) Measure the Plastigage at its widest point.
Standard oil clearance
Maximum oil clearance
NOTICE:
Completely remove the Plastigage after the
measurement.
A036687E01
A036688E01
Journal Position Specified Condition
No. 1 35.971 to 35.985 mm (1.4162 to
1.4167 in.)
Other 22.959 to 22.975 mm (0.9039 to
0.9045 in.)
A124775E01
A013530E04
Item Standard Condition
Intake No. 1 journal 0.007 to 0.038 mm (0.0003 to 0.0015
in.)
Exhaust No. 1 journal 0.040 to 0.079 mm (0.0016 to 0.0031
in.)
Other journal 0.025 to 0.062 mm (0.0010 to 0.0024
in.)
Item Standard Condition
Intake No. 1 journal 0.07 mm (0.0028 in.)
Other journal 0.10 mm (0.0039 in.)

EM–702AZ-FE ENGINE MECHANICAL – CYLINDER HEAD
EM
If the oil clearance on the No. 1 journal is greater
than the maximum, choose a new bearing and
install it.
If the oil clearance on the other journals is greater
than the maximum, replace the cylinder head sub-
assembly or the camshaft.
Standard cylinder head journal bore diameter
Standard bearing center wall thickness
Standard camshaft journal diameter:
35.971 to 35.985 mm (1.4162 to 1.4167 in.)
8. INSPECT CAMSHAFT THRUST CLEARANCE
(a) Install the 2 camshafts (see page EM-84).
(b) Using a dial indicator, measure the thrust clearance
while moving the camshaft back and forth.
Standard thrust clearance
Maximum thrust clearance
If the thrust clearance is greater than the maximum,
replace the cylinder head.
If damage is found on the camshaft thrust surfaces,
replace the camshaft.
Mark Standard Condition
Mark 1 40.000 to 40.008 mm (1.5748 to
1.5751 in.)
Mark 2 40.009 to 40.017 mm (1.5752 to
1.5755 in.)
Mark 3 40.018 to 40.025 mm (1.5755 to
1.5758 in.)
Mark Standard Condition
Mark 1 2.000 to 2.004 mm (0.0787 to 0.0789
in.)
Mark 2 2.005 to 2.008 mm (0.0789 to 0.0791
in.)
Mark 3 2.009 to 2.012 mm (0.0791 to 0.0792
in.)
A036626E02
Item Standard Condition
Intake 0.040 to 0.095 mm (0.0016 to 0.0037
in.)
Exhaust 0.080 to 0.135 mm (0.0032 to 0.0053
in.)
Item Standard Condition
Intake 0.11 mm (0.0043 in.)
Exhaust 0.15 mm (0.0059 in.)

2AZ-FE ENGINE MECHANICAL – CYLINDER HEADEM–71
EM
9. INSPECT VALVE LIFTER
(a) Using a micrometer, measure the lifter diameter.
Standard lifter diameter:
30.966 to 30.976 mm (1.2191 to 1.2195 in.)
If the diameter is not as specified, replace the valve
lifter.
10. INSPECT VALVE LIFTER OIL CLEARANCE
(a) Using a caliper gauge, measure the valve lifter bore
diameter of the cylinder head.
Standard lifter bore diameter:
31.009 to 31.025 mm (1.2208 to 1.2215 in.)
If the diameter is not as specified, replace the
cylinder head sub-assembly.
(b) Subtract the valve lifter diameter measurement from
the valve lifter bore diameter measurement.
Standard oil clearance:
0.033 to 0.059 mm (0.0013 to 0.0023 in.)
Maximum oil clearance:
0.079 mm (0.0031 in.)
If the oil clearance is greater than the maximum,
replace the valve lifter. If necessary, replace the
cylinder head sub-assembly.
11. INSPECT INNER COMPRESSION SPRING
(a) Using a vernier caliper, measure the free length of
the valve spring.
Standard free length:
47.43 mm (1.8673 in.)
If the length is not as specified, replace the inner
compression spring.
(b) Using a steel square, measure the deviation of the
inner compression spring.
Maximum deviation:
1.6 mm (0.063 in.)
Maximum angle (Reference):
2
If the deviation is greater than the maximum,
replace the inner compression spring.
P016860E02
A013374E01
A051437E01
A062784E02

EM–722AZ-FE ENGINE MECHANICAL – CYLINDER HEAD
EM
12. INSPECT INTAKE VALVE
(a) Using a gasket scraper, chip off any carbon on the
valve head.
(b) Using a wire brush, thoroughly clean the valve.
(c) Using a vernier caliper, measure the valve overall
length.
Standard overall length:
101.71 mm (4.0043 in.)
Minimum overall length:
101.21 mm (3.9846 in.)
If the overall length is less than the minimum,
replace the intake valve.
(d) Using a micrometer, measure the diameter of the
valve stem.
Standard valve stem diameter:
5.470 to 5.485 mm (0.2154 to 0.2159 in.)
If the diameter is not as specified, replace the intake
valve.
(e) Using a vernier caliper, measure the valve head
margin thickness.
Standard margin thickness:
1.25 mm (0.0492 in.)
Minimum margin thickness:
1.05 mm (0.0413 in.)
If the diameter is not as specified, replace the intake
valve.
13. INSPECT EXHAUST VALVE
(a) Using a gasket scraper, chip off any carbon on the
valve head.
(b) Using a wire brush, thoroughly clean the valve.
A126904
EM02534E05
A032770E02
A062785E03
A126904

2AZ-FE ENGINE MECHANICAL – CYLINDER HEADEM–73
EM
(c) Using a vernier caliper, measure the valve overall
length.
Standard overall length:
101.15 mm (3.9823 in.)
Minimum overall length:
100.70 mm (3.9646 in.)
If the overall length is less than the minimum,
replace the exhaust valve.
(d) Using a micrometer, measure the diameter of the
valve stem.
Standard valve stem diameter:
5.465 to 5.480 mm (0.2152 to 0.2158 in.)
If the overall length is less than the minimum,
replace the exhaust valve.
(e) Using a vernier caliper, measure the valve head
margin thickness.
Standard margin thickness:
1.40 mm (0.0551 in.)
Minimum margin thickness:
1.20 mm (0.0472 in.)
If the overall length is less than the minimum,
replace the exhaust valve.
14. INSPECT INTAKE VALVE GUIDE BUSH
(a) Using a caliper gauge, measure the inside diameter
of the guide bush.
Standard bush inside diameter:
5.510 to 5.530 mm (0.2169 to 0.2177 in.)
If the inside diameter is not as specified, replace the
intake valve guide bush.
(b) Subtract the valve stem diameter measurement
from the guide bush inside diameter measurement.
Standard oil clearance:
0.025 to 0.060 mm (0.0010 to 0.0024 in.)
Maximum oil clearance:
0.08 mm (0.0032 in.)
If the clearance is greater than the maximum,
replace the valve and intake guide bush.
EM02534E05
A032770E02
A062785E03
A013367E01

EM–742AZ-FE ENGINE MECHANICAL – CYLINDER HEAD
EM
15. INSPECT EXHAUST VALVE GUIDE BUSH
(a) Using a caliper gauge, measure the inside diameter
of the guide bush.
Standard bush inside diameter:
5.510 to 5.530 mm (0.2169 to 0.2177 in.)
If the inside diameter is not as specified, replace the
exhaust valve guide bush.
(b) Subtract the valve stem diameter measurement
from the guide bush inside diameter measurement.
Standard oil clearance:
0.030 to 0.065 mm (0.0012 to 0.0026 in.)
Maximum oil clearance:
0.10 mm (0.004 in.)
If the clearance is greater than the maximum,
replace the valve and exhaust valve guide bush.
16. INSPECT CYLINDER HEAD SET BOLT
(a) Using a vernier caliper, measure the length of the
head bolts from the seat to the end.
Standard bolt length:
141.3 to 142.7 mm (5.563 to 5.618 in.)
Maximum bolt length:
144.2 mm (5.677 in.)
If the bolt length is greater than the maximum,
replace the cylinder head set bolt.
17. INSPECT EXHAUST MANIFOLD
(a) Using a precision straightedge and a feeler gauge,
measure the surface contacting the cylinder head
for warpage.
Maximum warpage:
0.70 mm (0.028 in.)
If the warpage is greater than the maximum, replace
the exhaust manifold.
REPLACEMENT
1. REPLACE INTAKE VALVE GUIDE BUSH
(a) Heat the cylinder head to 80 to 100
C (176 to
212
F).
(b) Place the cylinder head on wooden blocks.
A013367E01
A094201E01
A124780
A124781

2AZ-FE ENGINE MECHANICAL – CYLINDER HEADEM–75
EM
(c) Using SST and a hammer, tap out the guide bush.
SST 09201-10000 (09201-01050), 09950-70010
(09951-07100)
(d) Heat the cylinder head to 80 to 100
C (176 to
212
F).
(e) Place the cylinder head on wooden blocks.
(f) Using a caliper gauge, measure the bush bore
diameter of the cylinder head.
Standard diameter:
10.285 to 10.306 mm (0.4049 to 0.4058 in.)
If the bush bore diameter of the cylinder head is
greater than 10.306 mm (0.4058 in.), machine the
bush bore to the dimension of 10.335 to 10.365 mm
(0.4068 to 0.4077 in.).
Standard valve guide bush diameter
If the bushing bore diameter of the cylinder head is
greater than 10.394 mm (0.4092 in.), replace the
cylinder head.
(g) Using SST and a hammer, tap in a new guide bush
to the specified protrusion height.
SST 09201-10000 (09201-01050), 09950-70010
(09951-07100)
Standard protrusion height:
9.6 to 10.0 mm (0.378 to 0.394 in.)
A098136E01
A124781
A124782Condition Specified Condition
STD 10.333 to 10.344 mm (0.4068 to
0.4072 in.)
O/S
(0.05 mm)10.383 to 10.394 mm (0.4088 to
0.4092 in.)
A098138E01

EM–762AZ-FE ENGINE MECHANICAL – CYLINDER HEAD
EM
(h) Using a sharp 5.5 mm reamer, ream the valve guide
bush to the standard specified clearance between
the valve guide bush and valve stem.
Standard oil clearance:
0.025 to 0.060 mm (0.0010 to 0.0024 in.)
2. REPLACE EXHAUST VALVE GUIDE BUSH
(a) Heat the cylinder head to 80 to 100
C (176 to
212
F).
(b) Place the cylinder head on wooden blocks.
(c) Using SST and a hammer, tap out the guide bush.
SST 09201-10000 (09201-01050), 09950-70010
(09951-07100)
(d) Heat the cylinder head to 80 to 100
C (176 to
212
F).
(e) Place the cylinder head on wooden blocks.
(f) Using a caliper gauge, measure the bush bore
diameter of the cylinder head.
Standard diameter:
10.285 to 10.306 mm (0.4049 to 0.4058 in.)
If the bush bore diameter of the cylinder head is
greater than 10.306 mm (0.4058 in.), machine the
bush bore to the dimension of 10.335 to 10.365 mm
(0.4068 to 0.4077 in.).
A124783
A124781
A098137E01
A087006E03
A124782
