Dati tecnici
2
9
Dimensione mm
Lunghezza 5125 Larghezza 1920 Altezza 1925
Carreggiata ant. 1685
Carreggiata post. 1660
Passo 3200

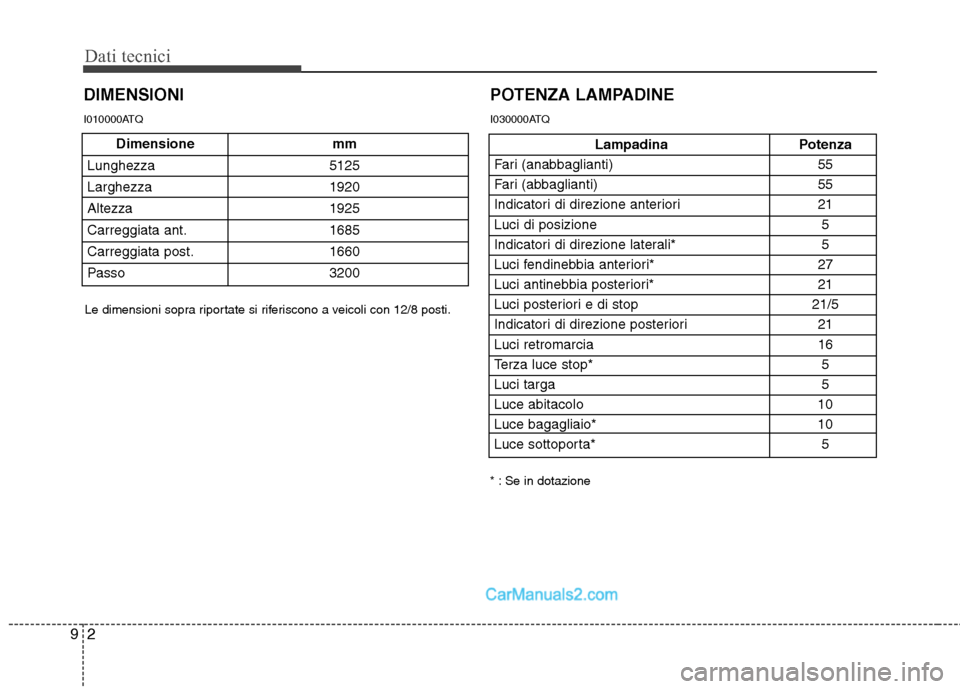

DIMENSIONI
Lampadina Potenza
Fari (anabbaglianti) 55
Fari (abbaglianti) 55
Indicatori di direzione anteriori 21
Luci di posizione 5
Indicatori di direzione laterali* 5
Luci fendinebbia anteriori* 27
Luci antinebbia posteriori* 21
Luci posteriori e di stop 21/5
Indicatori di direzione posteriori 21
Luci retromarcia 16
Terza luce stop* 5
Luci targa 5
Luce abitacolo 10
Luce bagagliaio* 10
Luce sottoporta* 5
POTENZA LAMPADINE
* : Se in dotazione
Le dimensioni sopra riportate si riferiscono a veicoli con 12/8 posti.
I010000ATQ
I030000ATQ

93
Dati tecnici

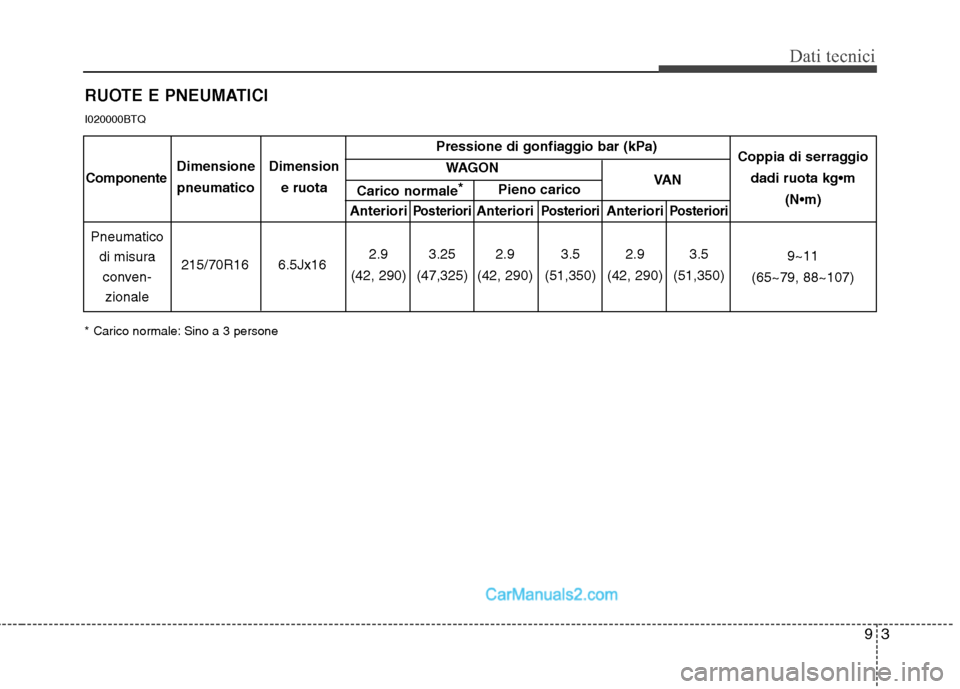

RUOTE E PNEUMATICI
I020000BTQ
* Carico normale: Sino a 3 persone
Pressione di gonfiaggio bar (kPa) WAGON
Anteriori
PosterioriAnterioriPosterioriAnterioriPosteriori
215/70R16 6.5Jx16 2.9 3.25 2.9 3.5 2.9 3.5
(42, 290) (47,325) (42, 290) (51,350) (42, 290) (51,350)
Pneumatico di misuraconven-zionale Coppia di serraggio
dadi ruota kg•m (N
9~11
(65~79, 88~107)
ComponenteDimensione pneumatico Dimension
e ruota Carico normale *
Pieno carico VA N

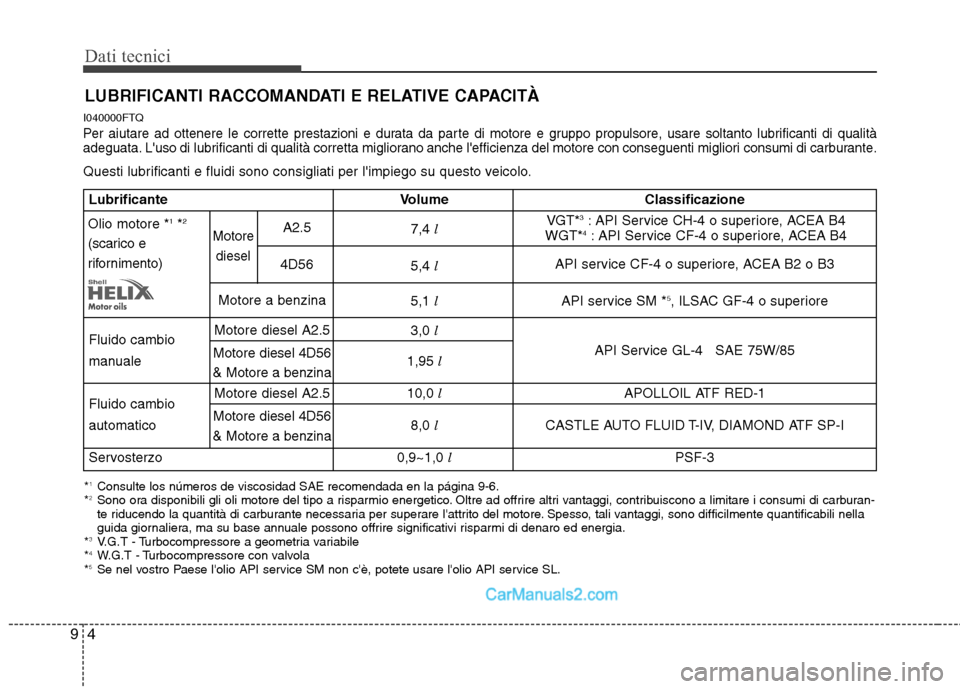

LUBRIFICANTI RACCOMANDATI E RELATIVE CAPACITÀ
Dati tecnici
4
9
I040000FTQ
Per aiutare ad ottenere le corrette prestazioni e durata da parte di motore e gruppo propulsore, usare soltanto lubrificanti di qualità
adeguata. L'uso di lubrificanti di qualità corretta migliorano anche l'efficienza del motore con conseguenti migliori consumi di carburante.
Questi lubrificanti e fluidi sono consigliati per l'impiego su questo veicolo.
*1
Consulte los números de viscosidad SAE recomendada en la página 9-6.
* 2
Sono ora disponibili gli oli motore del tipo a risparmio energetico. Oltre ad offrire altri vantaggi, contribuiscono a limitare i consumi di carburan-
te riducendo la quantità di carburante necessaria per superare l'attrito del motore. Spesso, tali vantaggi, sono difficilmente quantificabili nella
guida giornaliera, ma su base annuale possono offrire significativi risparmi di denaro ed energia.
* 3
V.G.T - Turbocompressore a geometria variabile
* 4
W.G.T - Turbocompressore con valvola
* 5
Se nel vostro Paese l'olio API service SM non c'è, potete usare l'olio API service SL.
Lubrificante Volume Classificazione
7,4 l
5,4 l API service CF-4 o superiore, ACEA B2 o B3
5,1 l API service SM *5
, ILSAC GF-4 o superiore
Fluido cambio 3,0
l
manuale 1,95 l API Service GL-4 SAE 75W/85
Fluido cambio 10,0
l APOLLOIL ATF RED-1
automatico 8,0 l CASTLE AUTO FLUID T-IV, DIAMOND ATF SP-I
Servosterzo 0,9~1,0 l PSF-3
Olio motore *1
*2
(scarico e
rifornimento)
Motore diesel A2.5
Motore diesel 4D56
& Motore a benzina
Motore diesel A2.5
Motore diesel 4D56
& Motore a benzina
Motore
diesel
Motore a benzina A2.5
4D56
VGT* 3
: API Service CH-4 o superiore, ACEA B4
WGT* 4
: API Service CF-4 o superiore, ACEA B4

95
Dati tecnici
LubrificanteVolume Classificazione

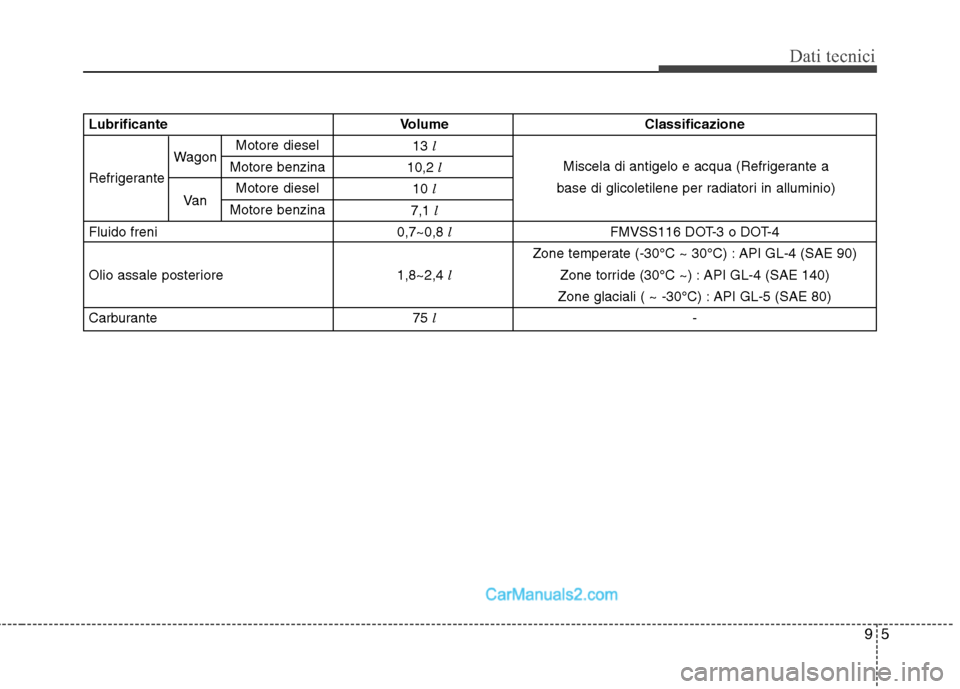

Refrigerante 13
l
10,2 l
10 l
7,1 l
Fluido freni 0,7~0,8 l FMVSS116 DOT-3 o DOT-4
Zone temperate (-30°C ~ 30°C) : API GL-4 (SAE 90)
Olio assale posteriore 1,8~2,4 lZone torride (30°C ~) : API GL-4 (SAE 140)
Zone glaciali ( ~ -30°C) : API GL-5 (SAE 80)
Carburante 75 l -
Wagon
Va n Motore benzina
Motore diesel
Motore benzina Motore dieselMiscela di antigelo e acqua (Refrigerante a
base di glicoletilene per radiatori in alluminio)

Dati tecnici
6
9
I040100CUN
Numero di viscosità SAE racco- mandato La viscosità dell'olio motore (spessore)
influenza i consumi di carburante e il fun-
zionamento alle basse temperature
(avviamento e flusso dell'olio). Gli oli
motore con viscosità inferiore possono
offrire migliori consumi di carburante e
prestazioni alle basse temperatura, men-tre quelli con viscosità maggiore offrono
un'efficace lubrificazione nei periodi piùcaldi.L'uso di oli di viscosità diversa da quelle
consigliate, può essere causa di danni al
motore.
In occasione del cambio dell'olio, val-
utare la gamma di temperatura nella
quale il veicolo sarà impiegato prima del
successivo cambio olio.
Selezionare la viscosità dell'olio racco- mandata dalla tabella.
AVVERTENZA
Prima di controllare o scaricare il
lubrificante, pulire la zona attorno ai
tappi di rifornimento e di scarico oall'astina di livello.
Questo è importante soprattutto inzone polverose o sabbiose e in
caso di guida del veicolo su stradenon asfaltate. La pulizia delle zoneattorno ai tappi e all'astina di livelloimpedisce la contaminazione e il possibile danneggiamento del
motore e di altri meccanismi consporco e sabbia.

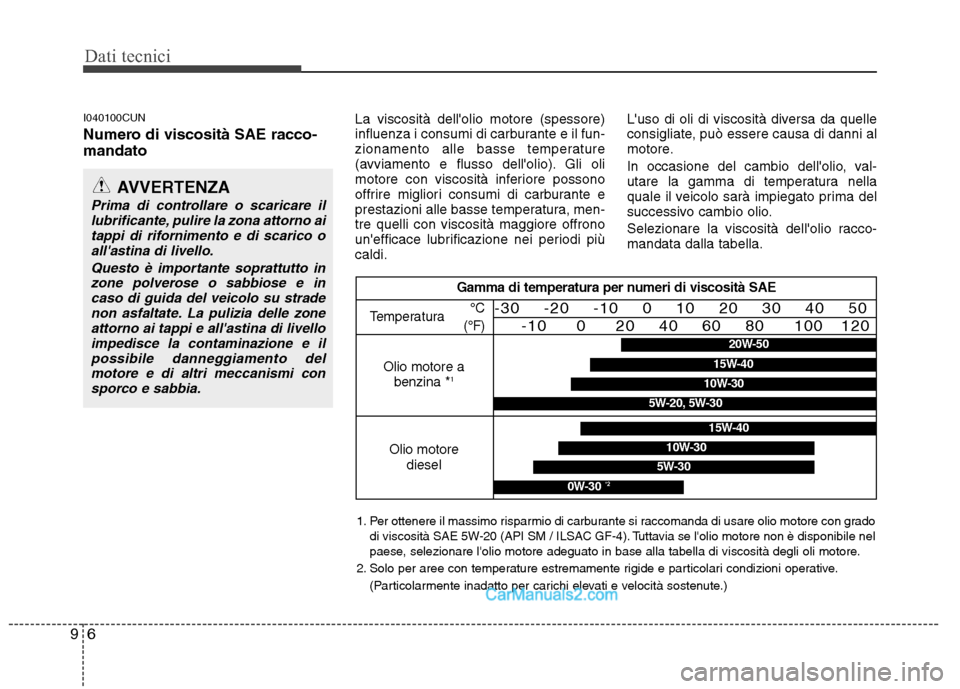

Gamma di temperatura per numeri di viscosità SAE
Temperatura
Olio motore a benzina * 1°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Olio motore diesel
5W-30
15W-40
10W-30
0W-30 *2
1. Per ottenere il massimo risparmio di carburante si raccomanda di usare olio motore con grado
di viscosità SAE 5W-20 (API SM / ILSAC GF-4). Tuttavia se l'olio motore non è disponibile nel
paese, selezionare l'olio motore adeguato in base alla tabella di viscosità degli oli motore.
2. Solo per aree con temperature estremamente rigide e particolari condizioni operative. (Particolarmente inadatto per carichi elevati e velocità sostenute.)
20W-50
10W-30
15W-40
5W-20, 5W-30
