NISSAN ALMERA N16 2003 Electronic Repair Manual

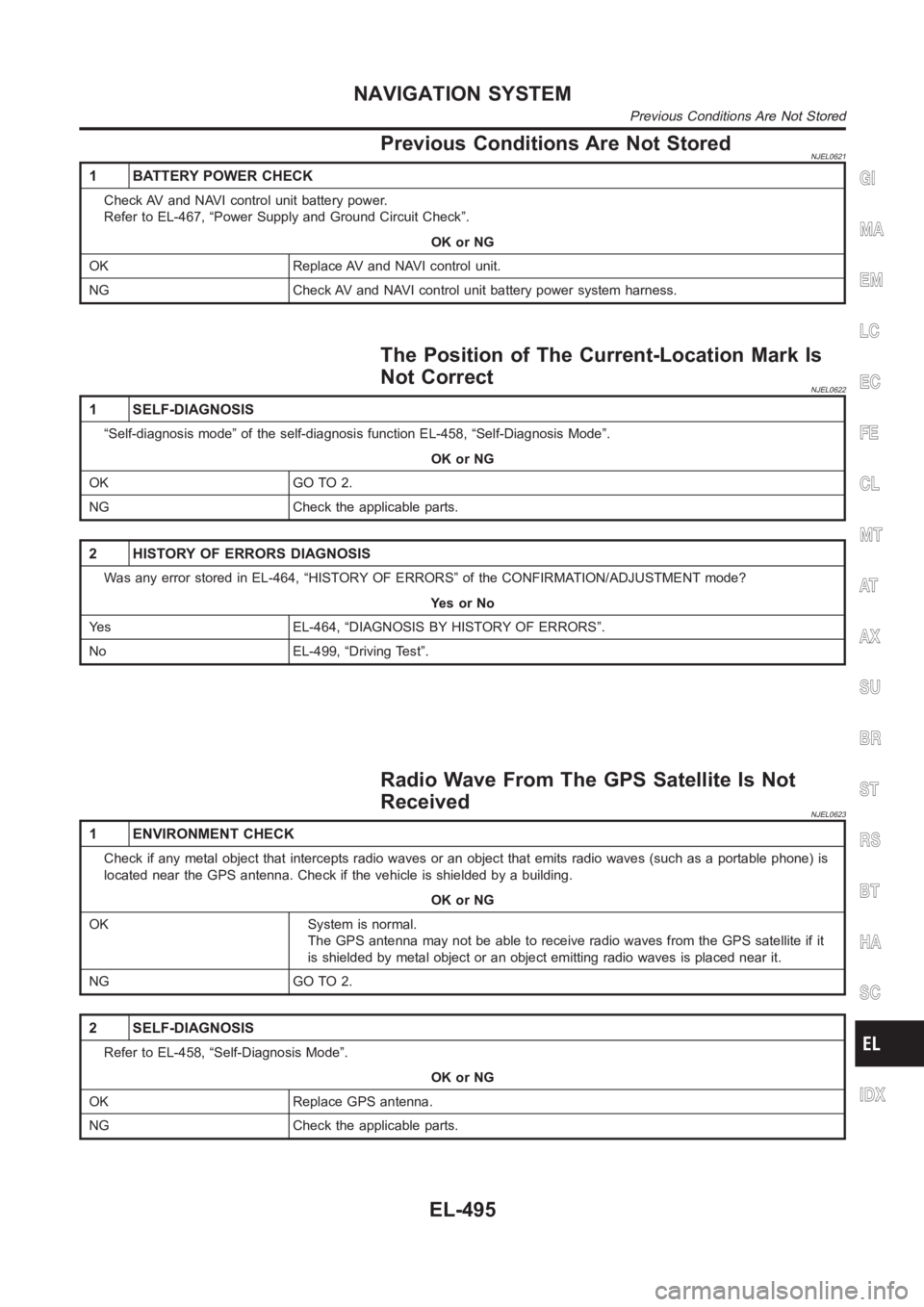

Previous Conditions Are Not StoredNJEL0621
1 BATTERY POWER CHECK
Check AV and NAVI control unit battery power.
Refer to EL-467, “Power Supply and Ground Circuit Check”.
OK or NG
OK Replace AV and NAVI control unit.
NG Check AV and NAVI control unit battery power system harness.
The Position of The Current-Location Mark Is
Not Correct
NJEL0622
1 SELF-DIAGNOSIS
“Self-diagnosis mode” of the self-diagnosis function EL-458, “Self-Diagnosis Mode”.
OK or NG
OK GO TO 2.
NG Check the applicable parts.
2 HISTORY OF ERRORS DIAGNOSIS
Was any error stored in EL-464, “HISTORY OF ERRORS” of the CONFIRMATION/ADJUSTMENT mode?
YesorNo
Yes EL-464, “DIAGNOSIS BY HISTORY OF ERRORS”.
No EL-499, “Driving Test”.
Radio Wave From The GPS Satellite Is Not
Received
NJEL0623
1 ENVIRONMENT CHECK
Check if any metal object that intercepts radio waves or an object that emits radio waves (such as a portable phone) is
located near the GPS antenna. Check if the vehicle is shielded by a building.
OK or NG
OK System is normal.
The GPS antenna may not be able to receive radio waves from the GPS satelliteif it
is shielded by metal object or an object emitting radio waves is placed nearit.
NG GO TO 2.
2 SELF-DIAGNOSIS
Refer to EL-458, “Self-Diagnosis Mode”.
OK or NG
OK Replace GPS antenna.
NG Check the applicable parts.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
Previous Conditions Are Not Stored
EL-495

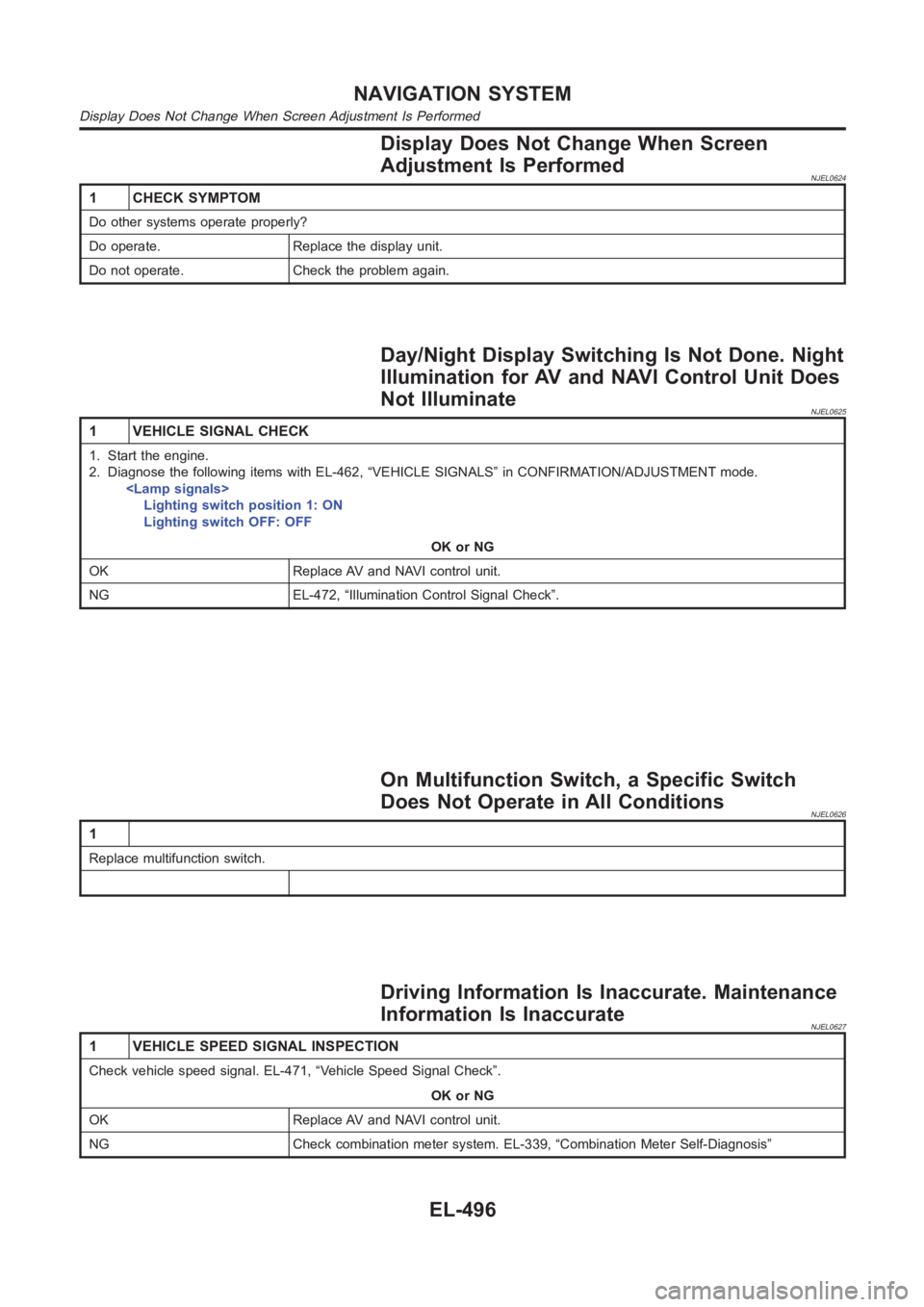

Display Does Not Change When Screen
Adjustment Is Performed
NJEL0624
1 CHECK SYMPTOM
Do other systems operate properly?
Do operate. Replace the display unit.
Do not operate. Check the problem again.
Day/Night Display Switching Is Not Done. Night
Illumination for AV and NAVI Control Unit Does
Not Illuminate
NJEL0625
1 VEHICLE SIGNAL CHECK
1. Start the engine.
2. Diagnose the following items with EL-462, “VEHICLE SIGNALS” in CONFIRMATION/ADJUSTMENT mode.

Lighting switch position 1: ON
Lighting switch OFF: OFF
OK or NG
OK Replace AV and NAVI control unit.
NG EL-472, “Illumination Control Signal Check”.
On Multifunction Switch, a Specific Switch
Does Not Operate in All Conditions
NJEL0626
1
Replace multifunction switch.
Driving Information Is Inaccurate. Maintenance
Information Is Inaccurate
NJEL0627
1 VEHICLE SPEED SIGNAL INSPECTION
Check vehicle speed signal. EL-471, “Vehicle Speed Signal Check”.
OK or NG
OK Replace AV and NAVI control unit.
NG Check combination meter system. EL-339, “Combination Meter Self-Diagnosis”
NAVIGATION SYSTEM
Display Does Not Change When Screen Adjustment Is Performed
EL-496

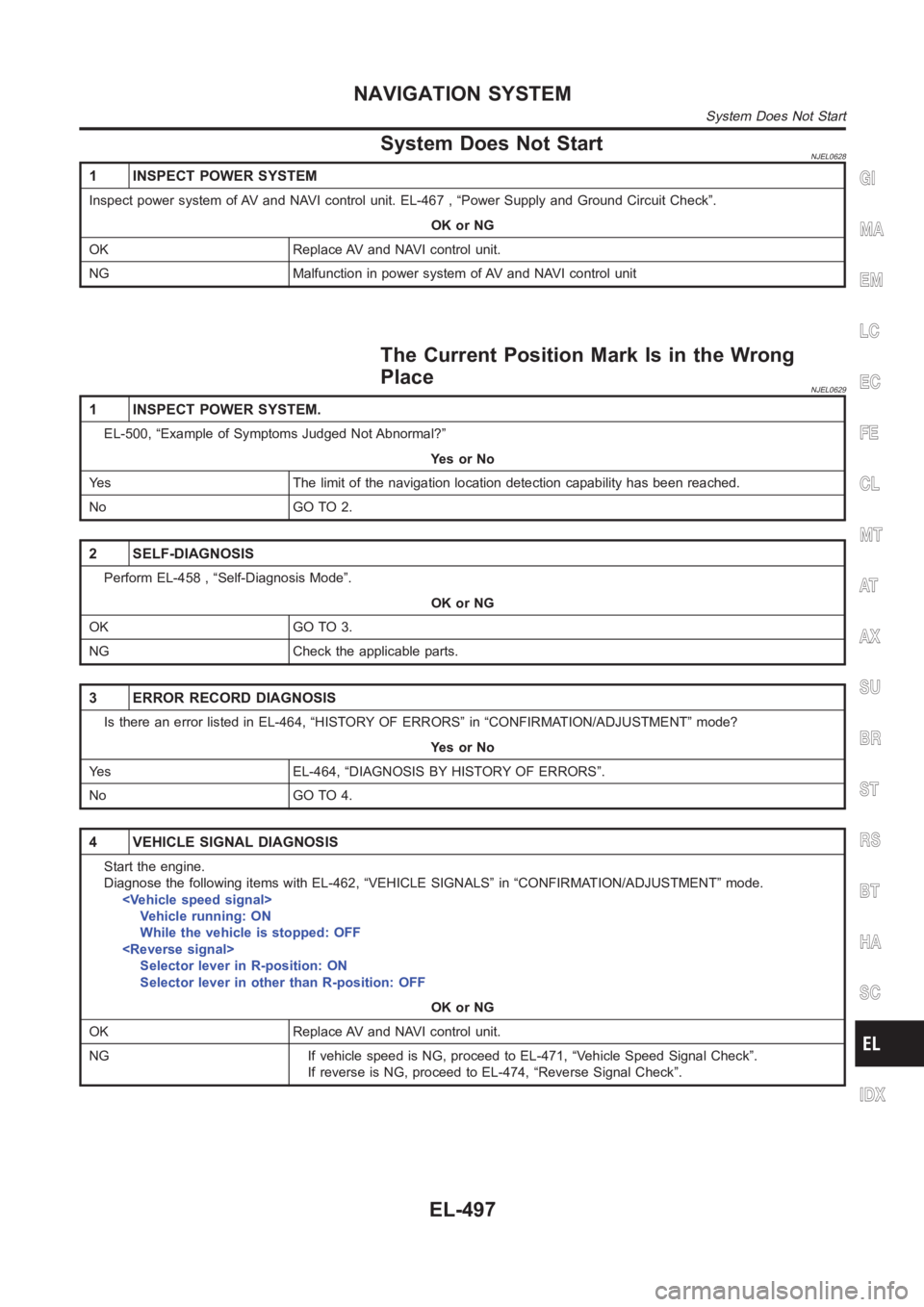

System Does Not StartNJEL0628
1 INSPECT POWER SYSTEM
Inspect power system of AV and NAVI control unit. EL-467 , “Power Supply andGround Circuit Check”.
OK or NG
OK Replace AV and NAVI control unit.
NG Malfunction in power system of AV and NAVI control unit
The Current Position Mark Is in the Wrong
Place
NJEL0629
1 INSPECT POWER SYSTEM.
EL-500, “Example of Symptoms Judged Not Abnormal?”
YesorNo
Yes The limit of the navigation location detection capability has been reached.
No GO TO 2.
2 SELF-DIAGNOSIS
Perform EL-458 , “Self-Diagnosis Mode”.
OK or NG
OK GO TO 3.
NG Check the applicable parts.
3 ERROR RECORD DIAGNOSIS
Is there an error listed in EL-464, “HISTORY OF ERRORS” in “CONFIRMATION/ADJUSTMENT” mode?
YesorNo
Yes EL-464, “DIAGNOSIS BY HISTORY OF ERRORS”.
No GO TO 4.
4 VEHICLE SIGNAL DIAGNOSIS
Start the engine.
Diagnose the following items with EL-462, “VEHICLE SIGNALS” in “CONFIRMATION/ADJUSTMENT” mode.

Vehicle running: ON
While the vehicle is stopped: OFF

Selector lever in R-position: ON
Selector lever in other than R-position: OFF
OK or NG
OK Replace AV and NAVI control unit.
NG If vehicle speed is NG, proceed to EL-471, “Vehicle Speed Signal Check”.
If reverse is NG, proceed to EL-474, “Reverse Signal Check”.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
System Does Not Start
EL-497

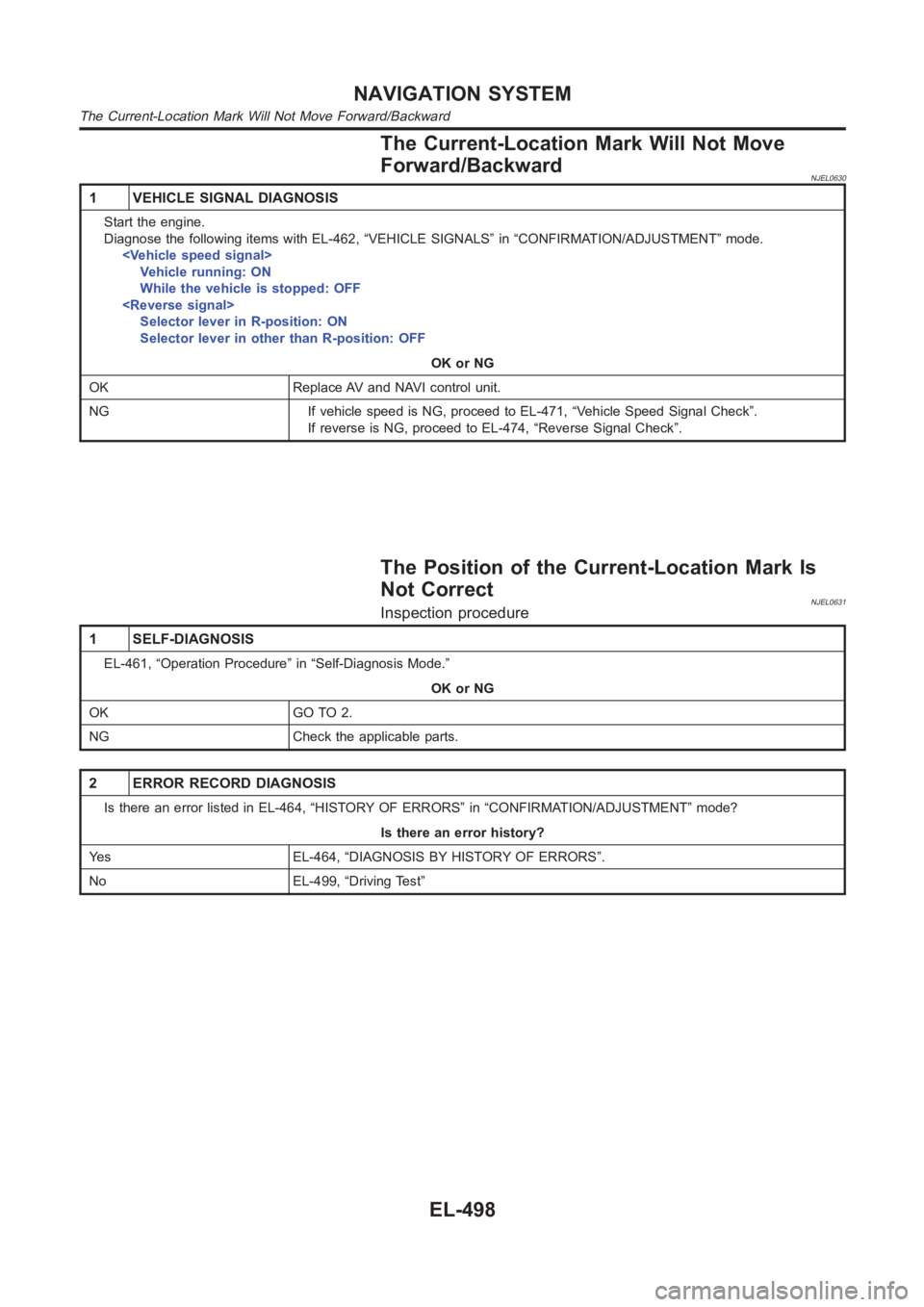

The Current-Location Mark Will Not Move
Forward/Backward
NJEL0630
1 VEHICLE SIGNAL DIAGNOSIS
Start the engine.
Diagnose the following items with EL-462, “VEHICLE SIGNALS” in “CONFIRMATION/ADJUSTMENT” mode.

Vehicle running: ON
While the vehicle is stopped: OFF

Selector lever in R-position: ON
Selector lever in other than R-position: OFF
OK or NG
OK Replace AV and NAVI control unit.
NG If vehicle speed is NG, proceed to EL-471, “Vehicle Speed Signal Check”.
If reverse is NG, proceed to EL-474, “Reverse Signal Check”.
The Position of the Current-Location Mark Is
Not Correct
NJEL0631Inspection procedure
1 SELF-DIAGNOSIS
EL-461, “Operation Procedure” in “Self-Diagnosis Mode.”
OK or NG
OK GO TO 2.
NG Check the applicable parts.
2 ERROR RECORD DIAGNOSIS
Is there an error listed in EL-464, “HISTORY OF ERRORS” in “CONFIRMATION/ADJUSTMENT” mode?
Is there an error history?
Yes EL-464, “DIAGNOSIS BY HISTORY OF ERRORS”.
No EL-499, “Driving Test”
NAVIGATION SYSTEM
The Current-Location Mark Will Not Move Forward/Backward
EL-498

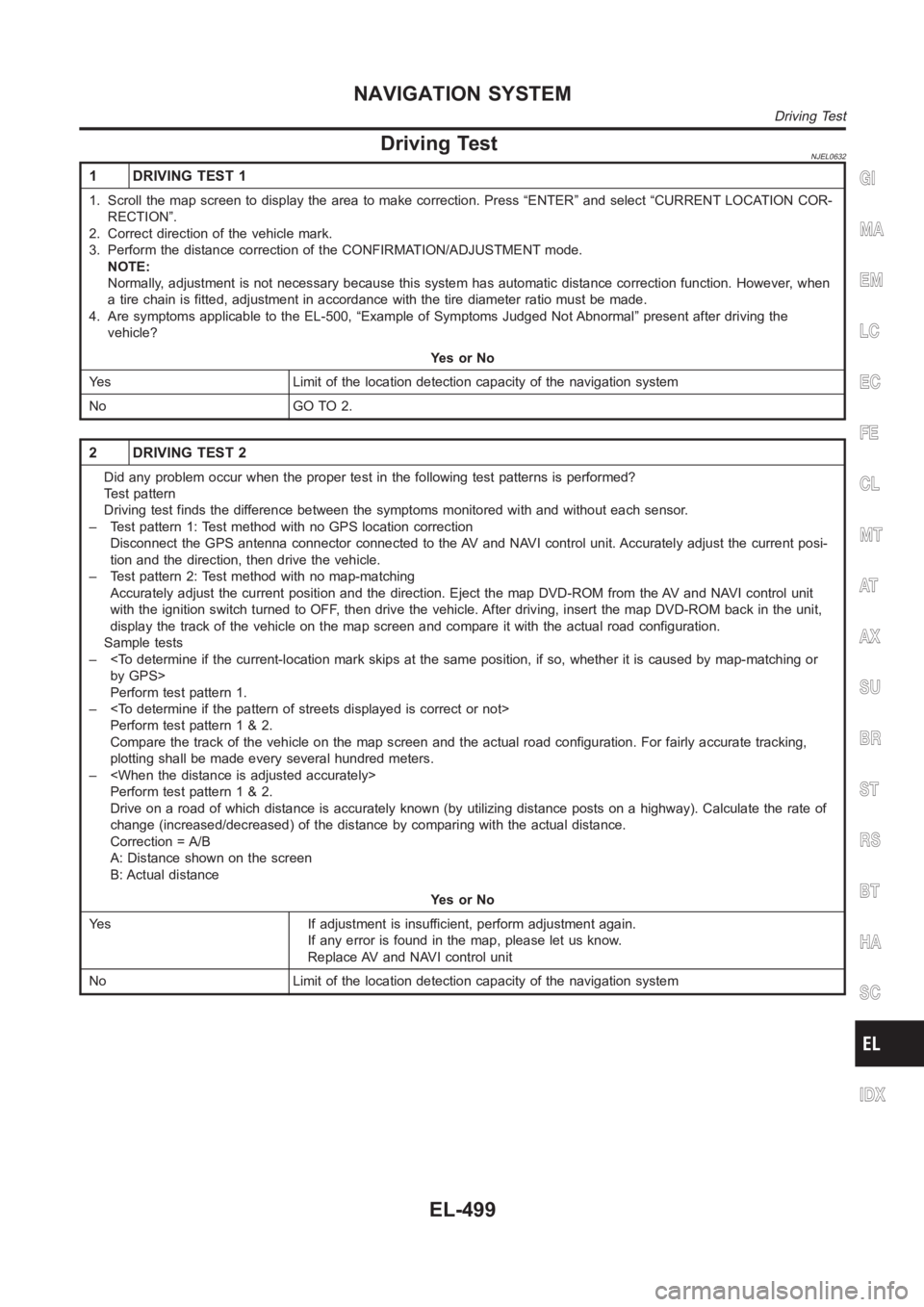

Driving TestNJEL0632
1 DRIVING TEST 1
1. Scroll the map screen to display the area to make correction. Press “ENTER” and select “CURRENT LOCATION COR-
RECTION”.
2. Correct direction of the vehicle mark.
3. Perform the distance correction of the CONFIRMATION/ADJUSTMENT mode.
NOTE:
Normally, adjustment is not necessary because this system has automatic distance correction function. However, when
a tire chain is fitted, adjustment in accordance with the tire diameter ratio must be made.
4. Are symptoms applicable to the EL-500, “Example of Symptoms Judged Not Abnormal” present after driving the
vehicle?
YesorNo
Yes Limit of the location detection capacity of the navigation system
No GO TO 2.
2 DRIVING TEST 2
Did any problem occur when the proper test in the following test patterns isperformed?
Test pattern
Driving test finds the difference between the symptoms monitored with andwithout each sensor.
– Test pattern 1: Test method with no GPS location correction
Disconnect the GPS antenna connector connected to the AV and NAVI control unit. Accurately adjust the current posi-
tion and the direction, then drive the vehicle.
– Test pattern 2: Test method with no map-matching
Accurately adjust the current position and the direction. Eject the map DVD-ROM from the AV and NAVI control unit
with the ignition switch turned to OFF, then drive the vehicle. After driving, insert the map DVD-ROM back in the unit,
display the track of the vehicle on the map screen and compare it with the actual road configuration.
Sample tests
– by GPS>
Perform test pattern 1.
–
Perform test pattern 1 & 2.
Compare the track of the vehicle on the map screen and the actual road configuration. For fairly accurate tracking,
plotting shall be made every several hundred meters.
–
Perform test pattern 1 & 2.
Drive on a road of which distance is accurately known (by utilizing distance posts on a highway). Calculate the rate of
change (increased/decreased) of the distance by comparing with the actual distance.
Correction = A/B
A: Distance shown on the screen
B: Actual distance
YesorNo
Yes If adjustment is insufficient, perform adjustment again.
If any error is found in the map, please let us know.
Replace AV and NAVI control unit
No Limit of the location detection capacity of the navigation system
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
Driving Test
EL-499

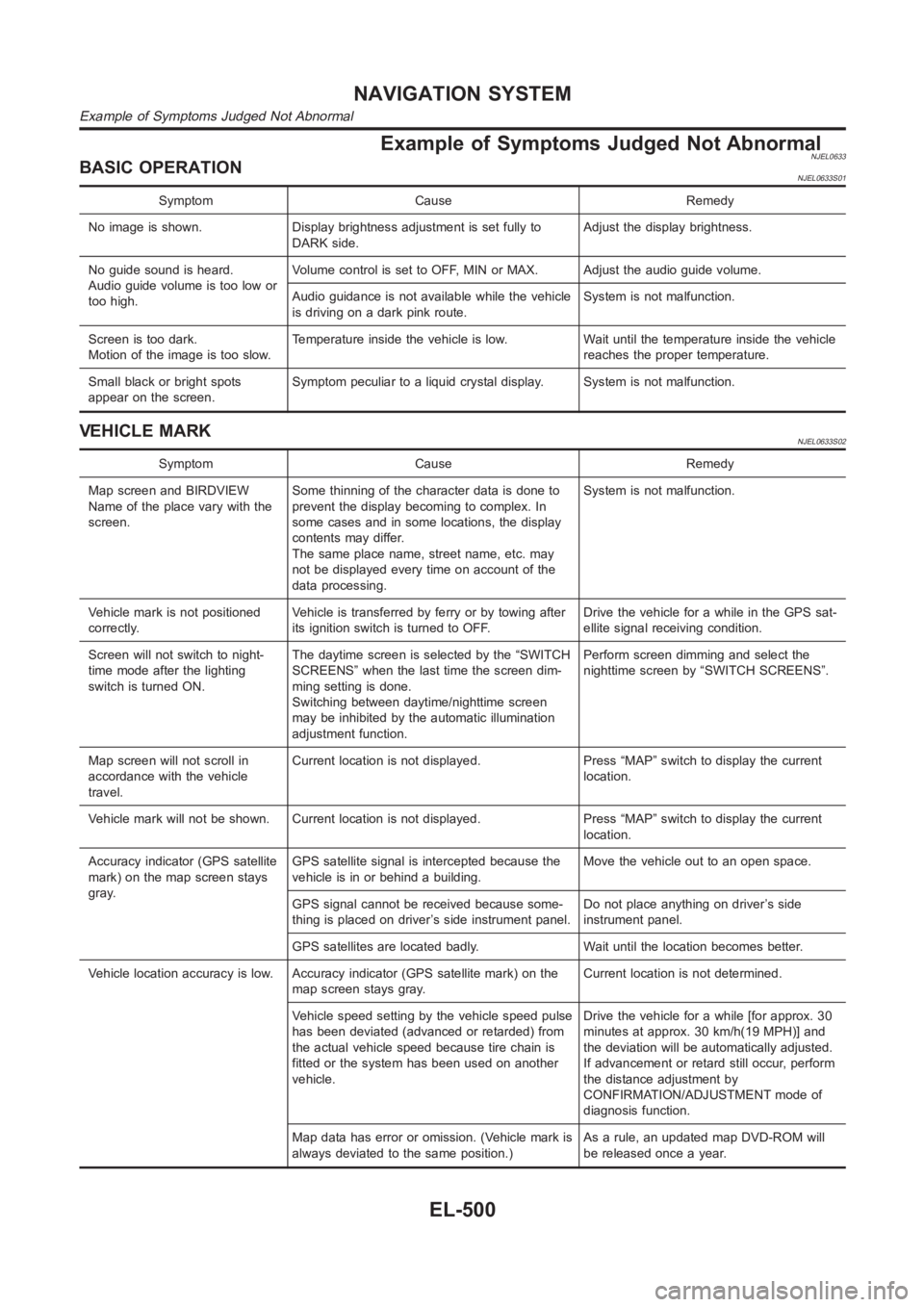

Example of Symptoms Judged Not AbnormalNJEL0633BASIC OPERATIONNJEL0633S01
Symptom Cause Remedy
No image is shown. Display brightness adjustment is set fully to
DARK side.Adjust the display brightness.
No guide sound is heard.
Audio guide volume is too low or
too high.Volume control is set to OFF, MIN or MAX. Adjust the audio guide volume.
Audio guidance is not available while the vehicle
is driving on a dark pink route.System is not malfunction.
Screen is too dark.
Motion of the image is too slow.Temperature inside the vehicle is low. Wait until the temperature inside the vehicle
reaches the proper temperature.
Small black or bright spots
appear on the screen.Symptom peculiar to a liquid crystal display. System is not malfunction.
VEHICLE MARKNJEL0633S02
Symptom Cause Remedy
Map screen and BIRDVIEW
Name of the place vary with the
screen.Some thinning of the character data is done to
prevent the display becoming to complex. In
some cases and in some locations, the display
contents may differ.
The same place name, street name, etc. may
not be displayed every time on account of the
data processing.System is not malfunction.
Vehicle mark is not positioned
correctly.Vehicle is transferred by ferry or by towing after
its ignition switch is turned to OFF.Drive the vehicle for a while in the GPS sat-
ellite signal receiving condition.
Screen will not switch to night-
time mode after the lighting
switch is turned ON.The daytime screen is selected by the “SWITCH
SCREENS” when the last time the screen dim-
ming setting is done.
Switching between daytime/nighttime screen
may be inhibited by the automatic illumination
adjustment function.Perform screen dimming and select the
nighttime screen by “SWITCH SCREENS”.
Map screen will not scroll in
accordance with the vehicle
travel.Current location is not displayed. Press “MAP” switch to display the current
location.
Vehicle mark will not be shown. Current location is not displayed. Press “MAP” switch to display the current
location.
Accuracy indicator (GPS satellite
mark) on the map screen stays
gray.GPS satellite signal is intercepted because the
vehicle is in or behind a building.Move the vehicle out to an open space.
GPS signal cannot be received because some-
thing is placed on driver’s side instrument panel.Do not place anything on driver’s side
instrument panel.
GPS satellites are located badly. Wait until the location becomes better.
Vehicle location accuracy is low. Accuracy indicator (GPS satellite mark)onthe
map screen stays gray.Current location is not determined.
Vehicle speed setting by the vehicle speed pulse
has been deviated (advanced or retarded) from
the actual vehicle speed because tire chain is
fitted or the system has been used on another
vehicle.Drive the vehicle for a while [for approx. 30
minutes at approx. 30 km/h(19 MPH)] and
the deviation will be automatically adjusted.
If advancement or retard still occur, perform
the distance adjustment by
CONFIRMATION/ADJUSTMENT mode of
diagnosis function.
Map data has error or omission. (Vehicle mark is
always deviated to the same position.)As a rule, an updated map DVD-ROM will
be released once a year.
NAVIGATION SYSTEM
Example of Symptoms Judged Not Abnormal
EL-500

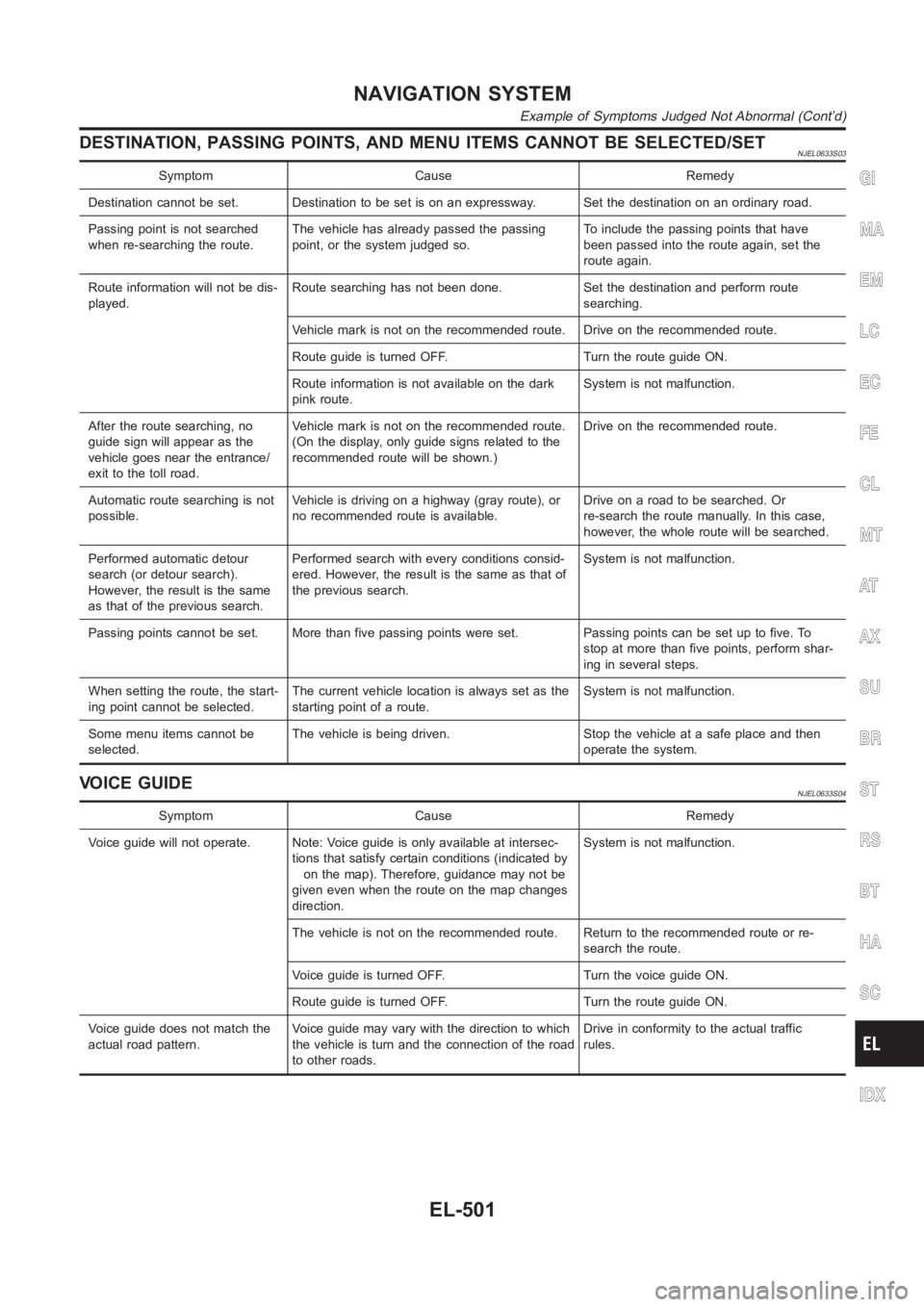

DESTINATION, PASSING POINTS, AND MENU ITEMS CANNOT BE SELECTED/SETNJEL0633S03
Symptom Cause Remedy
Destination cannot be set. Destination to be set is on an expressway. Set the destination on an ordinary road.
Passing point is not searched
when re-searching the route.The vehicle has already passed the passing
point, or the system judged so.To include the passing points that have
been passed into the route again, set the
route again.
Route information will not be dis-
played.Route searching has not been done. Set the destination and perform route
searching.
Vehicle mark is not on the recommended route. Drive on the recommended route.
Route guide is turned OFF. Turn the route guide ON.
Route information is not available on the dark
pink route.System is not malfunction.
After the route searching, no
guide sign will appear as the
vehicle goes near the entrance/
exit to the toll road.Vehicle mark is not on the recommended route.
(On the display, only guide signs related to the
recommended route will be shown.)Drive on the recommended route.
Automatic route searching is not
possible.Vehicle is driving on a highway (gray route), or
no recommended route is available.Drive on a road to be searched. Or
re-search the route manually. In this case,
however, the whole route will be searched.
Performed automatic detour
search (or detour search).
However, the result is the same
as that of the previous search.Performed search with every conditions consid-
ered. However, the result is the same as that of
the previous search.System is not malfunction.
Passing points cannot be set. More than five passing points were set. Passing points can be set up to five. To
stop at more than five points, perform shar-
ing in several steps.
When setting the route, the start-
ing point cannot be selected.The current vehicle location is always set as the
starting point of a route.System is not malfunction.
Some menu items cannot be
selected.The vehicle is being driven. Stop the vehicle at a safe place and then
operate the system.
VOICE GUIDENJEL0633S04
Symptom Cause Remedy
Voice guide will not operate. Note: Voice guide is only available at intersec-
tions that satisfy certain conditions (indicated by
on the map). Therefore, guidance may not be
given even when the route on the map changes
direction.System is not malfunction.
The vehicle is not on the recommended route. Return to the recommended routeorre-
search the route.
Voice guide is turned OFF. Turn the voice guide ON.
Route guide is turned OFF. Turn the route guide ON.
Voice guide does not match the
actual road pattern.Voice guide may vary with the direction to which
the vehicle is turn and the connection of the road
to other roads.Drive in conformity to the actual traffic
rules.
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
Example of Symptoms Judged Not Abnormal (Cont’d)
EL-501

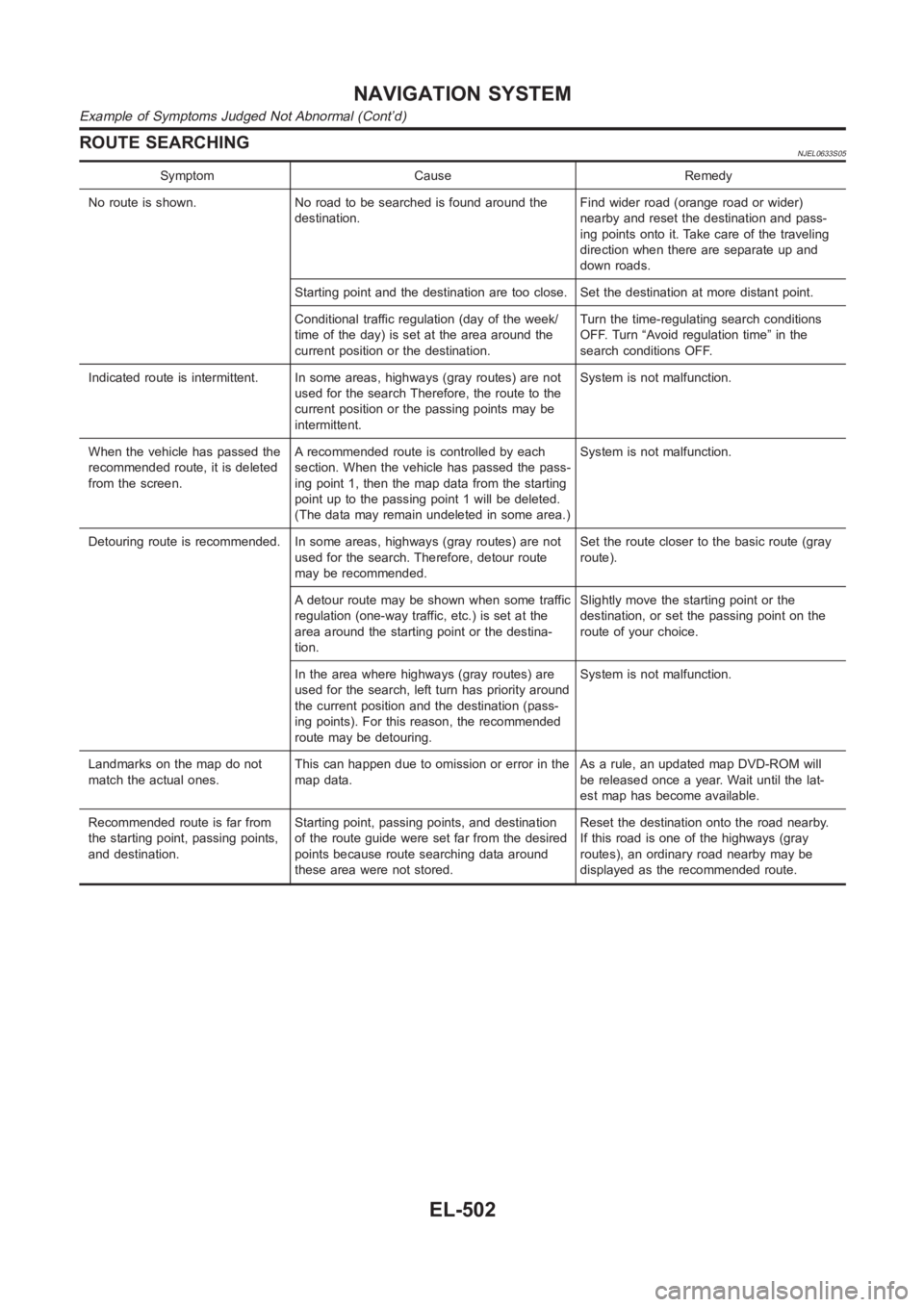

ROUTE SEARCHINGNJEL0633S05
Symptom Cause Remedy
No route is shown. No road to be searched is found around the
destination.Find wider road (orange road or wider)
nearby and reset the destination and pass-
ing points onto it. Take care of the traveling
direction when there are separate up and
down roads.
Starting point and the destination are too close. Set the destination at more distant point.
Conditional traffic regulation (day of the week/
time of the day) is set at the area around the
current position or the destination.Turn the time-regulating search conditions
OFF. Turn “Avoid regulation time” in the
search conditions OFF.
Indicated route is intermittent. In some areas, highways (gray routes) are not
used for the search Therefore, the route to the
current position or the passing points may be
intermittent.System is not malfunction.
When the vehicle has passed the
recommended route, it is deleted
from the screen.A recommended route is controlled by each
section. When the vehicle has passed the pass-
ing point 1, then the map data from the starting
point up to the passing point 1 will be deleted.
(The data may remain undeleted in some area.)System is not malfunction.
Detouring route is recommended. In some areas, highways (gray routes) arenot
used for the search. Therefore, detour route
may be recommended.Set the route closer to the basic route (gray
route).
A detour route may be shown when some traffic
regulation (one-way traffic, etc.) is set at the
area around the starting point or the destina-
tion.Slightly move the starting point or the
destination, or set the passing point on the
route of your choice.
In the area where highways (gray routes) are
used for the search, left turn has priority around
the current position and the destination (pass-
ing points). For this reason, the recommended
route may be detouring.System is not malfunction.
Landmarks on the map do not
match the actual ones.This can happen due to omission or error in the
map data.As a rule, an updated map DVD-ROM will
be released once a year. Wait until the lat-
est map has become available.
Recommended route is far from
the starting point, passing points,
and destination.Starting point, passing points, and destination
of the route guide were set far from the desired
points because route searching data around
these area were not stored.Reset the destination onto the road nearby.
If this road is one of the highways (gray
routes), an ordinary road nearby may be
displayed as the recommended route.
NAVIGATION SYSTEM
Example of Symptoms Judged Not Abnormal (Cont’d)
EL-502

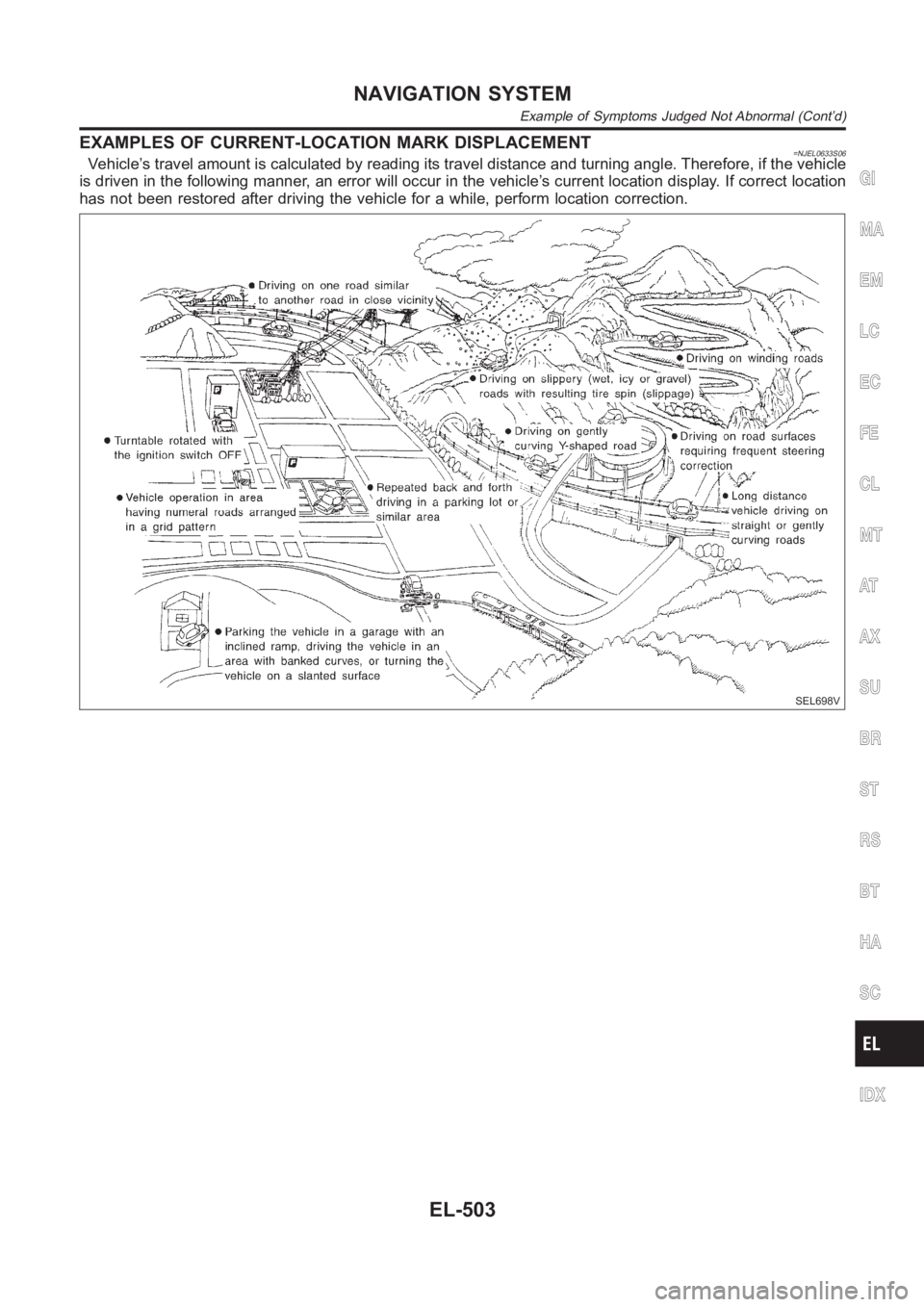

EXAMPLES OF CURRENT-LOCATION MARK DISPLACEMENT=NJEL0633S06Vehicle’s travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle
is driven in the following manner, an error will occur in the vehicle’s current location display. If correct location
has not been restored after driving the vehicle for a while, perform location correction.
SEL698V
GI
MA
EM
LC
EC
FE
CL
MT
AT
AX
SU
BR
ST
RS
BT
HA
SC
IDX
NAVIGATION SYSTEM
Example of Symptoms Judged Not Abnormal (Cont’d)
EL-503

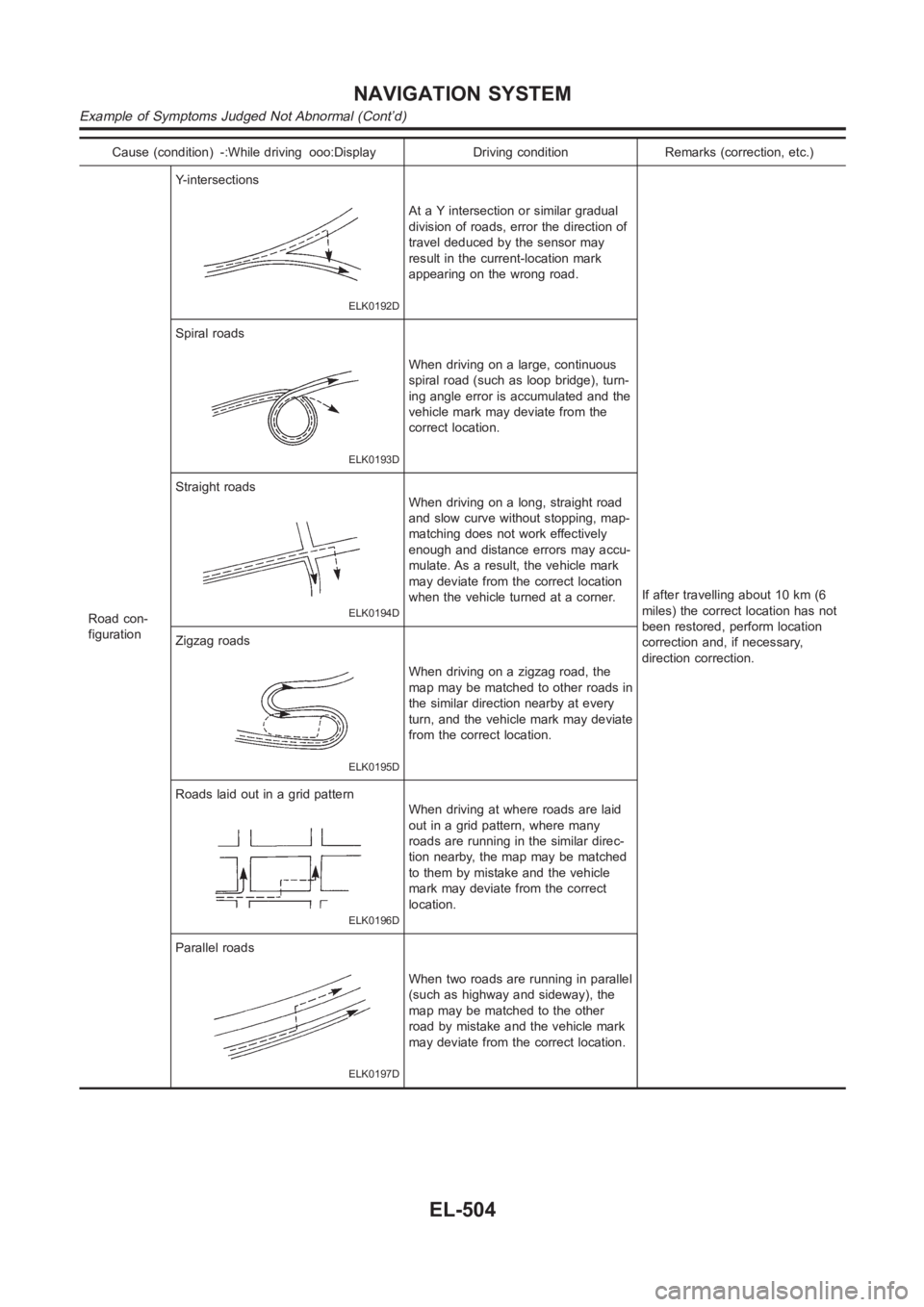

Cause (condition) -:While driving ooo:Display Driving condition Remarks (correction, etc.)
Road con-
figurationY-intersections
ELK0192D
At a Y intersection or similar gradual
division of roads, error the direction of
travel deduced by the sensor may
result in the current-location mark
appearing on the wrong road.
If after travelling about 10 km (6
miles) the correct location has not
been restored, perform location
correction and, if necessary,
direction correction. Spiral roads
ELK0193D
When driving on a large, continuous
spiral road (such as loop bridge), turn-
ing angle error is accumulated and the
vehicle mark may deviate from the
correct location.
Straight roads
ELK0194D
When driving on a long, straight road
and slow curve without stopping, map-
matching does not work effectively
enough and distance errors may accu-
mulate. As a result, the vehicle mark
may deviate from the correct location
when the vehicle turned at a corner.
Zigzag roads
ELK0195D
When driving on a zigzag road, the
map may be matched to other roads in
the similar direction nearby at every
turn, and the vehicle mark may deviate
from the correct location.
Roads laid out in a grid pattern
ELK0196D
When driving at where roads are laid
out in a grid pattern, where many
roads are running in the similar direc-
tion nearby, the map may be matched
to them by mistake and the vehicle
mark may deviate from the correct
location.
Parallel roads
ELK0197D
When two roads are running in parallel
(such as highway and sideway), the
map may be matched to the other
road by mistake and the vehicle mark
may deviate from the correct location.
NAVIGATION SYSTEM
Example of Symptoms Judged Not Abnormal (Cont’d)
EL-504
