BACK DOOR WINDOW GLASS
INSTALLATION
1. With a knife, scrape off remaining adhesive left around on the
side of vehicle body to as thin and flat as 2 mm. (0.08in).
2. When reusing glass, using a knife or spatula, remove bonding
remainder on glass so that glass edge becomes smooth.
3. Apply primers.
4. After applying primer, apply adhesive along glass edge.
5. Press the entire surface of glass lightly to fit it completely.
6. Using a spatula, repair any adhesive overflow or shortage to make the surface smooth.
NOTE:
After installing glass, open the door windows until after adhesive has had enough time to cure properly.
Do not drive the vehicle during this period.
7. Check that there is no leak from the outside.
8. Remove protective tape.
9. Install removed parts.
BEC0080D

REAR WINDOW DEFOGGER
GW-9
C
D
E
F
G
H
J
K
L
MA
B
GW
REAR WINDOW DEFOGGERPFP:25350

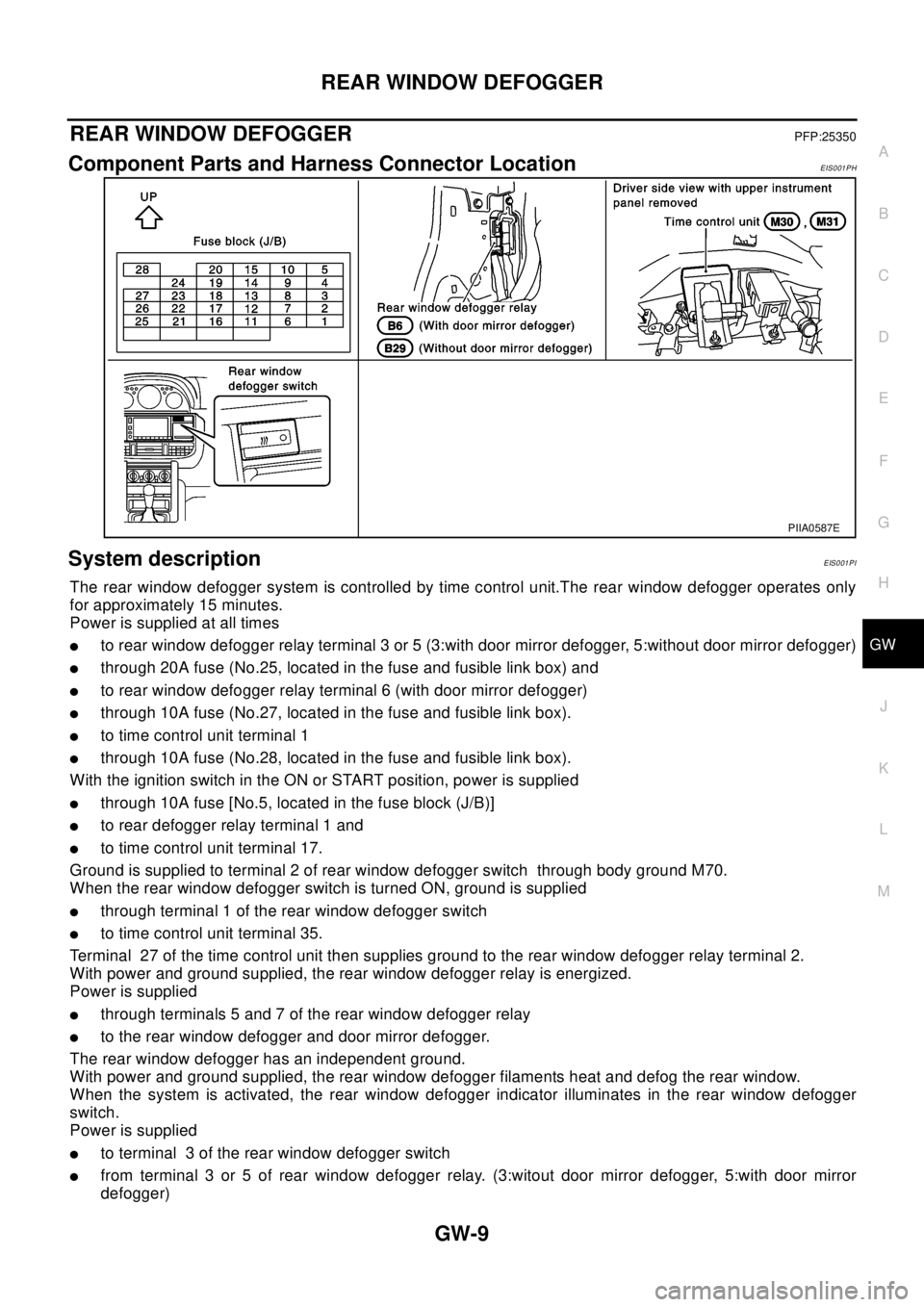

Component Parts and Harness Connector LocationEIS001PH
System descriptionEIS001PI
The rear window defogger system is controlled by time control unit.The rear window defogger operates only
for approximately 15 minutes.
Power is supplied at all times
lto rear window defogger relay terminal 3 or 5 (3:with door mirror defogger, 5:without door mirror defogger)
lthrough 20A fuse (No.25, located in the fuse and fusible link box) and
lto rear window defogger relay terminal 6 (with door mirror defogger)
lthrough 10A fuse (No.27, located in the fuse and fusible link box).
lto time control unit terminal 1
lthrough 10A fuse (No.28, located in the fuse and fusible link box).
With the ignition switch in the ON or START position, power is supplied
lthrough 10A fuse [No.5, located in the fuse block (J/B)]
lto rear defogger relay terminal 1 and
lto time control unit terminal 17.
Ground is supplied to terminal 2 of rear window defogger switch through body ground M70.
When the rear window defogger switch is turned ON, ground is supplied
lthrough terminal 1 of the rear window defogger switch
lto time control unit terminal 35.
Terminal 27 of the time control unit then supplies ground to the rear window defogger relay terminal 2.
With power and ground supplied, the rear window defogger relay is energized.
Power is supplied
lthrough terminals 5 and 7 of the rear window defogger relay
lto the rear window defogger and door mirror defogger.
The rear window defogger has an independent ground.
With power and ground supplied, the rear window defogger filaments heat and defog the rear window.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.
Power is supplied
lto terminal 3 of the rear window defogger switch
lfrom terminal 3 or 5 of rear window defogger relay. (3:witout door mirror defogger, 5:with door mirror
defogger)
PIIA0587E

GW-10
REAR WINDOW DEFOGGER
Terminal 4 of the rear window defogger switch is grounded through body ground M70.

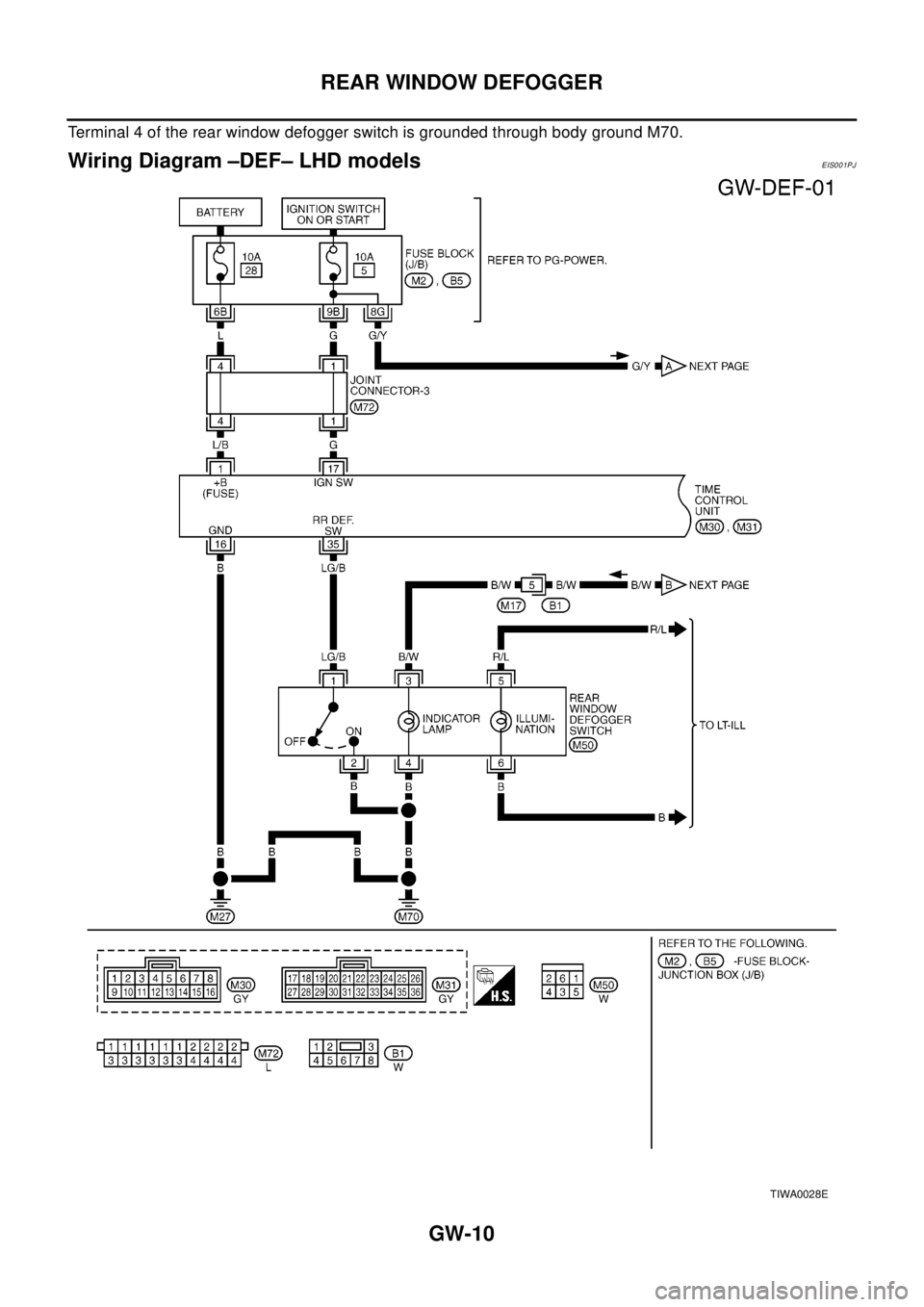

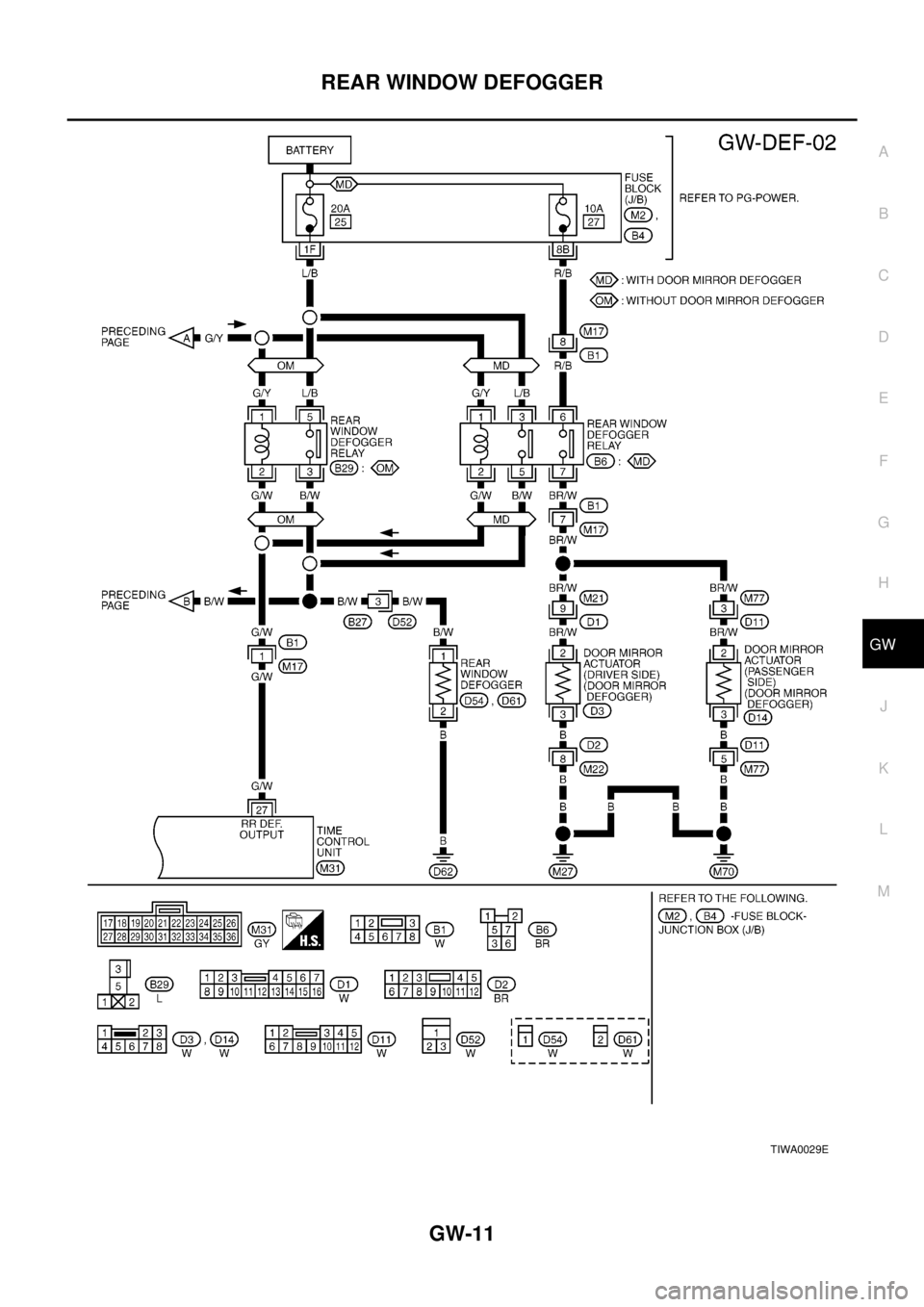

Wiring Diagram –DEF– LHD modelsEIS001PJ
TIWA0028E

REAR WINDOW DEFOGGER
GW-11
C
D
E
F
G
H
J
K
L
MA
B
GW
TIWA0029E

GW-12
REAR WINDOW DEFOGGER
Terminals and Reference value for Time Control Unit (LHD models)
EIS001PK
TERMINALWIRE
COLORITEM CONDITION DATA (DC)
1 L/B BAT power supply — Battery voltage
16 B Ground — 0V
17 G IGN power supply — Battery voltage
27 G/WRear window defogger relay control
signalRear window defogger switch ON 0V
Rear window defogger switch OFF Battery voltage
35 LG/B Rear window defogger switch signalRear window defogger switch ON 0V
Rear window defogger switch OFF Battery voltage

REAR WINDOW DEFOGGER
GW-13
C
D
E
F
G
H
J
K
L
MA
B
GW

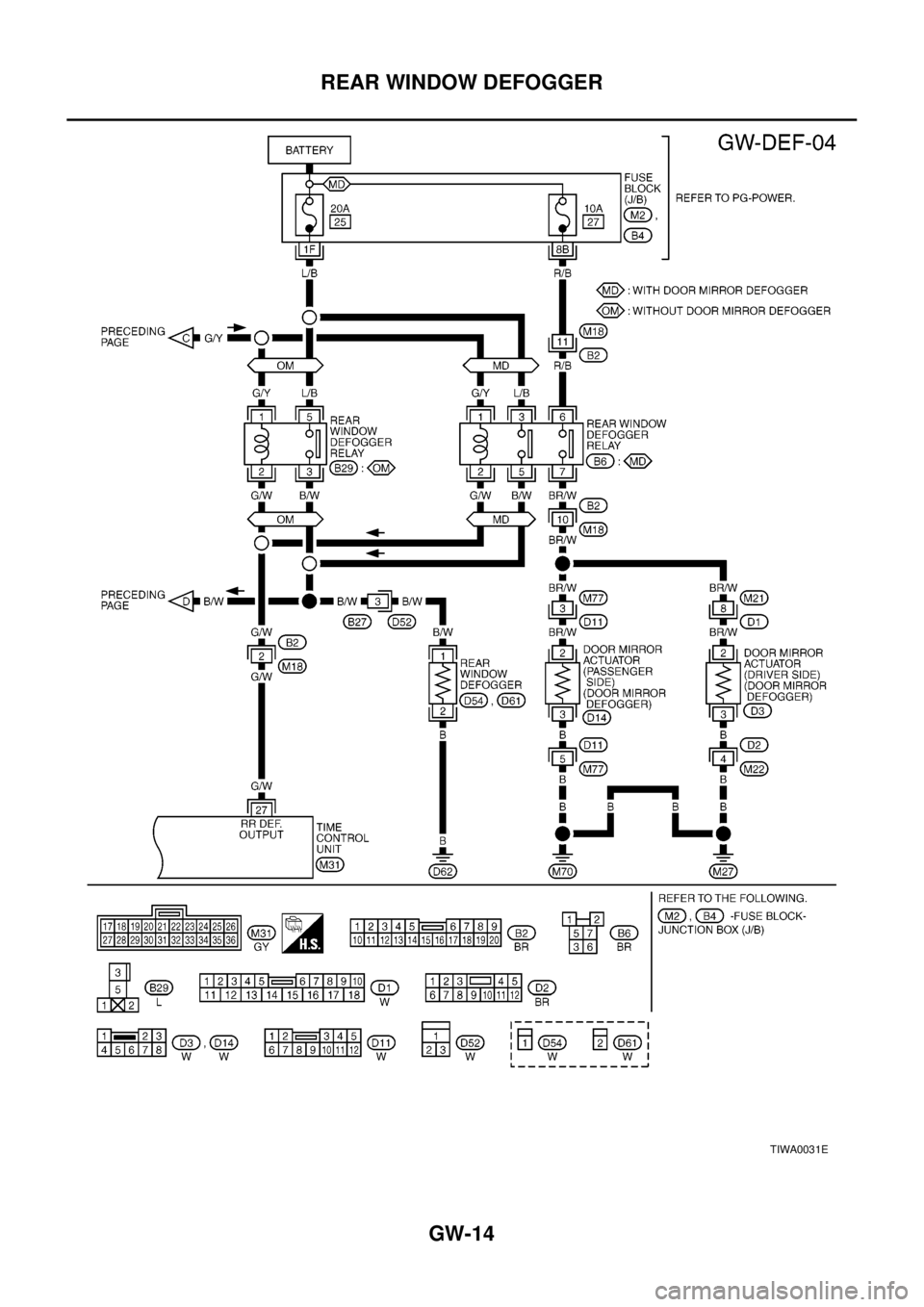

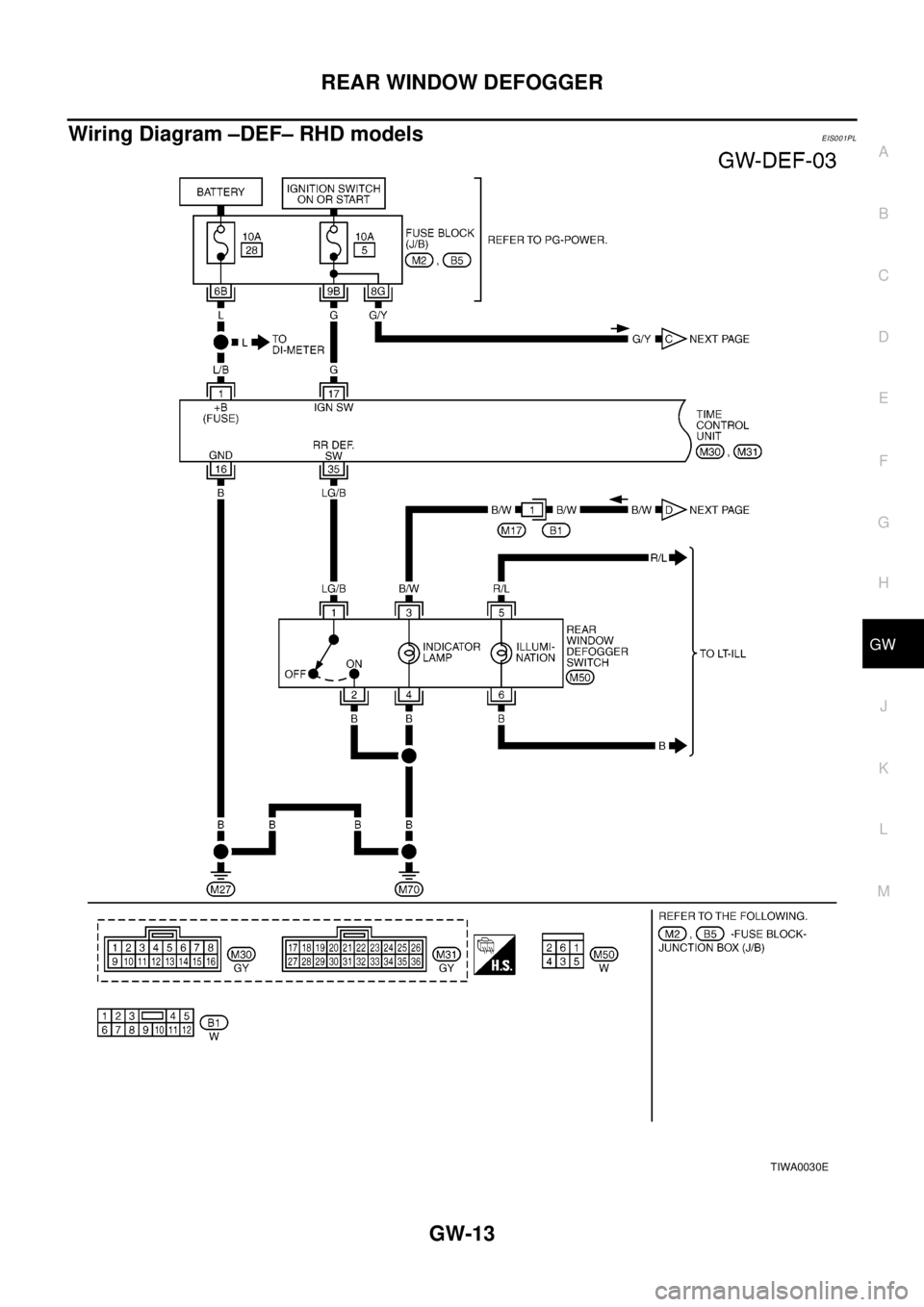

Wiring Diagram –DEF– RHD modelsEIS001PL
TIWA0030E

GW-14
REAR WINDOW DEFOGGER
TIWA0031E

REAR WINDOW DEFOGGER
GW-15
C
D
E
F
G
H
J
K
L
MA
B
GW
Terminals and Reference value for Time Control Unit (RHD models)EIS001PM
Trouble DiagnosesEIS001PN
DIAGNOSTIC PROCEDURE SUBTITLE (SYMPTOM: REAR WINDOW DEFOGGER DOES NOT
ACTIVATE, OR DOES NOT GO OFF AFTER ACTIVATING.)
1.CHECK FUSE INSPECTION
Check the following.
( ):With door mirror defogger
OK or NG
OK >> GO TO 2
NG >> Replace fuse
2.CHECK POWER SUPPLY AND IGNITION INPUT SIGNAL
Check voltage between time control unit connector M30, M31 terminals 1 and 17 and ground.
OK or NG
OK >> GO TO 3
NG >> Check the following.
lHarness for open or short between time control unit and fuse
TERMINALWIRE
COLORITEM CONDITION DATA (DC)
1 L/B BAT power supply — Battery voltage
16 B Ground — 0V
17 G IGN power supply — Battery voltage
27 G/WRear window defogger relay control
signalRear window defogger switch ON 0V
Rear window defogger switch OFF Battery voltage
35 LG/BRear window defogger switch sig-
nalRear window defogger switch ON 0V
Rear window defogger switch OFF Battery voltage
Part Terminal No. Ampere Power source Fuse No.
Time control unit1 10A BAT power supply #28
17 10A IGN power supply #5
Rear window defogger
relay1 10A IGN power supply #5
5, (3) 20A BAT power supply #25
Te r m i n a l s
Condition Voltage (V) (+)
(–)
Connector Terminal
M30,M311(L/B)
GroundIgnition switch
OFFBattery voltage
17 (G)Ignition switch
ON or STARTBattery voltage
SIIA1201E

GW-16
REAR WINDOW DEFOGGER
3.CHECK CONTROL UNIT GROUND CIRCUIT
Check continuity between time control unit connector M30 terminal
16 and ground.
OK or NG
Yes >>GOTO3.
No >> Repair or replace harness.

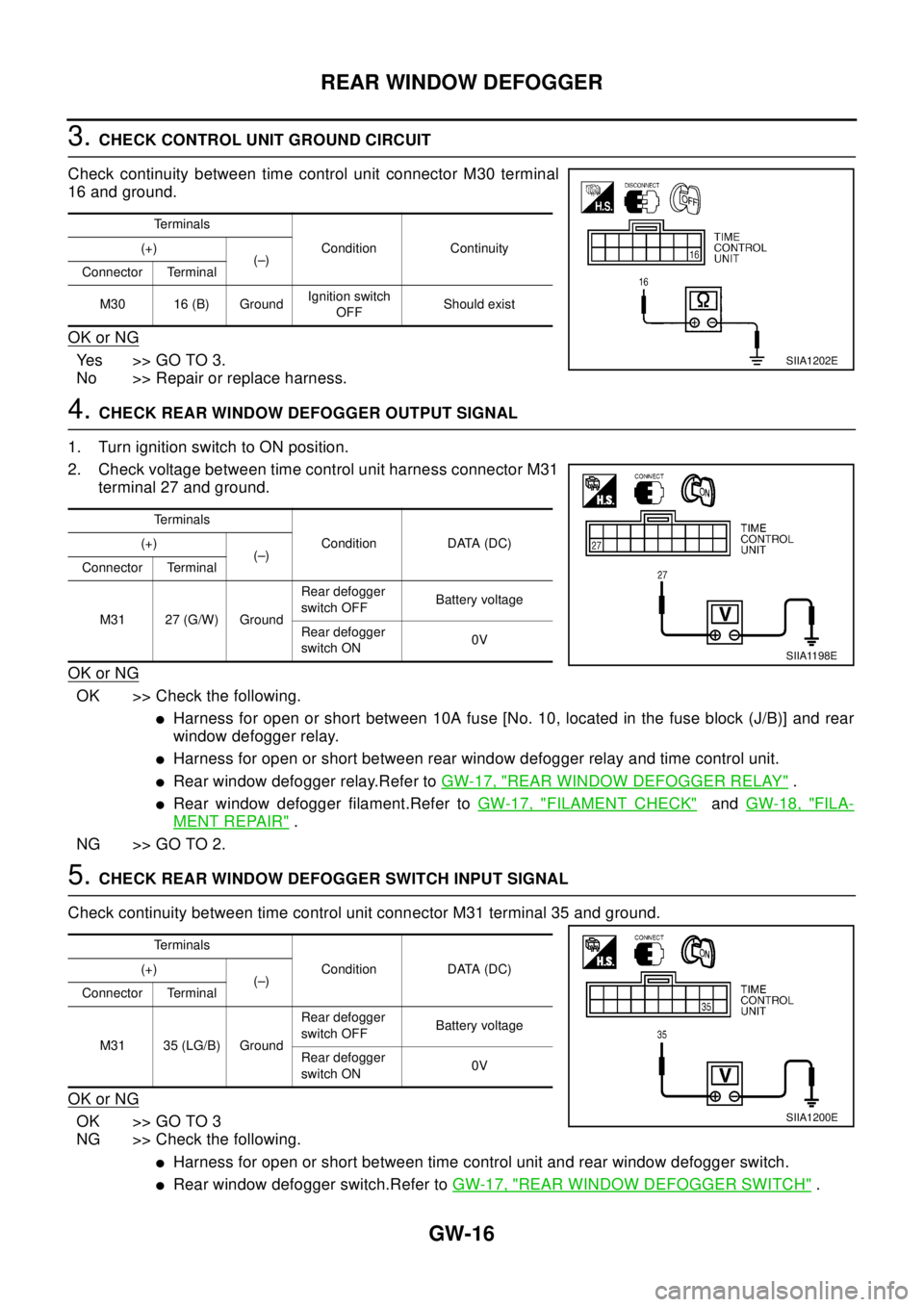

4.CHECK REAR WINDOW DEFOGGER OUTPUT SIGNAL
1. Turn ignition switch to ON position.
2. Check voltage between time control unit harness connector M31
terminal 27 and ground.
OK or NG
OK >> Check the following.
lHarness for open or short between 10A fuse [No. 10, located in the fuse block (J/B)] and rear
window defogger relay.
lHarness for open or short between rear window defogger relay and time control unit.
lRear window defogger relay.Refer toGW-17, "REAR WINDOW DEFOGGER RELAY".
lRear window defogger filament.Refer toGW-17, "FILAMENT CHECK"andGW-18, "FILA-
MENT REPAIR".
NG >> GO TO 2.
5.CHECK REAR WINDOW DEFOGGER SWITCH INPUT SIGNAL
Check continuity between time control unit connector M31 terminal 35 and ground.
OK or NG
OK >> GO TO 3
NG >> Check the following.
lHarness for open or short between time control unit and rear window defogger switch.
lRear window defogger switch.Refer toGW-17, "REAR WINDOW DEFOGGER SWITCH".
Te r m i n a l s
Condition Continuity (+)
(–)
Connector Terminal
M30 16 (B) GroundIgnition switch
OFFShould exist
SIIA1202E
Te r m i n a l s
Condition DATA (DC) (+)
(–)
Connector Terminal
M31 27 (G/W) GroundRear defogger
switch OFFBattery voltage
Rear defogger
switch ON0V
SIIA1198E
Te r m i n a l s
Condition DATA (DC) (+)
(–)
Connector Terminal
M31 35 (LG/B) GroundRear defogger
switch OFFBattery voltage
Rear defogger
switch ON0V
SIIA1200E

REAR WINDOW DEFOGGER
GW-17
C
D
E
F
G
H
J
K
L
MA
B
GW
Electrical Components InspectionEIS001R1
REAR WINDOW DEFOGGER RELAY

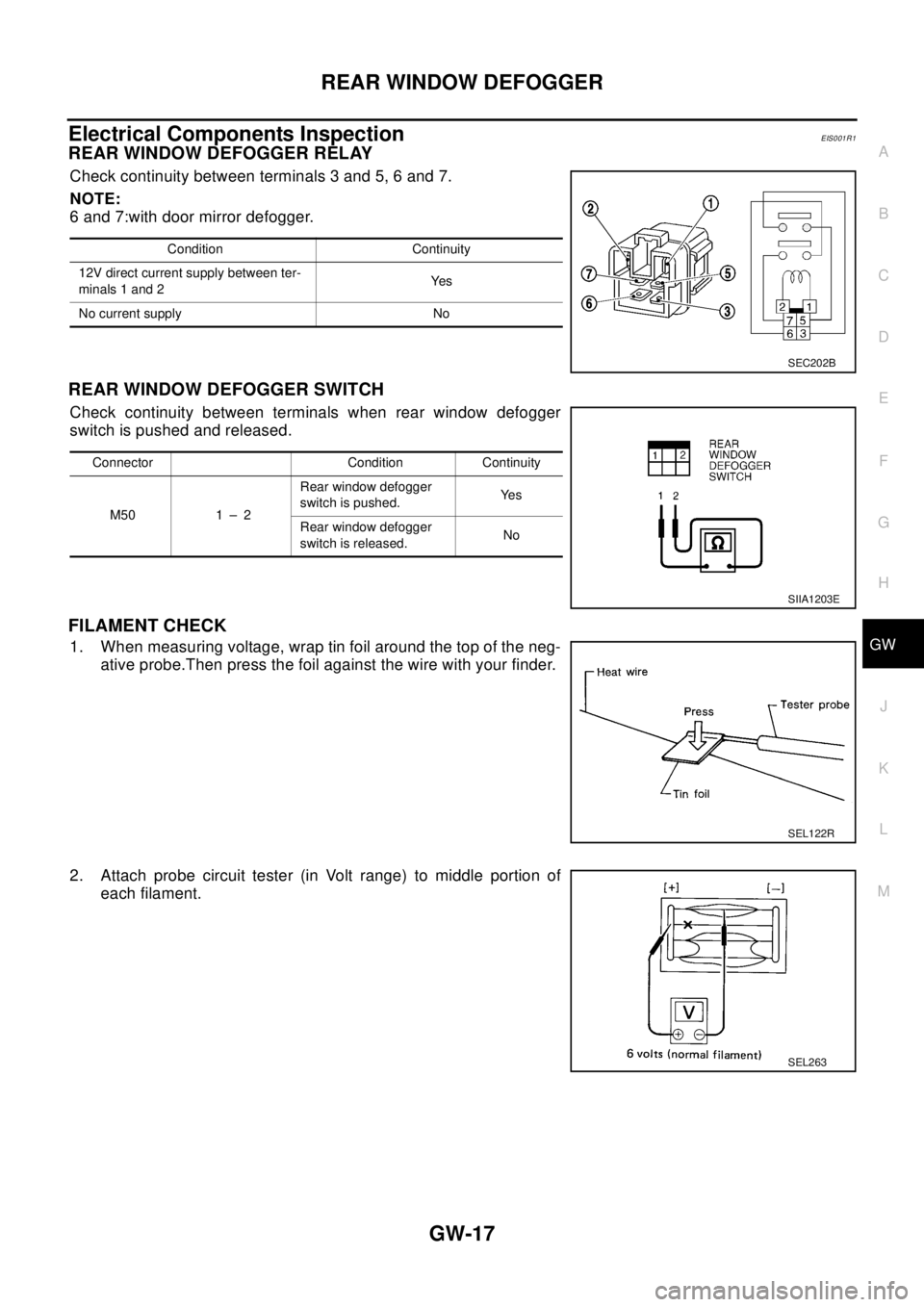

Check continuity between terminals 3 and 5, 6 and 7.
NOTE:
6 and 7:with door mirror defogger.
REAR WINDOW DEFOGGER SWITCH
Check continuity between terminals when rear window defogger
switch is pushed and released.
FILAMENT CHECK
1. When measuring voltage, wrap tin foil around the top of the neg-
ative probe.Then press the foil against the wire with your finder.
2. Attach probe circuit tester (in Volt range) to middle portion of
each filament.
Condition Continuity
12V direct current supply between ter-
minals 1 and 2Ye s
No current supply No
SEC202B
Connector Condition Continuity
M50 1 – 2Rear window defogger
switch is pushed.Ye s
Rear window defogger
switch is released.No
SIIA1203E
SEL122R
