3. If a filament is burned out, circuit tester registers 0 or battery
voltage.
4. To locate burned out point, move probe to left and right along fil-
ament.Test needle will swing abruptly when probe passes the
point.
FILAMENT REPAIR
Repair equipment
lConductive silver composition (Dupont NO.4817 or equivalent)
lRuler30cm(11.8in)long
lDrawing pen
lHeat gun
lAlcohol
lCloth
Repairing procedure
1. Wipe broken heat wire and its surrounding area clean with a
cloth dampened alcohol.
2. Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.
3. Place ruler on glass along broken line.Deposit conductive silver
composition on break with drawing pen.Slightly overlap existing
heat wire on both sides [preferably 5 mm(0.20in)] of the break.
4. After repair has been completed, check repaired wire for conti-
nuity.This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.
SEL265
PIIA0215E
SEL012D

REAR WINDOW DEFOGGER
GW-19
C
D
E
F
G
H
J
K
L
MA
B
GW
5. Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun.A minimum dis-
tance of 3cm(1.2in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.
SEL013D

GW-20
POWER WINDOW SYSTEM
POWER WINDOW SYSTEM
PFP:25401

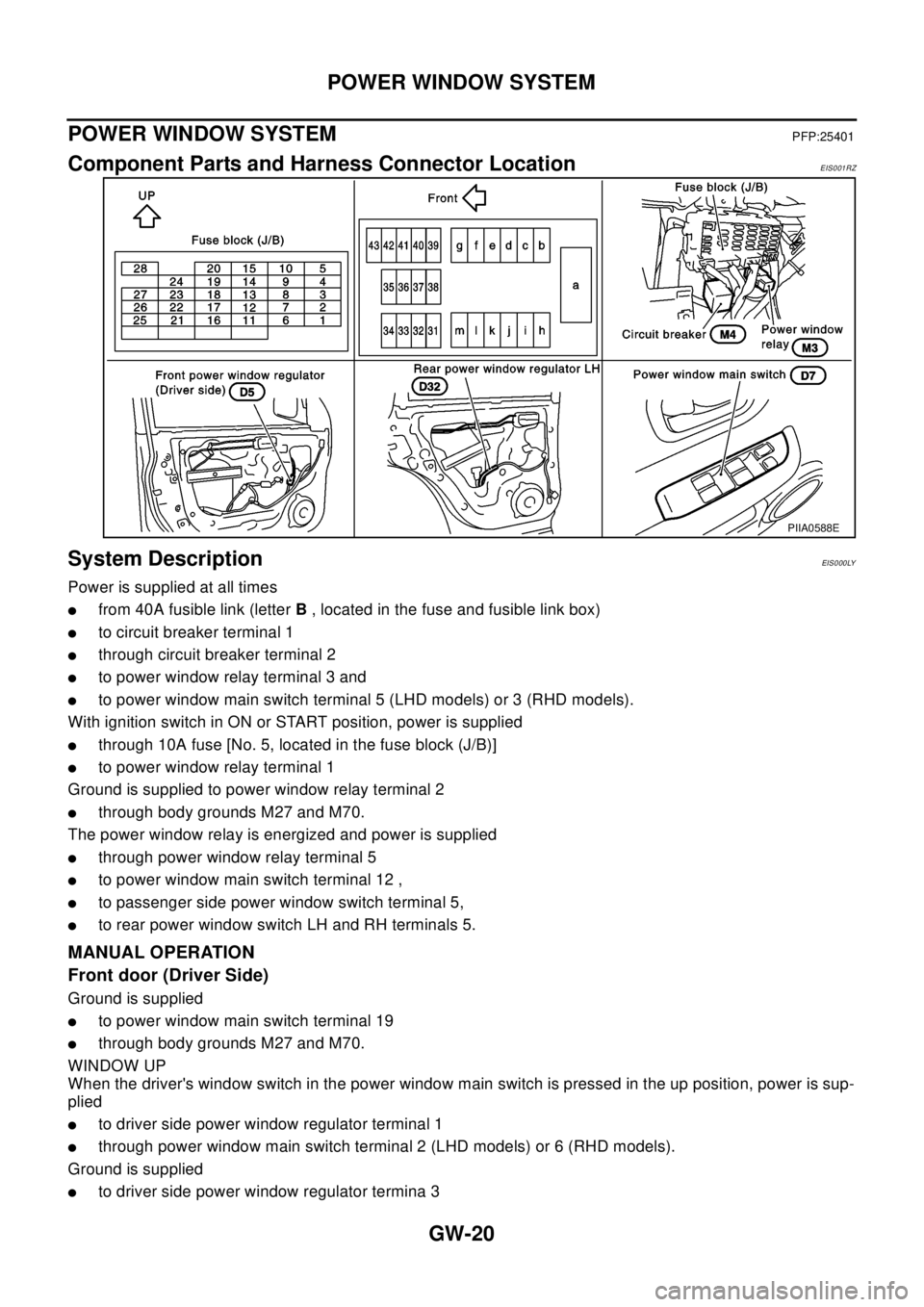

Component Parts and Harness Connector LocationEIS001RZ
System DescriptionEIS0 00 LY
Power is supplied at all times
lfrom 40A fusible link (letterB, located in the fuse and fusible link box)
lto circuit breaker terminal 1
lthrough circuit breaker terminal 2
lto power window relay terminal 3 and
lto power window main switch terminal 5 (LHD models) or 3 (RHD models).
With ignition switch in ON or START position, power is supplied
lthrough 10A fuse [No. 5, located in the fuse block (J/B)]
lto power window relay terminal 1
Ground is supplied to power window relay terminal 2
lthrough body grounds M27 and M70.
The power window relay is energized and power is supplied
lthrough power window relay terminal 5
lto power window main switch terminal 12 ,
lto passenger side power window switch terminal 5,
lto rear power window switch LH and RH terminals 5.
MANUAL OPERATION
Front door (Driver Side)
Ground is supplied
lto power window main switch terminal 19
lthrough body grounds M27 and M70.
WINDOW UP
When the driver's window switch in the power window main switch is pressed in the up position, power is sup-
plied
lto driver side power window regulator terminal 1
lthrough power window main switch terminal 2 (LHD models) or 6 (RHD models).
Ground is supplied
lto driver side power window regulator termina 3
PIIA0588E

POWER WINDOW SYSTEM
GW-21
C
D
E
F
G
H
J
K
L
MA
B
GW
lthrough power window main switch terminal 1 (LHD models) or 7 (RHD models).
Then, the motor raises the window until the switch is released.
WINDOW DOWN
When the driver's window switch in the power window main switch is pressed in the down position, power is
supplied
lto driver side power window regulator terminal 3
lthrough power window main switch terminal 1 (LHD models) or 7 (RHD models)
Ground is supplied
lto driver side power window regulator terminal 1
lthrough power window main switch terminal 2 (LHD models) or 6 (RHD models).
Then, the motor lowers the window until the switch is released.
Front door (Passenger Side)
Ground is supplied
lto power window main switch terminal 19
lthrough body grounds M27 and M70.
NOTE:
Numbers in parentheses are terminal numbers, when power window switch is pressed in the UP and DOWN
positions respectively.
POWER WINDOW MAIN SWITCH OPERATION
Power is supplied
lthrough power window main switch (4, 3) (LHD models) or (4, 5) (RHD models)
lto passenger side power window switch (3, 4).
The subsequent operation is the same as the passenger side power window switch operation.
PASSENGER SIDE POWER WINDOW SWITCH OPERATION
Power is supplied
lthrough passenger side power window switch (1, 2)
lto passenger side power window regulator (1, 2).
Ground is supplied
lto passenger side power window regulator (1, 2)
lthrough passenger side power window switch (1, 2)
lto passenger side power window switch (3 ,4)
lthrough power window main switch (4, 3) (LHD models) or (4, 5) (RHD models).
Then, the ,motor raises or lowers the window until the switch is released.
Rear door
Rear door windows will raise and lower in the same manner as passenger's door window.
AUTO OPERATION
The power window AUTO feature enables the driver to open or close the driver's window without holding the
window switch in the down or up position.
The AUTO feature operates on the driver's window.
POWER WINDOW LOCK
The power window lock is designed to lock operation of all windows except for driver's window.
When the lock switch is pressed to pressed to lock position, ground of the sub–switches in the power window
main switch is disconnected.This prevents the power window motors from operating.
TIME FUNCTION
With the timer function, driver power window can be operated for approximately 15 minutes after ignition
switch is turned OFF (positions other than ON). However, the timer will be reset when a specific signal, such
as driver door open (door switch ON)®close (door switch OFF), or ignition switch OFF®ON, is input.
DRIVER WINDOW ANTI–PINCH FUNCTION
During raising operation of driver power window, if door control module detects that foreign object is pinched,
power window lowers approximately 150 mm (5.91 in).

GW-22
POWER WINDOW SYSTEM
NOTE:
Depending on environment and driving conditions, if a similar impact or load is applied to power window, it
may lower.
Operation conditions
lDriver door window is between fully-open and just before fully-closed position (when the limit switch is
ON).
lDuring automatic operation when ignition switch is turned ON.
lDuring automatic or manual operation when ignition switch is other than ON position (when the timer
operates).

POWER WINDOW SYSTEM
GW-23
C
D
E
F
G
H
J
K
L
MA
B
GW

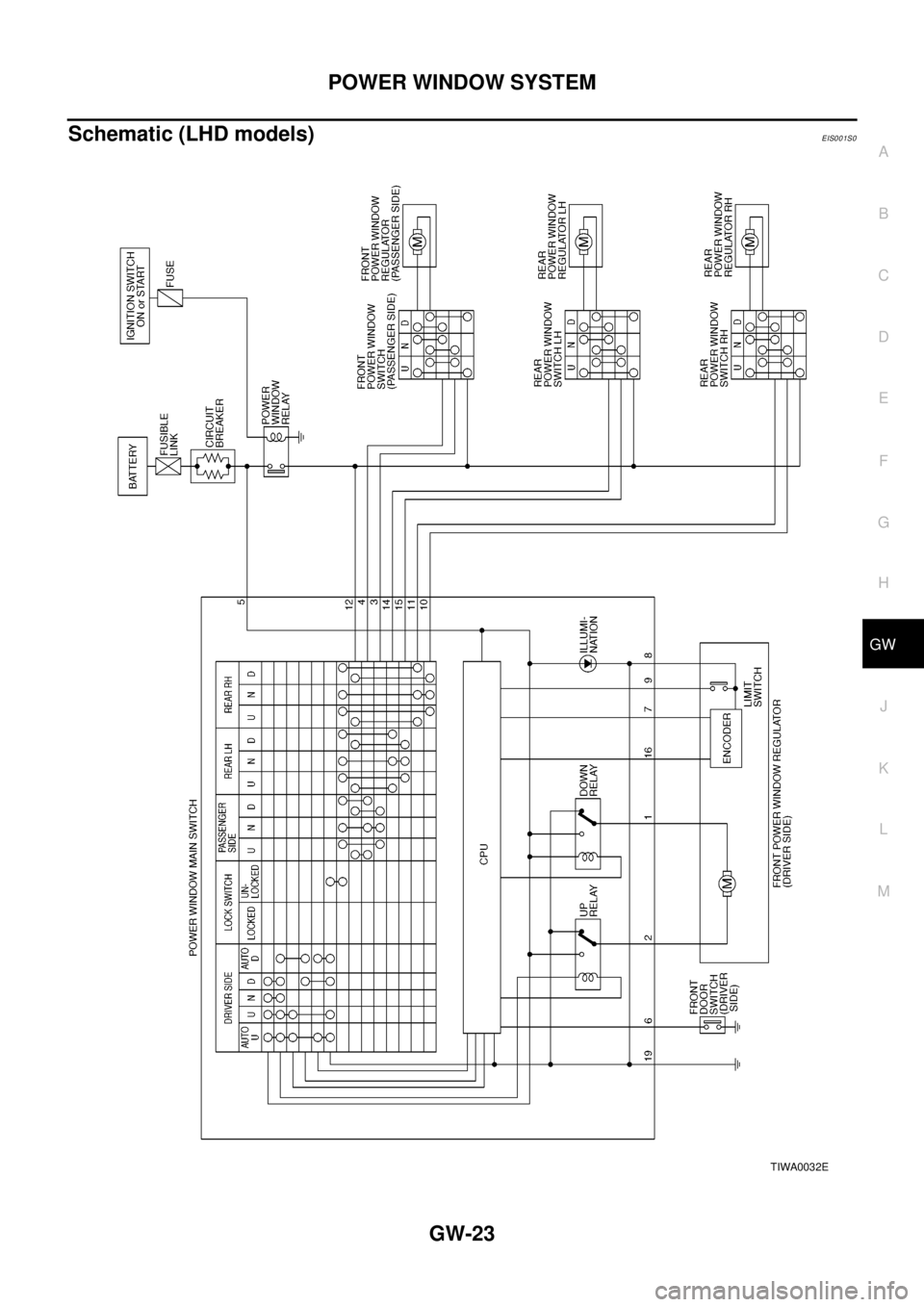

Schematic (LHD models)EIS001S0
TIWA0032E

GW-24
POWER WINDOW SYSTEM
Wiring Diagram – WINDOW – (LHD models)
EIS001S1

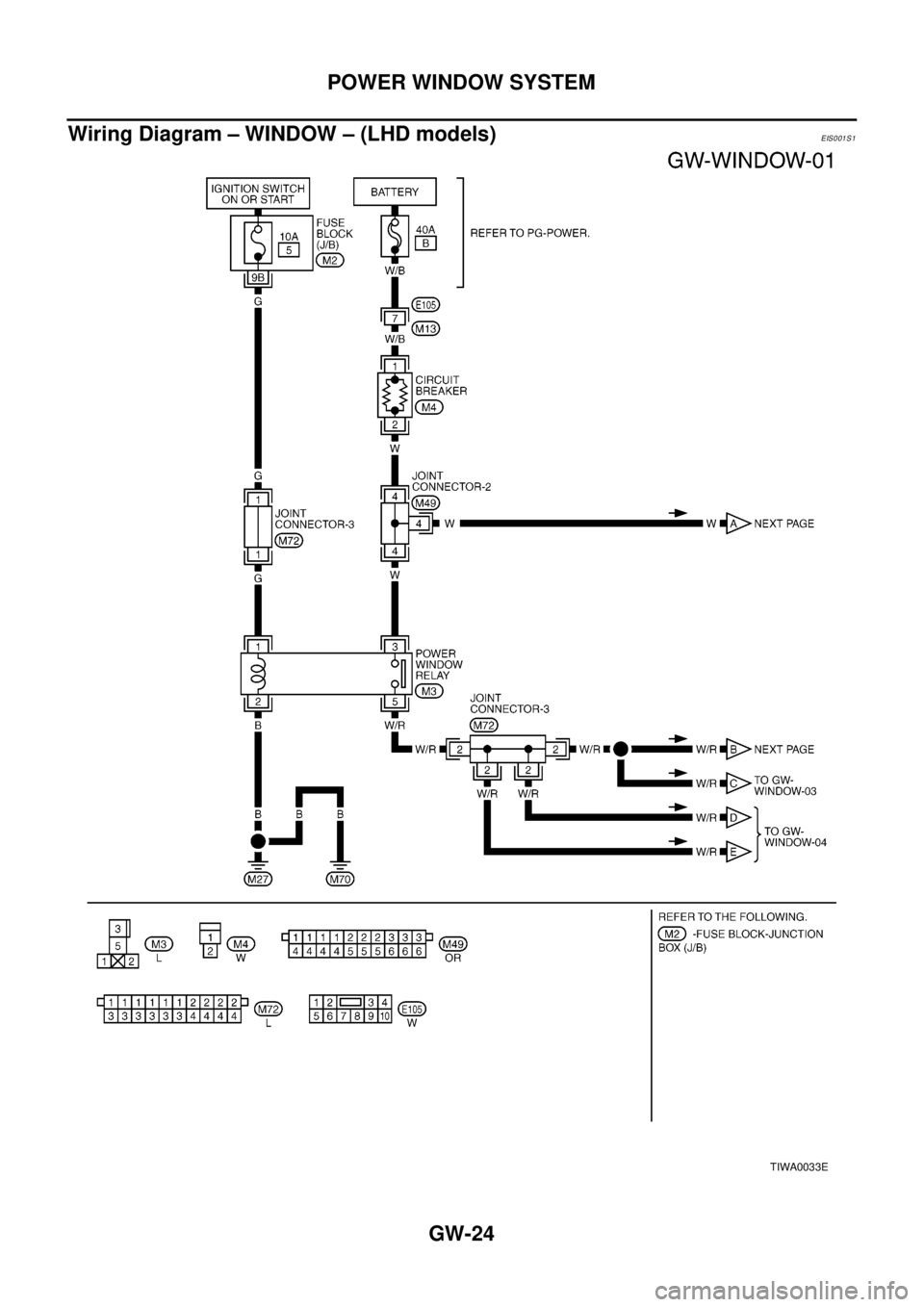

TIWA0033E

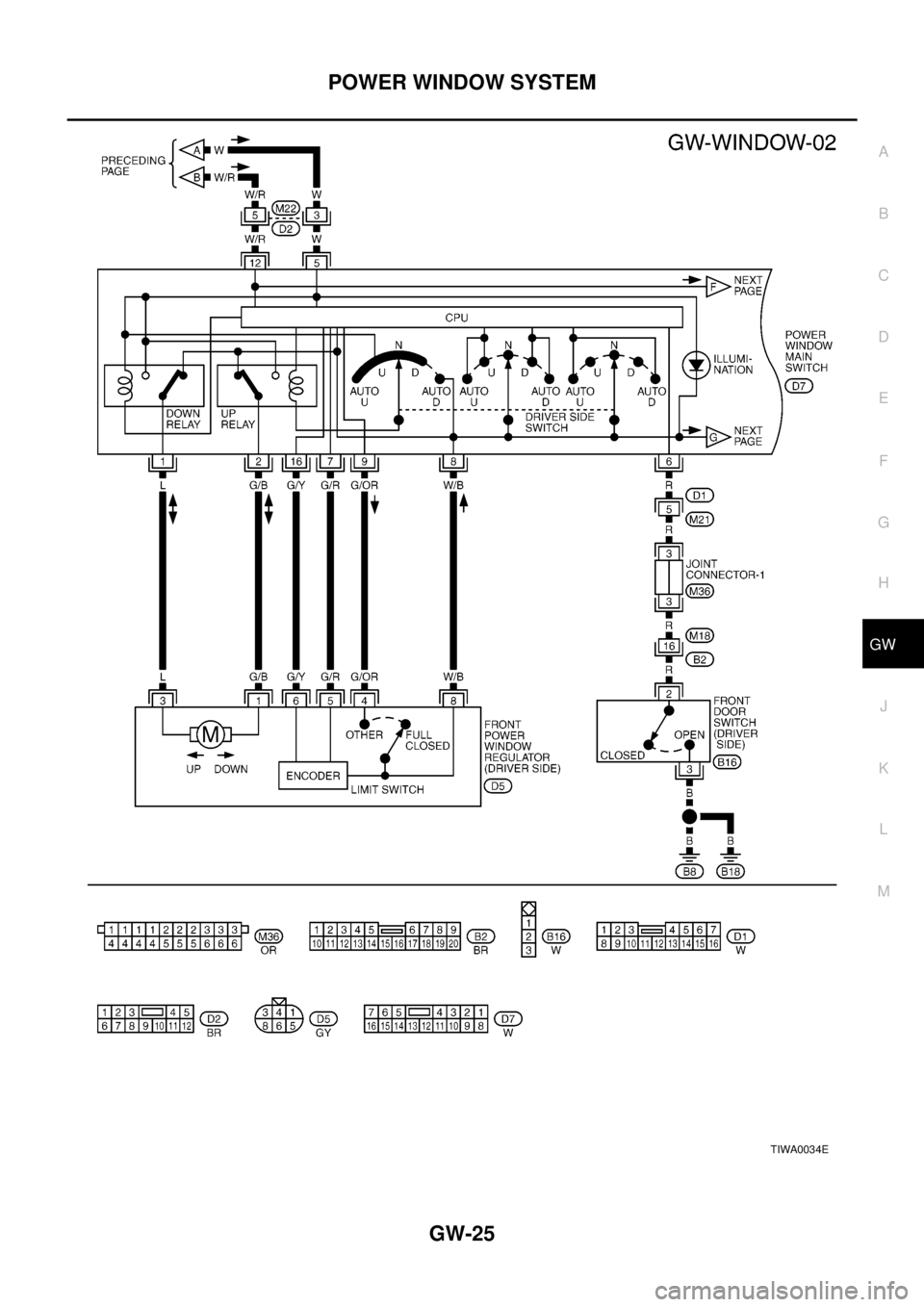

POWER WINDOW SYSTEM
GW-25
C
D
E
F
G
H
J
K
L
MA
B
GW

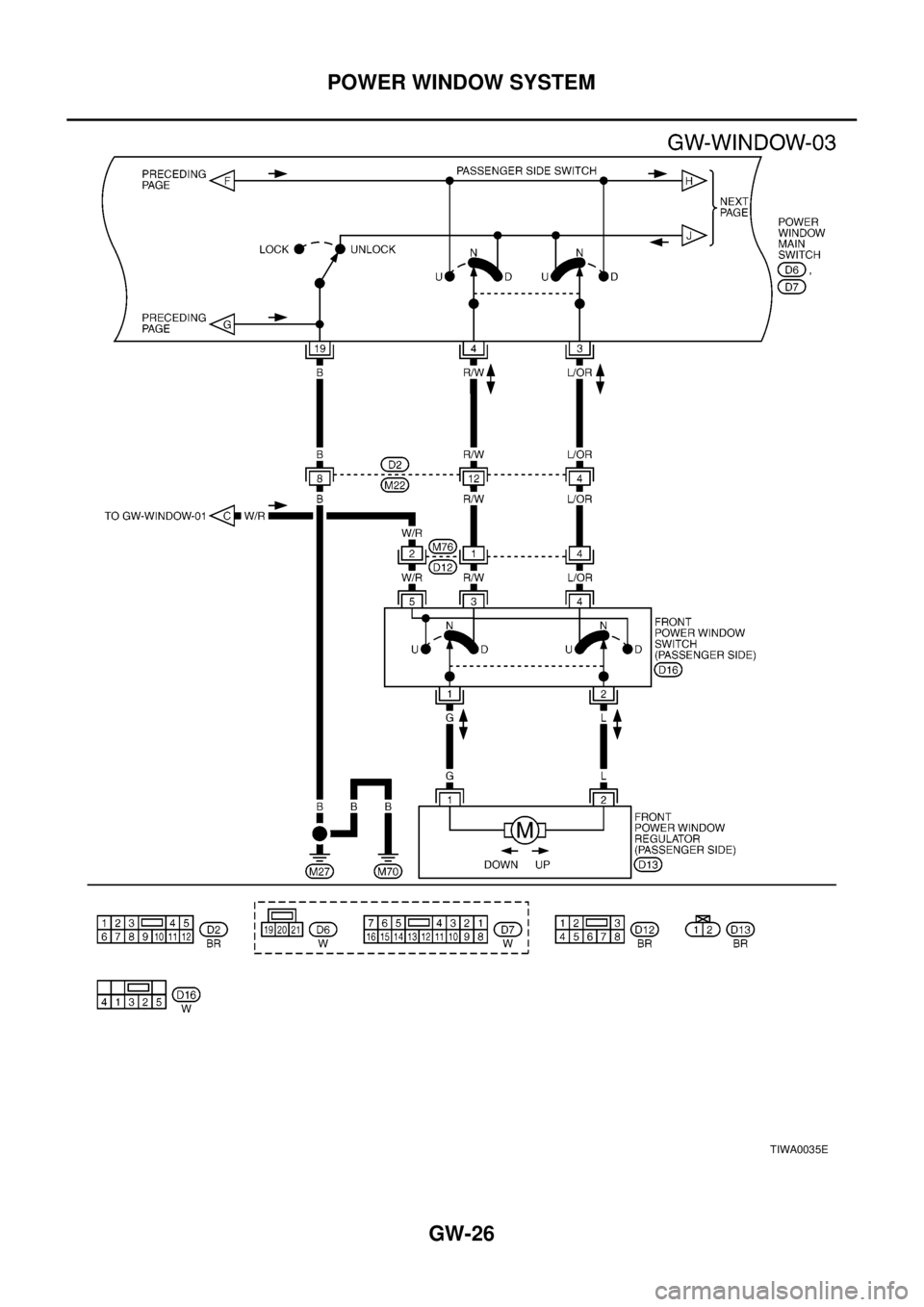

TIWA0034E

GW-26
POWER WINDOW SYSTEM
TIWA0035E

POWER WINDOW SYSTEM
GW-27
C
D
E
F
G
H
J
K
L
MA
B
GW

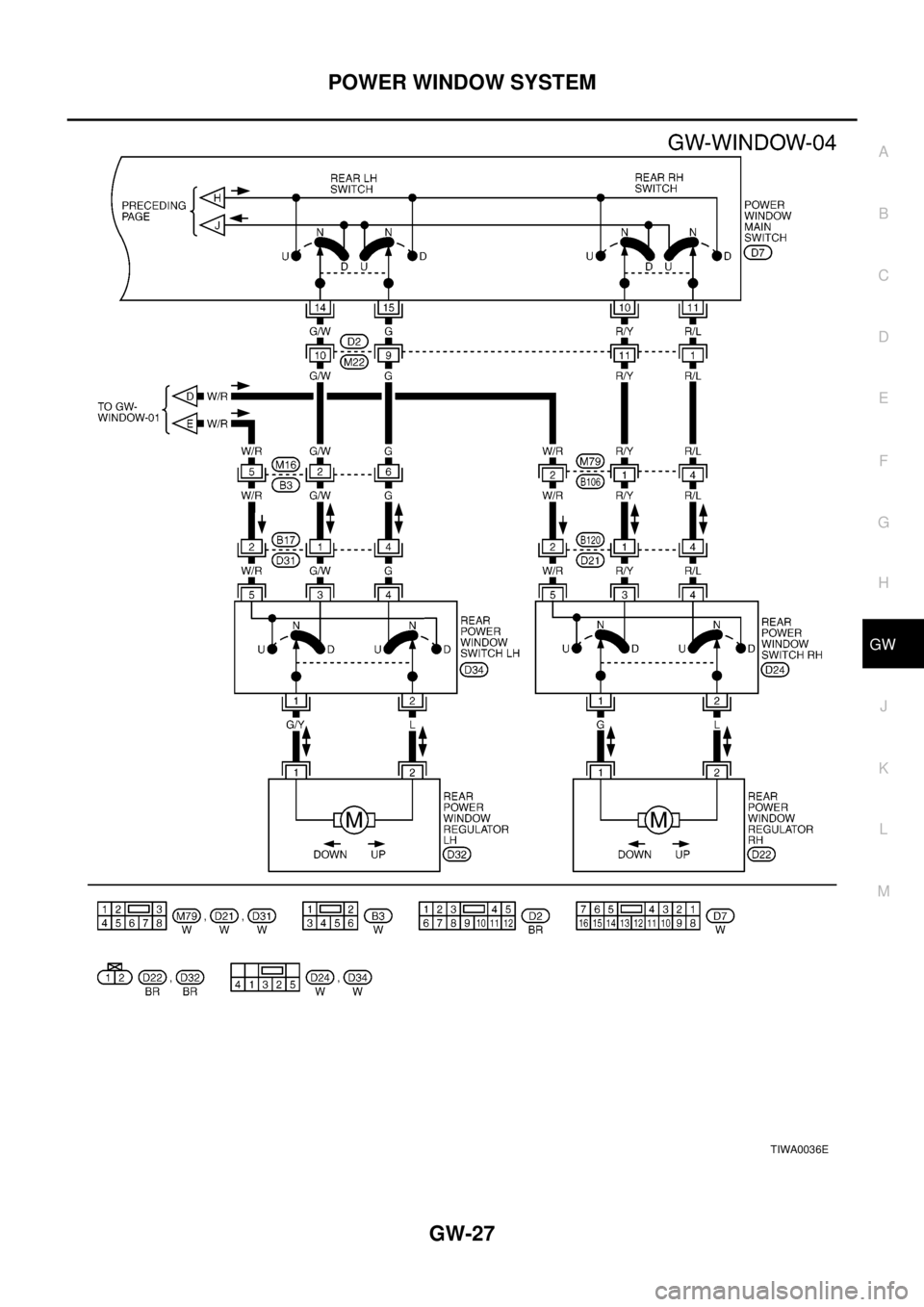

TIWA0036E
