NISSAN X-TRAIL 2003 Electronic Repair Manual GW-28
POWER WINDOW SYSTEM
Terminal and Reference Value for Power Window Main Switch (LHD models)
EIS001S2
TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
1LDriver power window motor
DOWN signalWhen DOWN

GW-28
POWER WINDOW SYSTEM
Terminal and Reference Value for Power Window Main Switch (LHD models)
EIS001S2
TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
1LDriver power window motor
DOWN signalWhen DOWN operation. Battery voltage
Other than above. Approx.0
2G/BDriver power window motor
UP signallWhen UP operation. Battery voltage
Other than above. Approx. 0
3L/ORPassenger power window
UP signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch passenger switch
DOWN operation.Approx. 0
Main switch passenger switch
UP operation.Battery voltage
Main switch passenger switch
DOWN operation.Battery voltage
Other than above. Approx. 0
4R/WPassenger power window
DOWN signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch passenger switch
UP operation.Approx. 0
Main switch passenger switch
DOWN operation.Battery voltage
Main switch passenger switch
UP operation.Battery voltage
Other than above. Approx. 0
5 W BAT power supply — Battery voltage
6 R Driver door switch signalDriver door open (ON). Approx. 0
Driver door close (OFF). Battery voltage
7 G/R Encoder power supply — Approx. 10
8 W/B Limit switch encoder ground — Approx. 0
9 G/OR Limit switch signalDriver door window is between
fully-open and just before fully-
closed position (ON).Approx. 0
Driver door window is between
just before fully-closed position
and fully-closed position (OFF).Approx. 5
10 R/YRear RH power window
DOWN signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear RH switch UP
operation.Approx. 0
Main switch rear RH switch
DOWN operation.Battery voltage
Main switch rear RH switch UP
operation.Battery voltage
Other than above. Approx. 0

Page 2332 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER WINDOW SYSTEM
GW-29
C
D
E
F
G
H
J
K
L
MA
B
GW
Terminal and Reference Value for Each Doors Power Window Switch (LHD
models)
EIS000M2
11 R / LRear RH power window UP
signalMain switch rear RH swi

POWER WINDOW SYSTEM
GW-29
C
D
E
F
G
H
J
K
L
MA
B
GW
Terminal and Reference Value for Each Door's Power Window Switch (LHD
models)
EIS000M2
11 R / LRear RH power window UP
signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear RH switch
DOWN operation.Approx. 0
Main switch rear RH switch UP
operation.Battery voltage
Main switch rear RH switch
DOWN operation.Battery voltage
Other than above. Approx. 0
12 W/RPassenger and rear RH/LH
power window switch power
supply— Battery voltage
14 G/WRear LH power window
DOWN signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear LH switch UP
operation.Approx. 0
Main switch rear LH switch
DOWN operation.Battery voltage
Main switch rear LH switch UP
operation.Battery voltage
Other than above. Approx. 0
15 GRear LH power window UP
signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear LH switch
DOWN operation.Approx. 0
Main switch rear LH switch UP
operation.Battery voltage
Main switch rear LH switch
DOWN operation.Battery voltage
Other than above. Approx. 0
16 G/Y Encoder pulse signalWhen power window motor
operates.Approx. 2.5
19 B Ground — Approx. 0 TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
OCC3383D
TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
1 G Powerwindow motorUPsignalWhen UP operation. Battery voltage
Other than above. Approx. 0
2LPowerwindow motorDOWN
signalWhen DOWN operation. Battery voltage
Other than above. Approx. 0

Page 2333 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-30
POWER WINDOW SYSTEM
3 R/W Power window DOWN signalPower window switch DOWN
operation.Approx. 0
Power window switch
UP operation.Approx. 0
Power window switch DOWN
operation.Battery voltage
Power

GW-30
POWER WINDOW SYSTEM
3 R/W Power window DOWN signalPower window switch DOWN
operation.Approx. 0
Power window switch
UP operation.Approx. 0
Power window switch DOWN
operation.Battery voltage
Power window switch
UP operation.Battery voltage
Other than above. Approx. 0
4 L/OR Power window UP signalPower window switch
UP operation.Approx. 0
Power window switch DOWN
operation.Approx. 0
Power window switch
UP operation.Battery voltage
Power window switch DOWN
operation.Battery voltage
Other than above. Approx. 0
5W/RPower window switch power
supply— Battery voltage TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)

Page 2334 of 3066

POWER WINDOW SYSTEM
GW-31
C
D
E
F
G
H
J
K
L
MA
B
GW
Schematic (RHD models)EIS001S3
TIWA0037E

Page 2335 of 3066

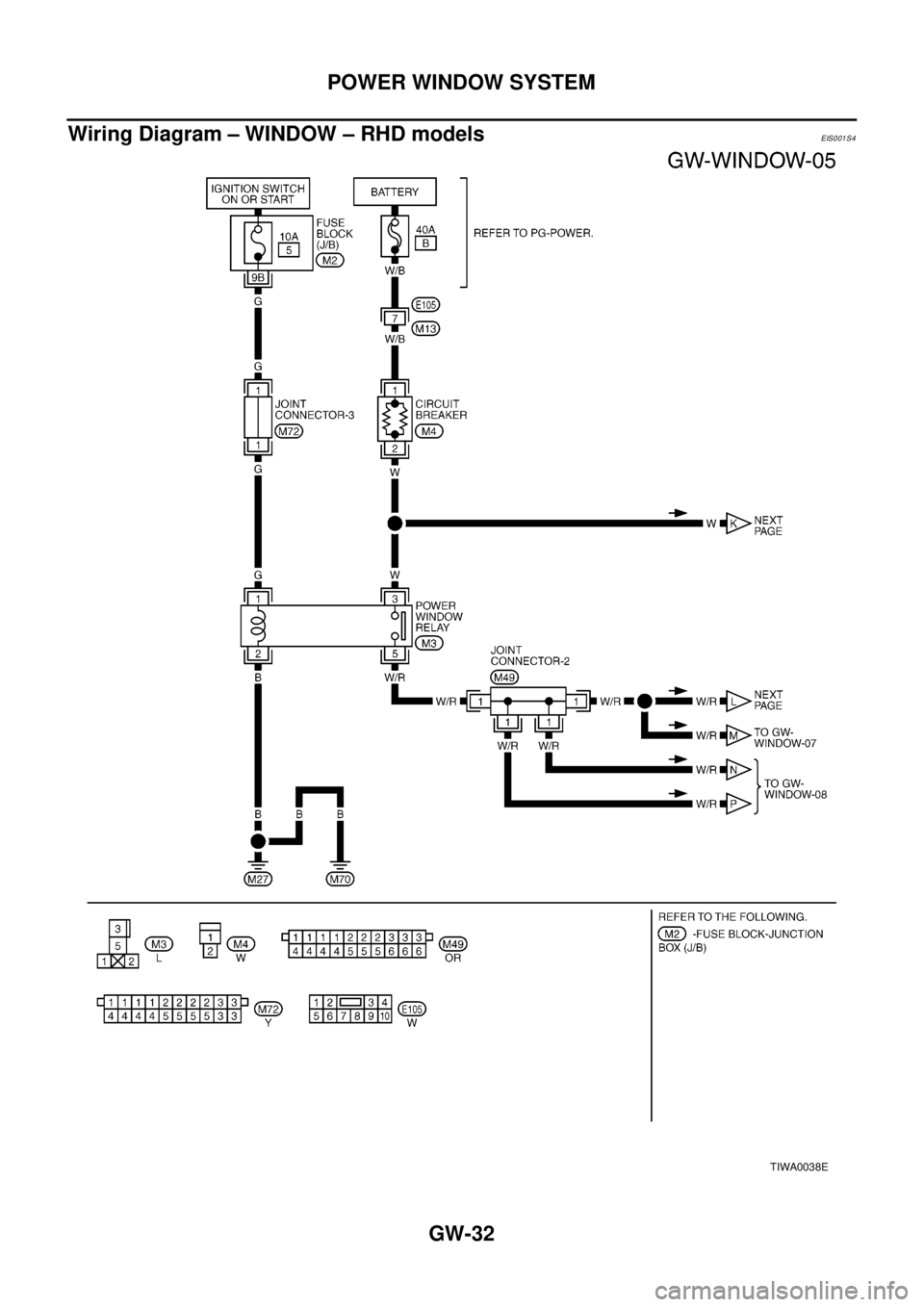

GW-32
POWER WINDOW SYSTEM

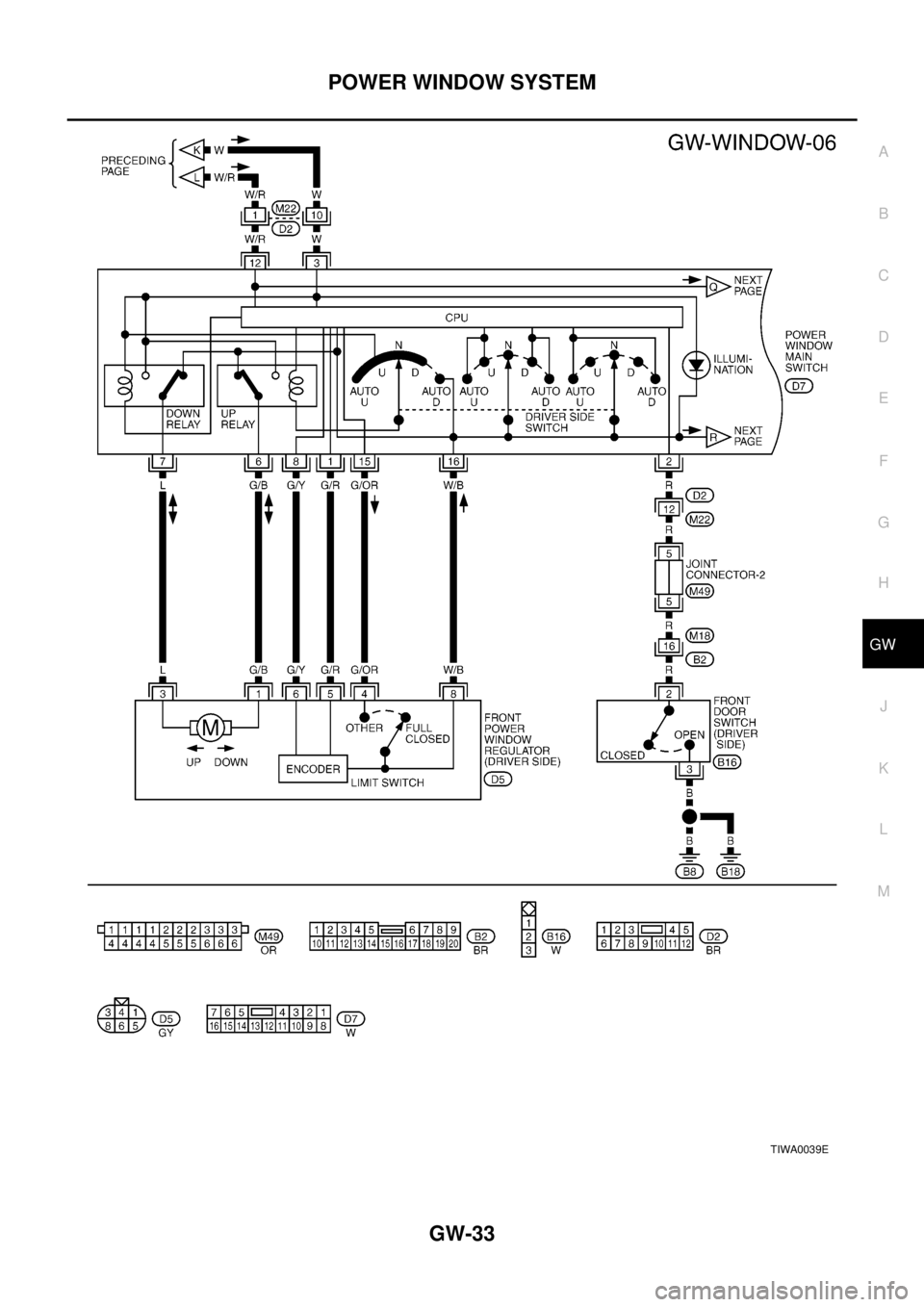

Wiring Diagram – WINDOW – RHD models
EIS001S4
TIWA0038E

Page 2336 of 3066

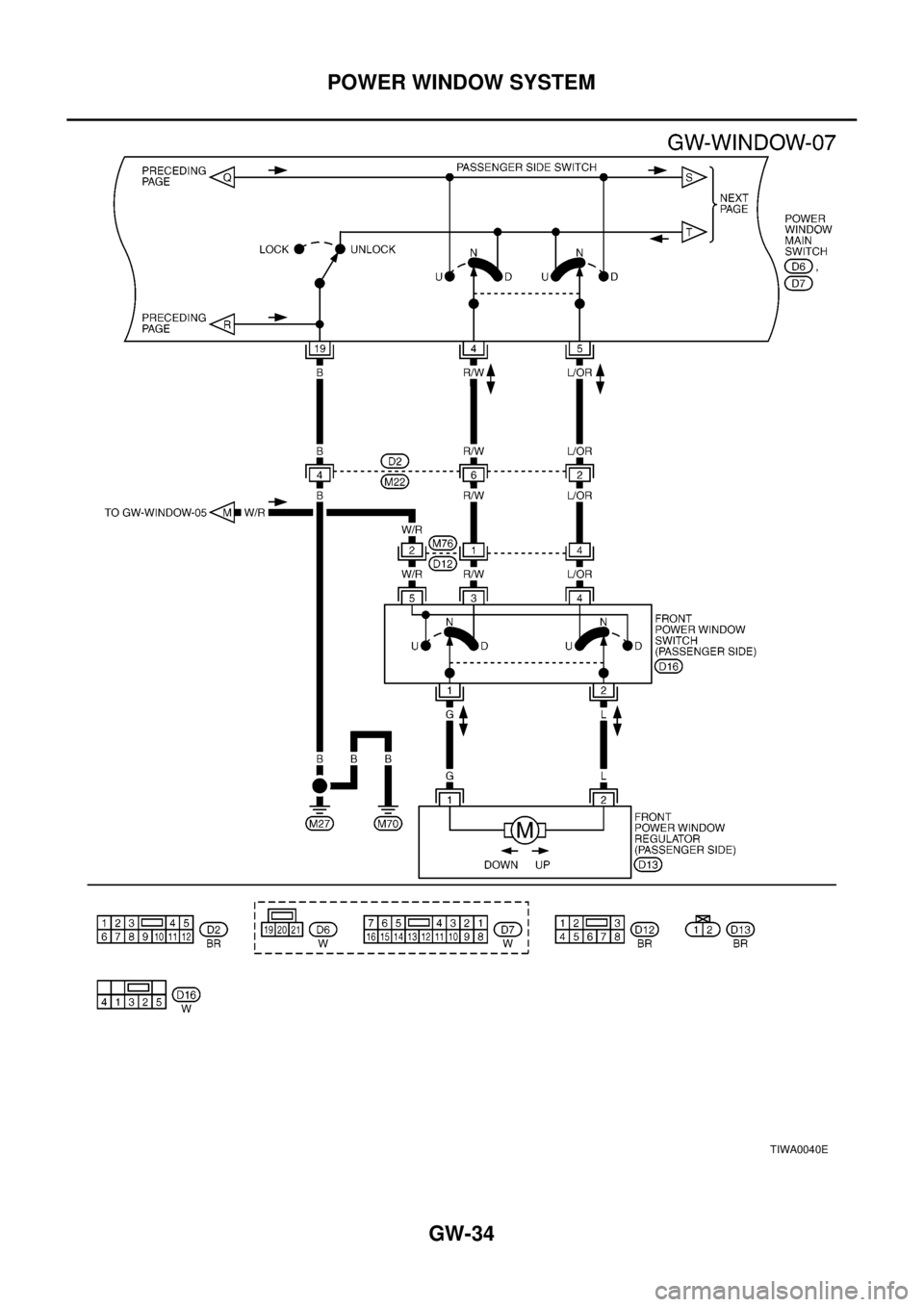

POWER WINDOW SYSTEM
GW-33
C
D
E
F
G
H
J
K
L
MA
B
GW
TIWA0039E

Page 2337 of 3066

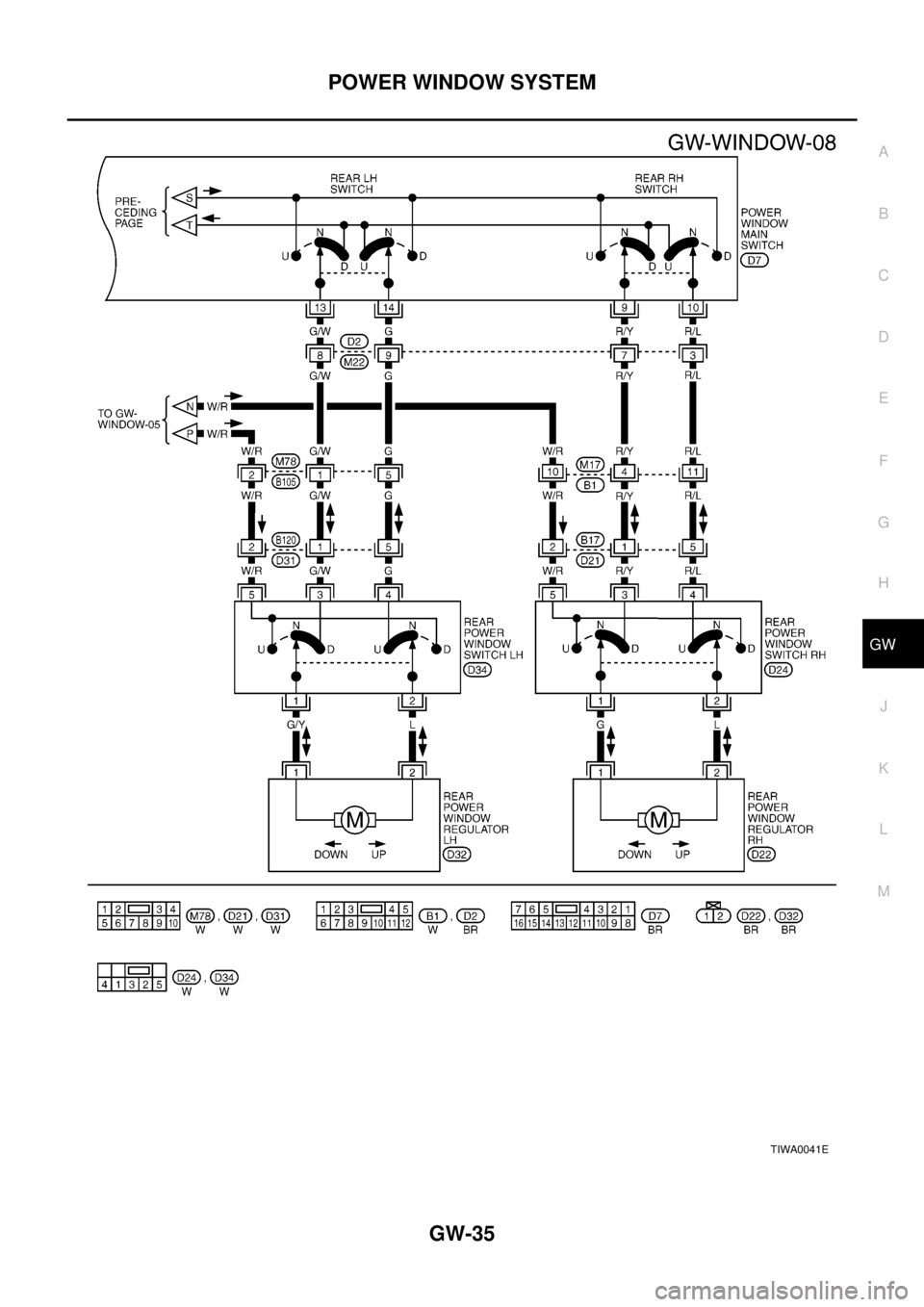

GW-34
POWER WINDOW SYSTEM
TIWA0040E

Page 2338 of 3066

POWER WINDOW SYSTEM
GW-35
C
D
E
F
G
H
J
K
L
MA
B
GW
TIWA0041E

Page 2339 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual GW-36
POWER WINDOW SYSTEM
Terminal and Reference Value for Power Window Main Switch (RHD models)
EIS001S5
TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
1 G/R Encoder power supply — Approx. 10
2 R Dri

GW-36
POWER WINDOW SYSTEM
Terminal and Reference Value for Power Window Main Switch (RHD models)
EIS001S5
TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
1 G/R Encoder power supply — Approx. 10
2 R Driver door switch signalDriver door open (ON). Approx. 0
Driver door close (OFF). Battery voltage
3 W BAT power supply — Battery voltage
4R/WPassenger power window
DOWN signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch passenger switch
UP operation.Approx. 0
Main switch passenger switch
DOWN operation.Battery voltage
Main switch passenger switch
UP operation.Battery voltage
Other than above. Approx. 0
5L/ORPassenger power window
UP signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch passenger switch
DOWN operation.Approx. 0
Main switch passenger switch
UP operation.Battery voltage
Main switch passenger switch
DOWN operation.Battery voltage
Other than above. Approx. 0
6G/BDriver power window motor
UP signallWhen UP operation. Battery voltage
Other than above. Approx. 0
7LDriver power window motor
DOWN signalWhen DOWN operation. Battery voltage
Other than above. Approx.0
8 G/Y Encoder pulse signalWhen power window motor
operates.Approx. 2.5
9R/YRear RH power window
DOWN signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear RH switch UP
operation.Approx. 0
Main switch rear RH switch
DOWN operation.Battery voltage
Main switch rear RH switch UP
operation.Battery voltage
Other than above. Approx. 0
OCC3383D

Page 2340 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual POWER WINDOW SYSTEM
GW-37
C
D
E
F
G
H
J
K
L
MA
B
GW
Terminal and Reference Value for Each Doors Power Window Switch (RHD
models)
EIS001S6
10 R/LRear RH power window UP
signalMain switch rear RH switc

POWER WINDOW SYSTEM
GW-37
C
D
E
F
G
H
J
K
L
MA
B
GW
Terminal and Reference Value for Each Door's Power Window Switch (RHD
models)
EIS001S6
10 R/LRear RH power window UP
signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear RH switch
DOWN operation.Approx. 0
Main switch rear RH switch UP
operation.Battery voltage
Main switch rear RH switch
DOWN operation.Battery voltage
Other than above. Approx. 0
12 W/RPassenger and rear RH/LH
power window switch power
supply— Battery voltage
13 G/WRear LH power window
DOWN signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear LH switch UP
operation.Approx. 0
Main switch rear LH switch
DOWN operation.Battery voltage
Main switch rear LH switch UP
operation.Battery voltage
Other than above. Approx. 0
14 GRear LH power window UP
signalMain switch rear RH switch
DOWN operation.Battery voltage
Main switch rear LH switch
DOWN operation.Approx. 0
Main switch rear LH switch UP
operation.Battery voltage
Main switch rear LH switch
DOWN operation.Battery voltage
Other than above. Approx. 0
15 G/OR Limit switch signalDriver door window is between
fully-open and just before fully-
closed position (ON).Approx. 0
Driver door window is between
just before fully-closed position
and fully-closed position (OFF).Approx. 5
16 W/B Limit switch encoder ground — Approx. 0
19 B Ground — Approx. 0 TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
TERMINALWIRE
COLORITEM CONDITION VOLTAGE (V)
1 G Powerwindow motorUPsignalWhen UP operation. Battery voltage
Other than above. Approx. 0
2LPowerwindow motorDOWN
signalWhen DOWN operation. Battery voltage
Other than above. Approx. 0
