Page 1091 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual COMBINATION METERS (RHD MODELS)
DI-37
C
D
E
F
G
H
I
J
L
MA
B
DI

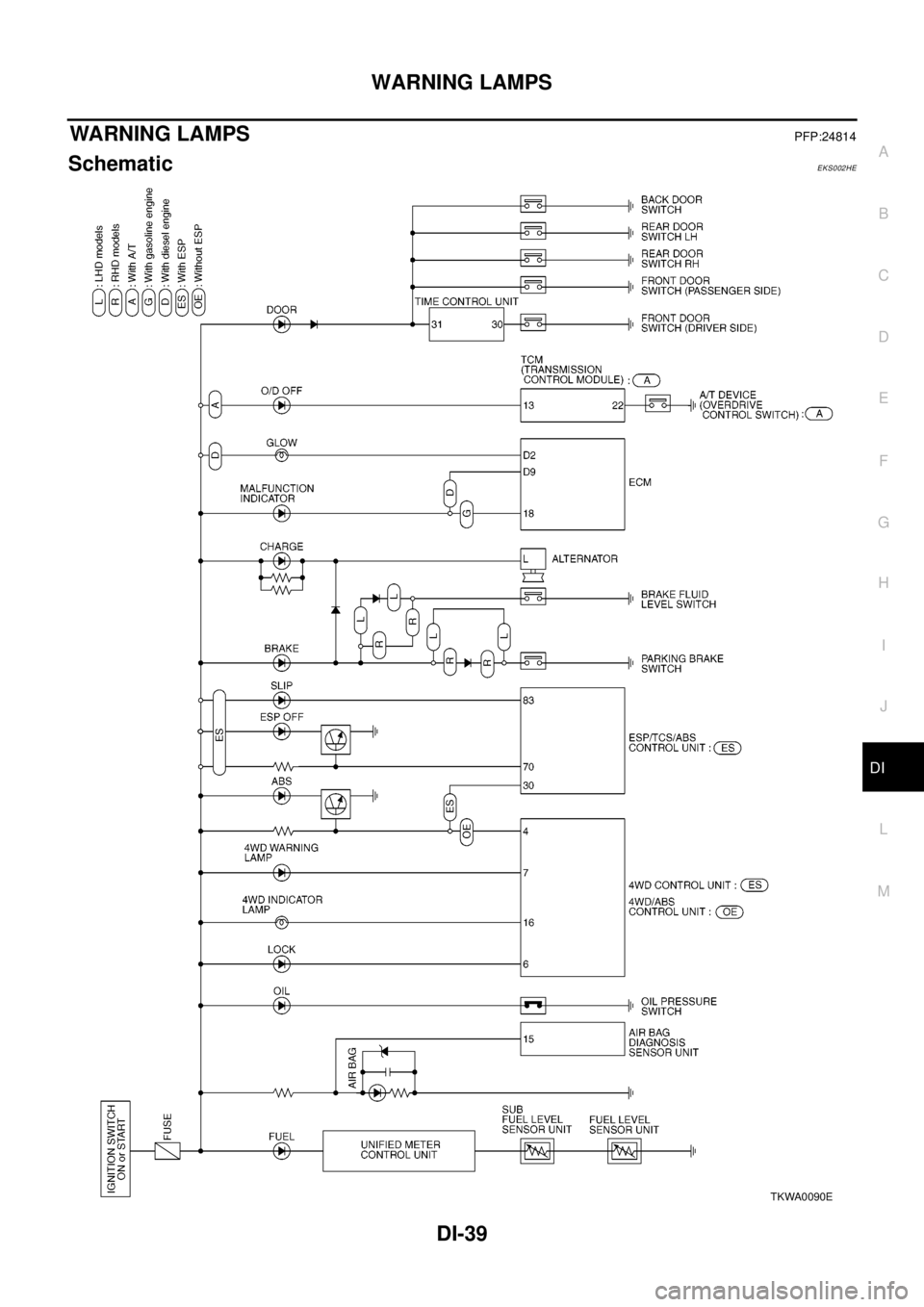

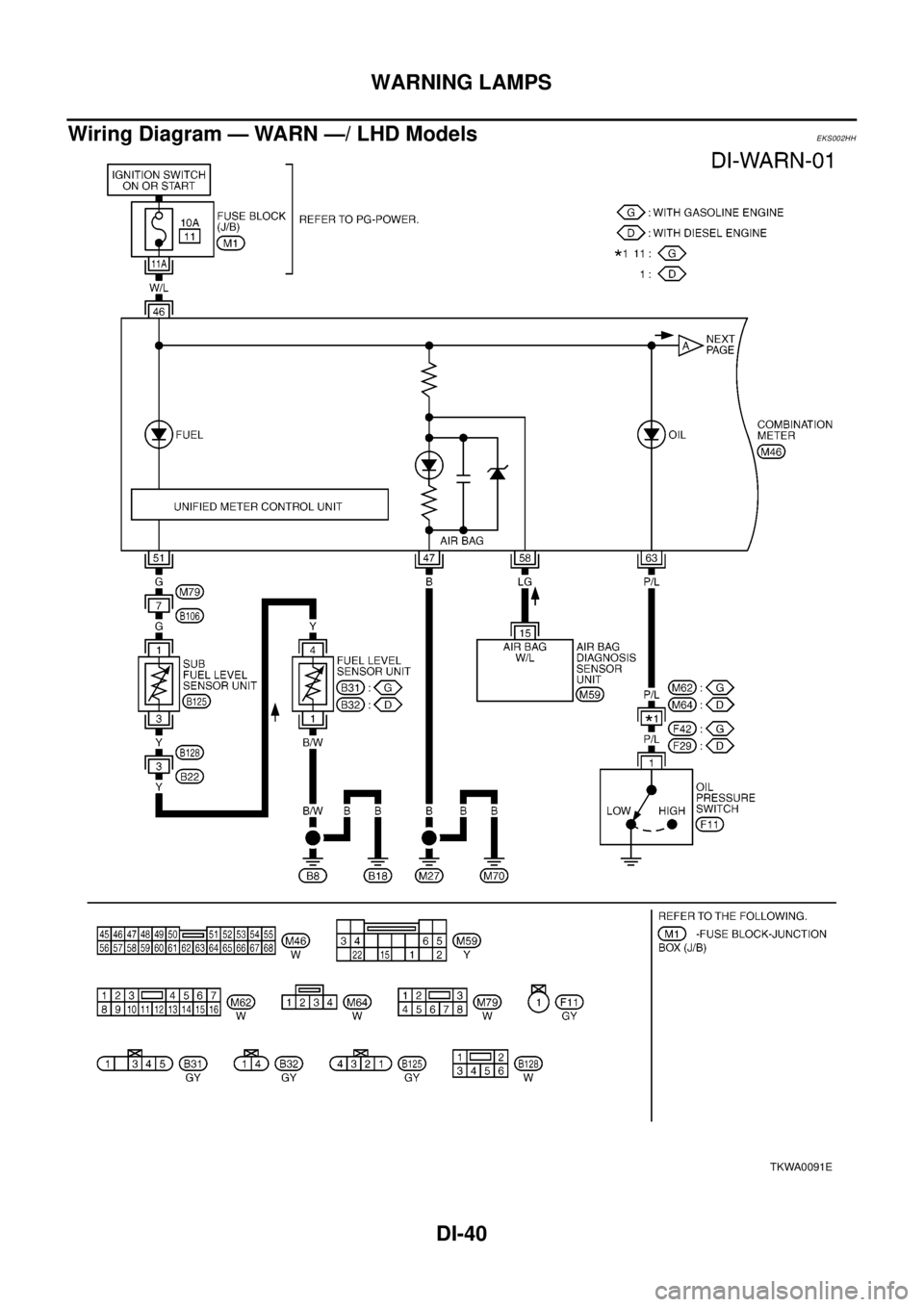

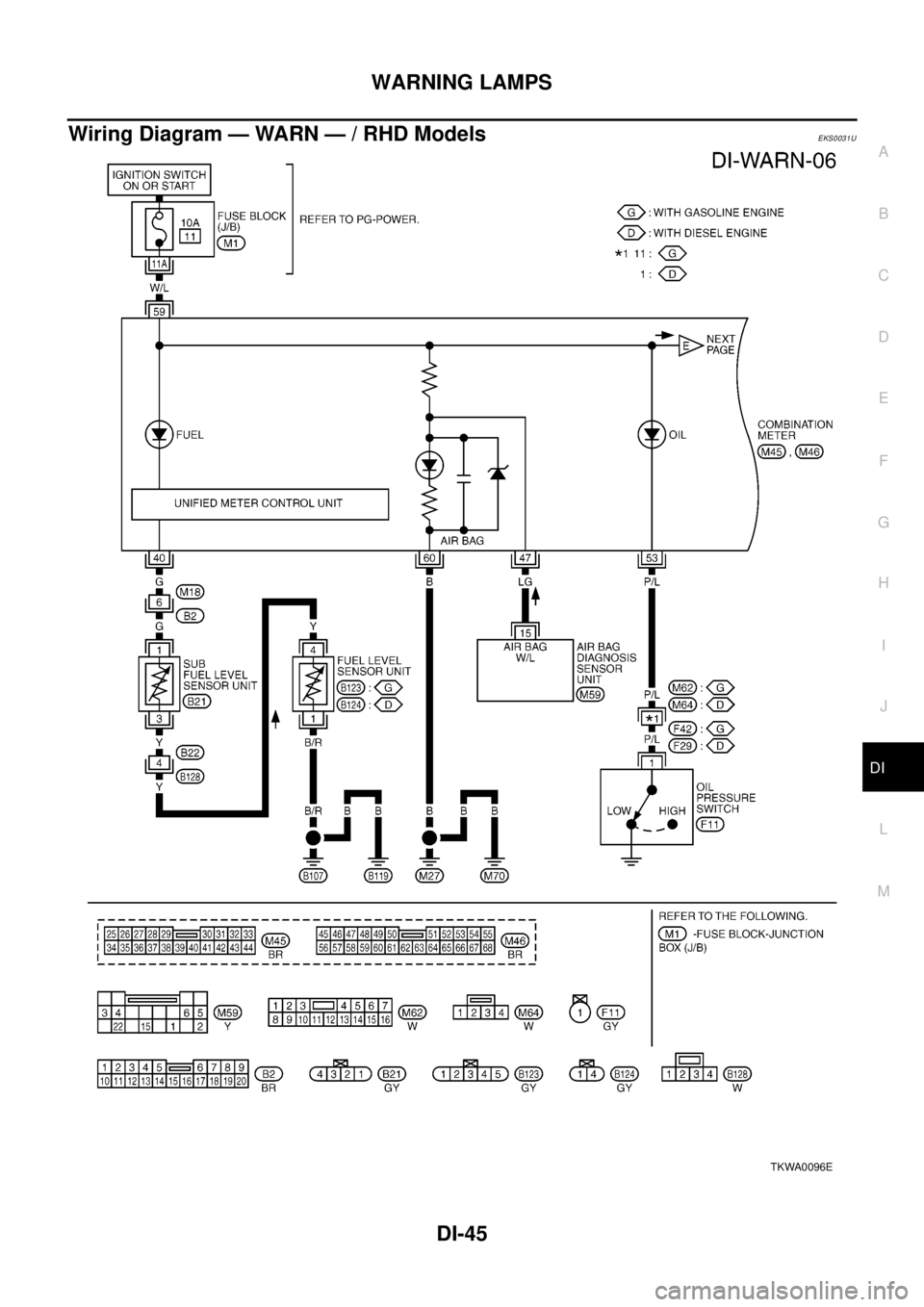

Low Fuel Warning Lamp Illuminate or Not IlluminateEKS0030X
1.DIAGNOSIS MODE INSPECTION
Preform combination meter diagnosis mode. Refer t

COMBINATION METERS (RHD MODELS)
DI-37
C
D
E
F
G
H
I
J
L
MA
B
DI
Low Fuel Warning Lamp Illuminate or Not IlluminateEKS0030X
1.DIAGNOSIS MODE INSPECTION
Preform combination meter diagnosis mode. Refer toDI-28, "
Meter/Gauge Operation and Odo/Trip Meter
Segment Check in Diagnosis Mode".
OK or NG
OK >> Check fuel level sensor unit or sub fuel level sensor unit. Refer toDI-37, "Electrical Components
Inspection".
NG >> Replace combination meter.
Electrical Components InspectionEKS0031V
FUEL LEVEL SENSOR UNIT CHECK / GASOLINE ENGINE MODELS
For removal, refer toFL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY"for
Gasoline engine models.
Fuel level sensor unit
Check the resistance between terminals 1 and 4.
*1 and *2: When float rod is in contact with stopper.
Sub fuel level sensor unit
Check the resistance between terminals 3 and 1.
*1 and *2: When float rod is in contact with stopper.
FUEL LEVEL SENSOR UNIT CHECK / DIESEL ENGINE MODELS
For removal, refer toFL-17, "FUEL LEVEL SENSOR UNIT"for Diesel engine models.
Fuel level sensor unit
Check the resistance between terminals 1 and 4.
*1 and *2: When float rod is in contact with stopper.Ohmmeter
Float position mm (in)Resistance
valueW
(+) (-)
41*1 Full 24 (2.36) Approx. 4 - 6
*2 Empty 167 (6.57) Approx.79 - 84
SKIA0904E
Ohmmeter
Float position mm (in)Resistance
valueW
(+) (-)
13*1 Full 35 (1.50) Approx. 0.8 -1
*2 Empty 186 (6.38) Approx.79 - 84
SKIA1032E
Ohmmeter
Float position mm (in)Resistance
valueW
(+) (-)
41*1 Full 24 (2.38) Approx. 4 - 6
23 Empty 170 (6.46) Approx. 79 - 84
SKIA0908E

Page 1092 of 3066

NISSAN X-TRAIL 2003 Electronic Repair Manual DI-38
COMBINATION METERS (RHD MODELS)
Sub fuel level sensor unit
Check the resistance between terminals 1 and 3.
*1 and *2: When float rod is in contact with stopper.
THERMAL TRANSMITTER CHECK
Check t

DI-38
COMBINATION METERS (RHD MODELS)
Sub fuel level sensor unit
Check the resistance between terminals 1 and 3.
*1 and *2: When float rod is in contact with stopper.
THERMAL TRANSMITTER CHECK
Check the resistance between the terminals of thermal transmitter
and body ground.
Removal and Installation for Combination MeterEKS0030Z
1. Remove the cluster lid A. Refer toIP-3, "INSTRUMENT PANEL
ASSEMBLY".
2. Remove the screws (4), and pull out combination meter.
3. Disconnect connectors and remove combination meter.
Disassembly and Assembly for Combination MeterEKS00310
1. Disengaged the tabs(8) to separate front cover.
2. Remove finisher.
3. Remove bulbs.
Ohmmeter
Float position mm (in)Resistance
valueW
(+) (-)
13*1 Full 35 (1.50) Approx. 0.8 - 1.0
*3 Empty 186(6.38) Approx. 38 - 42
SKIA1031E
Water temperature Resistance
60°C(140°F) Approx. 170 - 210W
100°C (212°F) Approx. 47 - 53W
MEL424F
SKIA0036E
SKIA0044E
