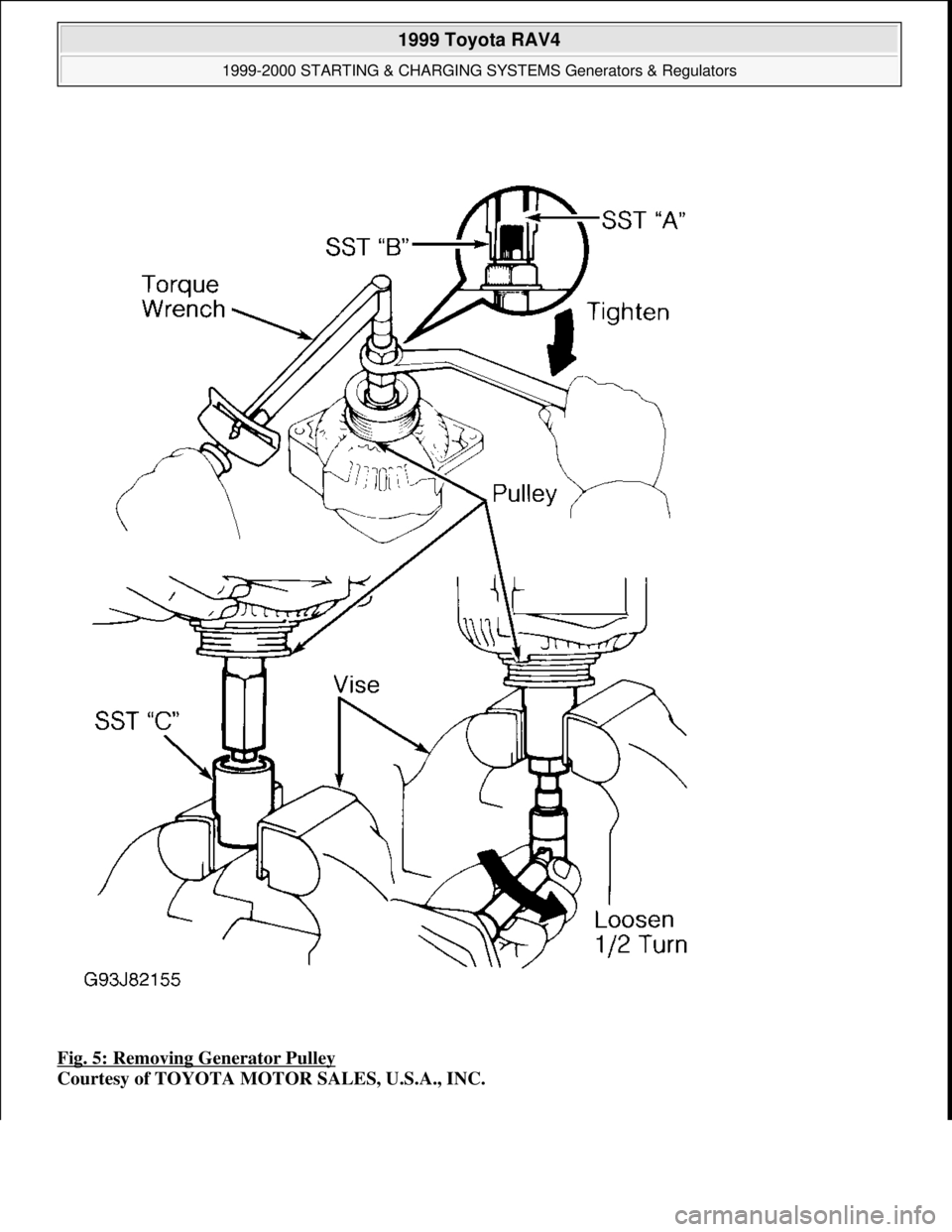

Fig. 5: Removing Generator Pulley
Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

1999 Toyota RAV4
1999-2000 STARTING & CHARGING SYSTEMS Generators & Regulators
Microsoft
Sunday, November 22, 2009 10:13:08 AMPage 10 © 2005 Mitchell Repair Information Company, LLC.

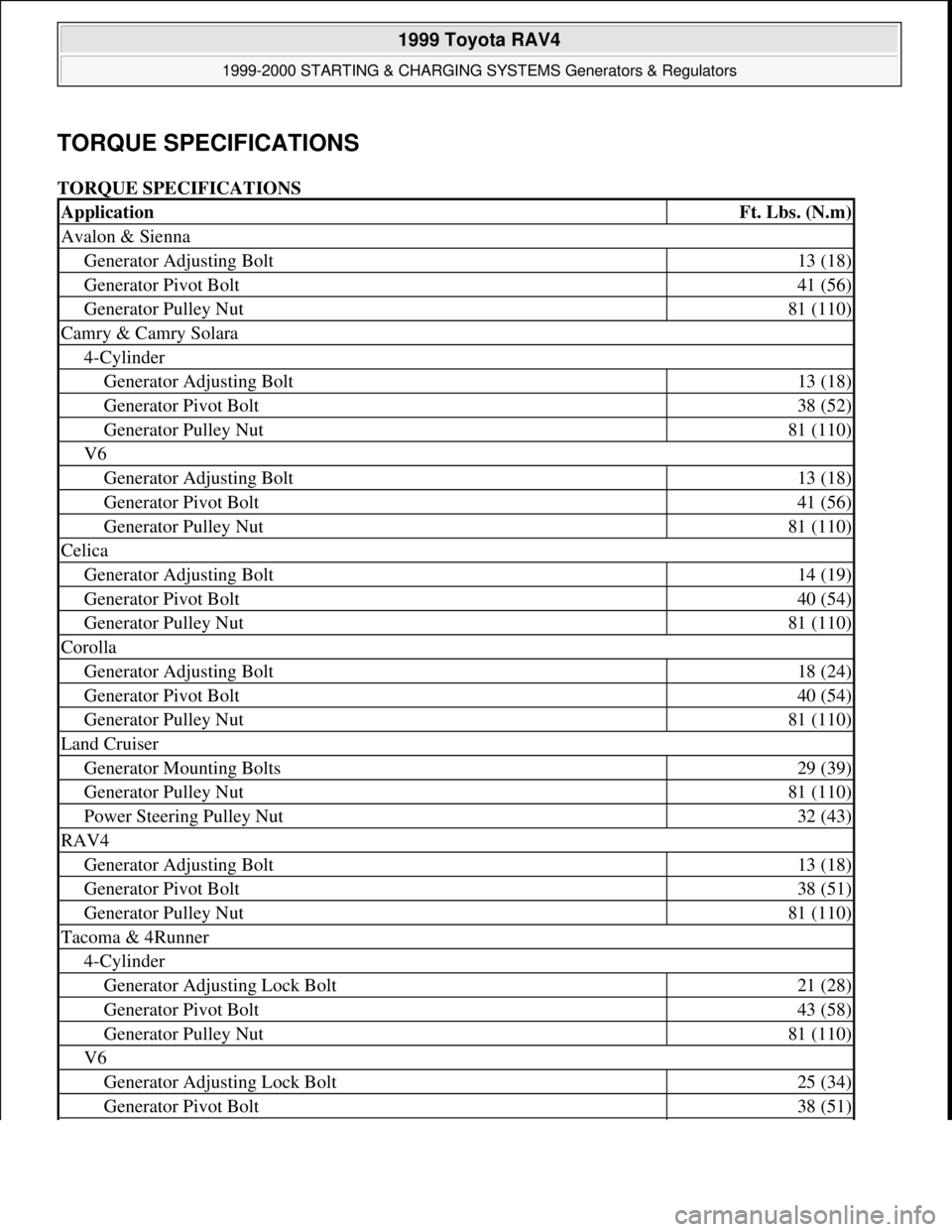

TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
ApplicationFt. Lbs. (N.m)
Avalon & Sienna
Generator Adjusting Bolt13 (18)
Generator Pivot Bolt41 (56)
Generator Pulley Nut81 (110)
Camry & Camry Solara
4-Cylinder
Generator Adjusting Bolt13 (18)
Generator Pivot Bolt38 (52)
Generator Pulley Nut81 (110)
V6
Generator Adjusting Bolt13 (18)
Generator Pivot Bolt41 (56)
Generator Pulley Nut81 (110)
Celica
Generator Adjusting Bolt14 (19)
Generator Pivot Bolt40 (54)
Generator Pulley Nut81 (110)
Corolla
Generator Adjusting Bolt18 (24)
Generator Pivot Bolt40 (54)
Generator Pulley Nut81 (110)
Land Cruiser
Generator Mounting Bolts29 (39)
Generator Pulley Nut81 (110)
Power Steering Pulley Nut32 (43)
RAV4
Generator Adjusting Bolt13 (18)
Generator Pivot Bolt38 (51)
Generator Pulley Nut81 (110)
Tacoma & 4Runner
4-Cylinder
Generator Adjusting Lock Bolt21 (28)
Generator Pivot Bolt43 (58)
Generator Pulley Nut81 (110)
V6
Generator Adjusting Lock Bolt25 (34)
Generator Pivot Bolt38 (51)

1999 Toyota RAV4
1999-2000 STARTING & CHARGING SYSTEMS Generators & Regulators
Microsoft
Sunday, November 22, 2009 10:13:08 AMPage 11 © 2005 Mitchell Repair Information Company, LLC.

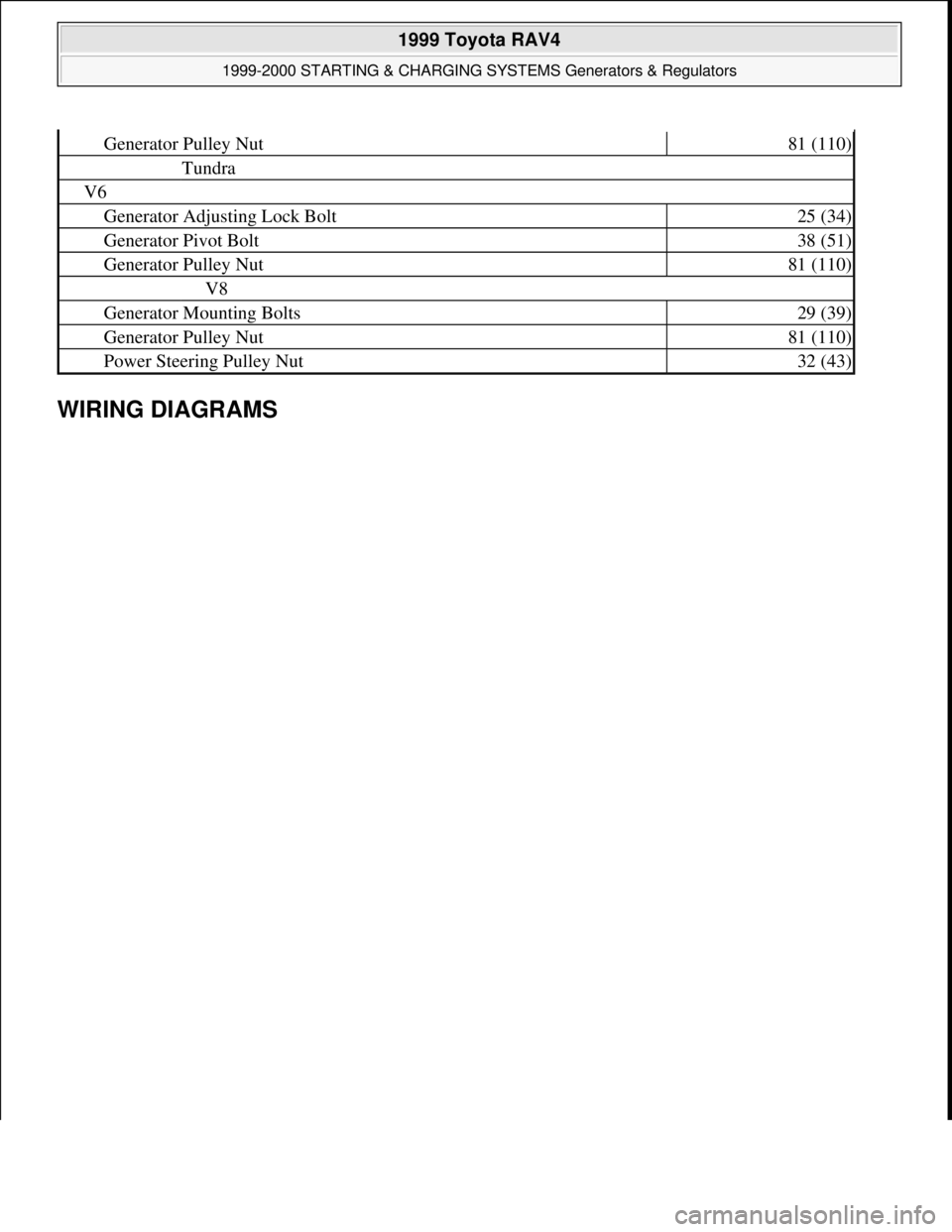

WIRING DIAGRAMS
Generator Pulley Nut81 (110)
Tundra
V6
Generator Adjusting Lock Bolt25 (34)
Generator Pivot Bolt38 (51)
Generator Pulley Nut81 (110)
V8
Generator Mounting Bolts29 (39)
Generator Pulley Nut81 (110)
Power Steering Pulley Nut32 (43)

1999 Toyota RAV4
1999-2000 STARTING & CHARGING SYSTEMS Generators & Regulators
Microsoft
Sunday, November 22, 2009 10:13:08 AMPage 12 © 2005 Mitchell Repair Information Company, LLC.

1999 Toyota RAV4
1999-2000 STARTING & CHARGING SYSTEMS Generators & Regulators
Microsoft
Sunday, November 22, 2009 10:13:08 AMPage 13 © 2005 Mitchell Repair Information Company, LLC.

Fig. 6: Charging System Wiring Diagram (Avalon)

1999 Toyota RAV4
1999-2000 STARTING & CHARGING SYSTEMS Generators & Regulators
Microsoft
Sunday, November 22, 2009 10:13:08 AMPage 14 © 2005 Mitchell Repair Information Company, LLC.

1999 Toyota RAV4
1999-2000 STARTING & CHARGING SYSTEMS Generators & Regulators
Microsoft
Sunday, November 22, 2009 10:13:08 AMPage 15 © 2005 Mitchell Repair Information Company, LLC.

Fig. 7: Charging System Wiring Diagram (Camry)

1999 Toyota RAV4
1999-2000 STARTING & CHARGING SYSTEMS Generators & Regulators
Microsoft
Sunday, November 22, 2009 10:13:08 AMPage 16 © 2005 Mitchell Repair Information Company, LLC.

1999 Toyota RAV4
1999-2000 STARTING & CHARGING SYSTEMS Generators & Regulators
Microsoft
Sunday, November 22, 2009 10:13:08 AMPage 17 © 2005 Mitchell Repair Information Company, LLC.

Fig. 8: Charging System Wiring Diagram (Camry Solara)
